Active subwoofer Hertz DBA 200.3

active subwoofer, Ø 8" (200 mm), 110 W RMS, 92 dB (SPL 2.83V/1m), 4 Ω
More about the product
We will help you with your purchase
Active subwoofer Hertz DBA 200.3

Active subwoofer Hertz DBA 200.3

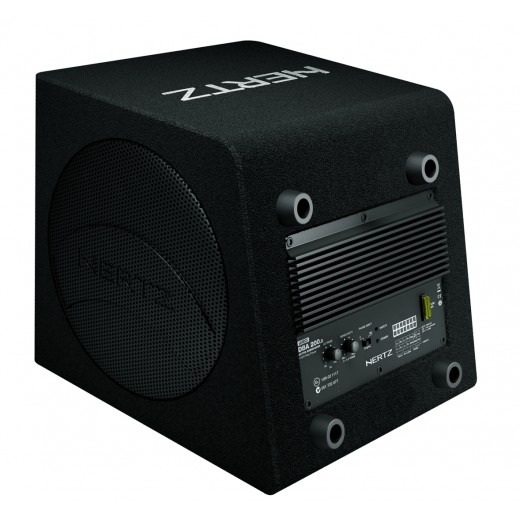

The Hertz DBA 200.3 is a 200mm (8") active subwoofer powered by a 140W amplifier built into the back of the cabinet. The control panel is used to adjust the frequencies, level and acoustic phase according to your own listening taste. The system has been designed to satisfy those who need bass in a compact size for use in any vehicle.

The main features of the active subwoofer Hertz DBA 200.3

  • 140 W integrated amplifier.
  • The control panel is used to set the frequency, level and phase.
  • Hi input inputs for car radios without RCA.
  • One connector for easy subwoofer installation and removal.
  • Construction from 18 mm MDF.
  • The sloping rear wall allows you to sit behind the rear seats.

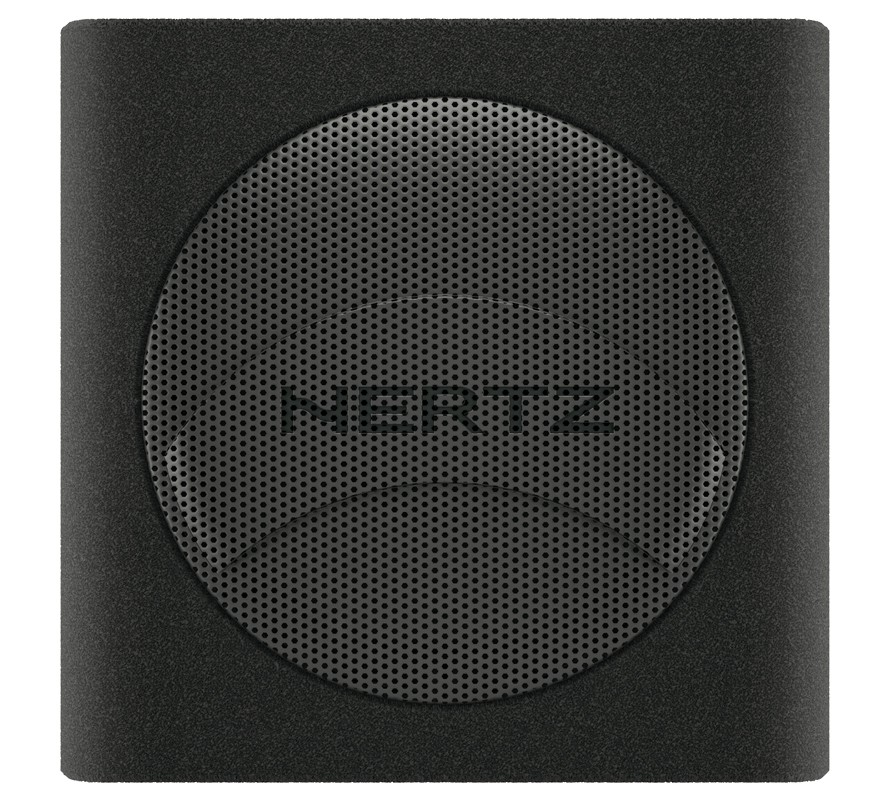

  • Grille with Hertz logo that offers 100% subwoofer protection.
Catalog numberDBA 200.3
BrandHertz
LinksOfficial web presentation
RMS power of the subwooferThe RMS power of an active subwoofer is the constant power that the active subwoofer can play over a long period of time. We recommend following this value. The RMS power of active subwoofers is taken as the RMS power of the integrated amplifier, which in most cases is slightly undersized, which guarantees protection against subwoofer burning. 110 W
Maximum subwoofer performancePeak performance or Max. power that an active subwoofer can play for a moment (approx. 0.5 s), for example when percussion instruments are struck in a recording. But it is not as important a parameter as the RMS power. 140 W
The diameter of the subwoofer usedThe diameter of the subwoofer that is installed in the active box. 200mm (8")
Frequency rangeThe ability of the device to reproduce a signal from the lowest frequency to the highest, or the ability of an active subwoofer to faithfully reproduce sound in a specific frequency band.

Professionally:
In the frequency range from 40 to 16,000 Hz, the vast majority of fundamental and overtones (harmonics) of all musical instruments are found. We are interested in the course of the radiated sound pressure in this range of frequencies when the loudspeaker system is supplied with constant power. We call this course the frequency characteristic, which tells us the level of radiated sound pressure in decibels (dB) depending on the frequency. The frequency characteristic of a speaker or speaker system can be expressed most succinctly with a graph.

Mostly, however, the frequency characteristic is indicated by indicating the maximum tolerance of the sound pressure in the given frequency range, e.g. 50 to 15,000 Hz -+ 6 dB. since the frequency characteristics of loudspeakers and systems in general are quite uneven, some manufacturers do not even specify this maximum tolerance of sound pressure in decibels for reasons of prestige. Data impoverished in this way is worthless. What is valid is that the manufacturer offers a speaker system with a frequency range of 30 to 20,000 Hz, if he is worried about stating the maximum unevenness of the sound pressure in this range, because he can have a tolerance of, for example, +- 20 dB.

The unevenness, i.e. the undulation of the frequency course in good speaker systems for quality music performance should not exceed +-3 dB in the 80 to 12,000 Hz band and +-6 dB in the 40 to 16,000 Hz band. Greater unevenness already depletes or emphasizes certain tonal areas, which can cause audible or even disturbing distortion. The proportion between fundamental tones and higher harmonics also changes, thereby changing the color of the sound, and individual musical instruments as well as the entire musical image sound unnatural.
32 - 400 Hz
Protective gridProtective grids or bars, as protection against mechanical damage to the subwoofer. Yes
What is the baffle made of?Active subwoofers can be made of MDF board, hardened plastic, sheet metal, aluminum or a combination of different materials. MDF
Active subwoofer dimensions293 x 330 x 263 mm
