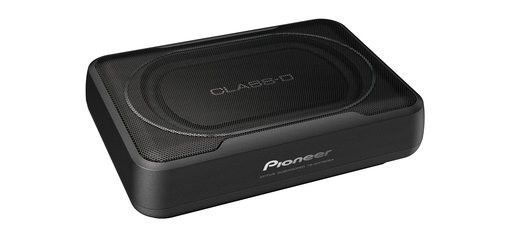

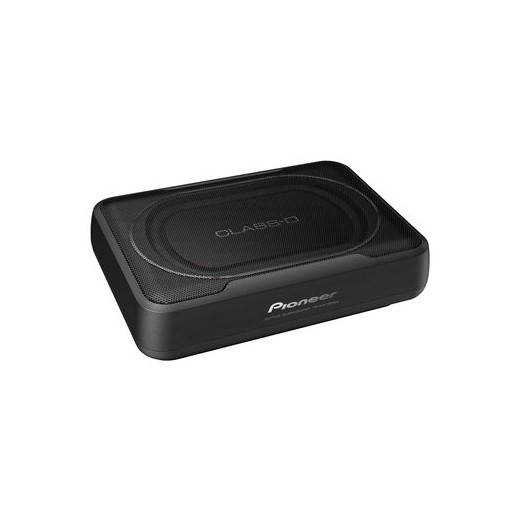

Active subwoofer Pioneer TS-WX130EA

Active subwoofer Pioneer TS-WX130EA

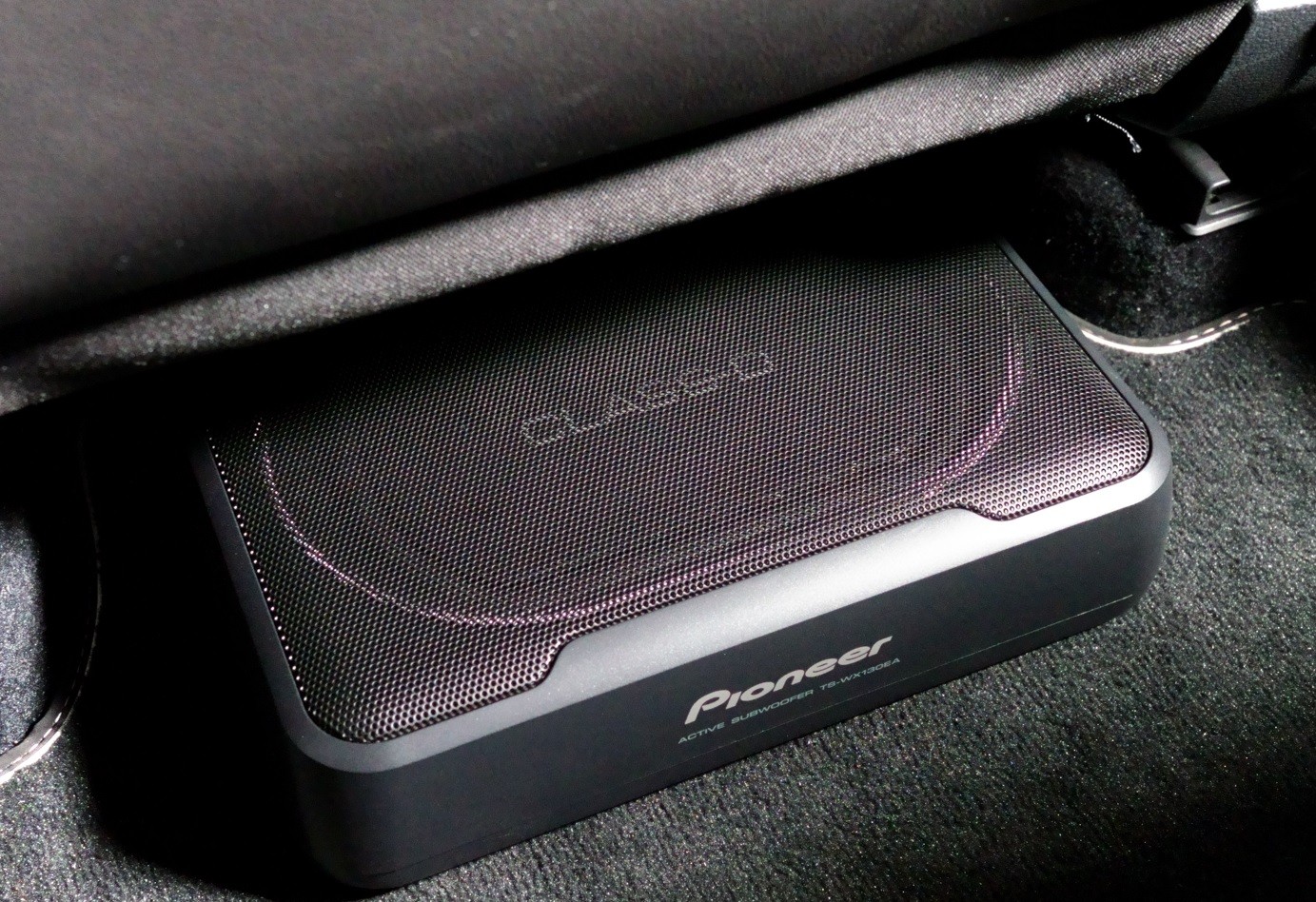

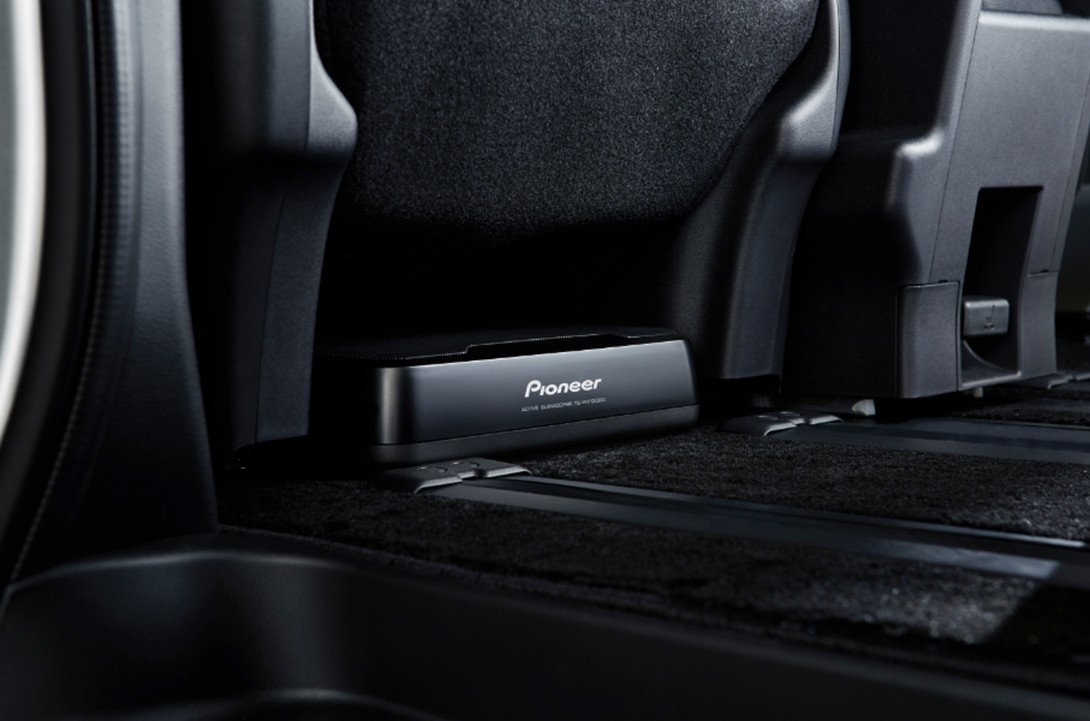

Pioneer launches the next product in its class D powered subwoofer generation. It produces 160W of powerful, rich and deep bass that you can feel without giving up space. With amplifier adjustments right on the product itself, users can easily control and customize the bass output. Users can easily mount the TS-WX130EA under the front seats or in the trunk. Incorporating Class-D technology, Pioneer's TS-WX130EA system is even easier to install as it is capable of accepting both High (Speaker Line Input) and Low (RCA Line Input) input signals. The TS-WX130EA is a small active subwoofer in a sealed enclosure with 160W output and 50W nominal power.

Catalog number	TS-WX130EA
Brand	Pioneer
Links	Official web presentation
RMS power of the subwooferThe RMS power of an active subwoofer is the constant power that the active subwoofer can play over a long period of time. We recommend following this value. The RMS power of active subwoofers is taken as the RMS power of the integrated amplifier, which in most cases is slightly undersized, which guarantees protection against subwoofer burning.	50 W
Maximum subwoofer performancePeak performance or Max. power that an active subwoofer can play for a moment (approx. 0.5 s), for example when percussion instruments are struck in a recording. But it is not as important a parameter as the RMS power.	160 W
Energy class of the amplifierAmplifiers are divided into two basic classes: analog and digital . Analog amplifiers (A/B) have higher consumption requirements, but usually have a more natural sound. Digital amplifiers (D) have significantly lower consumption and higher efficiency, but the sound may not be as faithful as with classic analog amplifiers.	D
The diameter of the subwoofer usedThe diameter of the subwoofer that is installed in the active box.	200 x 130 mm
Frequency rangeThe ability of the device to reproduce a signal from the lowest frequency to the highest, or the ability of an active subwoofer to faithfully reproduce sound in a specific frequency band. Professionally: In the frequency range from 40 to 16,000 Hz, the vast majority of fundamental and overtones (harmonics) of all musical instruments are found. We are interested in the course of the radiated sound pressure in this range of frequencies when the loudspeaker system is supplied with constant power. We call this course the frequency characteristic, which tells us the level of radiated sound pressure in decibels (dB) depending on the frequency. The frequency characteristic of a speaker or speaker system can be expressed most succinctly with a graph. Mostly, however, the frequency characteristic is indicated by indicating the maximum tolerance of the sound pressure in the given frequency range, e.g. 50 to 15,000 Hz -+ 6 dB. since the frequency characteristics of loudspeakers and systems in general are quite uneven, some manufacturers do not even specify this maximum tolerance of sound pressure in decibels for reasons of prestige. Data impoverished in this way is worthless. What is valid is that the manufacturer offers a speaker system with a frequency range of 30 to 20,000 Hz, if he is worried about stating the maximum unevenness of the sound pressure in this range, because he can have a tolerance of, for example, +- 20 dB. The unevenness, i.e. the undulation of the frequency course in good speaker systems for quality music performance should not exceed +-3 dB in the 80 to 12,000 Hz band and +-6 dB in the 40 to 16,000 Hz band. Greater unevenness already depletes or emphasizes certain tonal areas, which can cause audible or even disturbing distortion. The proportion between fundamental tones and higher harmonics also changes, thereby changing the color of the sound, and individual musical instruments as well as the entire musical image sound unnatural.	40 - 200 Hz
Crossover setting optionsUsually this involves tuning the LPF filter on the active subwoofer.	Yes
Cabling included in the packageSome active subwoofers have complete wiring included in the package. In the event that the package really includes complete wiring for connection, we mark the parameter as "yes". If the wiring is not included, it must be purchased.	Yes
Protective gridProtective grids or bars, as protection against mechanical damage to the subwoofer.	Yes
Active subwoofer dimensions	280 x 200 x 70 mm
Mass	3.2 kg
