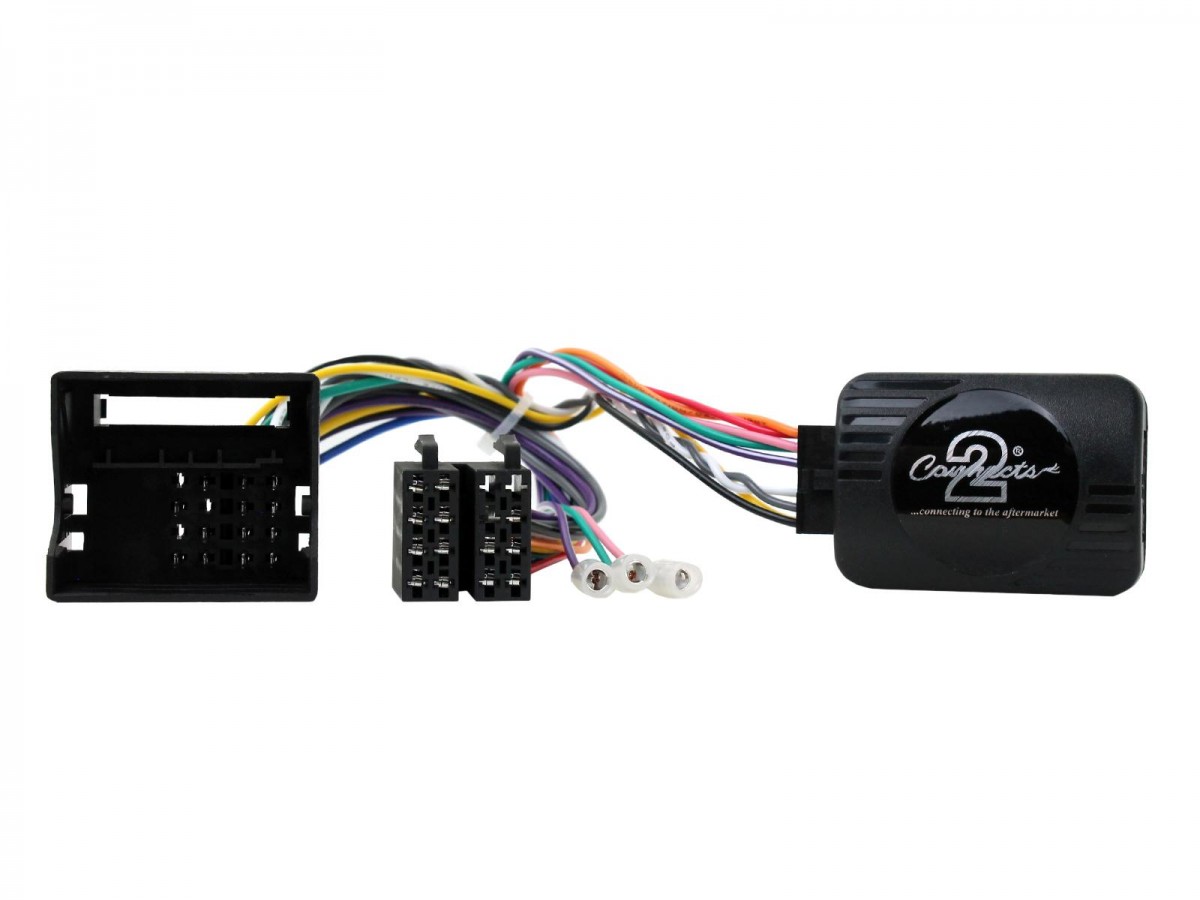

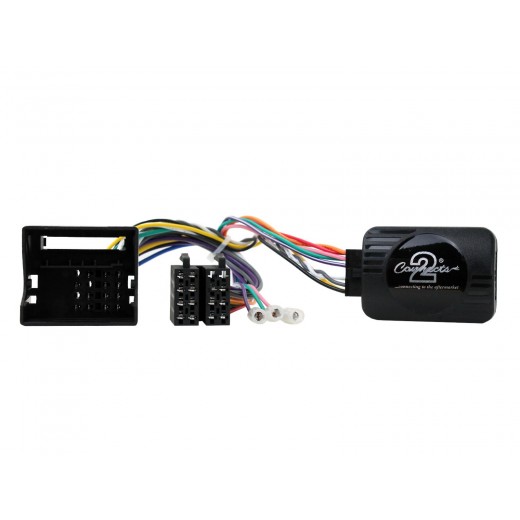

Adapter for controlling buttons on the steering wheel VW Multivan, Touareg Connects2 CTSVW003.2

Volkswagen steering wheel adapter

Adapter for activating the control buttons on the steering wheel when buying an aftermarket car radio with an ISO connector (included in the adapter) for vehicles:

• Volkswagen Multivan (2003 -> 2009)
• Volkswagen Touareg I (2003 -> 2010)

Important additional information

• For cars with CAN-Bus control on the steering wheel and FAKRA connector.
• The adapter has limited functions, only the buttons on the steering wheel can be controlled: volume + /- and Mute.
• Designed for aftermarket Sony, Kenwood, Panasonic, JVC, Pioneer, Blaupunkt, Clarion, Alpine, LG, Zenec, Becker car radios.
• Installation instructions in English can be found under this link .
• To fully activate the adapter, it is necessary to order a connecting cable for the given brand of car radio! (see below)

The adapter includes wires with analog signals

• +12 V after turning on the key (vol. 15) - fitted in the ISO connector.
• +12 V after switching on the vehicle lighting - fitted in the ISO connector.
• +12 V after engaging reverse gear - free wire.
• Speed pulses - free wire.
• Ground (- pole) with the handbrake applied - free wire.
