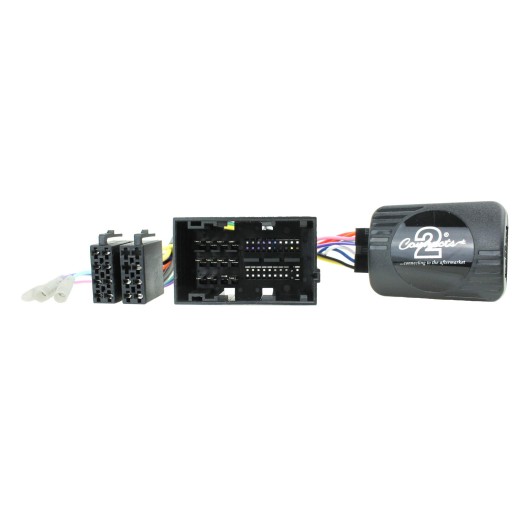

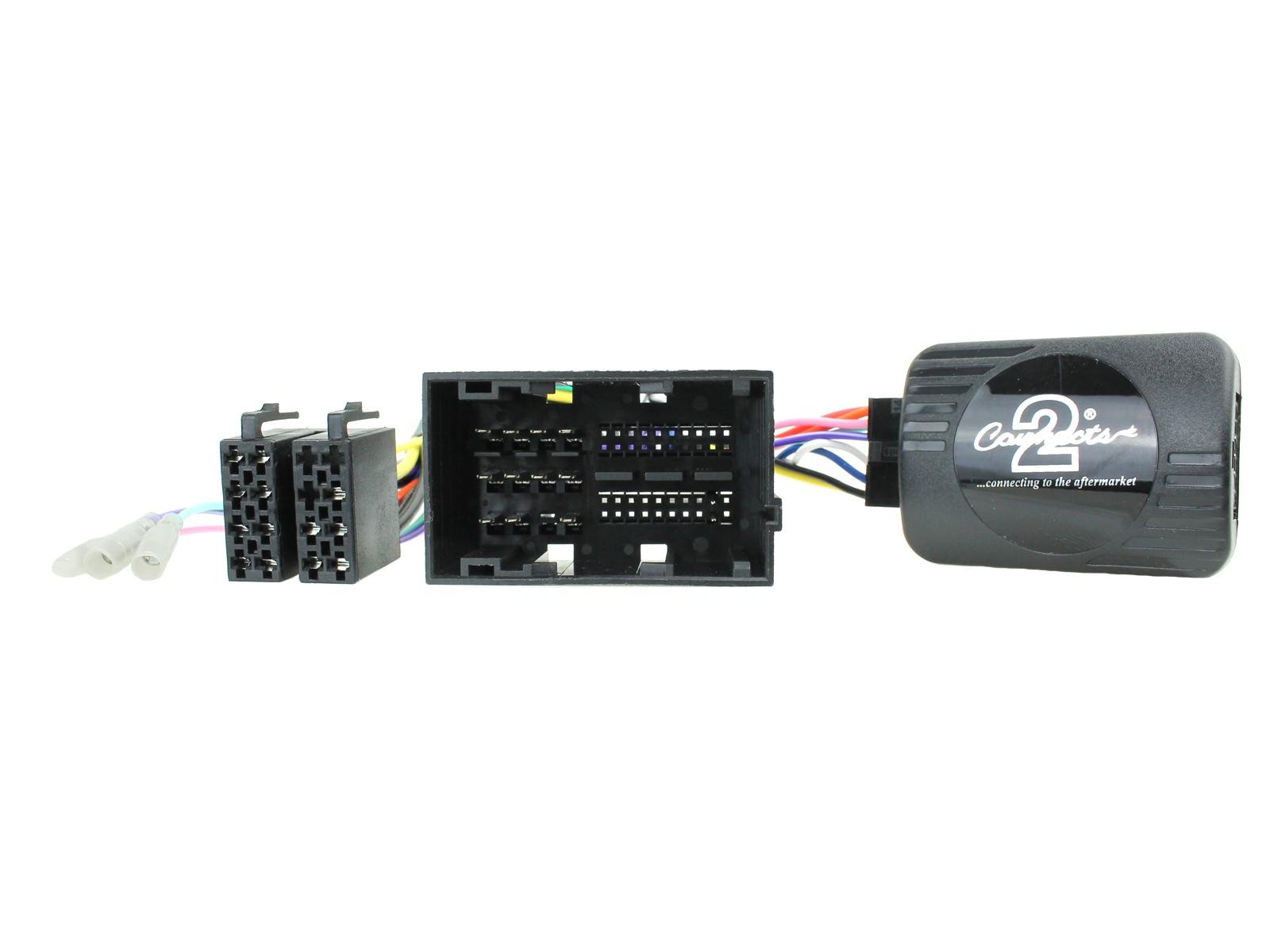

Alfa Romeo / Fiat Connects2 steering wheel button control adapter CTSFA011.2

Alfa Romeo / Fiat steering wheel adapter

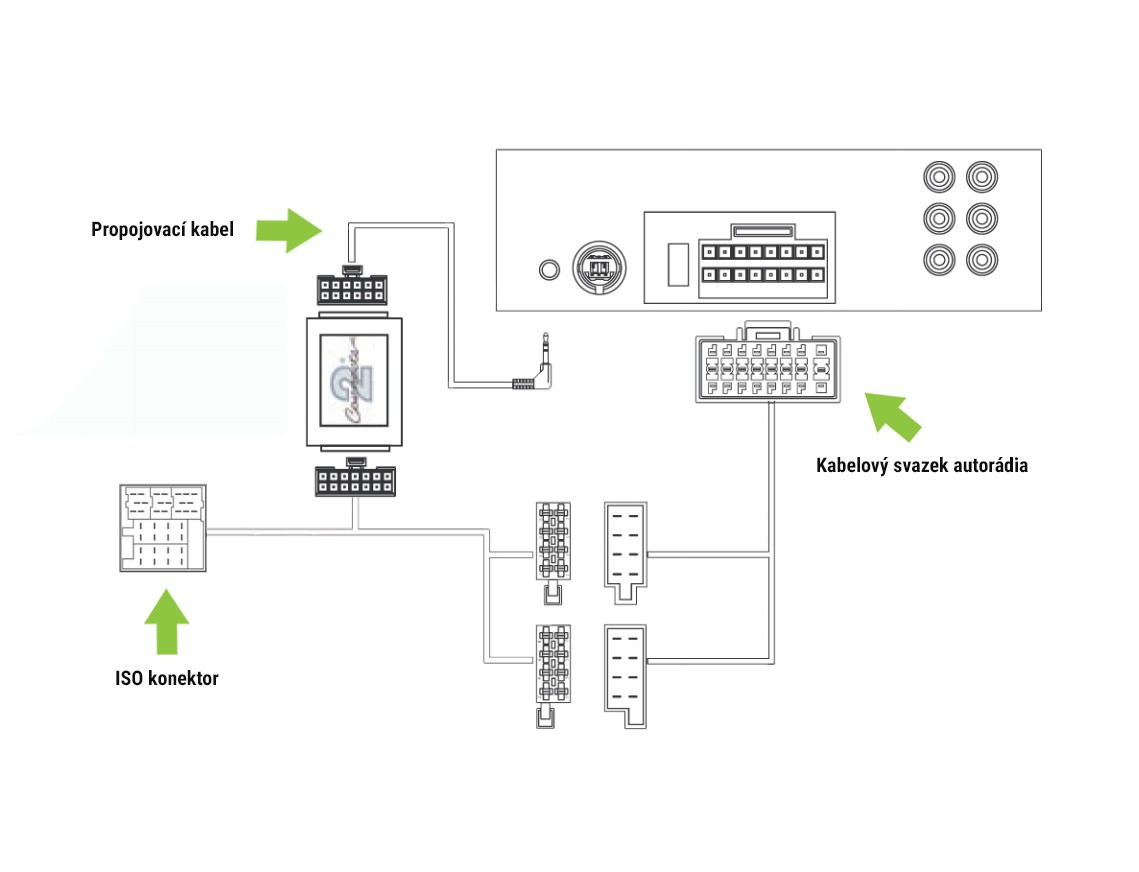

Adapter for activating the control buttons on the steering wheel when buying an aftermarket car radio with an ISO connector (included in the adapter) for vehicles:

• ALFA ROMEO 159 [939] (2005-2011)
• ALFA ROMEO Brera [939] (2005-2010)
• ALFA ROMEO Giulietta [940] (2010->)
• ALFA ROMEO Mito [955] (2006-2010)
• ALFA ROMEO Spider [939] (2006-2010)

• FIAT 500 [150] (2009->)
• FIAT Bravo II. [198] (2007->)
• FIAT Croma II. [194] (2005–2010)
• FIAT Doblo II. [263] (2010->)

Important additional information

• +12 V after turning on the key (vol. 15) - fitted in the ISO connector.
• +12 V after switching on the vehicle lighting - fitted in the ISO connector.
• +12 V after engaging reverse gear.
• Speed pulses.
• Ground (- pole) with the handbrake applied.
• This information can be used to fit aftermarket car radios, navigation or monitoring systems.
• Installation instructions in English can be found under this link .
• To fully activate the adapter, it is necessary to order a connecting cable for the given brand of car radio! (see below)
