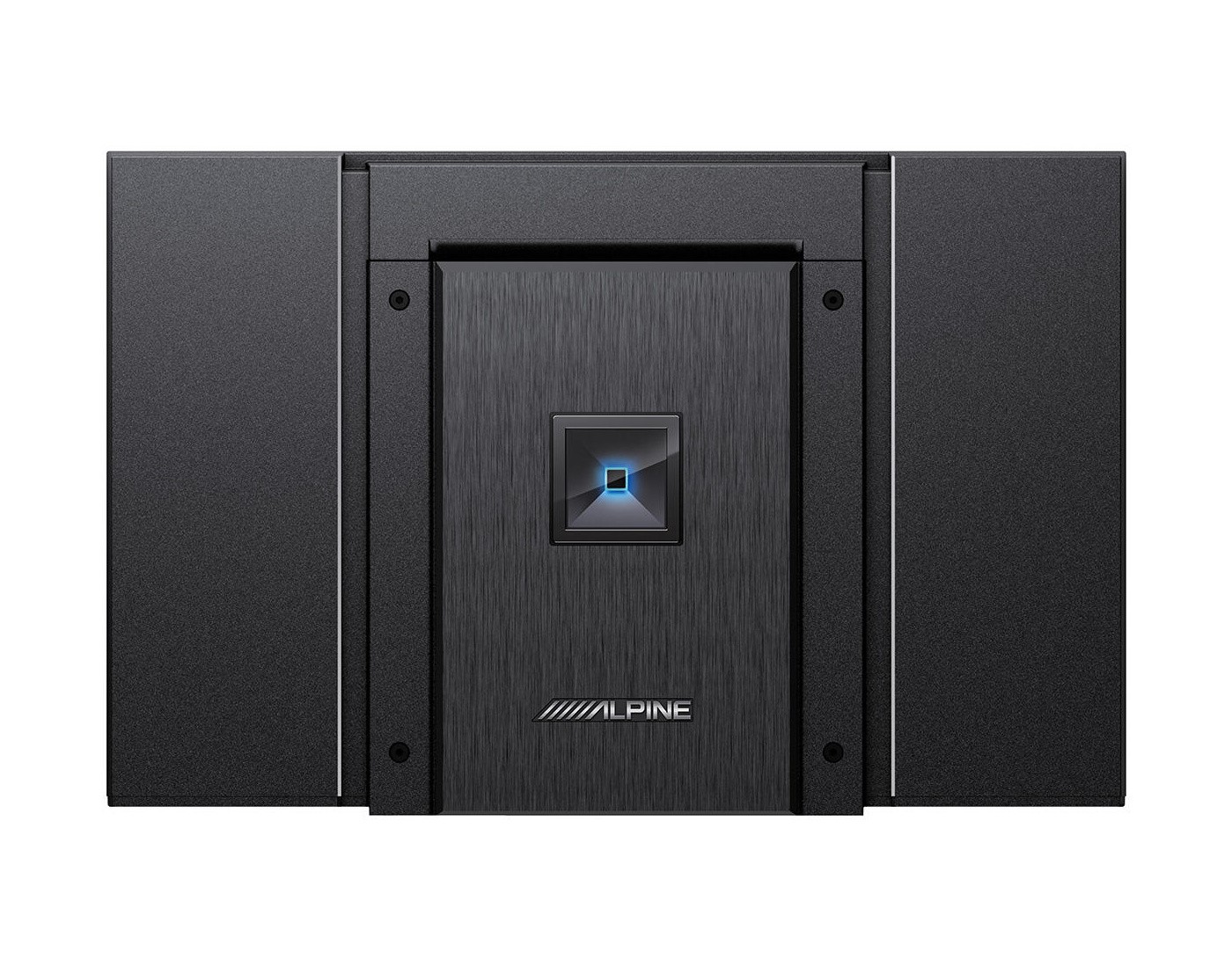

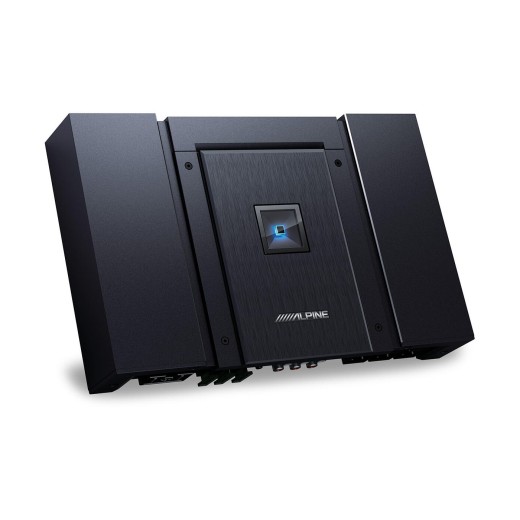

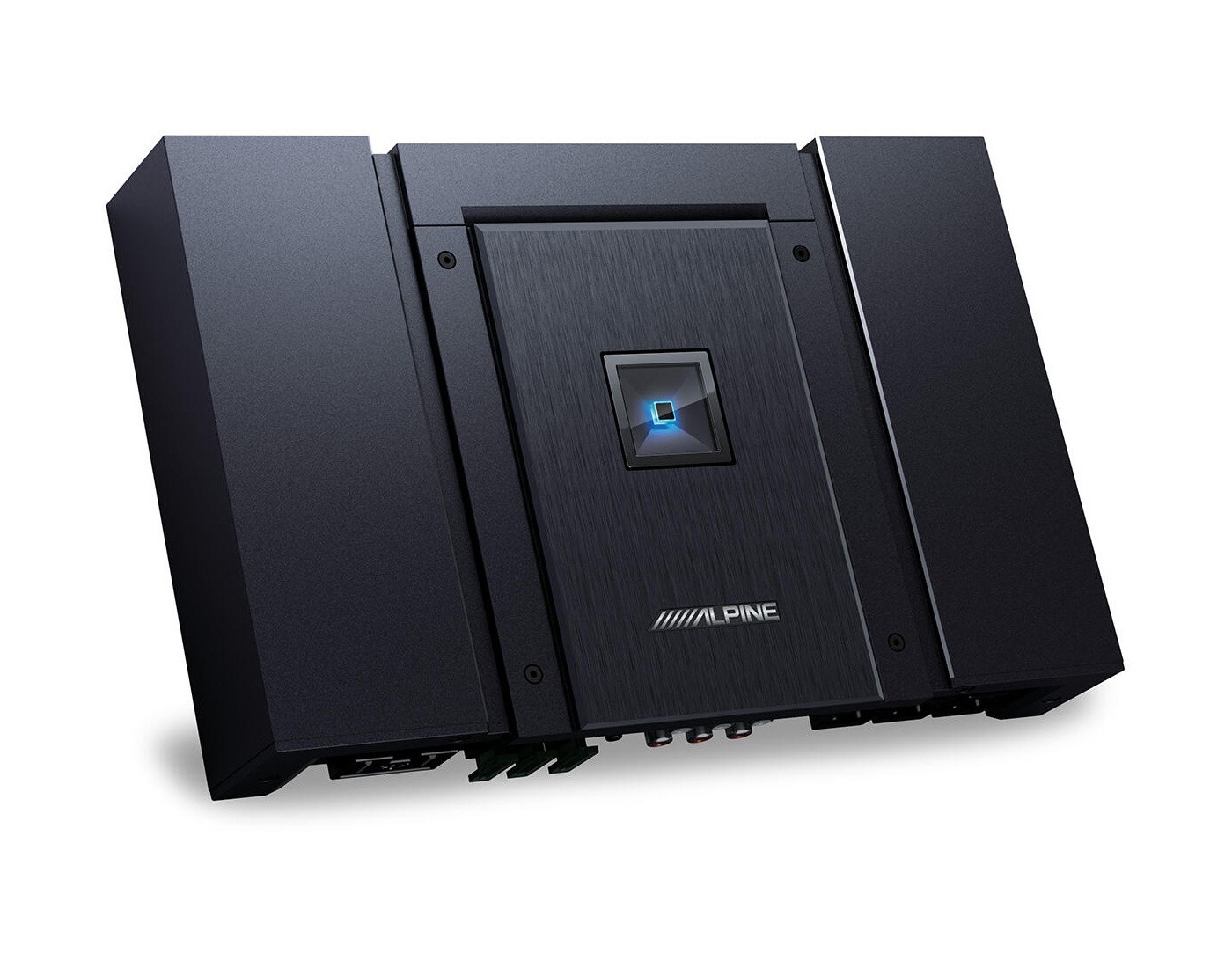

Alpine HDA-V90 amplifier

Name: Alpine HDA-V90 amplifier
Brand: Alpine
Price: 1062.58 EUR

Be the first to rate the product

Add to FavoritesRemove from favourites

5-channel amplifier, 4 x 100 W + 1 x 500 W into 2 Ω / 4 x 75 W + 1 x 300 W into 4 Ω
More about the product

We will help you with your purchase

Use our consulting room
You can return the goods to us within 14 days
Try the product at our store

Description and parameters
Comments0
Evaluation0
Category

Alpine HDA-V90 amplifier

Alpine has created an all-new "Alpine Status" sound system using the same technical and design concepts used in the third generation AlpineF#1Status Ultra High Definition system to achieve high definition sound at a more affordable price. The Alpine Status system is also extremely flexible: all components can be purchased and used in a "stand-alone" configuration. If you want to create a complete Alpine Status sound system with external amplifiers, we recommend the Alpine Status Class D amplifiers. These amplifiers are developed to perfectly match the Alpine Status speakers and subwoofer to ensure the best sound quality. There is a mono amplifier (HDA-M80), a four-channel amplifier (HDA-F60) and a five-channel amplifier (HDA-V90) with a dedicated high-power subwoofer channel. All controls are conveniently located on top of the amplifiers and protected by a cover plate. This gives you easy access to HP/LP filters and frequency settings, gain controls and input channel selectors (different for each amp model).

Main features

High-Resolution Audio Access - The Alpine Status features many of the technologies, components and materials of the AlpineF#1Status to achieve ultra-accurate music reproduction - at an affordable price. It is designed to play 192 kHz / 24-bit music tracks that are widely available in many online stores and streaming platforms. High-resolution 192 kHz / 24-bit audio playback enables Alpine Status to create an elevated in-vehicle listening experience that mimics the feel of an intimate recording studio session.
Excellent sound quality - Alpine Status amplifiers are equipped with many audiophile technologies and selected high-end components to reproduce excellent sound quality.
Alpine Status Full System - contains many components that are optimized for power and performance as a complete system for playback in the intended high definition specification for excellent audiophile sound quality. However, each component can be purchased separately to build your own system.
Sierra-H circuit - after the original analog sound wave is converted to a digital signal and amplified, the Sierra-H circuit double compares and corrects the amplified signal with the original waveform to reproduce a high-precision signal without any gaps.

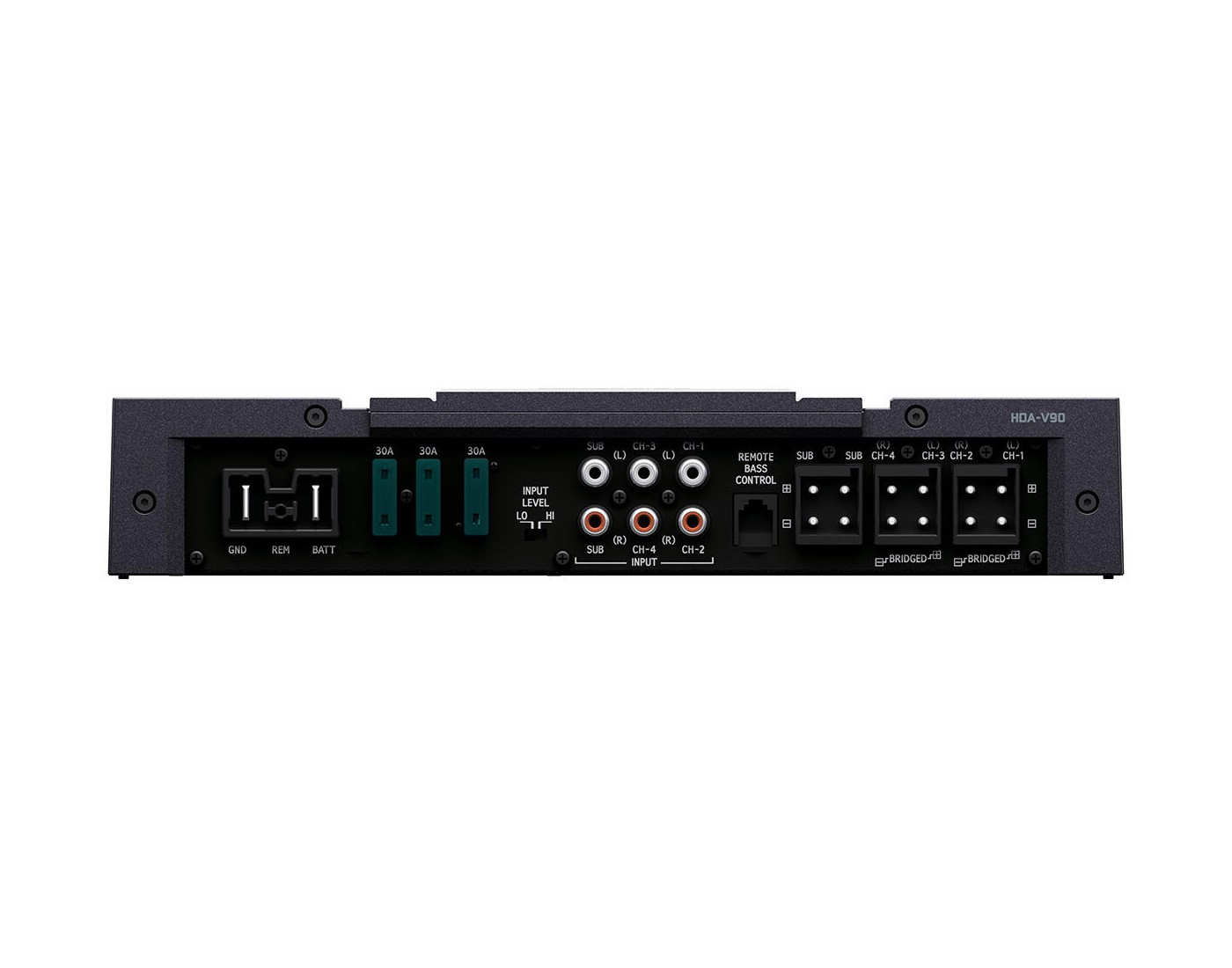

Single-sided terminal - all connections (power, speaker outputs, RCA inputs/outputs and bass remote control connector) as well as all fuses are located on the bottom of the amplifier. This makes it much easier to achieve a clean installation in your vehicle.
Thermal protection - along with Alpine's new intelligent amplifier platform, the new Alpine Status amplifiers feature an improved heatsink and protection circuit design that eliminates thermal shutdown for reliable music playback.
Studio recording specification - Alpine Status achieves 192kHz/24bit playback, which is 6.5 times the amount of digital audio data in a standard CD or digital streaming service and exceeds the standard 96kHz/24bit high definition specification found in most audio aftermarket solution. This allows Alpine Status to capture and accurately reproduce details such as a performer's breath or a musician's subtle interaction with an instrument. This capability not only reproduces the music as originally intended by the artist, but mimics the in-vehicle studio recording experience.

Technical characteristics

Channel design: 5/4/3 channels.
Class D amplifier circuit.
Power supply and speaker channel connectors.
Copper chassis.
Upper control panel (under the upper cover).
Black circuit board.
Construction without shutdown.
Thermal protection.
One-sided terminal.
Blue power LED.
Compatible with RUX-KNOB2 bass control (for subwoofer channel).
