Alpine iLX-F115DU multimedia car radio

Name: Alpine iLX-F115DU multimedia car radio
Brand: Alpine
Price: 1363.42 EUR
Availability: InStock

Be the first to rate the product

Add to FavoritesRemove from favourites

11" media receiver with 1DIN chassis, DAB+ compatibility, Apple CarPlay and Android Auto
More about the product

We will help you with your purchase

Use our consulting room
You can return the goods to us within 14 days
Try the product at our store

Description and parameters
Comments0
Evaluation0
Category

Alpine iLX-F115DU multimedia car radio

The iLX-F115DU Alpine Halo11 for Fiat Ducato 3, Peugeot Boxer 2, Citroen Jumper 2 and other vans, pick-ups, motorhomes is the second generation of Alpine's world-renowned Halo product line, featuring an 11-inch high-resolution WXGA touch screen and it comes with all the necessary installation parts (such as plug-and-play wiring harness, CAN interface, frame, etc.) for the Ducato 3. The super-slim display seems to simply float above the dashboard and can be adjusted to the best position in various ways . Enjoy Apple CarPlay and Android Auto (wired) wireless compatibility, DAB+ digital radio, USB video playback, HD audio playback, Bluetooth hands-free and audio streaming and much more with this amazing head unit. You can choose from a wide range of online navigation apps, such as Google Maps, and use them on the Alpine screen via Apple CarPlay and Android Auto. Bring exceptionally good sound quality to your vehicle: the Alpine Halo11 is the world's first head unit with a built-in Class D amplifier and has a wide range of professional sound tuning features such as 2-band X-overs, parametric EQ, 6-volt preamps, digital time correction and much more.

Main features

11-inch WXGA HD Display - The super-large, 11-inch WXGA touchscreen display has a resolution of 1280 x 720p and contains more than 2.7 million pixel elements - making icons, menus and visual content on your dashboard extremely sharp and vivid. The screen is attached to an adjustable bracket attached to the vehicle's radio dock, leaving a free 1DIN pocket underneath to store smaller items.

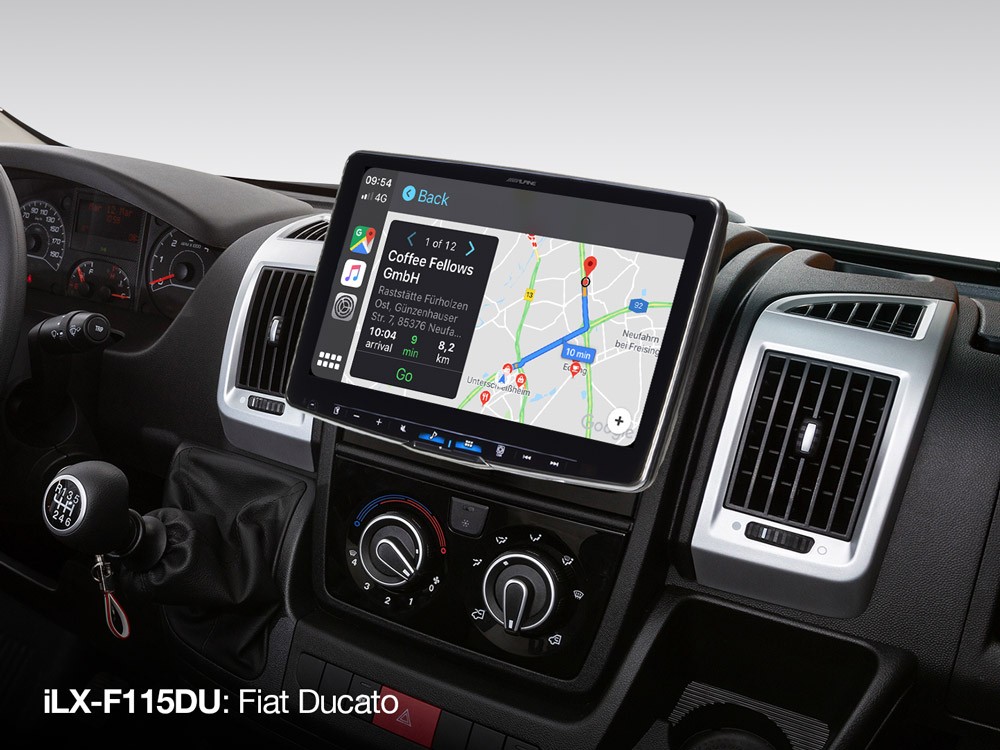

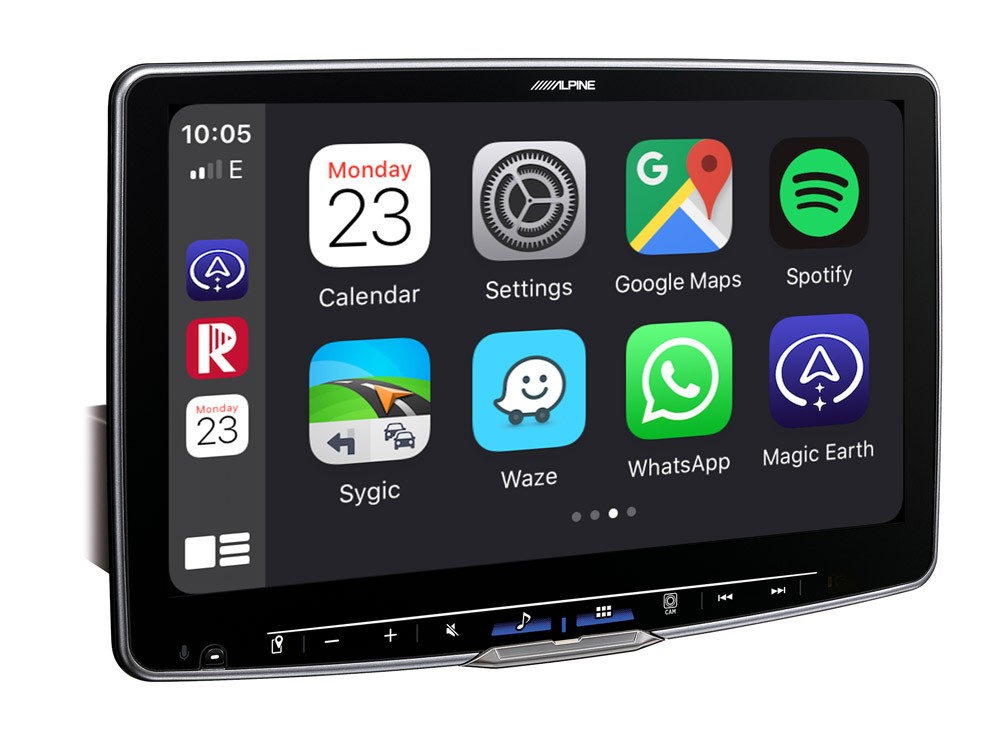

Wireless Apple CarPlay - The iLX-F115DU "works with Apple CarPlay" wirelessly, allowing iPhone users to make and receive calls, access and write text messages, play music and get directions in a way that allows them to focus on the road. Apple CarPlay is accessible via the capacitive touchscreen or the microphone button to activate Siri voice control. Thanks to the WiFi connection, you can keep your iPhone in your pocket and not have to plug it in all the time (except for charging).
Simple control from the steering wheel - if your Ducato is equipped with steering wheel control buttons, you can also use them with the iLX-F115DU. Alpine's system is fully integrated with the vehicle's electronics and accepts all driving controls such as volume, telephone, voice control and mute.

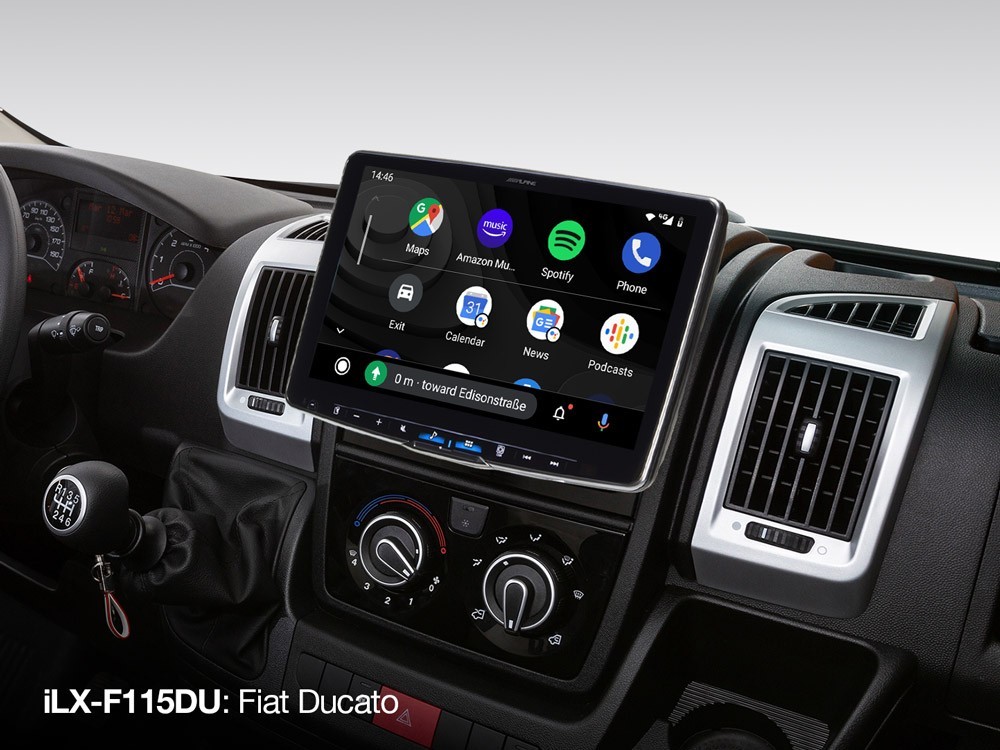

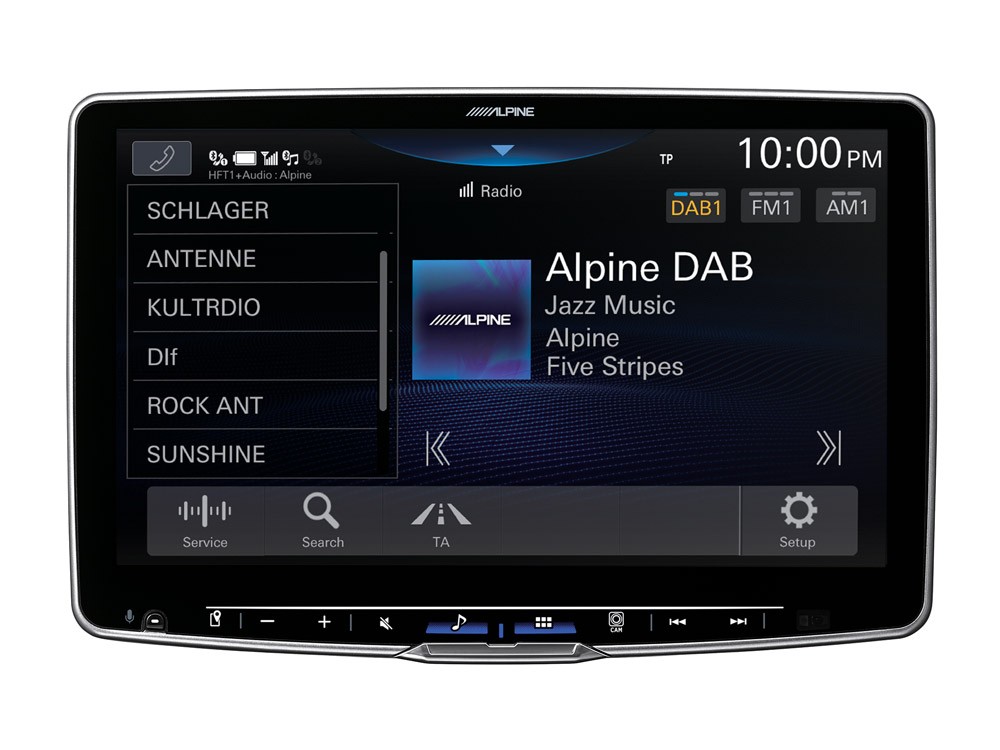

Wide options for entertainment and online navigation - the brand new DAB / radio tuner enables DAB - FM switching and allows you to enjoy smooth radio reception without interruption. In addition to the extended USB video playback formats (MP4, MOV, FLV, MKV), the Alpine Halo 11 offers many other entertainment options: the built-in Bluetooth module allows audio streaming from the phone and the HDMI input allows the connection of an external video playback device. You can of course use Android Auto with any compatible Android smartphone (wired connection).
The world's first head unit with a built-in Class D amplifier - the iLX-F115DU is the world's first aftermarket head unit to feature a built-in 4x 50 W Class D amplifier - enabling excellent high-end sound reproduction with highly reduced noise or phase shift. A key advantage of Class D amplification technology is its high efficiency of around 90% compared to 50-70% of Class AB amplifiers. New high-speed fans with internal heatsinks keep your Alpine Halo 11 cool - and playing music.

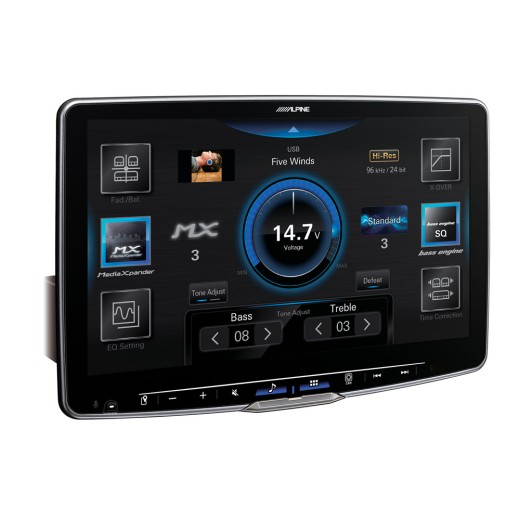

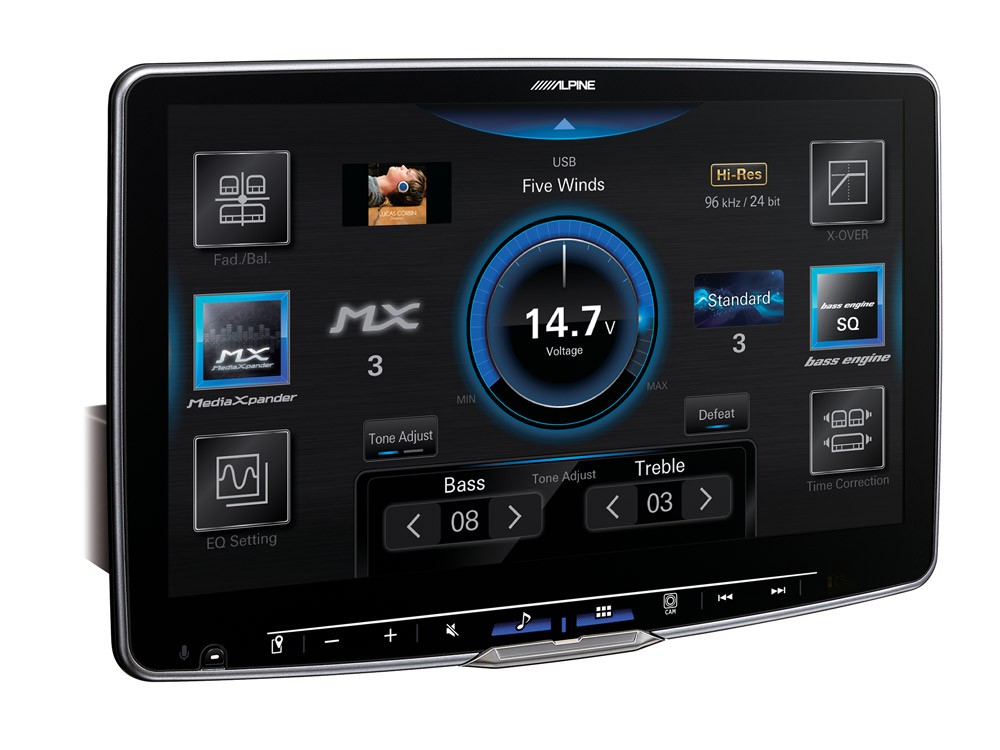

Enjoy excellent sound quality - thanks to the 56-band parametric EQ in advanced mode, 2-band digital X-over, 6-channel digital time correction and several Bass Engine SQ and MediaXpander sound tuning options, you have excellent tools for tuning your Alpine Halo 11 and connected amplifier / speaker system to perfection. But we don't stop there: Alpine Halo 11 is Hi-Res Audio certified and can decode and play Hi-Res Audio files up to 96kHz / 1.536kbps from USB sources in uncompressed supported formats such as FLAC, WAV and APE.
Drive-Assist cameras - a reversing camera is a great way to ensure safer reversing. The camera image automatically turns on when you put the gear into reverse, and distance guides appear on the screen, which can be adjusted to match the size of your Ducato, so you can safely park your motorhome.
External Wireless Controller - The separately available RUE-BK01 control knob connects wirelessly to the Alpine Halo 11 and can be installed on the left or right side of the touch screen. Alternatively, you can also place the control knob anywhere else in the vehicle with a simple DIY installation. Turning the knob adjusts the head unit's volume output, while pressing it activates the rear camera on the screen. Note: This control knob has no function when wireless Apple CarPlay is active.
Freely adjustable viewing angle - you can adjust the viewing angle of the iLX-F115DU from +45 degrees to -20 degrees to match a wide range of dashboard angles. You can freely adjust the viewing angle at any time to achieve the best visibility and prevent glare from sunlight.
Adjustable height and distance of the display - the height of the display can be adjusted +/- 3 cm from the center position. This allows for full-standing or hanging display configurations, as well as everything in between. You can also adjust the distance between the display and the instrument panel in the range of 20 mm. After selecting the height of the display and the distance to the dashboard, everything locks into place.
Pre-drive inspection - most damage to motorhomes occurs because the vehicle was not fully prepared for use. Alpine's on-screen control can be fully customized to your vehicle and will remind you before you start driving to make sure the throttle is off, all tables and doors are locked, satellite dishes are retracted, etc.
Including custom frame and mounting brackets for Fiat Ducato 3 and related caravans - iLX-F115DU includes custom frame, installation brackets, CAN interface wiring harness and antenna adapter. The CAN interface retains the use of remote control buttons on the steering wheel.

Technical characteristics

4x 50W high power class D amplifier.
11-inch capacitive touch XWGA display (1280 x 720p).
White LED backlight.
Display angle adjustable after installation.
3 preamplifier outputs (6 V, front / rear / subwoofer).
1 A/V AUX input (3.5 mm micro jack).
1 HDMI input / 1 HDMI output.
2 USB ports (1x USB data port / 1x USB charging).
Steering wheel remote control ready.
Vehicle display interface ready (UART connection).
Remote control ready.
2x camera connection (Camera Direct connector) Note: does not support KCX-C250MC camera switch.
Camera distance guides (adjustable).
Live contrast adjustment.
Menu language: 24 languages.
Auto Dimmer.
Anti-theft security code.
Engine Start-Stop intact.
Chassis dimension (W x H x D) mm: 178 x 50 x 150 mm.
Display size (W x H x D) mm: 269 x 178 x 55 mm.

About the brand

Alpine is a traditional Japanese manufacturer of car sound systems, which is characterized by the highest quality on the market. In the offer of this brand, you will find Alpine car radios, Alpine subwoofers, Alpine speakers, Alpine amplifiers and many other accessories for integrating multimedia systems into the most modern cars. Alpine's extensive range includes premium multimedia systems with Android Auto and Apple CarPlay for car models such as the Fiat Ducato, Mercedes-Benz Vito, Ford Transit and some other models.
