Alpine iLX-F905DU multimedia car radio

Name: Alpine iLX-F905DU multimedia car radio
Brand: Alpine
Price: 1162.86 EUR
Availability: InStock

Be the first to rate the product

Add to FavoritesRemove from favourites

1DIN digital media receiver with 9" WXGA HD monitor, Apple CarPlay and Android Auto
More about the product

We will help you with your purchase

Use our consulting room
You can return the goods to us within 14 days
Try the product at our store

Description and parameters
Comments0
Evaluation0
Category

Alpine iLX-F905DU multimedia car radio

The iLX-F905DU Alpine Halo9 for Fiat Ducato 3, Peugeot Boxer 2 and Citroen Jumper 2 is the second generation of the world-renowned Alpine Halo product line, which features a 9-inch high-resolution WXGA touch screen and comes with all required installation parts (such as wiring harness plug-and-play, CAN interface, frame, etc.) for the Ducato 3. The super thin display seems to be simply placed above the dashboard and can be adjusted in various ways for the best position. Enjoy wireless Apple CarPlay and Android Auto (wired) compatibility, DAB+ digital radio, USB video playback, high definition audio playback, hands-free Bluetooth and audio streaming and much more with this amazing head unit. You can choose from a wide range of online navigation apps, such as Google Maps, and use them on the Alpine screen via Apple CarPlay and Android Auto. Bring exceptionally good sound quality to your vehicle: The Alpine Halo9 is the world's first head unit with a built-in Class D amplifier and has a wide range of professional sound tuning features such as 2-band X-overs, parametric EQ, digital time correction and much more.

Main features

9-inch WXGA HD display - The large 9-inch WXGA touchscreen display has a resolution of 1280 x 720p and contains more than 2.7 million pixel elements - making icons, menus and visual content on your dashboard extremely sharp and vivid. The screen is attached to an adjustable bracket attached to a single DIN chassis that is designed to fit most 1DIN or 2DIN holes on the dashboard.
Wireless Apple CarPlay - The iLX-F905DU "works with Apple CarPlay" wirelessly, allowing iPhone users to make and receive calls, access and write text messages, play music and get directions so they can focus on the road ahead. Apple CarPlay is accessible via the capacitive touchscreen or the microphone button to activate Siri voice control. Thanks to the WiFi connection, you can keep your iPhone in your pocket and not have to plug it in all the time (except for charging).
Simple control from the steering wheel - if your Ducato is equipped with steering wheel controls, you can also use them with the iLX-F905DU. The Alpine system is fully integrated with the vehicle's electronics and accepts all driving controls such as volume, telephone, voice control and mute.

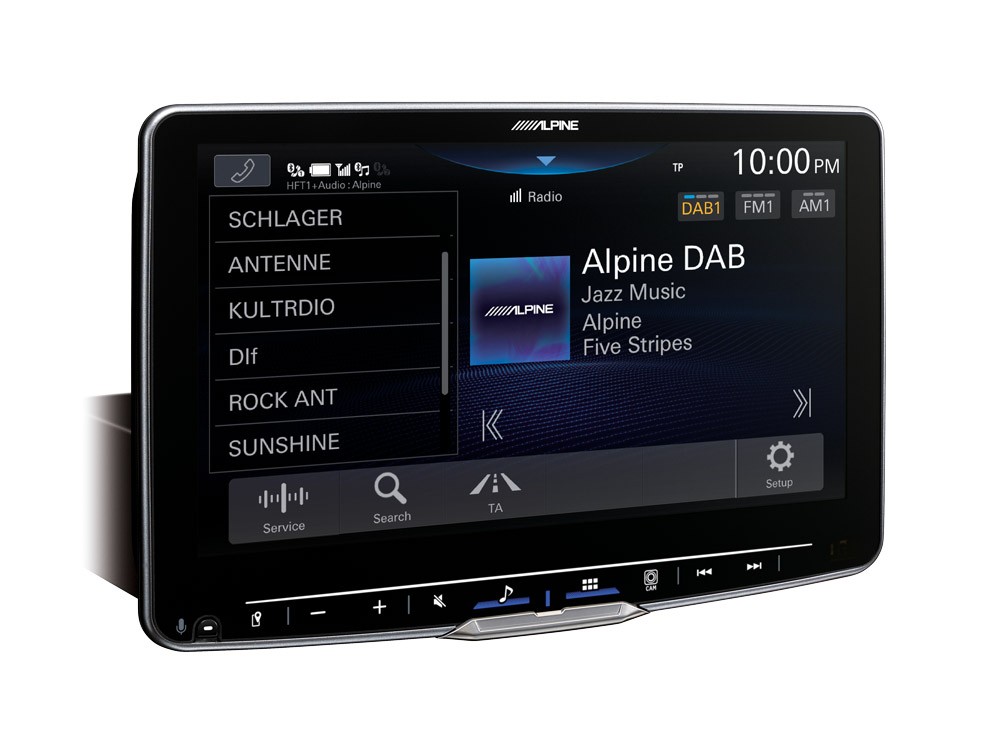

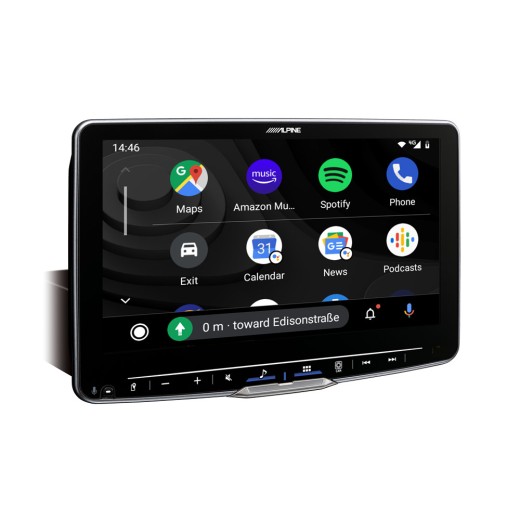

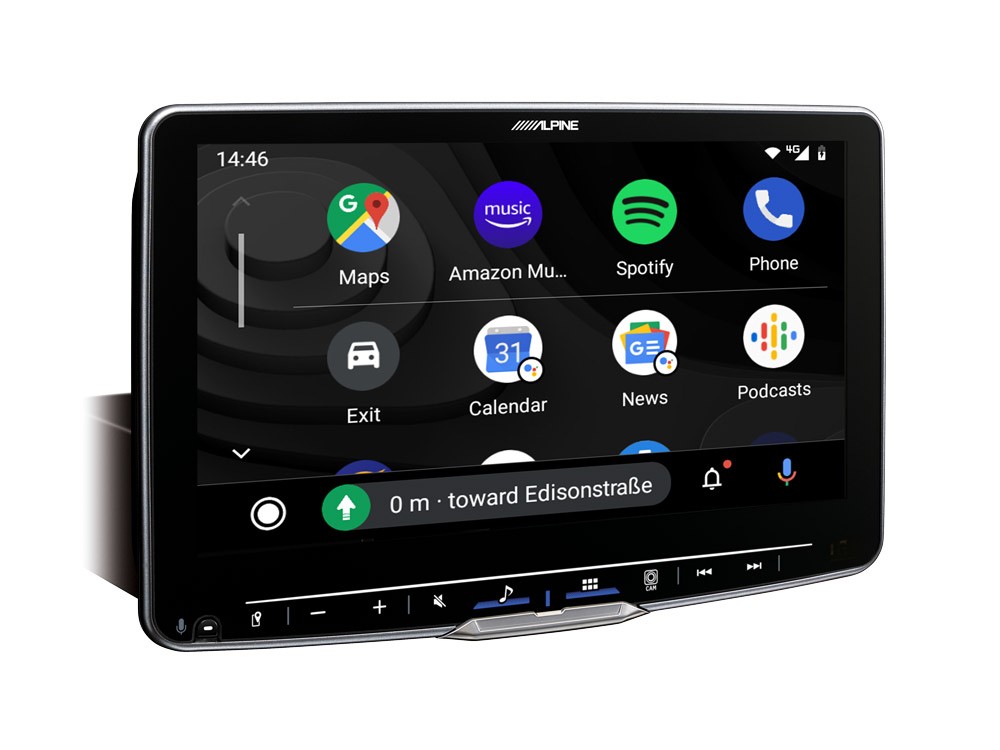

Wide entertainment options and online navigation - the brand new DAB/radio tuner enables DAB - FM switching and allows you to enjoy seamless radio reception without interruption. In addition to increased USB video playback formats (MP4, MOV, FLV, MKV), the Alpine Halo9 offers many other entertainment options: the built-in Bluetooth module allows audio streaming from the phone, and the HDMI input allows the connection of an external video playback device. You can of course use Android Auto with any compatible Android smartphone (wired connection).
The world's first head unit with a built-in Class D amplifier - the iLX-F905DU is the first aftermarket unit in the world to include a built-in 4x 50W Class D amplifier - enabling excellent high-end sound reproduction with highly reduced noise or phase shift. A key advantage of Class D amplification technology is its high efficiency of around 90% compared to 50-70% of Class AB amplifiers. New high-speed fans with internal coolers keep your Alpine Halo9 cool - and the music plays.

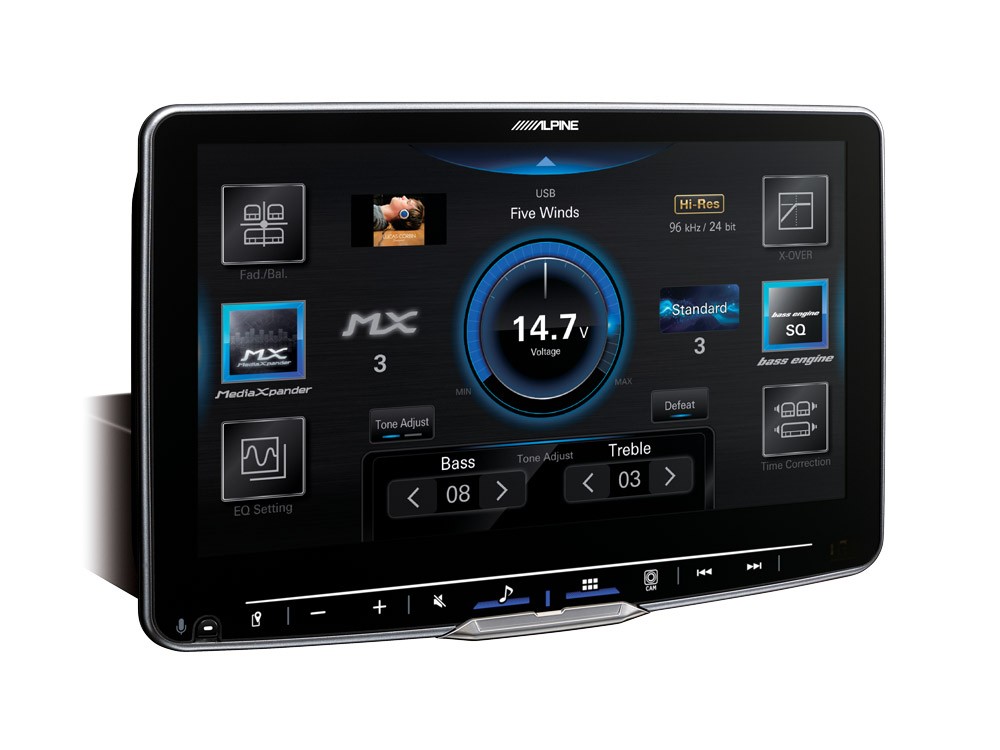

Enjoy excellent sound quality - with a 56-band parametric equalizer in advanced mode, 2-band digital X-over, 6-channel digital time correction and several Bass Engine SQ and MediaXpander sound tuning options, you have excellent tools for tuning your Alpine Halo9 and connected amplifier/speaker system to perfection. But we don't stop there: Alpine Halo9 is Hi-Res Audio certified and can decode and play Hi-Res Audio files up to 96 kHz / 1.536 kbps from USB sources in uncompressed supported formats such as FLAC, WAV and APE.
Drive-Assist cameras - a reversing camera is a great way to ensure safer reversing. The camera image automatically turns on when you put the gear into reverse, and distance guides appear on the screen, which can be adjusted to match the size of your car, so you can park your car safely.
External Wireless Controller - The separately available RUE-BK01 control button connects wirelessly to the Alpine Halo9 and can be installed on the left or right side of the touch screen. Alternatively, you can also place the control button anywhere else in the vehicle with a simple custom installation. Turning the knob adjusts the head unit's volume output, while pressing it activates the rear camera on the screen. Note: This control knob has no function when wireless Apple CarPlay is active.
Freely adjustable viewing angle - You can adjust the viewing angle of the iLX-F905DU from +45 degrees to -20 degrees to match a wide range of dashboard angles. You can freely adjust the viewing angle at any time to achieve the best visibility and prevent glare from sunlight.
Adjustable height and distance of the display - the height of the display can be adjusted +/- 3 cm from the center position. This allows for full-standing or hanging display configurations, as well as everything in between. You can also adjust the distance between the display and the instrument panel in the range of 20 mm. After selecting the height of the display and the distance to the dashboard, everything locks into place.

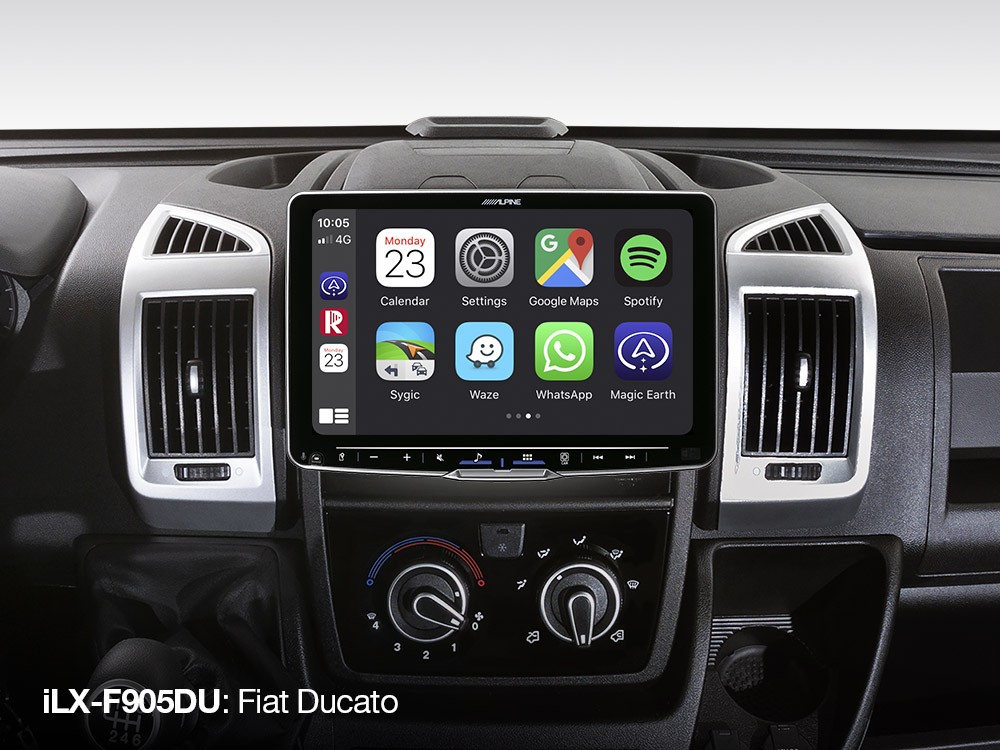

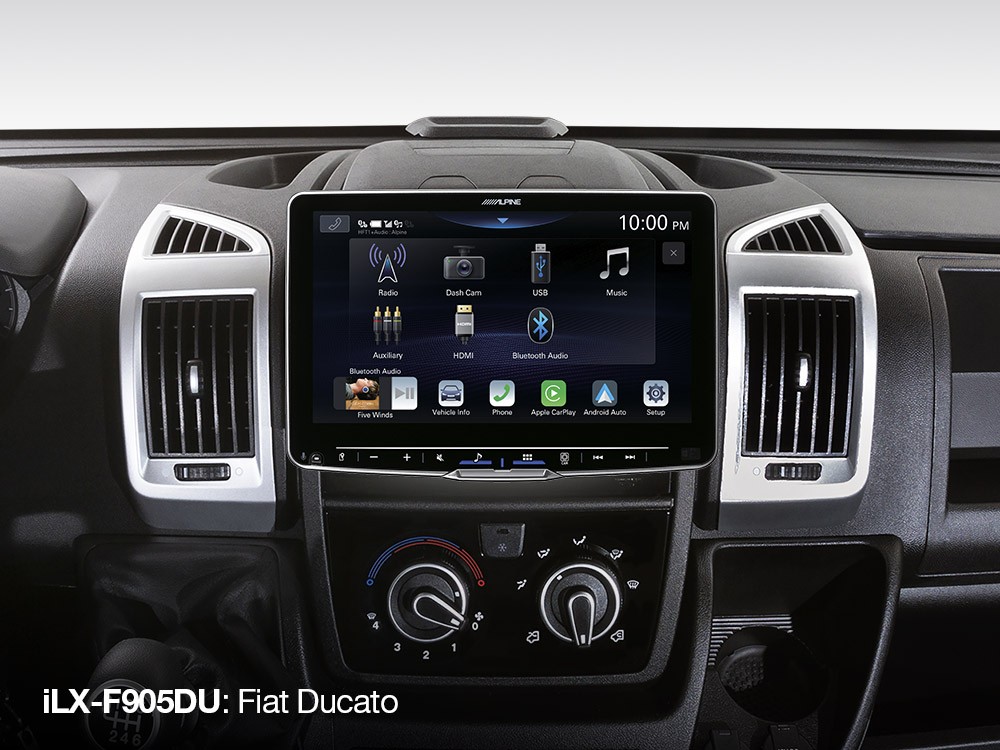

Including custom frame and mounting brackets for Fiat Ducato 3 and related caravans - iLX-F905DU includes custom frame, installation brackets, CAN interface wiring harness and antenna adapter. The CAN interface retains the use of remote control buttons on the steering wheel.

Technical characteristics

4x 50W high power class D amplifier.
9-inch WXGA (1280 x 720p) capacitive touchscreen.
Display angle adjustable after installation.
3 preamplifier outputs (4 V, front / rear / subwoofer).
1 A/V AUX input (3.5 mm micro jack).
1 HDMI input / 1 HDMI output.
2 USB ports (1x USB data port / 1x USB charging).
Steering wheel remote control ready.
Vehicle display interface ready (UART connection).
Remote control ready.
2x camera connection (Camera Direct connector) Note: does not support KCX-C250MC camera switch.
Camera distance guides (adjustable).
Live contrast adjustment.
Menu language: 24 languages.
Auto Dimmer.
Anti-theft security code.
The Start-Stop system does not affect the function.
Chassis dimension (W x H x D) mm: 178 x 50 x 150 mm.
Display size (W x H x D) mm: 232 x 151 x 55 mm.

About the brand

Alpine is a traditional Japanese manufacturer of car sound systems, which is characterized by the highest quality on the market. In the offer of this brand, you will find Alpine car radios, Alpine subwoofers, Alpine speakers, Alpine amplifiers and many other accessories for integrating multimedia systems into the most modern cars. Alpine's extensive range includes premium multimedia systems with Android Auto and Apple CarPlay for car models such as the Fiat Ducato, Mercedes-Benz Vito, Ford Transit and some other models.
