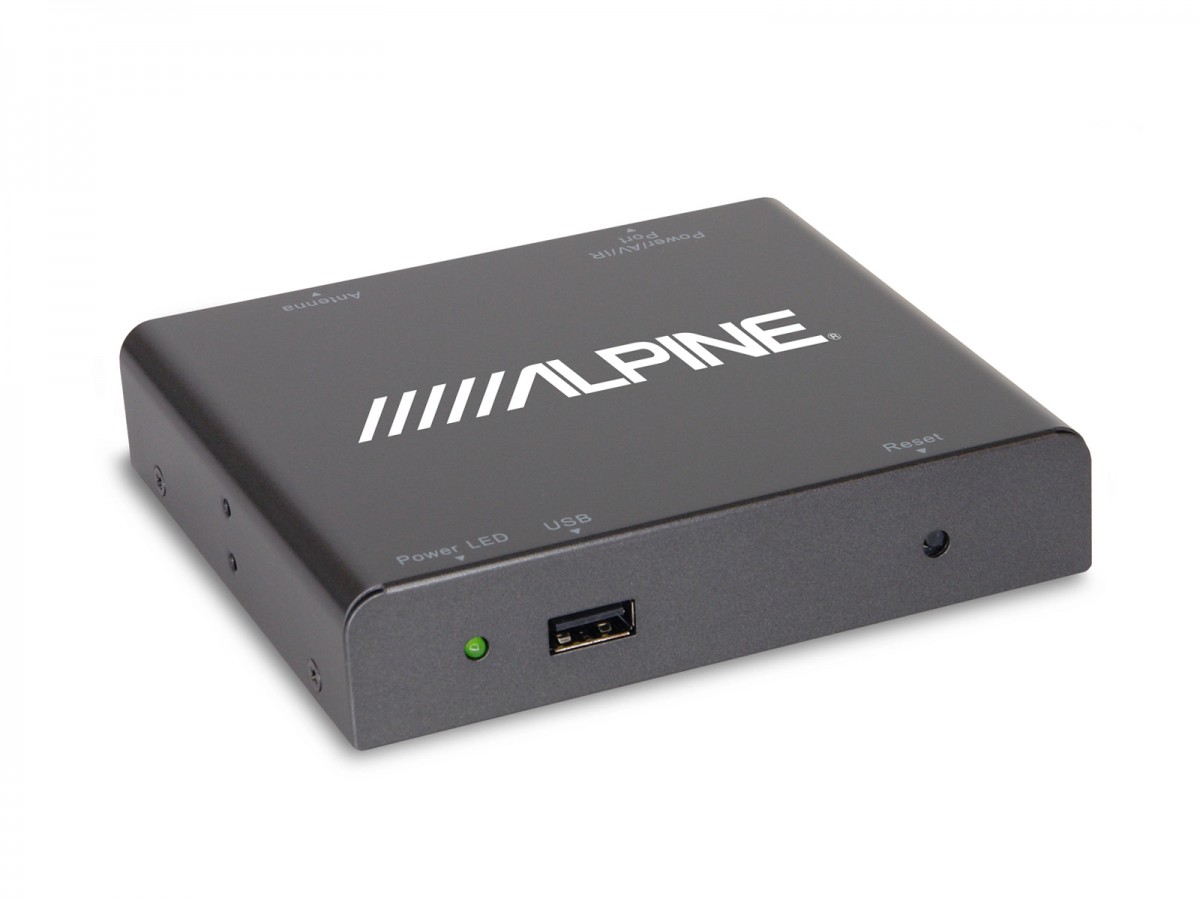

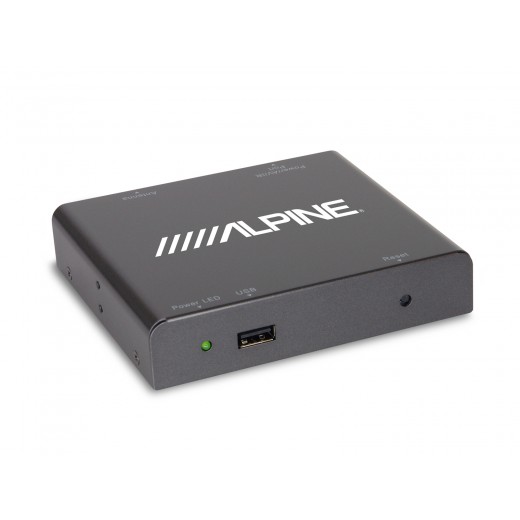

Alpine TUE-DAB1U DAB/DAB+ receiver

Alpine TUE-DAB1U DAB/DAB+ receiver

Mobile DAB / DAB+ receiver with direct touch control that enables connection to any Alpine screen. With the current range of AV and AVN units, direct touch control is available. The TUE-DAB1U integrates into the existing system. The automatic search function scans all available stations and adds them to the unit's list. From the list, the user can sort the results alphabetically for easier access. The antenna is not included in the delivery.

The following Alpine products can work with the TUE-DAB1U:   ICS-X7, ICS-X8, INA-W910R, INE-W920R, INE-W925R, INE-W928R, INE-W970BT, INE-W977BT, IVA-D511R/RB, IVA-D800R, IVE-W535BT.

In general

• DAB / DAB+.

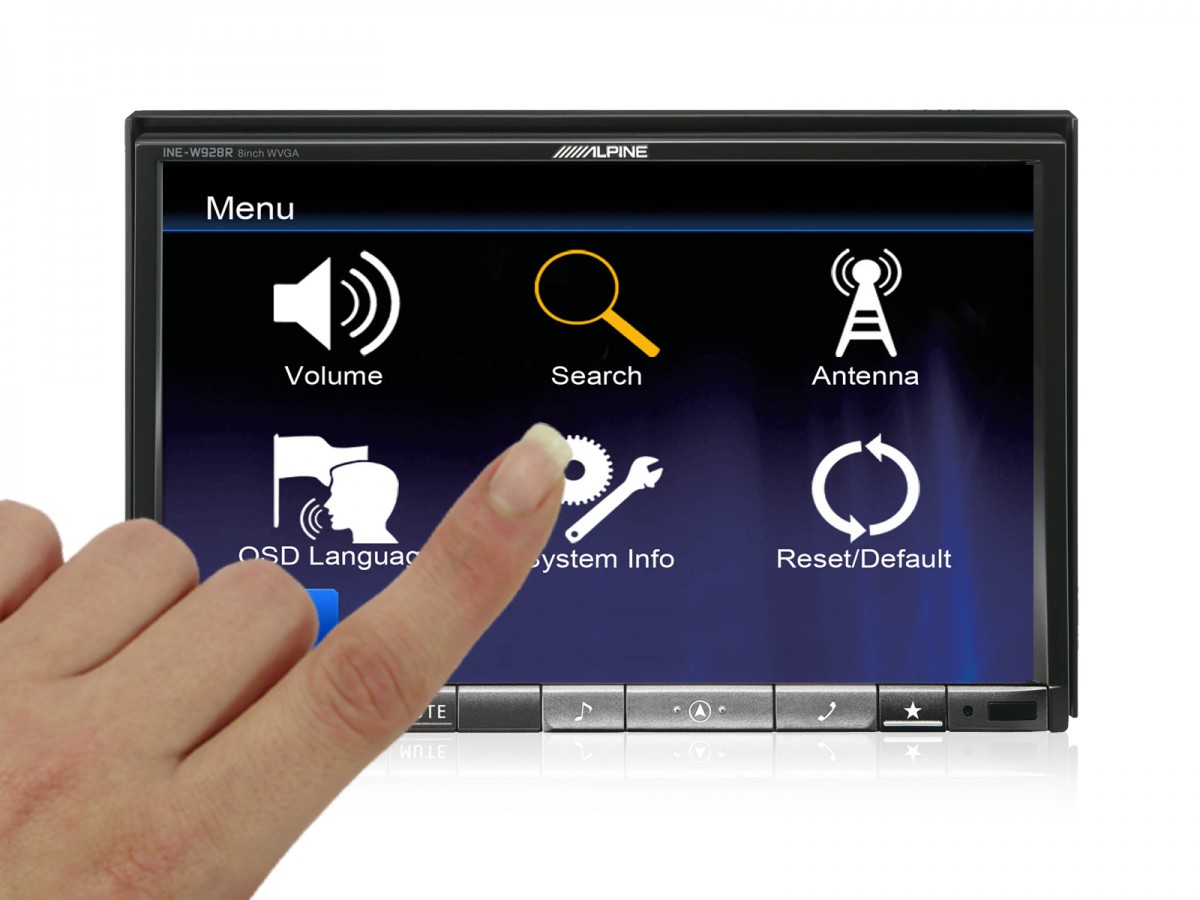

• Possibility of direct touch control.

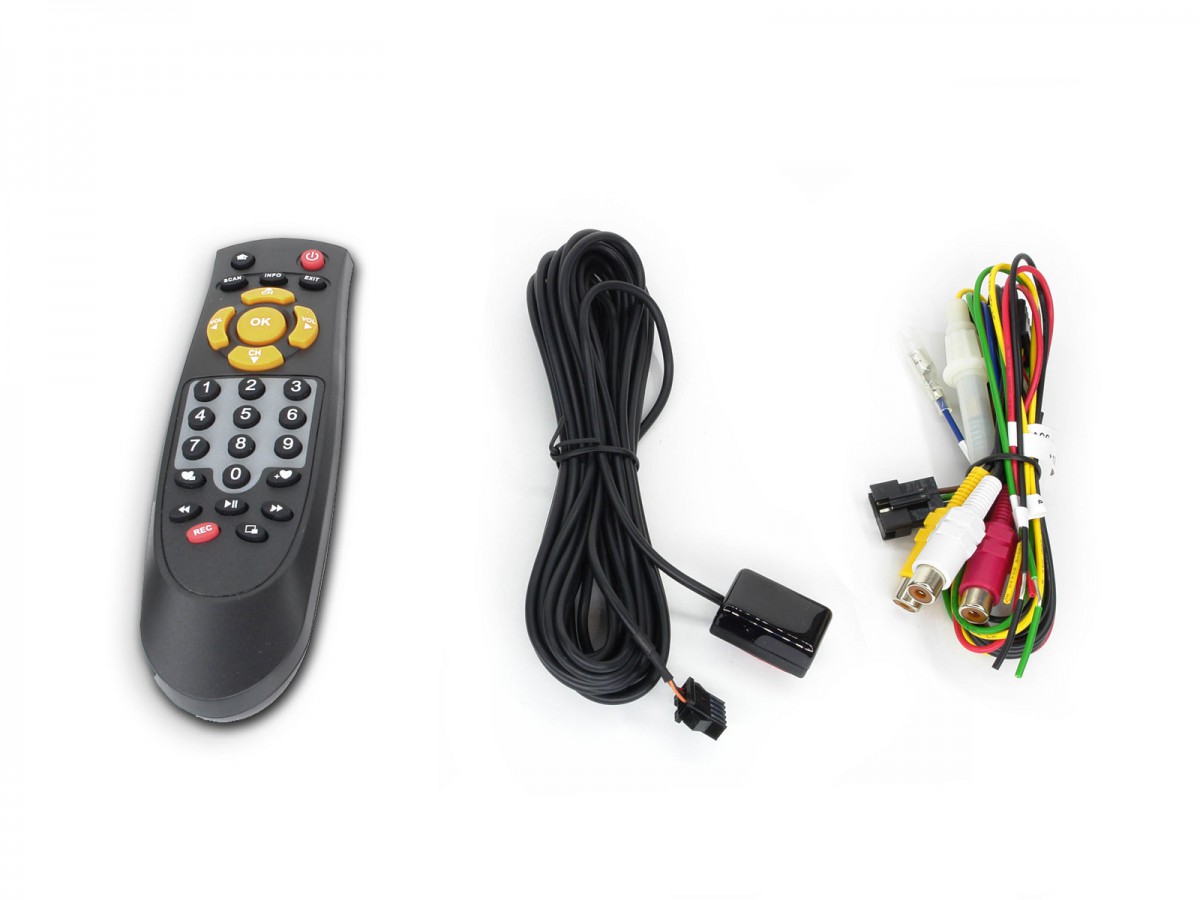

• Remote control of components.
• OSD languages: English, German, French, Italian, Danish, Norwegian.
• Features DAB slide show, Channel Management, automatic tuning.
• USB 2.0 port for software update.

DAB / DAB+

• Automatic tuning.

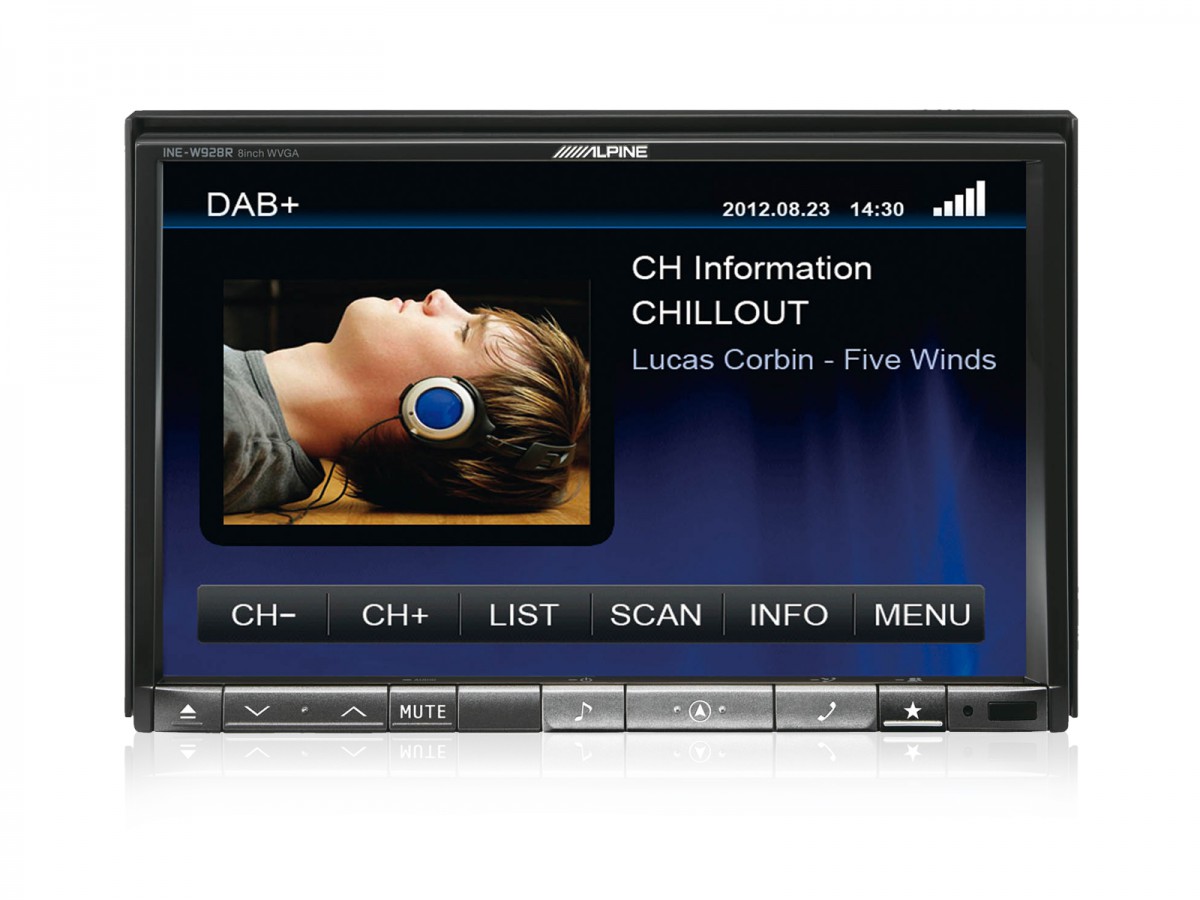

• DLS (Dynamic Label Service).
• You can view the text information (artist, song and album) in real time.
• Radio VIS.
• Images accompanying the current broadcast can be viewed.
• SLS (Slideshow Service).
• Images (station logos or album images) can be displayed.

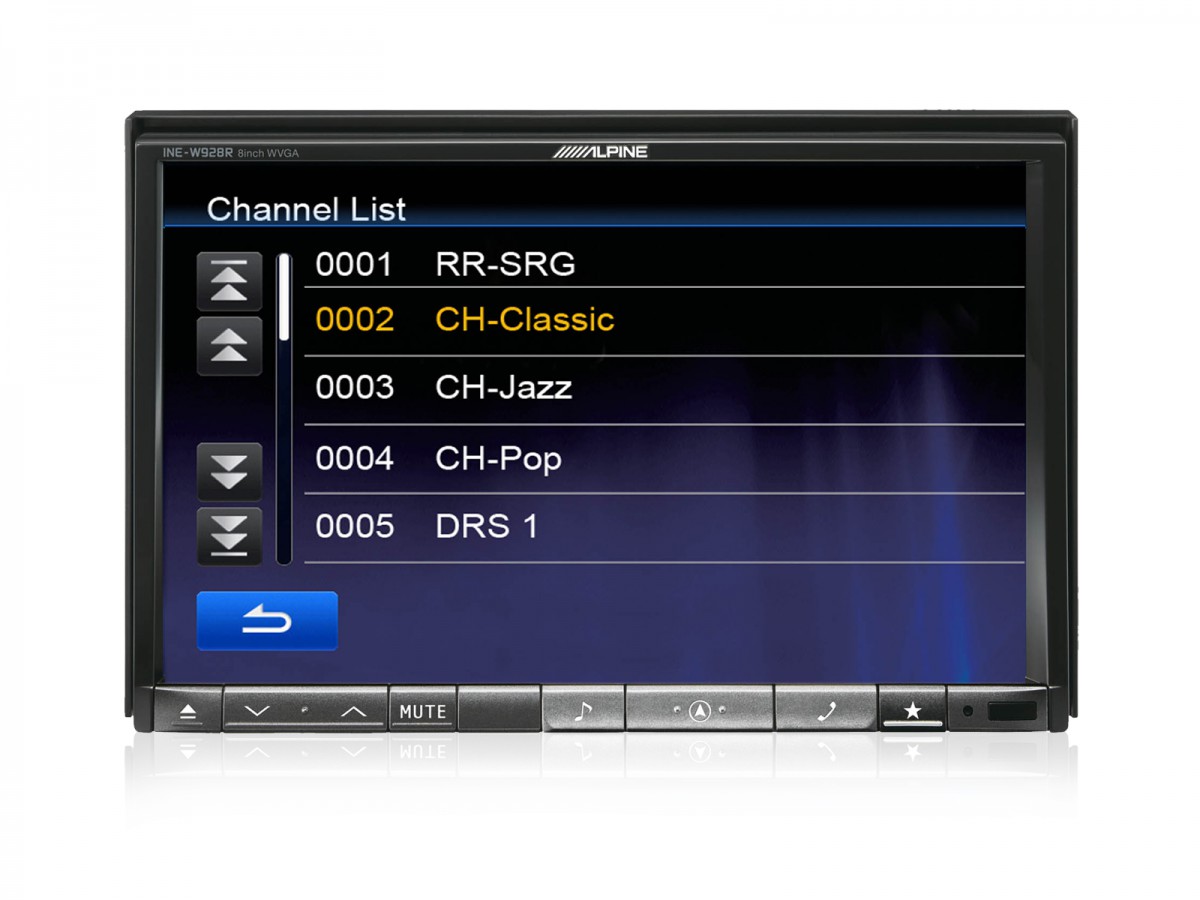

• Alphabetical list of sorted channels.

Specifications

• Antenna: passive and active antenna are supported (SMB connector, 5VDC).
• Frequency range VHF band III (170-240 MHz).
• RF input impedance: 75 ohm.
• Transmission standard ETSI EN 300 401DAB compatible.
• ETSI TS 102 563 DAB+.
• Video / Audio video decoder: JPEG.
• Audio: MPEG Audio Layer II, AAC.
• 1 Audio / Video output.
• Input voltage: 12 VDC - 24 VDC.
• Power consumption: 2.4 W.
• Operating temperature: -10°C to +70°C.
• Dimensions: 115 x 95 x 25 mm.
• Weight: 295 g.

Catalog number	TUE-DAB1U
Brand	Alpine
