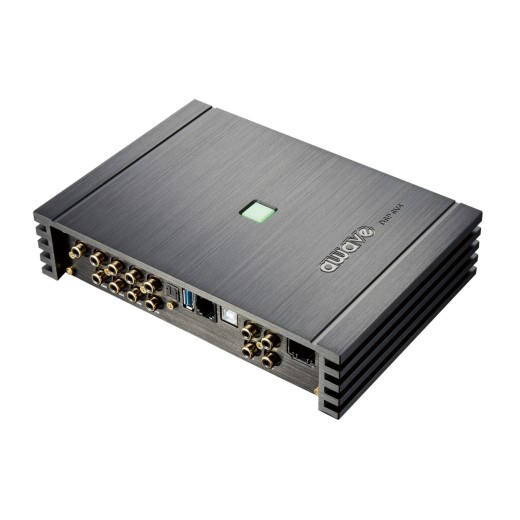

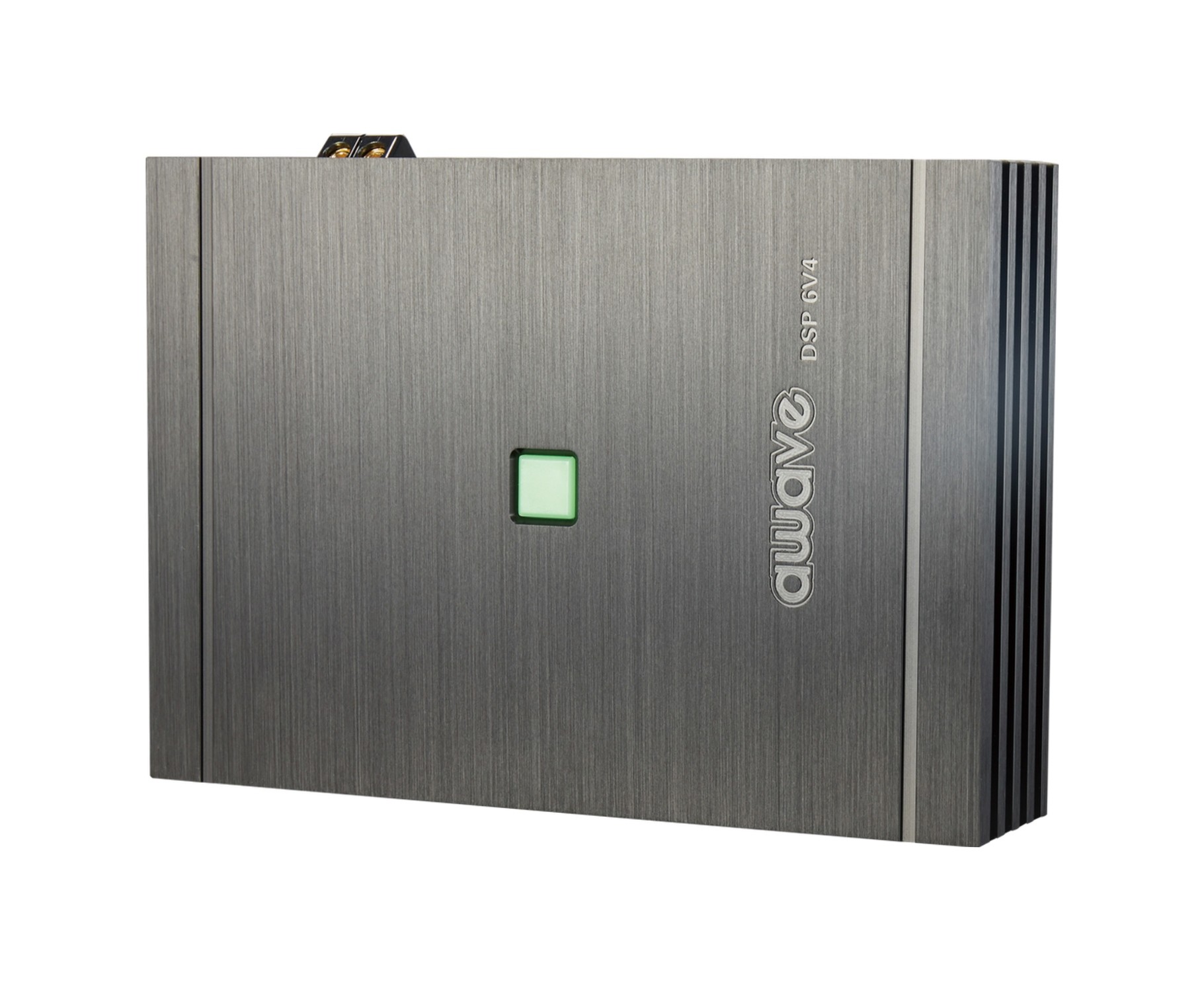

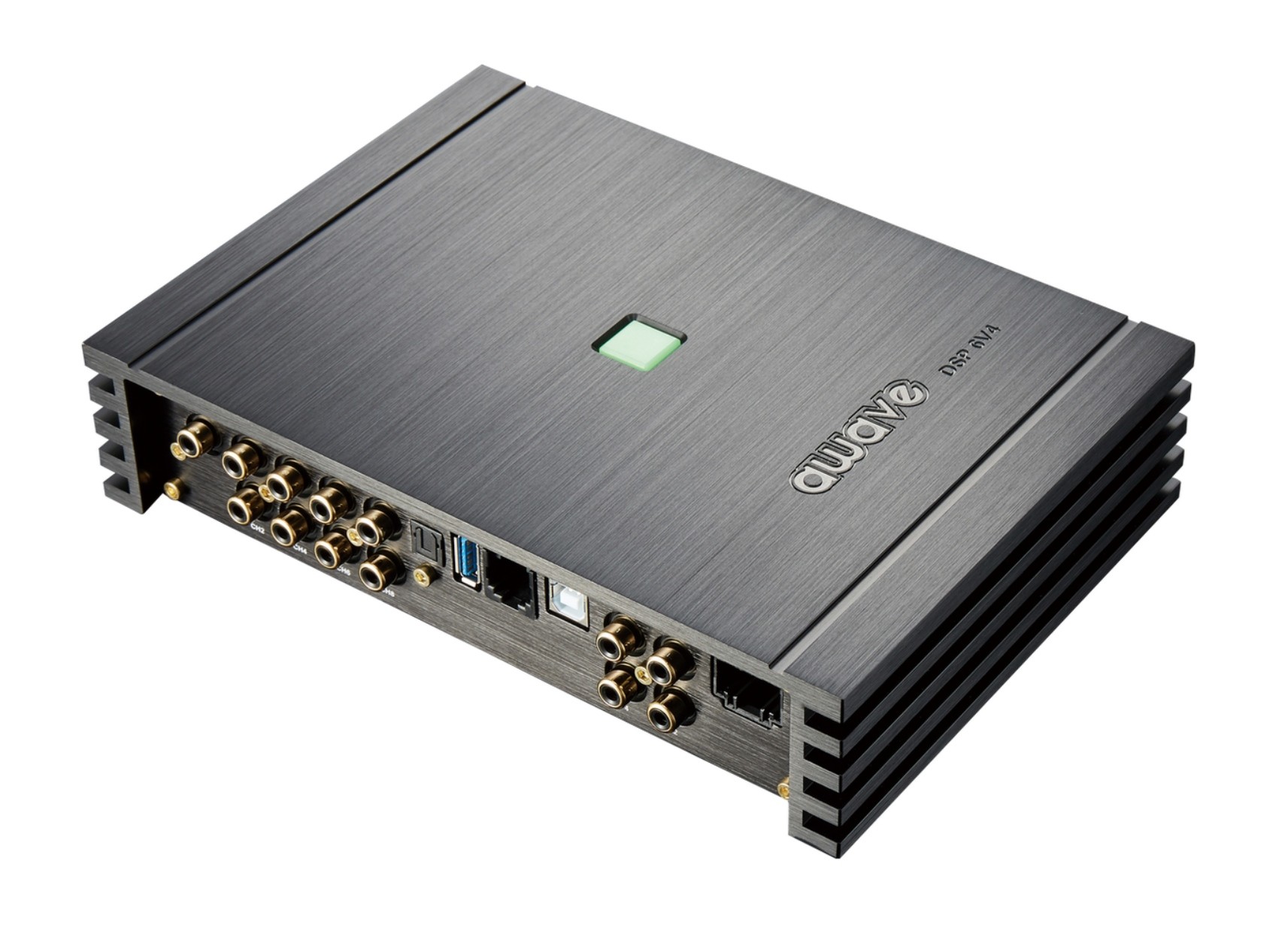

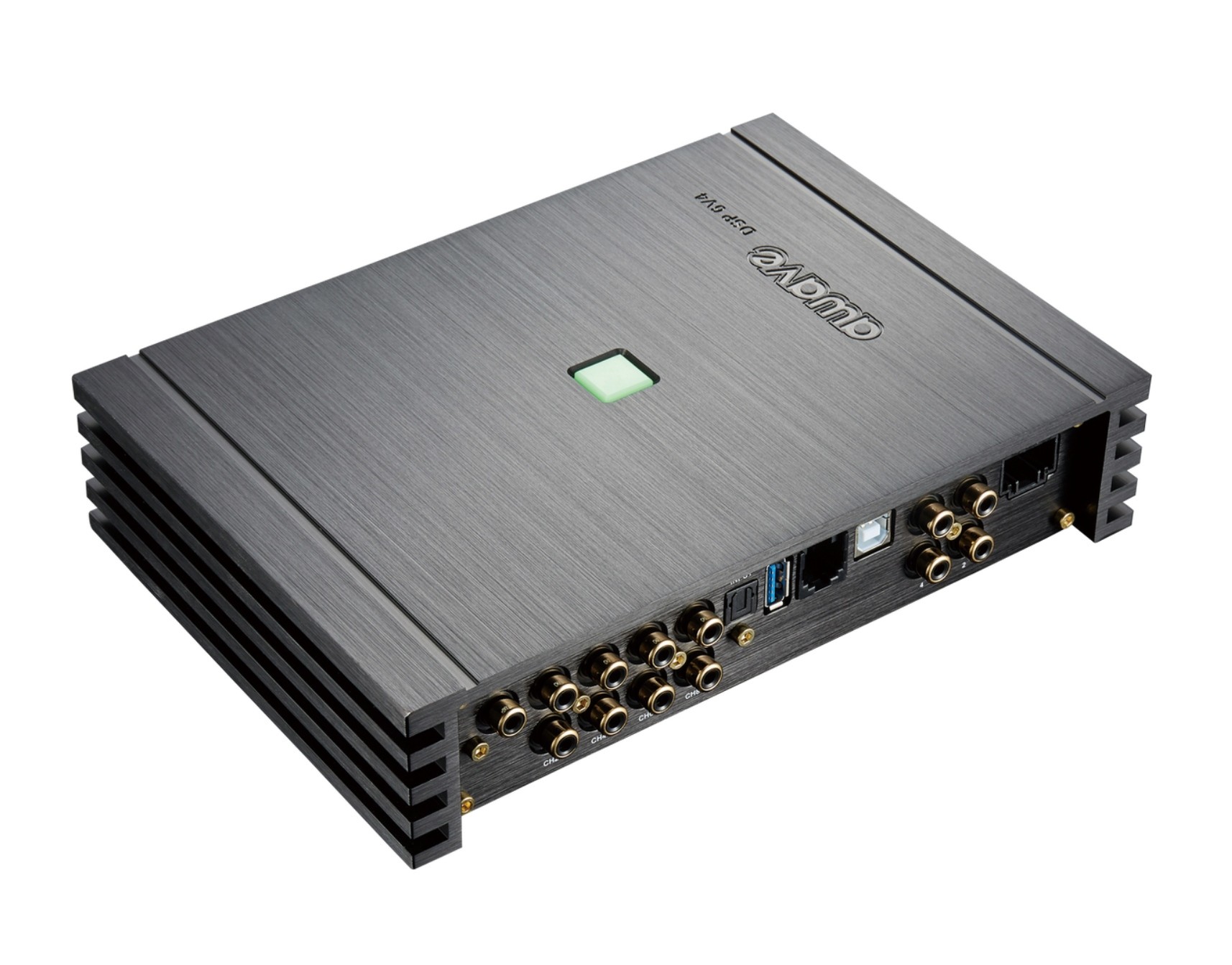

Amplifier with DSP processor Awave DSP-6V4
The Awave DSP-6V4 is a six-channel amplifier with an integrated DSP processor that combines quality sound, sophisticated DSP processor software and easy integration into factory systems. The amplifier offers a high output of 6 x 80 W RMS and rich connectivity. It includes 6 high-level inputs for convenient connection to original car radios, 4 RCA inputs or optical and coaxial input. Thanks to 8 RCA connectors on the output and 6 processing channels of the DSP processor, another amplifier can be connected and controlled. The DSP processor has a high-quality ADAU chip, AKM signal converters and a sampling frequency of 192 kHz. Gain, time correction, bandpasses, filters, 31-band parametric equalizer and other important functions can be intuitively set in the DSP processor program. It is also possible to purchase a remote control for the amplifier to adjust the overall volume, subwoofer volume and preset selection. The amplifier is compatible with Hi-res files thanks to the extended frequency response. The modern digital platform ensures a high efficiency of 84%, sufficient performance for intermediate speakers and very compact dimensions.
The main features of the Awave DSP-6V4 amplifier
- 6-channel amplifier with integrated DSP processor.
- Class D amplifier with 6 x 80 W RMS (4 Ω) and 84% efficiency.
- DSP Processor with advanced chip ADAU1462.
- AKM AK5538 and AK4458VN A/D and D/A signal converters.
- High sampling frequency of 192 kHz, core operating speed of 32 bits.
- Brushed aluminum chassis with compact dimensions.

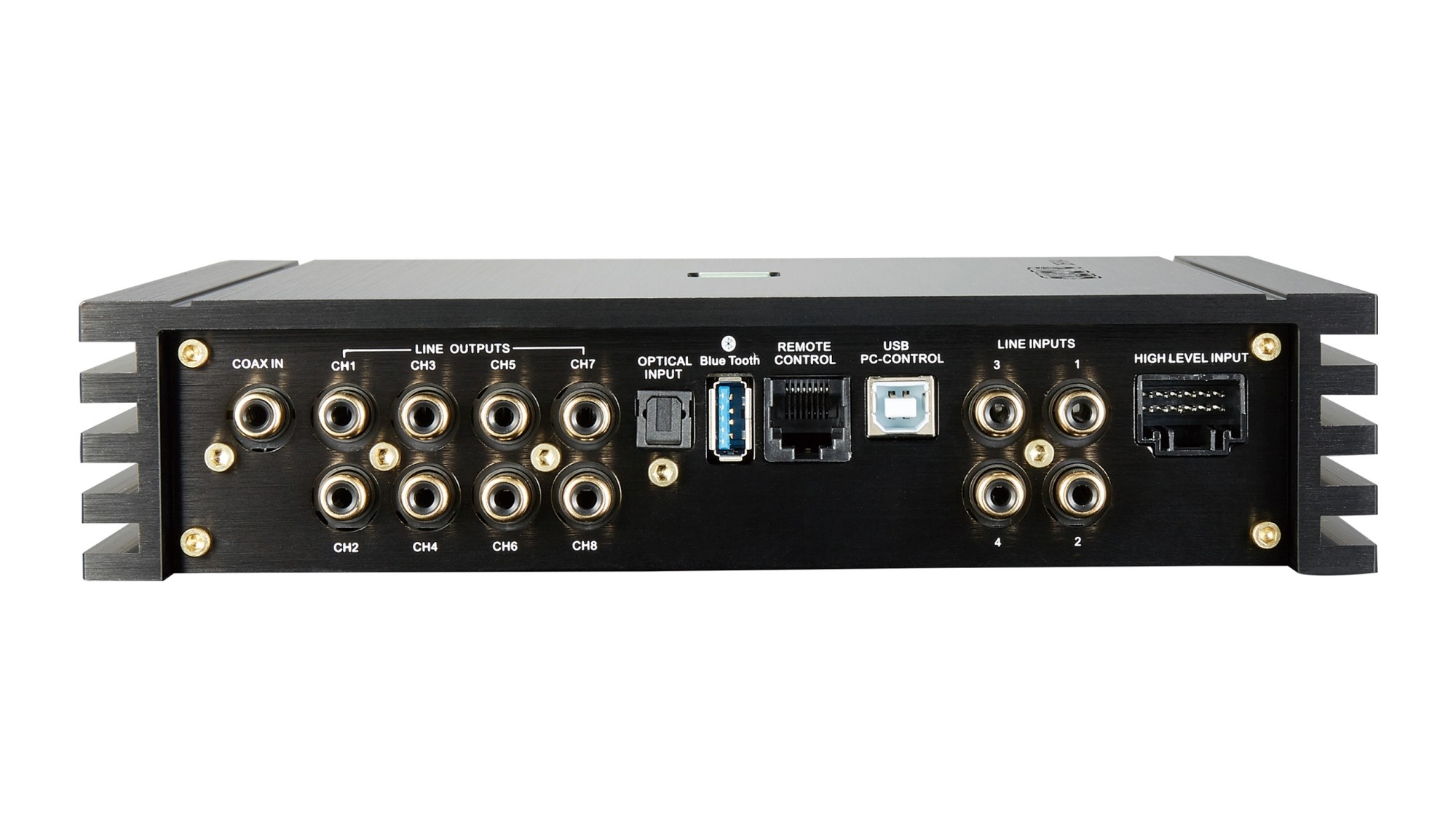

- Inputs: 4 x low level (RCA), 6 x high level, optical and coaxial input.
- Outputs: 8 x low level (RCA), 6 x speaker.
- 31-band parametric equalizer.
- Setting gain, filters, bandpasses, time corrections or detailed equalizer.
- Optional Bluetooth module for wireless music streaming.
- Option to connect an optional remote control.
| Catalog number | DSP-6V4 |
| Brand | Awave |
| Links | Official web presentation |
