Antenna Calearo 7137134

DAB internal active glass antenna, SMB connector, phantom power 12 V
More about the product
We will help you with your purchase

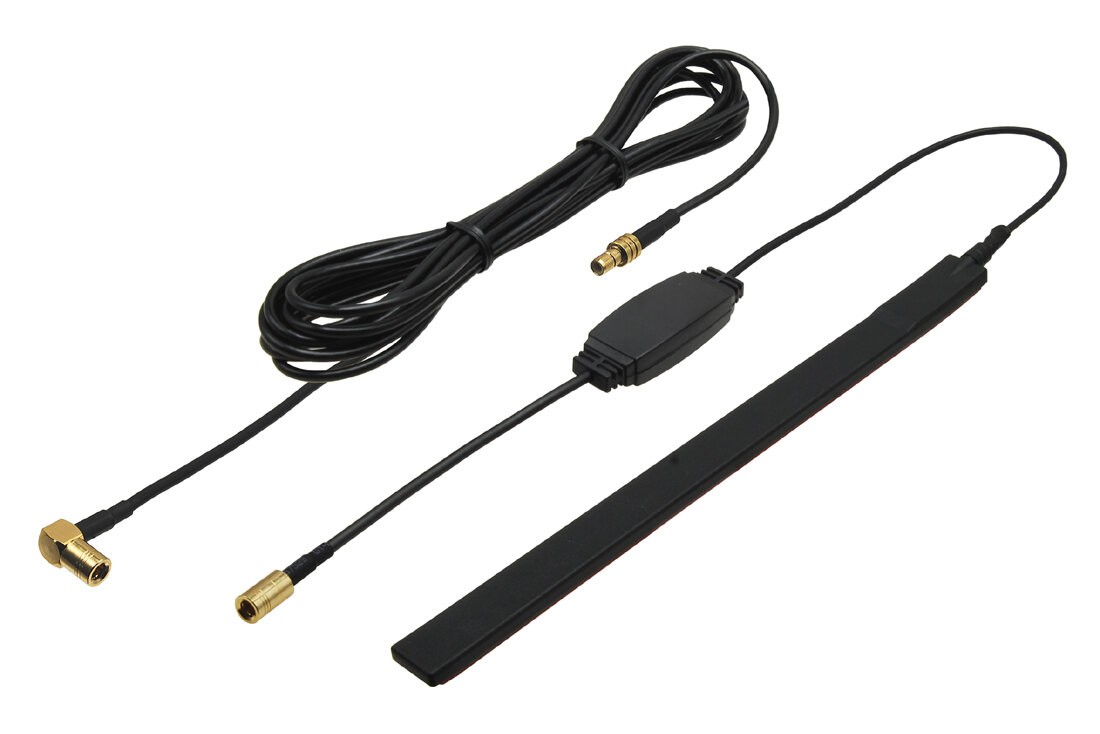

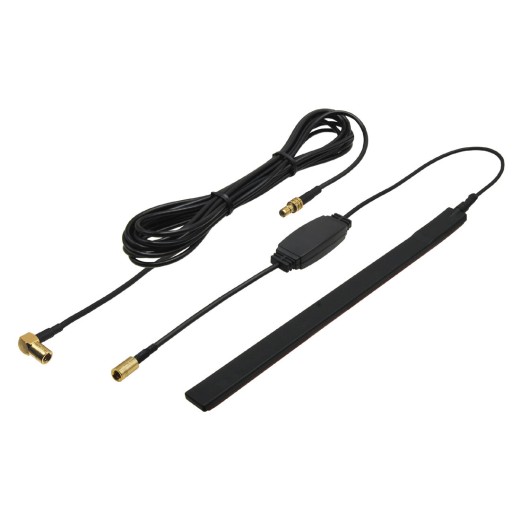

Antenna Calearo 7137134

DAB-DAB+ internal active antenna on glass, self-adhesive - black

  • supply voltage: phantom 12 V DC.
  • cable length: 3.5 m (impedance: 50 ohms, capacitance: 101 pF/m).
  • connector: SMB 90° female.
  • frequency range: 170 - 240 MHZ (III band).
  • gain: III band 12 ± 2 dB.
  • current consumption: 35 mA min.
  • dimensions: 180 x 13 x 5 mm (L x W x H).

Installation: self-adhesive (3M tape) on the glass from the inside, vertical placement

Application: universal, for car radios with SMB connector (e.g. Pioneer AVIC-F60DAB, Clarion...)

Catalog number7137134
BrandCalearo
LinksOfficial web presentation
