Antenna Calearo 7667010

antenna universal / AM/FM / DAB / flexible rod
More about the product
We will help you with your purchase

Calearo AM-FM / DAB / DAB+ universal antenna

  • passive antenna (no amplifier)
  • omnidirectional antenna with vertical polarization
  • frequency range: AM 0.52-1.71 MHz, FM 87-108 MHz, DAB 170-240 MHz
  • angle of inclination: 0 - 90°

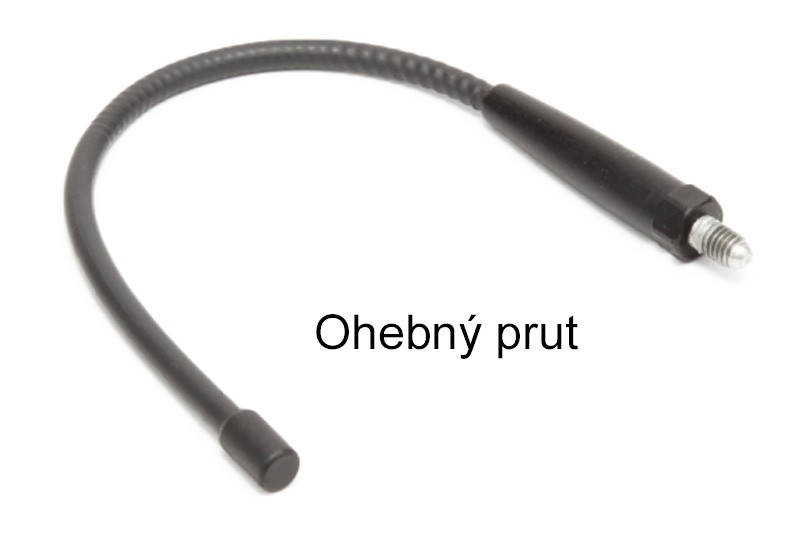

  • flexible rod
  • rod length: 23 cm
  • cable length: 250 cm (RG58) *
  • car radio connector: DIN male *

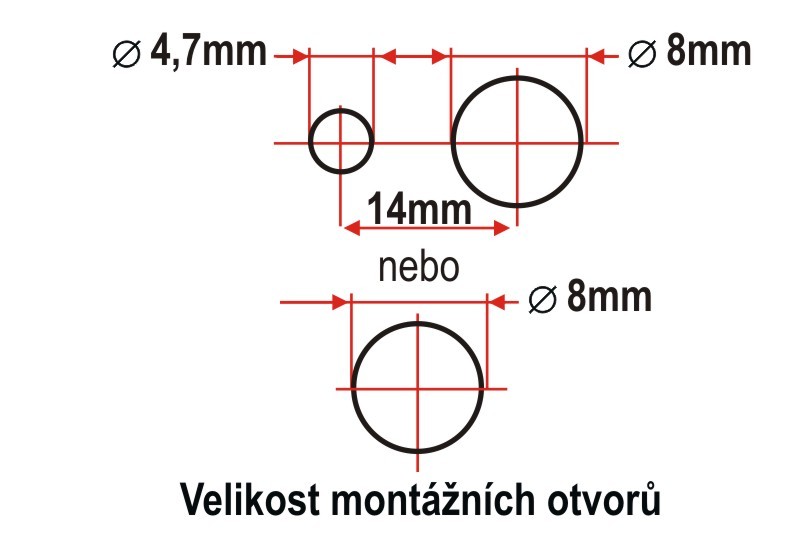

  • diameter of the hole in the roof: 8 mm
  • base size: 4.2 x 3.7 cm
  • VSWR: FM: <2:1 @98MHz / DAB: <2.5>1 @208MHz
  • impedance: 50 ohms
  • working temperature: -40°C to +85°C
  • black colour
* cable length and connector type can be modified as required

Suitable for cars:

  • universal use for the front part of the roof or pillar
  • suitable for tractors, agricultural or work machines where there is an increased risk of damage
When used with a device containing an AM-FM and DAB tuner, an AM-FM / DAB signal splitter must be used.
Catalog number7667010
BrandCalearo
LinksOfficial web presentation
