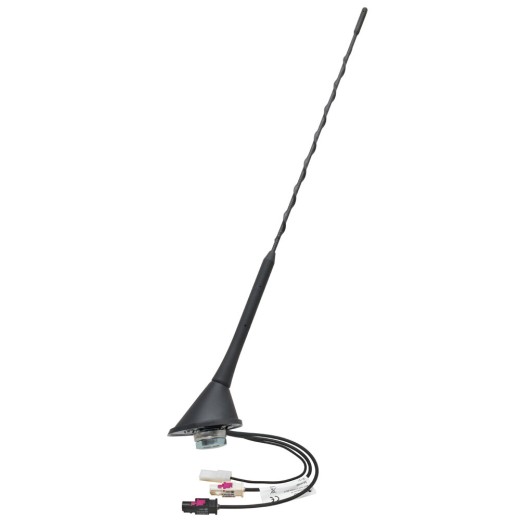

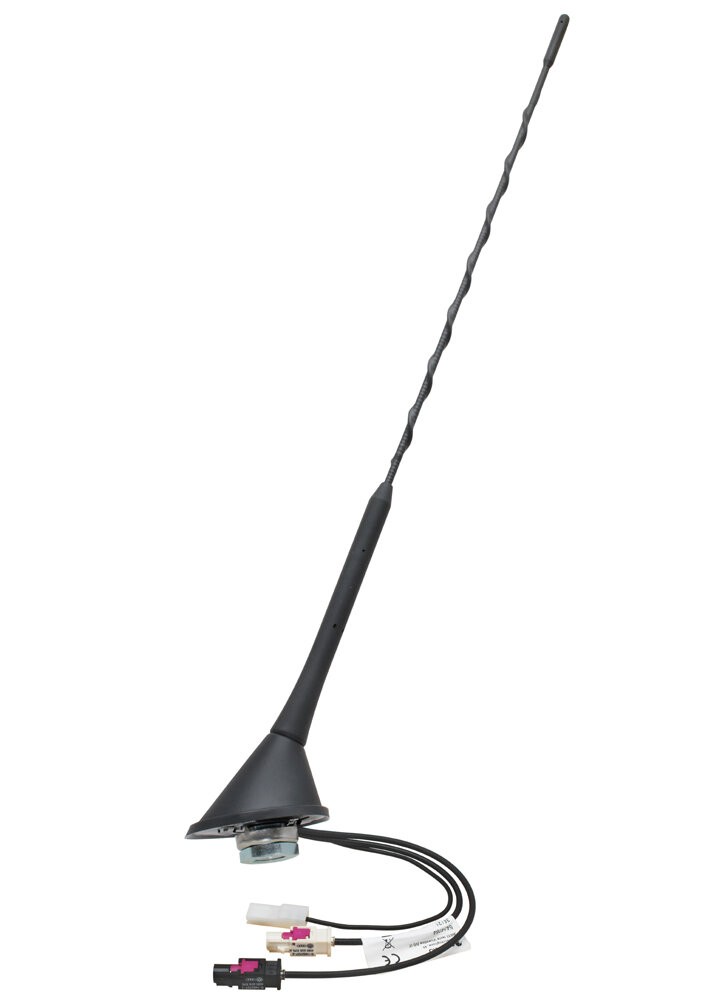

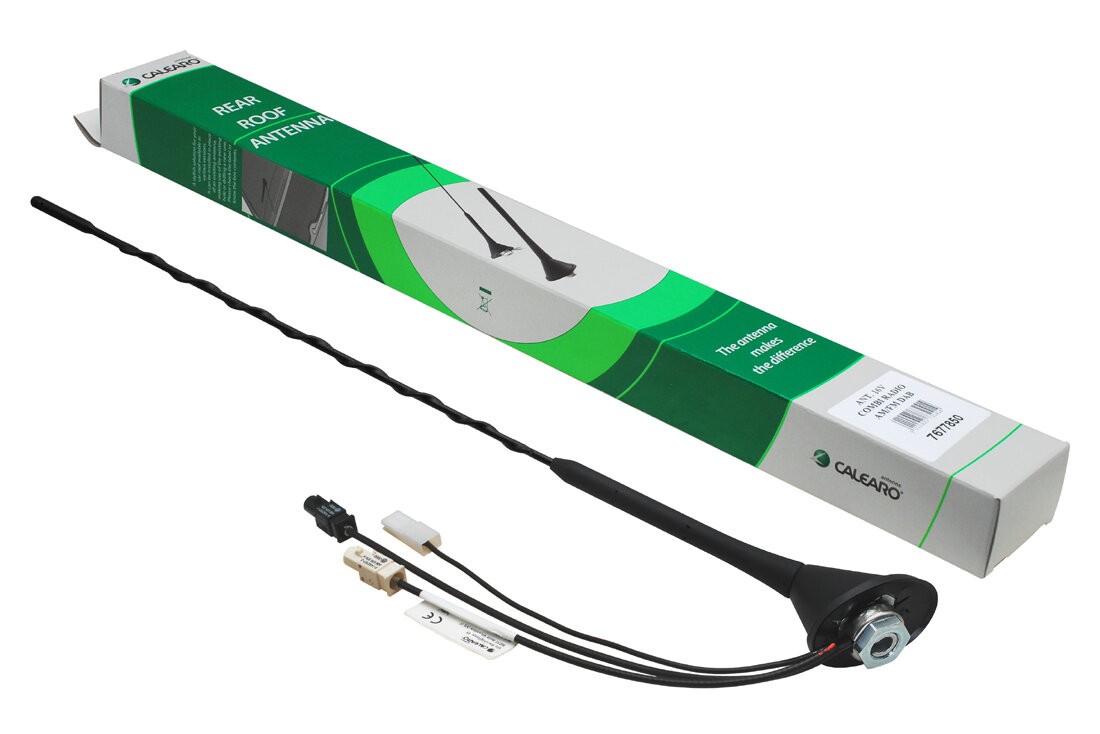

Antenna Calearo 7677850

AM / FM / DAB / DAB+ roof antenna with amplifier for the rear part of the roof

• Built-in amplifier in the body of the antenna.
• Separate power supply for the antenna amplifier (+12 V).
• Angle of inclination: 60°.
• Braided rod to reduce aerodynamic noise.
• Rod length: 41 cm.
• Screw thread diameter: M6.
• Packaging without antenna lead.
• Protection: IP68.
• Base dimensions: 6 x 4.3 cm.
• Installation in a circular (Ø19 mm) or square hole (15 x 15 mm).

DAB / DMB part

• Frequency range: 174 - 240 MHZ (III band) / 1452 - 1492 MHz (L band).
• Gain: 12 dBi.
• VSWR: <10 (III band) / <2 (L band).
• Separate 12V amplifier power supply.
• Current consumption: 50 mA max.
• VSWR: AM 5:1 / FM 7.5:1.
• Antenna connector: FAKRA male black.
• Antenna cables: RG174.
• Cable length at the antenna: 20 cm.

AM / FM part

• Frequency range FM 76-108MH, AM 0.52-1.71MHz.
• Separate 12V amplifier power supply.
• Current consumption: 5 mA max.
• Impedance: 50 ohms.
• VSWR: <3:1.
• Antenna connector: FAKRA male white.
• Antenna cables: RG174.
• Cable length at the antenna: 18 cm.

Use for automobiles

• Universal

• Alfa Romeo 145
• Alfa Romeo GT

• Audi A3
• Audi A6 Avant (-> 2001)
• Audi A4 Avant (-> 2001)

• Citroen Xsara
• Citroen C2
• Citroen C3
• Citroen C5 Estate

• Daewoo Nubira Combi
• Daewoo Tacuma

• Fiat Stilo
• Fiat Idea
• Fiat Panda II (2003 -> 2012)

• Lancia Libra Combi
• Lancia Ypsilon (2004 ->)

• Lotus Elise
• Lotus Esprit

• Mazda 323 (1999 ->)
• Mazda3
• Mazda 6 I. [GG][GY](2002 -> 1/2008)

• Mitsubishi Outlander

• Nissan Micra
• Nissan Almera
• Nissan Primera

• Opel Omega Caravan
• Opel Zafira
• Opel Vectra
• Opel Meriva
• Opel Speedster

• Peugeot 307

• Renault Clio (2001 ->)
• Renault Megane II
• Renault Scenic II

• Seat Aroza
• Seat Ibiza (1998 ->)
• Seat Cordoba (1998 ->)
• Seat Toledo (1998 ->)
• Seat Leon
• Seat Altea

• Skoda Fabia I
• Skoda Fabia II
• Skoda Octavia I
• Skoda Octavia II
• Škoda Superb I
• Škoda Superb II
• Too bad Yeti

• Toyota RAV4
• Toyota Corolla (2002 ->)
• Toyota Yaris (2003 ->)
• Toyota Prius

• VW Lupo
• VW Polo
• VW Golf III IV
• VW Corrado
• VW New Beetle
• VW Bora
• VW Passat (1993 ->)(1997 ->)

• Volvo V40
