Antenna Calearo Duplex 7680220
roof antenna / GPS+GSM / SMB+FME connector
More about the product
More about the product
We will help you with your purchase
- Use our consulting room
- You can return the goods to us within 14 days
- Try the product at our store

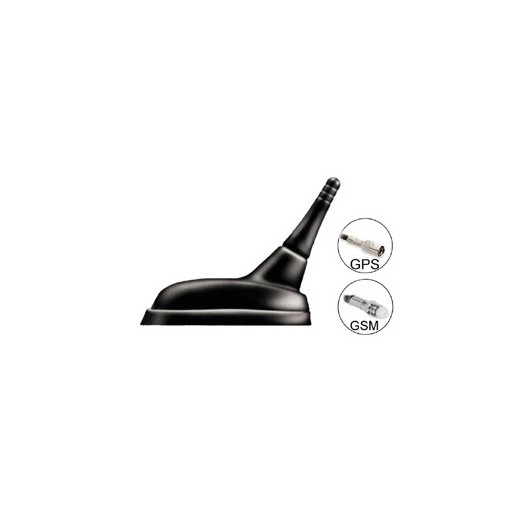

Roof antenna / GPS+GSM / SMB+FME connector
GPS+GSM combined universal roof antenna.
- black colour
- dimensions: 9.8 x 5 x 5 cm (L x W x H)
- body hole diameter: circular 19 mm / square 15 x 15 mm
- on the roof for cars or trucks
- can be used as a replacement for the original antenna
GPS part:
- GPS frequency range: 1575.42 (+/-1.023) MHz
- phantom power: 3 - 5 V
- gain: >27 dBi
- current consumption: max. 35 mA
- VSWR: < 2:1
- antenna cable length: 5 m
- GPS device connector: SMB female
GSM part:
- frequency range GSM 880-960/1710-1880 MHz
- gain: 0 dBi
- max. power: 8 W
- antenna cable length: 5 m
- connector for GSM devices: FME female
| Catalog number | 7680220 |
| Brand | Calearo |
