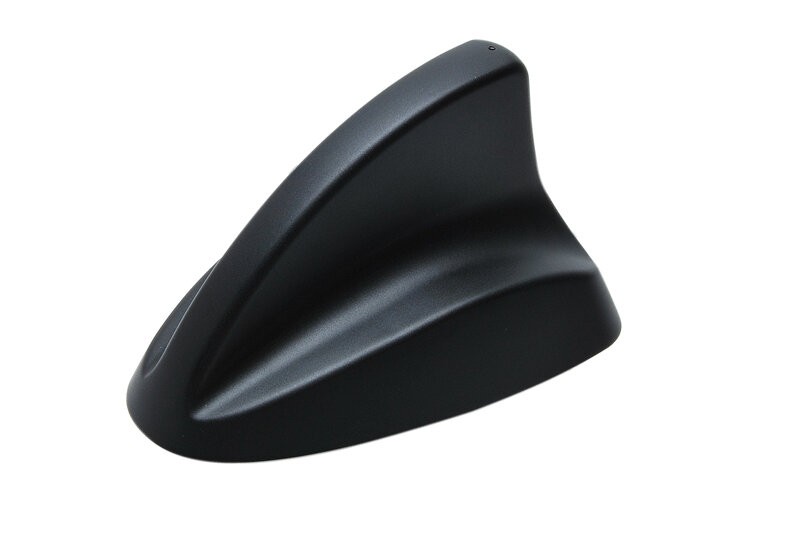

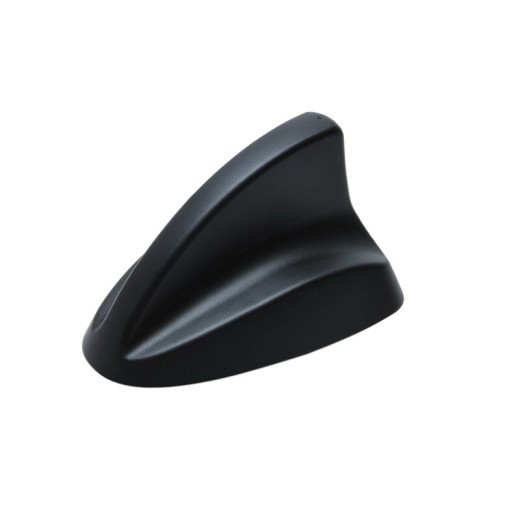

Antenna Calearo Shark 2 7677825

roof antenna for receiving AM/FM - GPS to the rear part of the roof with an amplifier
More about the product
We will help you with your purchase
Antenna Calearo Shark 2 7677825

Roof antenna for receiving AM/FM - GPS to the rear part of the roof with an amplifier

Use on the roof of cars or trucks, can also be used as a replacement for the original antenna. In the case of a request for a different type of connector on the side of the connected device, it is possible to use one of the reductions or replace the cable.

AM/FM part:

  • AM/FM frequency range: 0.52 - 1.71 / 88-108 MHz
  • Phantom and separate power supply: 12 V
  • Cable: RG174
  • Packaging without antenna lead
  • Cable length at the antenna: 25 cm
  • Antenna connector: FAKRA male white

GPS part:

  • GPS frequency range: 1575.42 (+/-1.023) MHz
  • Phantom power: 3 - 5 V
  • Gain: >28dB
  • Current consumption: max. 31 mA
  • VSWR: 1.7:1
  • Without antenna lead
  • ​Cable length at the antenna: 25 cm
  • Antenna connector: FAKRA male blue

Common features:

  • Consumption: 50 mA (max)
  • Impedance: 50 ohms
  • Black colour
  • Protection: IP68
  • Dimensions: 11.7 x 7.6 x 6.2 cm (L x W x H)

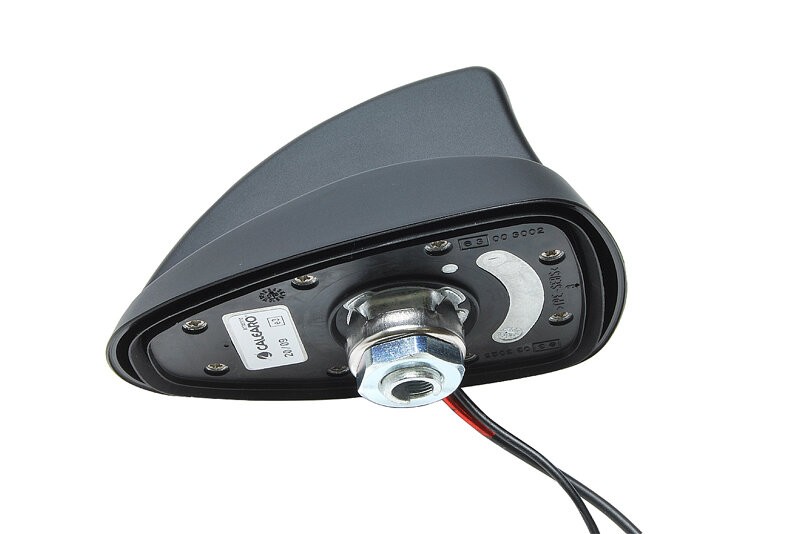

  • Body hole diameter: circular 19 mm / square 15 x 15 mm

Suitable for cars:

  • Universal use
  • Alfa Romeo 145
  • Alfa Romeo GT
  • Audi A3
  • Audi A6 Avant (-> 2001)
  • Audi A4 Avant (-> 2001)
  • BMW Mini (2001 ->)
  • Citroen Xsara
  • Citroen C2
  • Citroen C3
  • Citroen C5 Estate
  • Daewoo Nubira Combi
  • Daewoo Tacuma
  • Fiat Stilo
  • Fiat Idea
  • Fiat Panda II (2003 -> 2012)
  • Lancia Libra Combi
  • Lancia Y (2004 ->)
  • Lotus Elise
  • Lotus Esprit
  • Mazda 323 (1999 ->)
  • Mazda3
  • Mazda 6 I. (2002 -> 1/2008)
  • Mitsubishi Outlander
  • Nissan Micra
  • Nissan Almera
  • Nissan Primera
  • Opel Omega Caravan
  • Opel Zafira
  • Opel Vectra
  • Opel Meriva
  • Opel Speedster
  • Opel Agila
  • Opel Astra (1998 ->)
  • Opel Vectra Wagon
  • Opel Corsa (2003 ->)
  • Opel Signum
  • Peugeot 307
  • Renault Clio (2001 ->)
  • Renault Megane II
  • Renault Scenic II
  • Seat Aroza
  • Seat Ibiza (1998 ->)
  • Seat Cordoba (1998 ->)
  • Seat Toledo (1998 ->)
  • Seat Leon
  • Seat Altea
  • Too bad Felicia
  • Skoda Fabia I
  • Skoda Fabia II
  • Skoda Octavia I
  • Skoda Octavia II
  • Škoda Superb I
  • Škoda Superb II
  • Toyota RAV4
  • Toyota Corolla (2002 ->)
  • Toyota Yaris (2003 ->)
  • Toyota Prius
  • VW Lupo
  • VW Polo
  • VW Golf III.
  • VW Corrado
  • VW Golf IV.
  • VW Beetle
  • VW Bora
  • VW Passat (1993 ->)
  • VW Passat (1997 ->)
  • Volvo V40
Catalog number7677825
BrandCalearo
LinksOfficial web presentation
