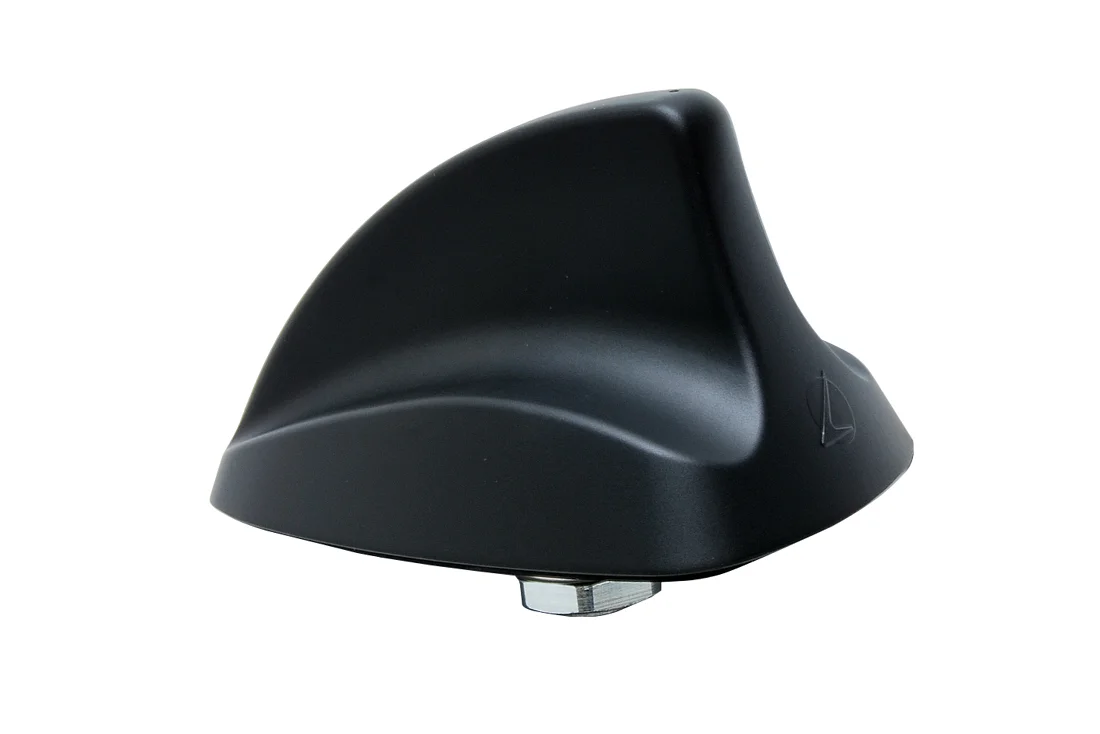

Antenna Calearo Shark 2 7677890

FCA AM/FM/DAB/GPS roof antenna with amplifier Fiat/Chrysler

SHARK2 FCA - COMBI RADIO / Roof antenna for AM/FM reception - DAB/DAB+ broadcasting to the rear of the roof with amplifier
for FIAT / CHRYSLER cars - the package does not include a DAB antenna lead

AM/FM part

• AM/FM frequency range: 0.52 - 1.71 / 88 - 108 MHz.
• Phantom and separate power supply: 12 V.
• Antenna cable length: 25 cm.
• Cable: RG174.
• Package without antenna lead.

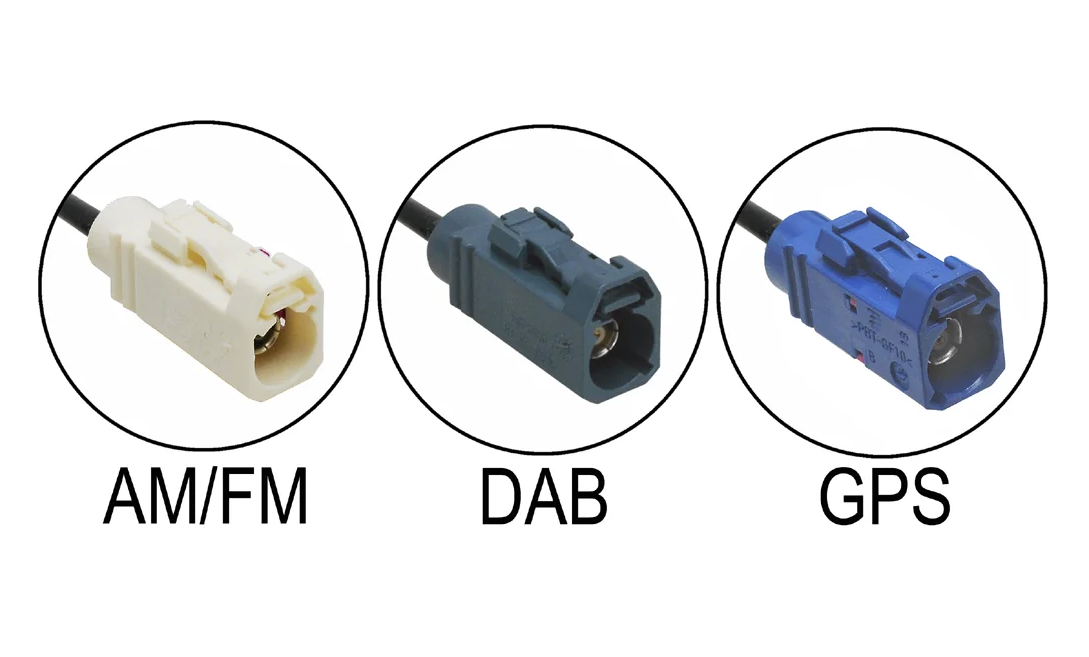

• Antenna connector: FAKRA female white.

DAB part

• Frequency range: 174 - 240 MHz (III. band).
• Phantom and separate power supply: 12 V.
• ​Antenna cable length: 20 cm.
• Cable: RG174.
• Package without antenna lead.
• Connector: FAKRA female gray.
• Gain: 2 dB.
• VSWR: < 3:1.

GPS part

• GPS frequency range: 1575.42 (+/-1.023) MHz.
• Phantom power: 3 - 5 V.
• Gain: > 28 dB.
• Current consumption: max. 45 mA.
• VSWR: 2:1.
• Without antenna lead.
• ​Antenna cable length: 25 cm.
• Antenna connector: FAKRA female, blue.

Common features

• Consumption: 50 mA (max).
• Impedance: 50 ohms.
• Color: black.
• Protection: IP68.

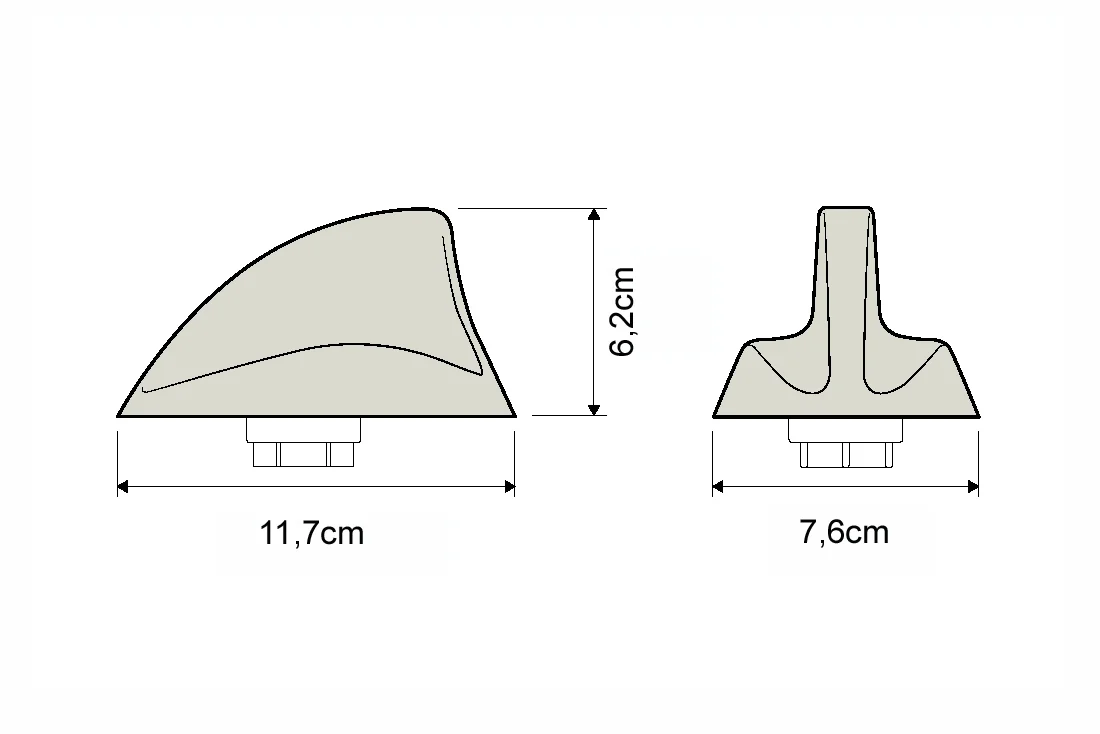

• Dimensions: 11.7 x 7.6 x 6.2 cm (L x W x H).

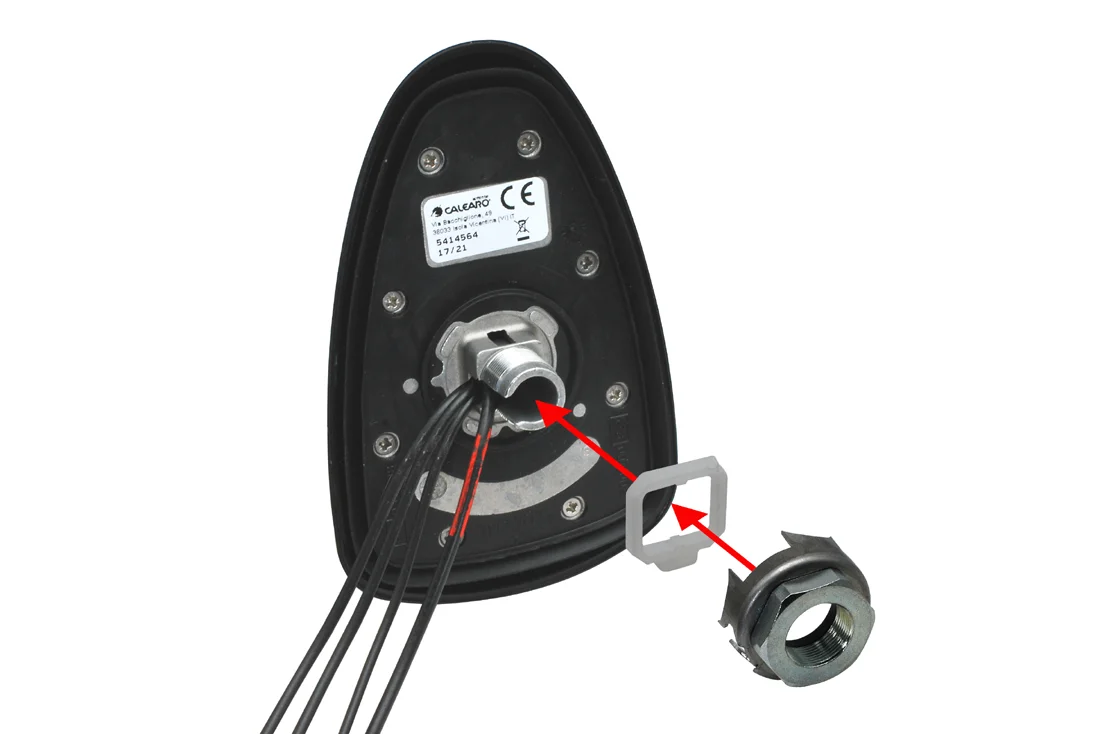

• Diameter of the hole in the body: square 20 x 23 mm.

Suitable for cars

• Fiat
• Chrysler
• Jeep
• Dodge
