Antenna Calearo Shark 2 7677942
roof antenna / DAB-DAB+
More about the product
More about the product
The sale is over
Please choose similar goods from the same category
Car antenna to the rear of the roof
The sale is over

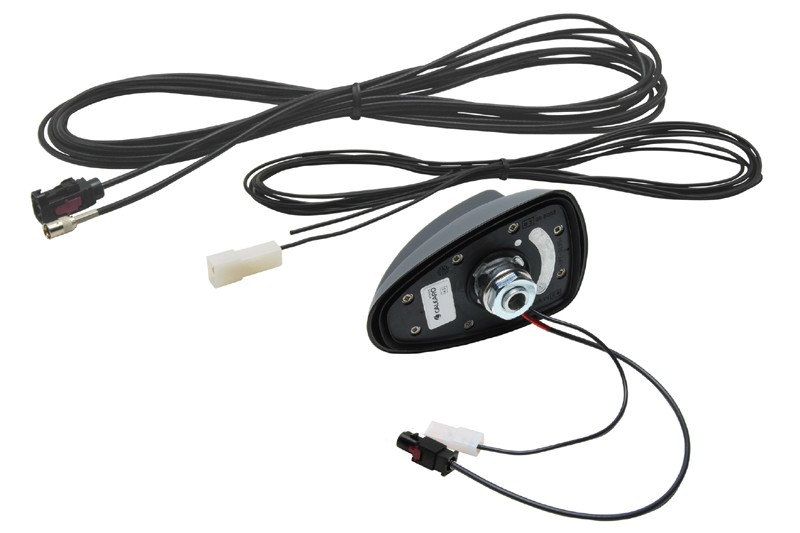

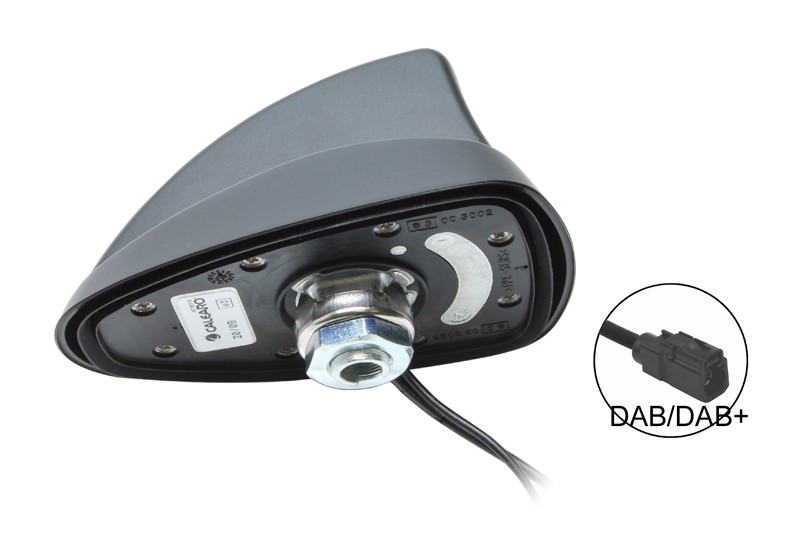

Shark 2 DAB-DAB+ roof active antenna
Use on the roof of cars or trucks, can also be used as a replacement for the original antenna. In the case of a request for a different type of connector on the side of the connected device, it is possible to use one of the reductions or replace the cable.- Separate 12 V power supply.
- Cable length: 5 m / 50 ohms / impedance 101 pF/m.
- Connector: SMB female.
- Frequency range: 174 - 240 MHz (III band).
- Gain: 16 dB (III band).
- Current consumption: 85 mA max.
- Base dimensions: 6 x 4.3 cm.
- Installation in a circular (Ø 19 mm) or square hole (15 x 15 mm).
| Catalog number | 7677942 |
| Brand | Calearo |
| Links | Official web presentation |
