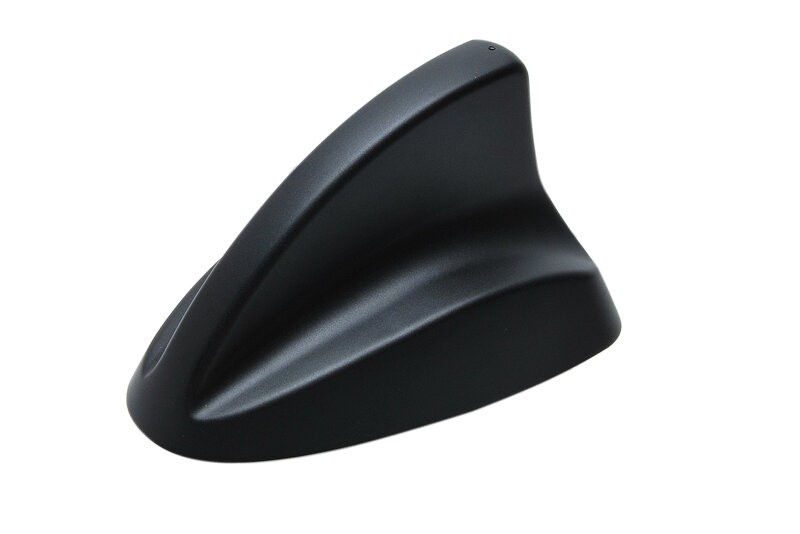

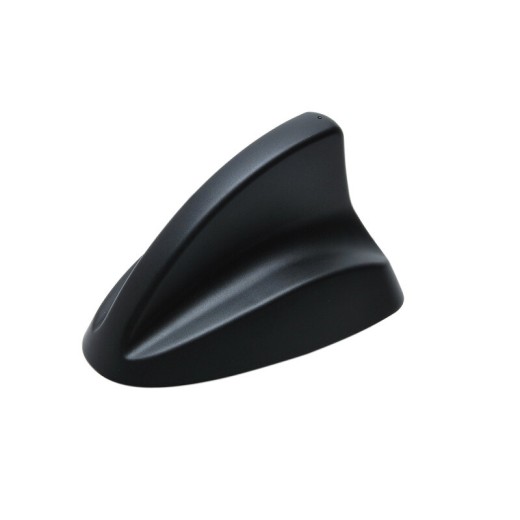

Antenna Calearo Shark 2 7727099

Roof antenna GSM-UMTS-LTE / WIFI DUAL BAND / GPS

  • Gain: GSM 0 dB / LTE 4 dBi.
  • Max. power: 4 W.
  • TX: < 1.5:1.
  • RX: < 2:1.
  • VSWR LTE < 2.5:1.
  • Without antenna lead.
  • Antenna connector: FAKRA male (purple).
  • Cable at the antenna: RG174, length 29 cm.

Frequency range

  • GSM: 890-960 MHz.
  • UMTS: 1900-2170 MHz.
  • LTE 698-862 MHz / 2500-2690 MHz.

WIFI DUAL BAND

  • WIFI frequency range: 2400-2485 MHz.
  • Gain: 4dB.
  • Current consumption: max. 30 mA.
  • Max. power: 4 W.
  • VSWR: 2.5:1.
  • Without antenna lead.
  • Antenna connector: FAKRA male (pink).
  • Cable at the antenna: RG174, length 12 cm.

GPS

  • GPS frequency range: 1575.42 (+/-1.023) MHz.
  • Phantom power: 3-5V.
  • Gain: 30dB.
  • Current consumption: max. 45 mA.
  • VSWR: 2:1.
  • Without antenna lead.
  • Antenna connector: FAKRA male (blue).
  • Cable at the antenna: RG174, length 29 cm.

Common features

  • Black colour.
  • Dimensions: 11.7 x 7.6 x 6.2 cm (L x W x H).
  • Body hole diameter: circular 19mm / square 15x15mm.

Use on the roof of cars or trucks, can be used as a replacement for the original antenna. In the case of a request for a different type of connector on the side of the connected device, it is possible to use one of the reductions or replace the cable.

Catalog number7727099
BrandCalearo
LinksOfficial web presentation
