Antenna Calearo Shark 2 TRI-TV 7727083
FM + TV + GPS roof antenna Shark2
More about the product
More about the product
We will help you with your purchase
- Use our consulting room
- You can return the goods to us within 14 days
- Try the product at our store

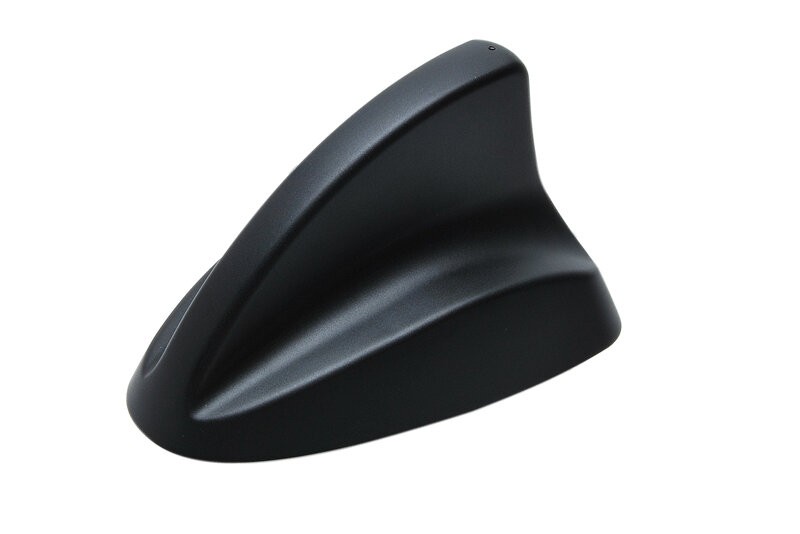

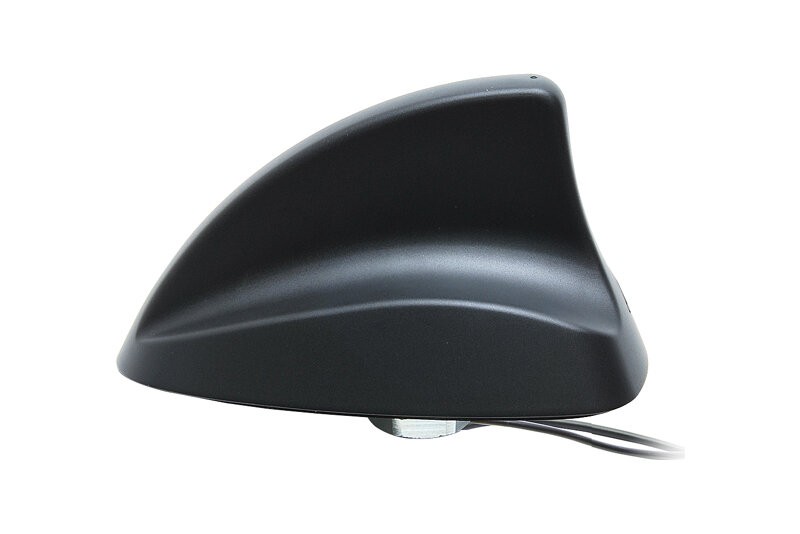

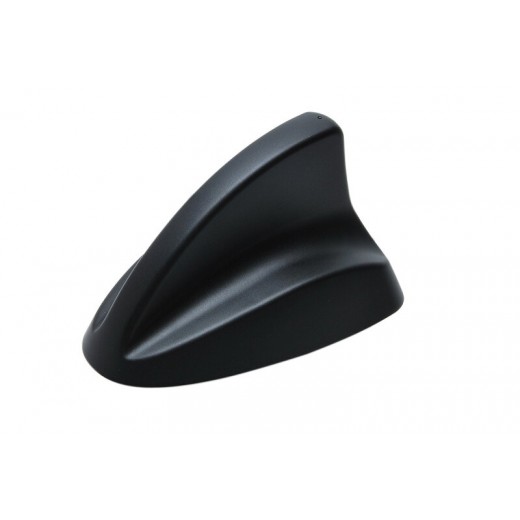

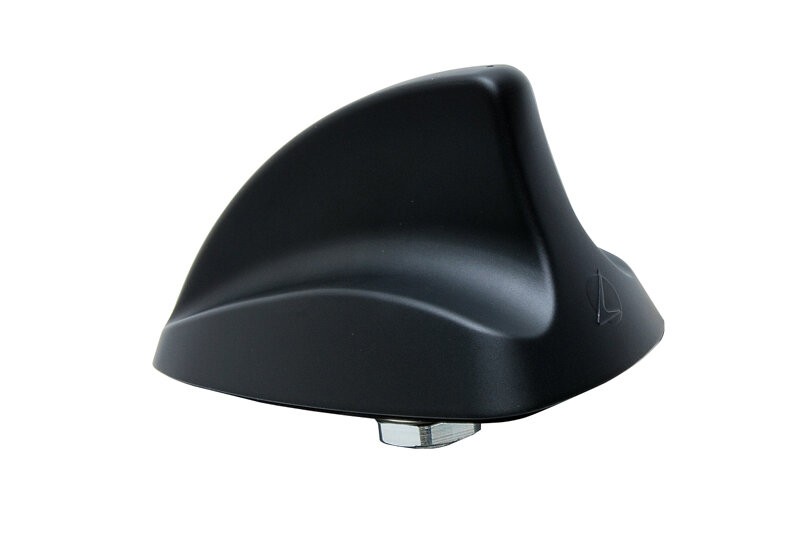

FM + TV + GPS roof antenna Shark2
SHARK 2 TRIPLEX TV - roof antenna for receiving AM/FM - DTT - GPS to the rear part of the roof, with amplifier. Use on the roof of cars or trucks, can also be used as a replacement for the original antenna. In the case of a request for a different type of connector on the side of the connected device, it is possible to use one of the reductions or replace the cable. In order to connect to the OEM (original) antenna lead, it may be necessary to use a cable reducer in some cars.
Key properties:
- Consumption: 50 mA (max)
- Impedance: 50 ohms
- Black colour
- Protection: IP68
- Dimensions: 11.7 x 7.6 x 6.2 cm (L x W x H)

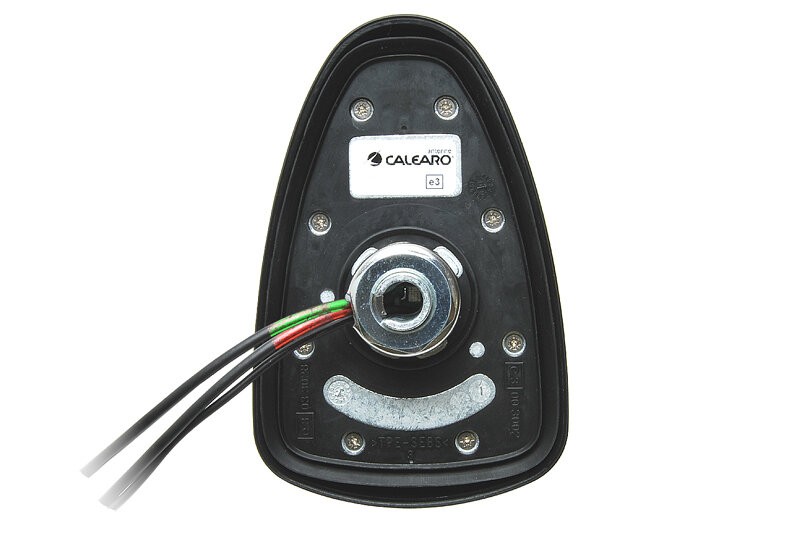

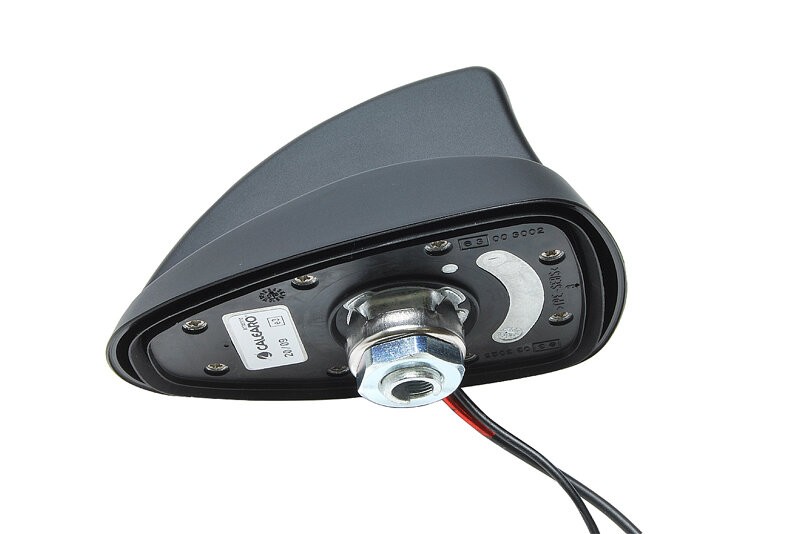

- Body hole diameter: circular 19 mm / square 15 x 15 mm
GPS part:
- GPS frequency range: 1575.42 (+/-1.023) MHz
- Phantom power: 3 - 5 V
- Gain: >28dB
- Current consumption: max. 31 mA
- VSWR: 1.7:1
- Without antenna lead

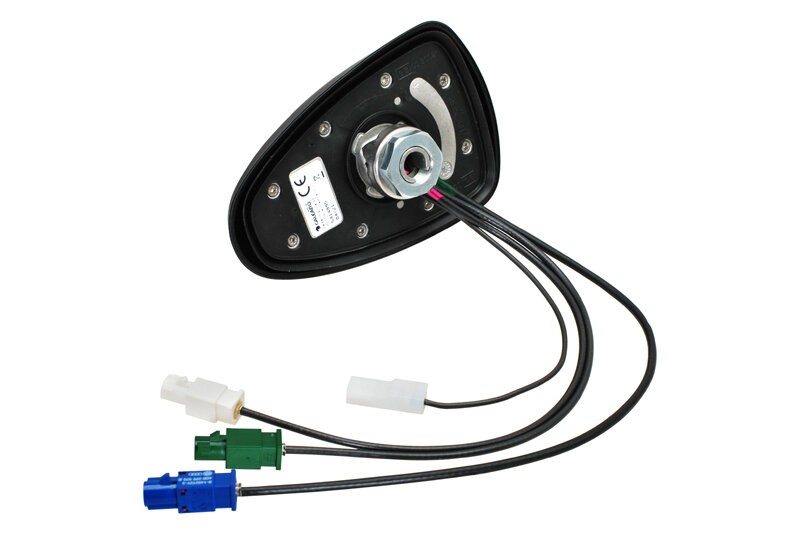

- Cable length at the antenna: 25 cm

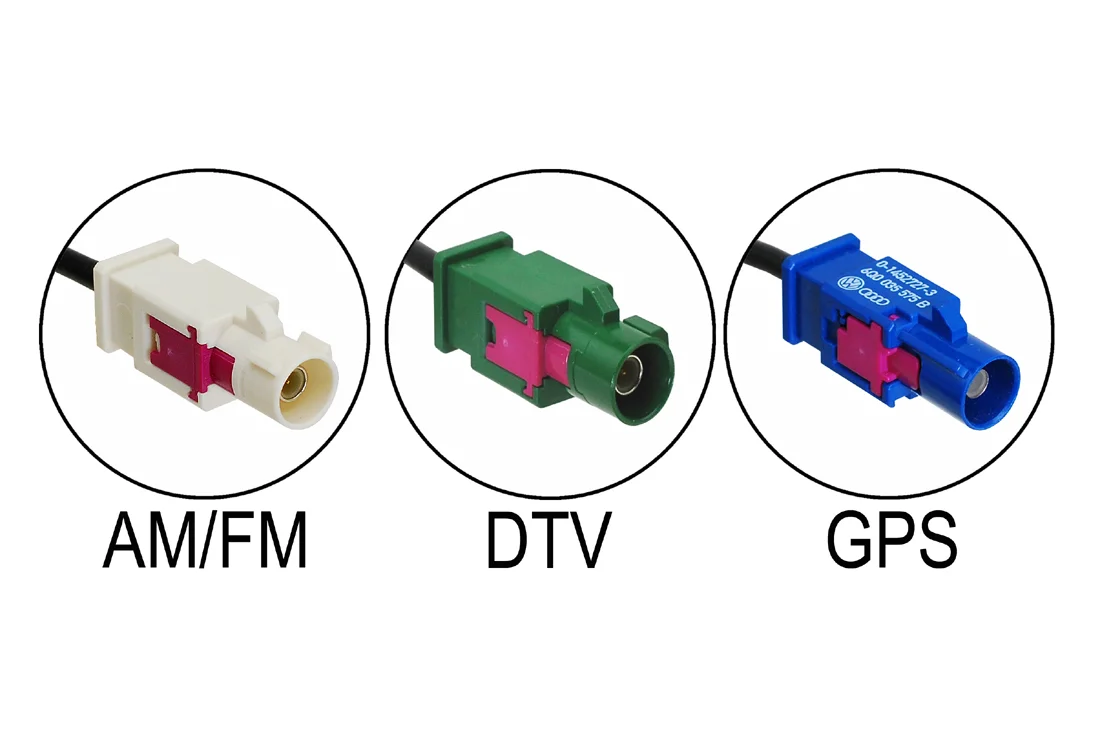

- Antenna connector: FAKRA male blue
TV part:
- TV frequency range: 44-68 MHz / 174-230 MHz (III. TV band) / 470-862 (IV. TV band)
- Phantom and separate power supply: 12 V
- Cable: RG174
- Packaging without antenna lead
- Cable length at the antenna: 25 cm
- Connector: FAKRA male green
- Gain: 4dB
- VSWR: <4
- Current consumption: max. 40 mA
AM/FM part:
- AM/FM frequency range: 0.52 - 1.71 / 88-108 MH
- Phantom and separate power supply: 12 V
- Cable: RG174
- Packaging without antenna lead
- Cable length at the antenna: 25 cm
- Antenna connector: FAKRA male white
Suitable for cars:
- Universal use
- Alfa Romeo 145
- Alfa Romeo GT
- Audi A3
- Audi A6 Avant (-> 2001)
- Audi A4 Avant (-> 2001)
- Citroen Xsara
- Citroen C2
- Citroen C3
- Citroen C5 Estate
- Daewoo Nubira Combi
- Daewoo Tacuma
- Fiat Stilo
- Fiat Idea
- Fiat Panda II (2003 -> 2012)
- Lancia Libra Combi
- Lancia Ypsilon (2004 ->)
- Lotus Elite
- Lotus Esprit
- Mazda 323 (1999 ->)
- Mazda3
- Mazda 6 I. [GG][GY](2002 -> 1/2008)
- Mitsubishi Outlander II. (2007 -> 2012)
- Nissan Micra
- Nissan Almera
- Nissan Primera
- Opel Omega Caravan
- Opel Zafira
- Opel Vectra
- Opel Meriva
- Opel Speedster
- Peugeot 307
- Renault Clio (2001 ->)
- Renault Megane II
- Renault Scenic II
- Seat Aroza
- Seat Ibiza (1998 ->)
- Seat Cordoba (1998 ->)
- Seat Toledo (1998 ->)
- Seat Leon
- Seat Altea
- Skoda Fabia I
- Skoda Fabia II
- Skoda Octavia I
- Skoda Octavia II
- Škoda Superb I
- Škoda Superb II
- Too bad Yeti
- Toyota RAV4
- Toyota Corolla (2002 ->)
- Toyota Yaris (2003 ->)
- Toyota Prius
- VW Lupo
- VW Polo
- VW Golf III IV
- VW Corrado
- VW New Beetle
- VW Bora
- VW Passat (1993 ->)(1997 ->)
- Volvo V40
Due to the short rod, reception of FM broadcasts may be limited in places with a weaker signal. This product replaces antenna 7727085.
| Catalog number | 7727083 |
| Brand | Calearo |
| Links | Official web presentation |
