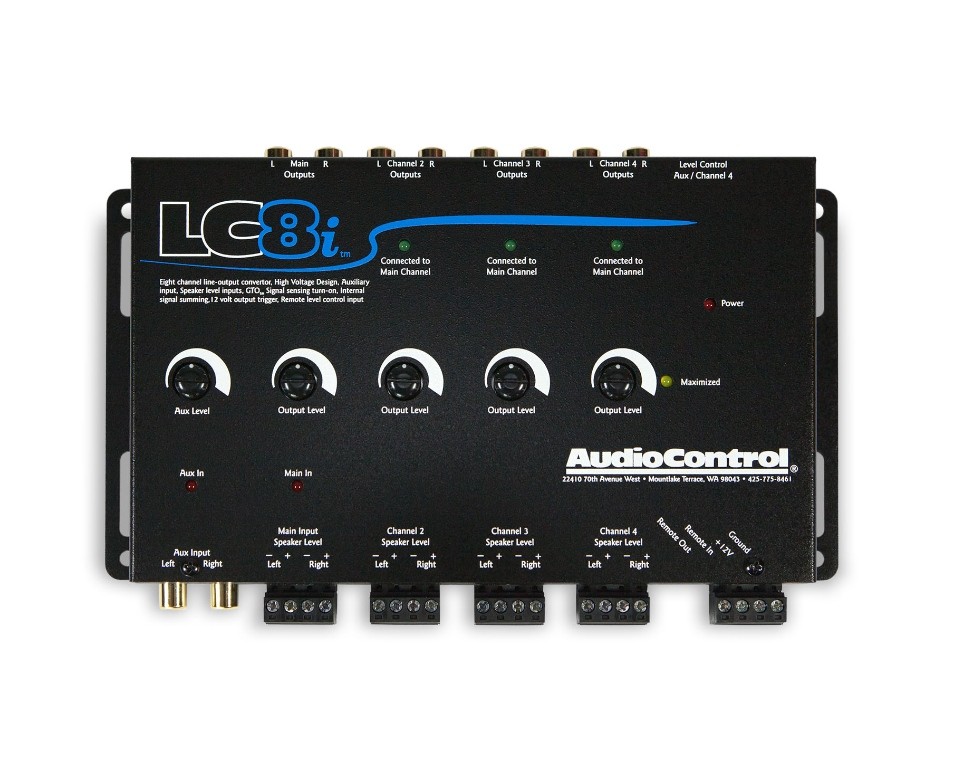

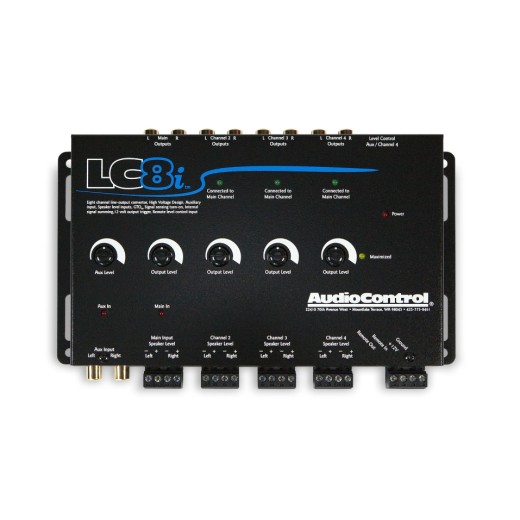

AudioControl LC8i high/low converter

AudioControl LC8i high/low converter

The LC8i is a highly flexible eight-channel signal processor with active input circuitry that accepts speaker-level inputs of up to 400 watts per channel from factory source units or amplifiers. It converts them into high-quality preamplifier signals that can then be routed to processors or amplifiers. This means users will enjoy maximum sound quality while still using the factory volume and steering wheel controls. Designed for maximum flexibility, the LC8i features an auxiliary input that allows the easy addition of secondary source units. By tapping the control knob on the dash, the user can switch back and forth between the main speaker level inputs and the auxiliary input. In addition, the multifunction controller on the dash provides both auxiliary input volume control and subwoofer output level adjustment. The LC8i uses proven OEM integration technology derived from AudioControl's highly popular LC6i, LC7i and The Epicenter® Plus signal processors. The speaker-level inputs accept high-power signals (up to 400 watts per channel), either full-scale or crossover, and convert them to high-quality preamplifier signals. Signals from factory radios with built-in crossovers can be summed and combined internally to provide a full-scale preamp signal. Customers looking to deliver sound quality that is clearly superior to OEM systems can also easily add one of the many AudioControl crossovers or EQs after the LC8i to provide even more control over the factory signals.

The main features of the AudioControl LC8i high/low converter

• Active 8-channel high/low converter.
• Eight channels of active speaker inputs receive up to 400 watts per channel.
• Auxiliary input for easy connection of iPods or other portable audio devices.
• Inputs: 8 x Hi-Level (40 Vrms / 400 W, input impedance 20 kΩ), 1 x AUX.
• Outputs: 8 x RCA (8.5 Vrms / 13 V, 150 Ω).
• Output gain: +/- 12 dB.
• Internal channel summing for interfacing with factory-installed amplifiers with built-in crossovers.
• The GTO™ (Great Turn-On) circuit turns the LC7i on when it detects a signal at the speaker level input.
• Output level control.
• The multi-function control (included in the package) enables source selection, auxiliary input volume and subwoofer level control.

About the AudioControl brand

As the name suggests, AudioControl has been all about sound control for more than 40 years. Especially in the United States of America, AudioControl is one of the respected and very popular manufacturers not only of sound systems for vehicles, but also for homes. The company's headquarters, including research, development, manufacturing and training facilities, thrive in Mountlake Terrace, Washington, in the heart of the Pacific Northwest rainforest. All products are therefore still designed and proudly manufactured in the USA, which guarantees their high quality and reliability. This is evidenced by the five-year guarantee that AudioControl provides for its products. AudioControl engineers are responsible for several patented technologies that have created a new way to improve sound in the automotive environment. And that's exactly what AudioControl focuses on. The range is quite narrow, specializing in high-end digital amplifiers, DSP processors, equalizers, preamplifiers and, above all, a range of products for the implementation of a new sound system on existing factory units. Professional measuring tools are also available, which help to fulfill the main goal of the AudioControl company, which perfectly describes their slogan "Making good sound great".
