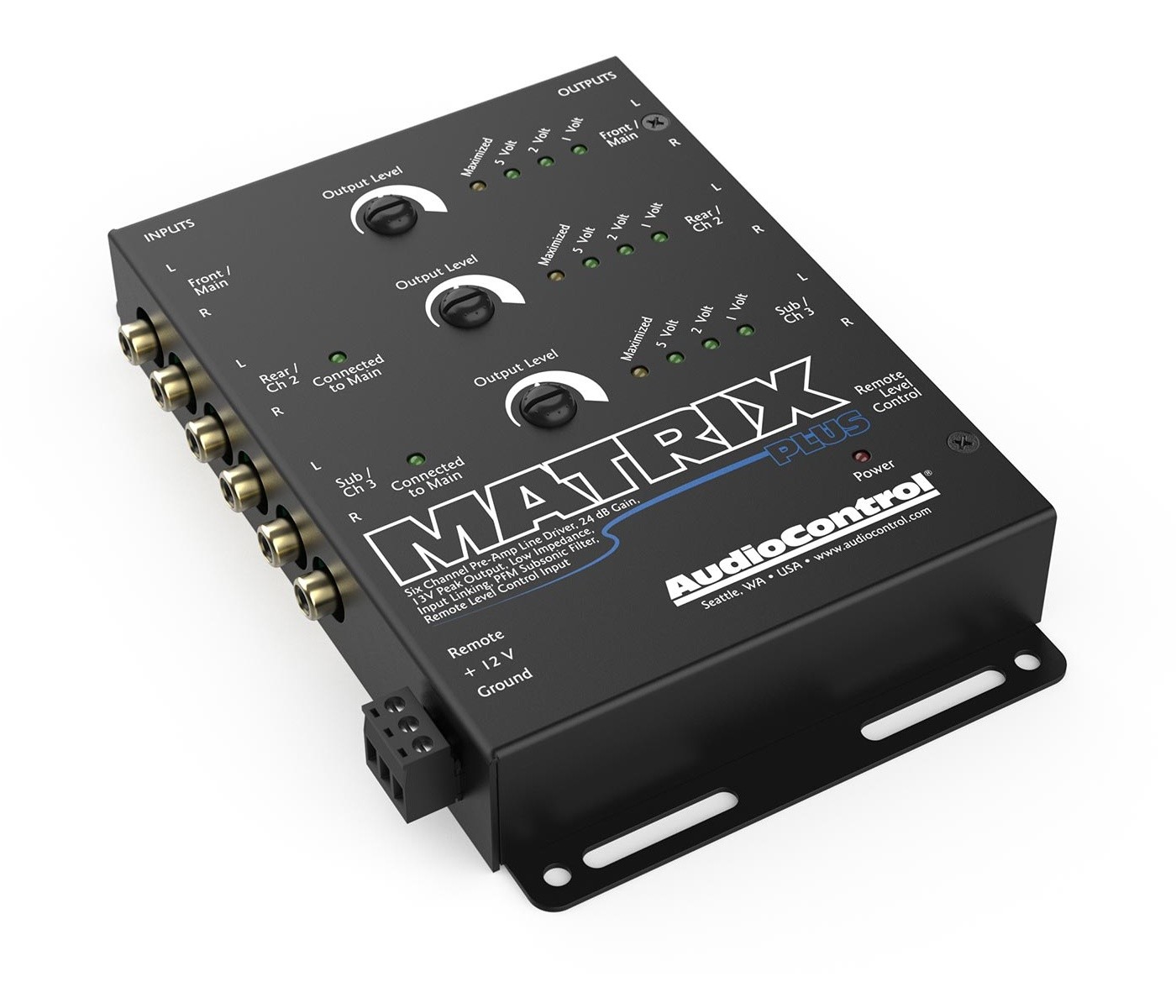

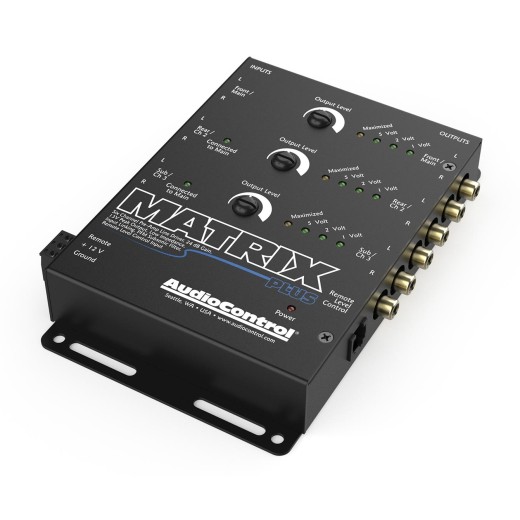

AudioControl Matrix Plus 6-channel preamplifier
Give your system the support it needs. Powering the AudioControl line drivers boosts the preamplifier signal up to 24dB, providing better dynamic range and a quiet, noise-free signal. Ideal for running long cables from the front to the rear of the vehicle. AudioControl created the six-channel Matrix Plus driver with the goal of making your car sound better. Modern car stereos boast many features, but in many cases rather low preamplifier outputs, especially at low levels. Turn the stereo up to normal volume, send the signal through several meters of cable, and your amplifiers can end up with a very weak audio signal, resulting in poor sound quality. Featuring 24dB of gain, the Matrix Plus line driver can boost the preamp signal level up to 9.5V RMS/13V peak. When integrating multimedia or controlling amplifiers, Matrix Plus gives your system a boost. With multiple sources such as video, the Matrix Plus level corresponds to different volume levels, making switching between them seamless. An internal Matrix interconnect system will allow two input channels to drive all six outputs, and each output can drive up to seven amplifiers. The Matrix Plus line controller features an optional on-board control input that makes it easy to control preamplifier signal levels remotely. This makes the AudioControl Matrix Plus the ideal controller for the system's overall master volume or subwoofer level. Let Matrix Plus kick your system into overdrive.
Main features of AudioControl Matrix Plus
- 6-channel line controller.
- It improves the dynamic range and ensures a strong signal without noise.

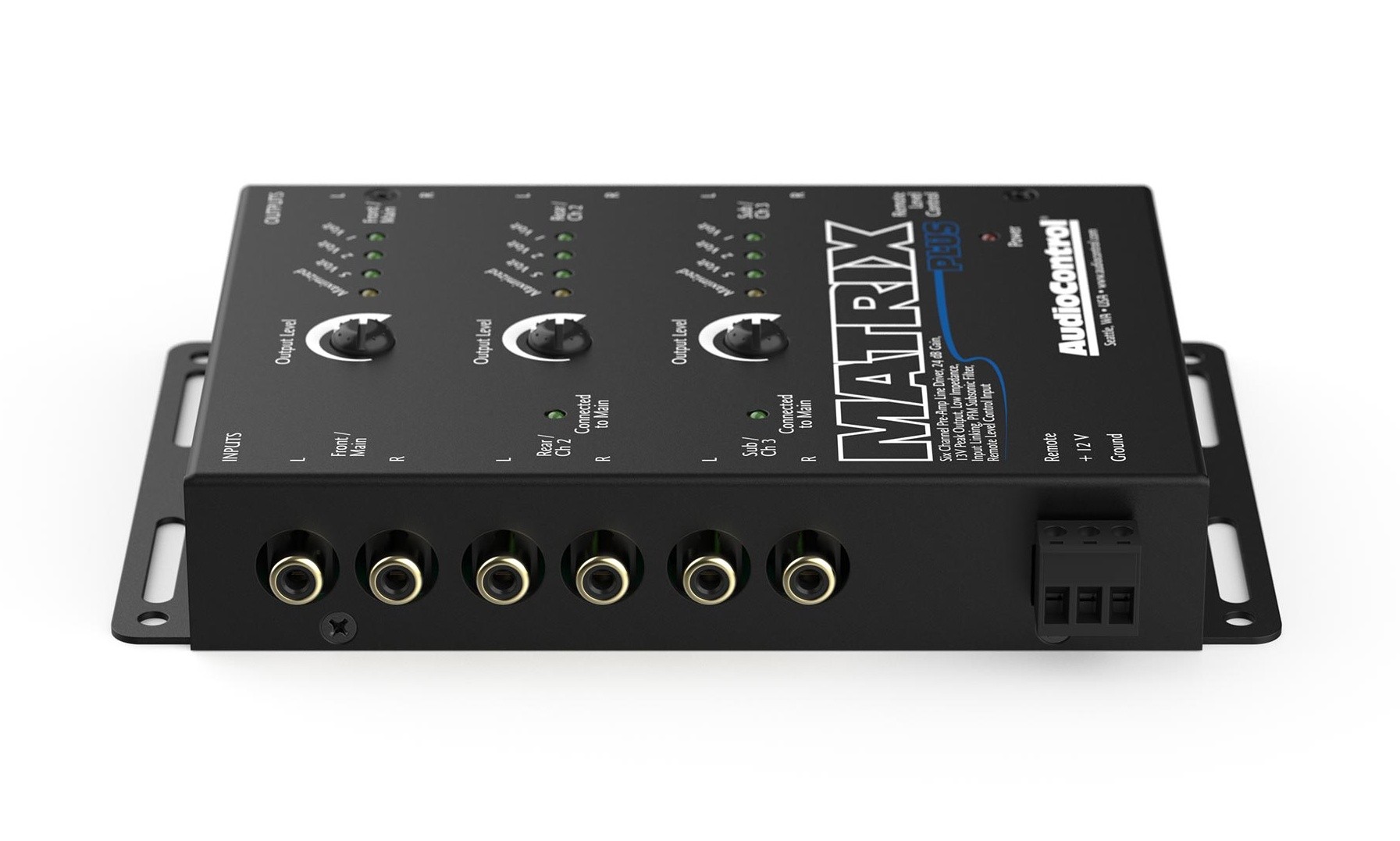

- Inputs: 6 x RCA (20 kΩ).

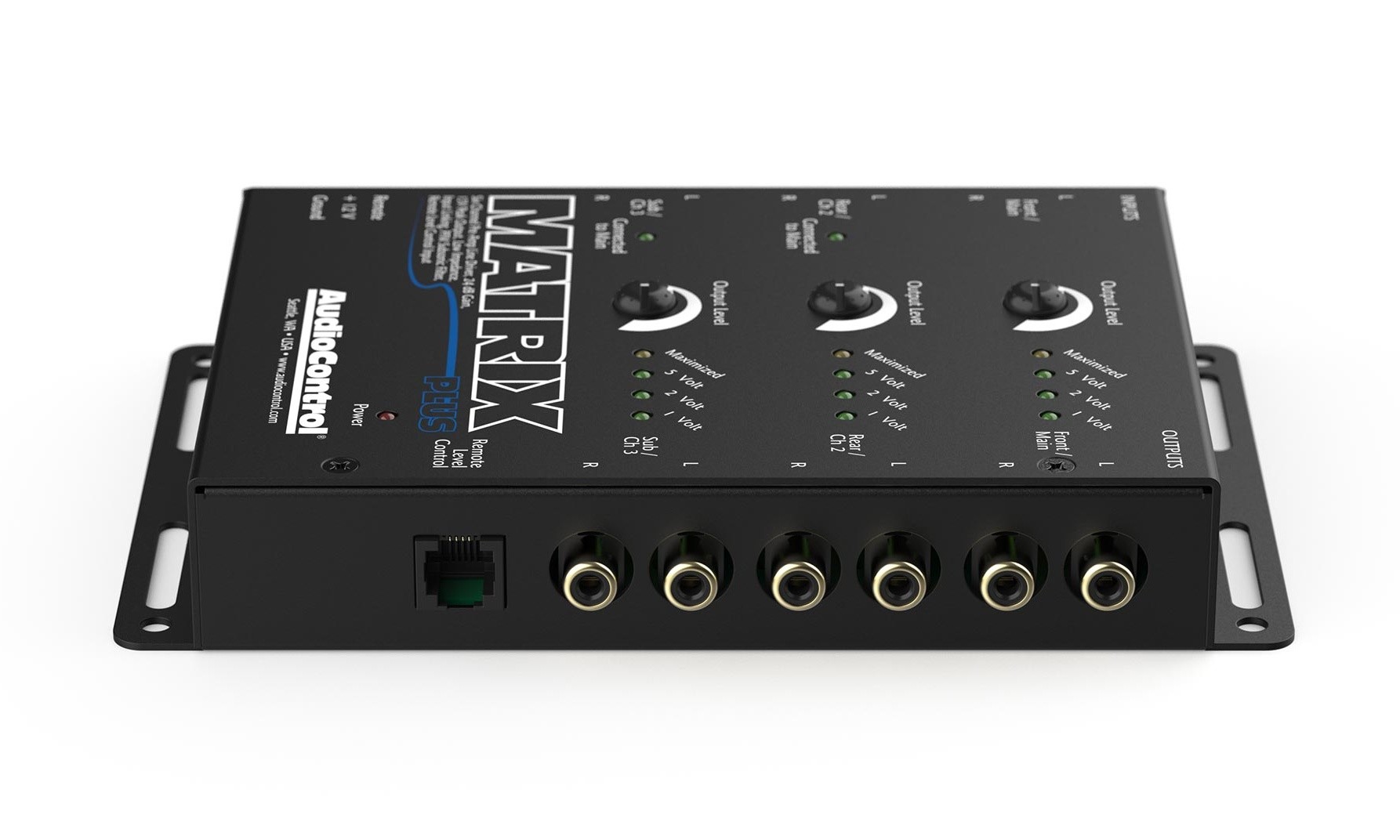

- Outputs: 6 x RCA (9.5 Vrms, impedance 50 Ω).
- Balanced differential inputs.
- Low impedance outputs.
- Optional remote level control (ACR-1).
- PFM Subsonic filter.
- Output level control.
- Ultra low distortion, ultra quiet operation.
- Optional ground insulation.
- LED indicators of optimal voltage.
- Conformally coated printed circuit board for increased durability.
About the AudioControl brand
As the name suggests, AudioControl has been all about sound control for more than 40 years. Especially in the United States of America, AudioControl is one of the respected and very popular manufacturers not only of sound systems for vehicles, but also for homes. The company's headquarters, including research, development, manufacturing and training facilities, thrive in Mountlake Terrace, Washington, in the heart of the Pacific Northwest rainforest. All products are therefore still designed and proudly manufactured in the USA, which guarantees their high quality and reliability. This is evidenced by the five-year guarantee that AudioControl provides for its products. AudioControl engineers are responsible for several patented technologies that have created a new way to improve sound in the automotive environment. And that's exactly what AudioControl focuses on. The range is quite narrow, specializing in high-end digital amplifiers, DSP processors, equalizers, preamplifiers and, above all, a range of products for the implementation of a new sound system on existing factory units. Professional measuring tools are also available, which help to fulfill the main goal of the AudioControl company, which perfectly describes their slogan "Making good sound great".
| Catalog number | MATRIX PLUS |
| Brand | Audio control |
| Links | Official web presentation (English) |
