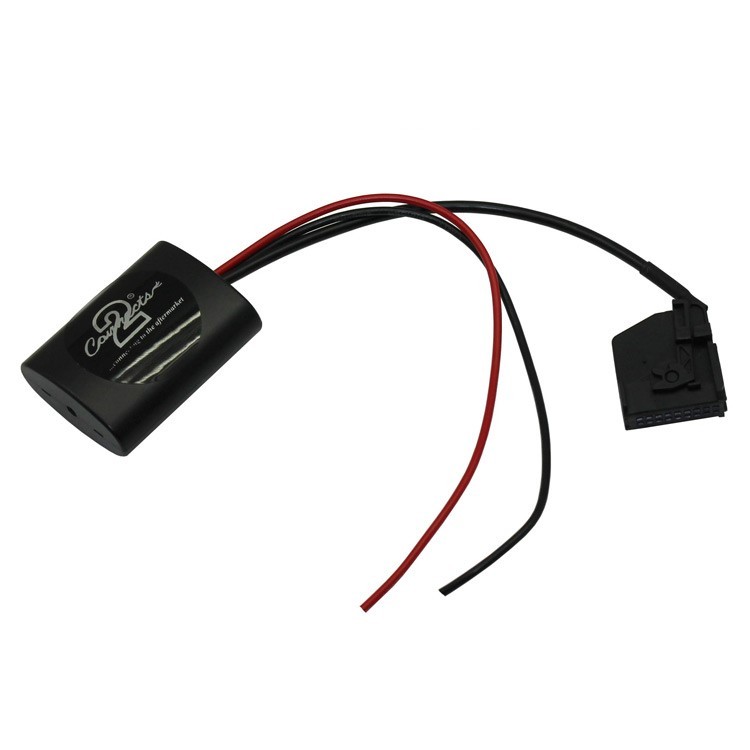

Bluetooth audio adapter Connects2 BT-A2DP VW 18

Bluetooth audio adapter Connects2 BT-A2DP VW 18

The Bluetooth audio adapter for VW vehicles enables the wireless transmission of music from a mobile phone to the vehicle's original radio. Music transmission up to a distance of 5 m from the receiver. Compatible with mobile phones, tablets, MP3 players, etc. with Bluetooth function.

Suitable for cars

• VW Caddy (2004 ->)
• VW Golf Mk V (2003 ->)
• VW Golf Plus MK V (2004 ->)
• VW Passat (2005 ->)
• VW Sharan (2003 -> )
• VW Touareg (2003 -> 2010)
• VW Transporter T5 (2003 ->)

Technical data of the bluetooth adapter

• Bluetooth: version 3.0.
• Bluetooth protocol: HFPV1.5, A2DPV1.2, AVRCPV1.4 HSP1.2, GAVDP1.2 IOP.
• Current consumption: <25 mA.
• Power supply: 12 V.
• Range: min. 5 meters.
• Sensitivity: -80dBm <0.1% BER.
• Frequency range: 2.4 GHz - 2.480 GHz.
• Audio performance: SBC Decode.
• Audio SNR: >=75dB.

Note:

• In the radio menu, there must be an option to select the music source via AUX IN. For some radios, this option can be enabled via diagnostics. For original radios that already include Bluetooth, this must be turned off.
