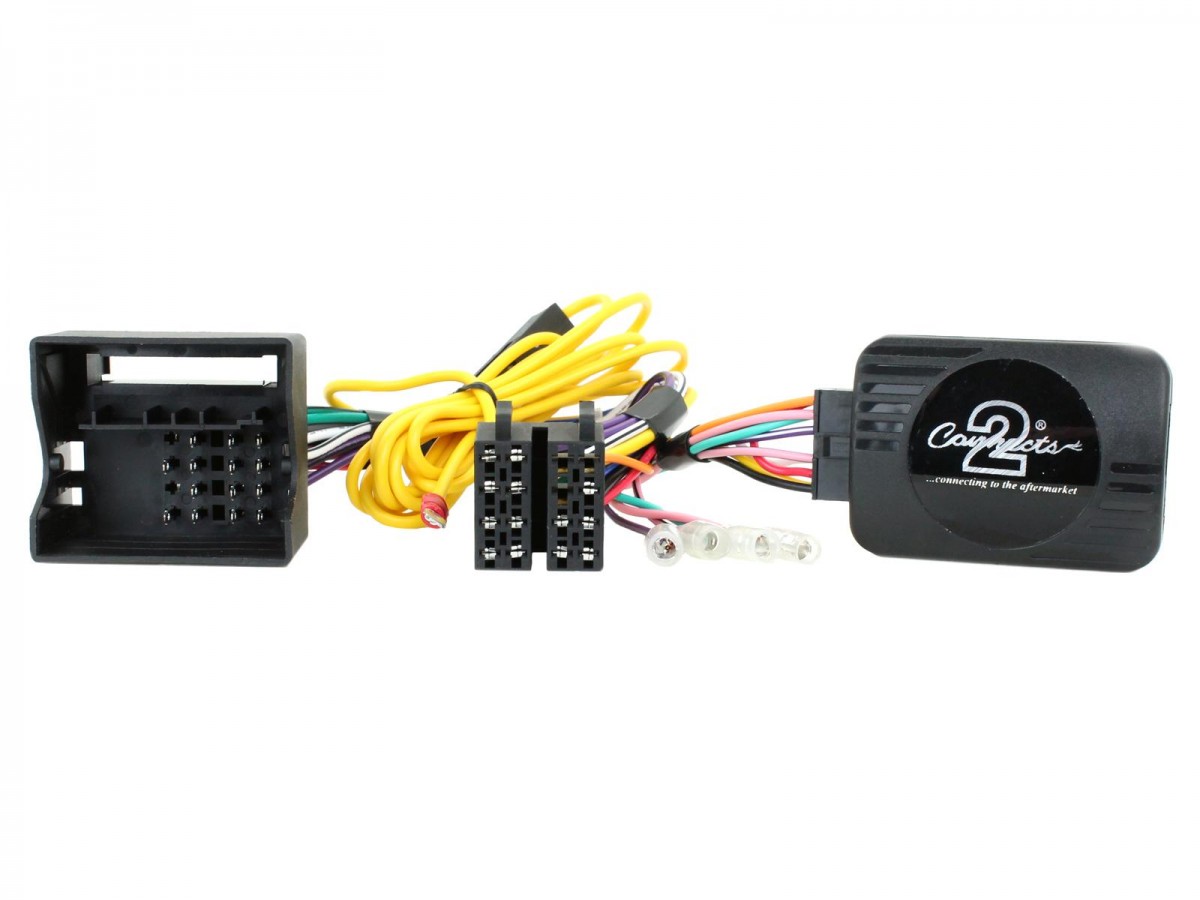

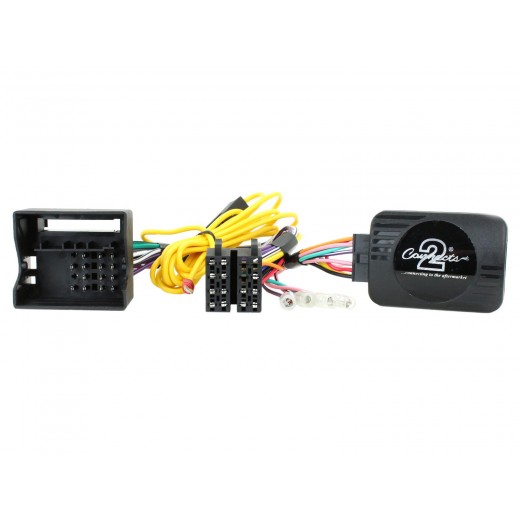

BMW Mini Connects2 steering wheel button control adapter CTSBM010.2

BMW steering wheel adapter

Adapter for activating the control buttons on the steering wheel when buying an aftermarket car radio with an ISO connector (included in the adapter) for vehicles:

• BMW Mini F55/F56 (2014 ->)

Important additional information

• For cars with steering wheel controls.
• Supports steering wheel buttons to control the hands-free kit (if available).
• Designed for aftermarket Sony, Kenwood, Panasonic, JVC, Pioneer, Blaupunkt, Clarion, Alpine, LG, Zenec, Becker car radios.
• Installation instructions in English can be found under this link .
• To fully activate the adapter, it is necessary to order a connecting cable for the given brand of car radio! (see below)

The adapter includes wires with analog signals

• +12 V after turning on the key (vol. 15) - connected in the ISO connector.
• +12 V after switching on the vehicle lighting - connected in the ISO connector.
• +12 V after engaging the reverse gear - free violet-gray wire.
• Speed pulses - free pink-green wire.
• Handbrake - free green wire.
