Brax Graphic GL1 speakers

tweeters, Ø 25 mm domes, 100 W RMS, 90 dB (1W/1m), 4 Ω
More about the product
We will help you with your purchase
Brax Graphic GL1 speakers

Brax Graphic GL1 speakers

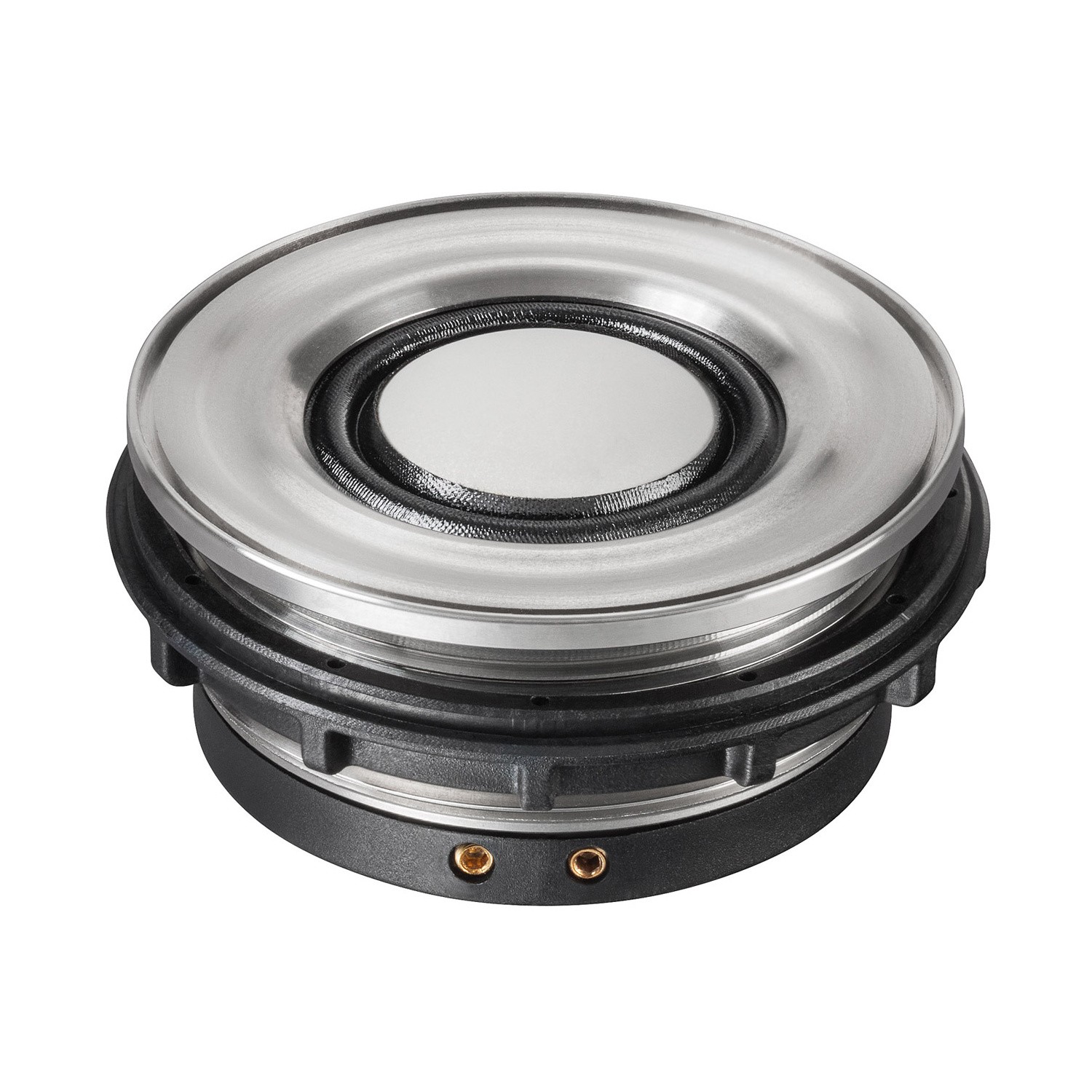

It all started with the vision of Heinz Fischer, passionate music lover and founder of Audiotec, to bring the sound experience of legendary high-end audio components to the car environment. No compromises in terms of design, technology and sound – following these principles, Brax engineers focused on exceptional sound quality and once again pushed the technological limits when designing the new BRAX GRAPHIC range of loudspeakers. Excellent components and unmatched craftsmanship make the difference, and of course the speakers are made in Germany! The high-end 25mm / 1" tweeter BRAX GRAPHIC GL1 is the first of its kind to come with an innovative ceramic aluminum dome. Its sophisticated material requires a complex manufacturing process in which a plasma flame melts the ceramic powder on the surface into an aluminum substrate. The result is a tweeter dome, which combines excellent stability with low moving mass and high internal damping - perfectly crafted for brilliant treble reproduction without compression. The clean and aesthetic design made of solid stainless steel not only looks classy, but also ensures perfect heat dissipation. The mounting ring with a fine thread ensures a trouble-free and discreet integration into the car's interior, while the 12-fold drilled neodymium magnet is optimized for the highest linear magnetic flux. Finally, the recessed 24K gold-plated tip reduces contact resistances to almost zero, and the rigid grid perfectly protects the sensitive diaphragm. Like all BRAX speakers, each pair of tweeters has its own own serial number, properly recorded in the Brax database. Needless to say, such valuable products will be delivered in a noble wooden box emphasizing the approach and philosophy of the BRAX brand.

Main features of Brax Graphic GL1 tweeters

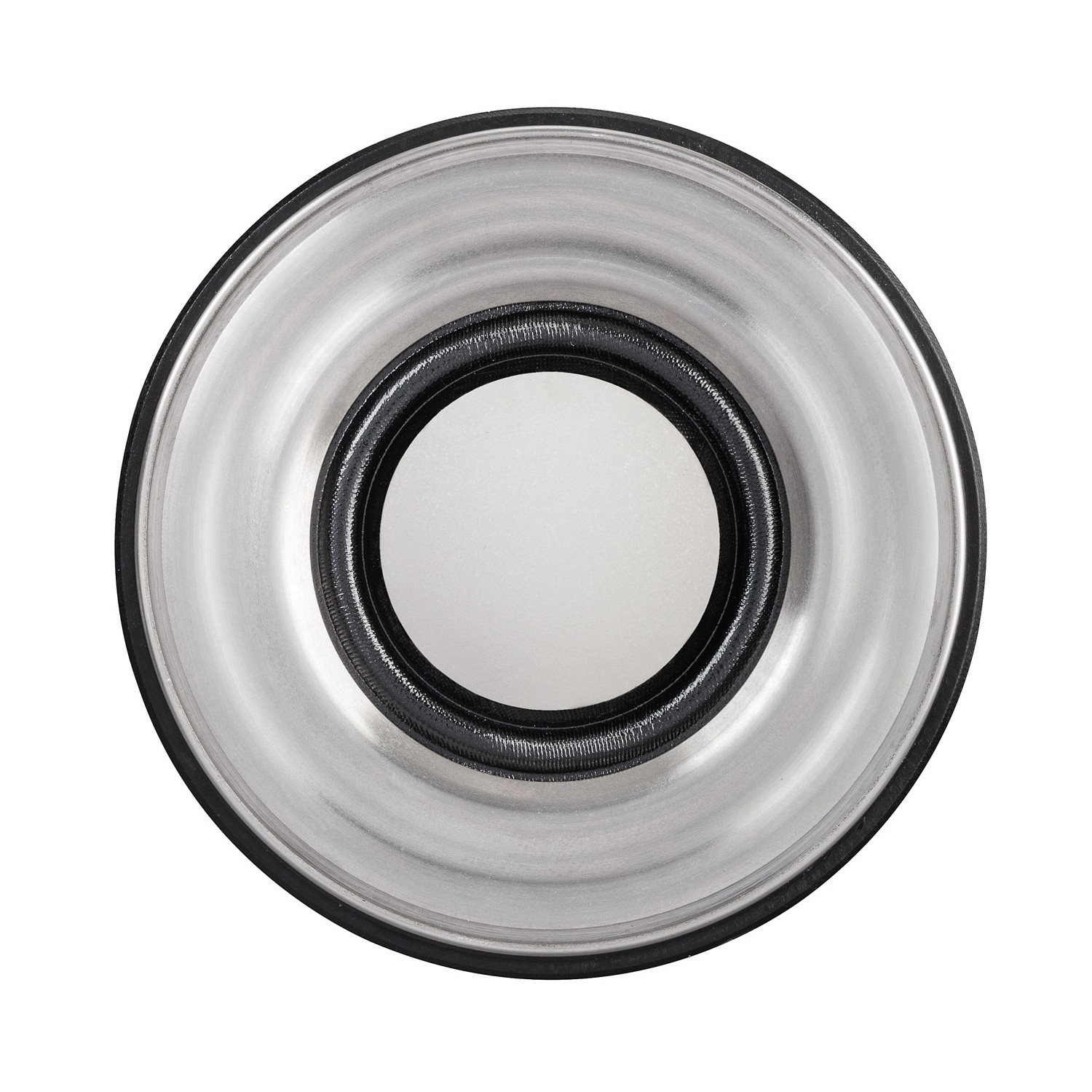

  • Ultra stiff ceramic aluminum dome for extremely precise and dynamic treble response.
  • CNC machined stainless steel housing for maximum heat dissipation.

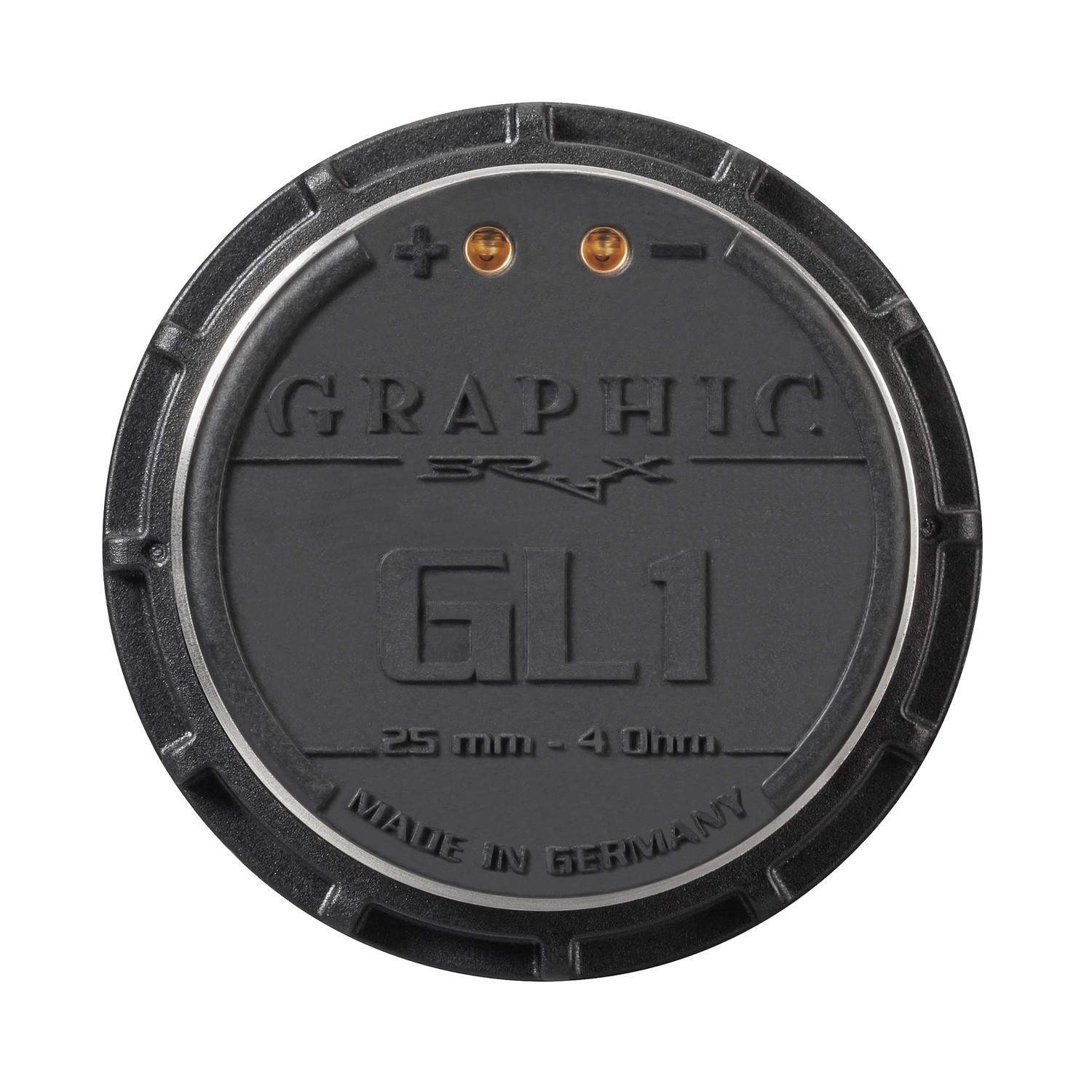

  • Precisely machined, 12x vented neodymium magnet for the highest linearity of the magnetic flux.
  • Integrated 24-carat gold-plated tips for maximum conductivity.
  • Rear mounting ring and fine thread for concealed mounting.
  • A fixed protective grid is included in the delivery.
Catalog numberBRAX GRAPHIC GL1
BrandBrax
LinksOfficial web presentation
Speaker typeCoaxial speakers:
Coaxial speakers are characterized by a so-called all-in-one design. The tweeter and mid-bass speaker are in one basket. The advantage is simpler assembly, but thanks to the connection or proximity of the bands in one speaker, the sound quality will usually be reduced. As a rule, in the middle of the mid-bass speaker, there is a tweeter whose voice coil works in the second air gap of the common magnetic circuit. The three-way coaxial speaker consists of a mid-bass speaker, a center speaker and a separate tweeter in the front on a special beam.

Component Speakers:
Component speakers are characterized by a division into individual frequency bands, treble + mid-bass + or. bass band. The individual speakers can be placed completely separately, which results in a better sound and acoustic performance. In the vast majority of cases of component speakers, an external crossover is also supplied, which divides the treble, middle / mid-bass, and into the three-band the bass band or allows setting the decibel level of the tweeter (e.g. +2 dB, 0 dB, -2 dB), steepness (e.g. 6dB/Oct. 12dB/Oct.) or active or bi-amp connection.
High rise
RMS powerRMS speaker power is the constant power of the entire system, not just one speaker or one side. This is also the performance of continuous use of the speakers. If the RMS power is exceeded for a long time, the speakers may be irreversibly damaged! 100W
Max. (maximum performancePeak performance , which the speaker can play for a moment (approx. 0.5 s), for example when hitting drums in a song. If the max power is exceeded, the speakers will usually be damaged! 150 W
Sensitivity (SPL 1W/1m)Sensitivity, sensitivity or efficiency of the speaker.

Speaker sensitivity is given in decibels (dB) and simply put, the higher the value, the lower the demands on the amplifier's power. This is a defacto rating of how a speaker converts watts to sound. Sensitivity ratings are in noise level measured at 1 meter from the speaker using 1 W (watt of power) or using 2.83 volts at the source at 1 meter.

A higher decibel level means the speaker is louder with less power. For every 3 dB increase in sensitivity, the speaker requires half the power to reproduce the same volume. For example, if an 88 dB speaker needs 100 Watts to produce a certain volume, then a speaker with a sensitivity of 91 dB needs only 50 Watts to reach the same volume.
90dB
ImpedanceImpedance - measurement of electrical resistance. When buying speakers, it is important to make sure that the impedance matches the amplifier or car stereo you are using.

Example:
A 2 Ohm speaker cannot be connected to an amplifier that is only stable up to 4 Ohms! A 4 Ohm speaker can easily be used with an amplifier that is stable up to 2 Ohms. The most common speaker impedance today is 3 - 4 Ohm.
4 Ω
Frequency rangeThe ability of the speakers to play a signal from the lowest frequency to the highest, or the speaker's ability to faithfully reproduce sound in a specific frequency band.

Professionally:
In the frequency range from 40 to 16,000 Hz, the vast majority of fundamental and overtones (harmonics) of all musical instruments are found. We are interested in the course of the radiated sound pressure in this range of frequencies when the loudspeaker system is supplied with constant power. We call this course the frequency characteristic, which tells us the level of radiated sound pressure in decibels (dB) depending on the frequency. The frequency characteristic of a speaker or speaker system can be expressed most succinctly with a graph.

Mostly, however, the frequency characteristic is indicated by indicating the maximum tolerance of the sound pressure in the given frequency range, e.g. 50 to 15,000 Hz -+ 6 dB. Since the frequency characteristics of loudspeakers and systems in general are quite uneven, some manufacturers do not even specify this maximum tolerance of sound pressure in decibels in their catalogs for reasons of prestige. Data impoverished in this way is unfortunately worthless. What is valid is that the manufacturer offers a speaker system with a frequency range of 30 to 20,000 Hz, if he is worried about stating the maximum unevenness of the sound pressure in this range, because he can have a tolerance of, for example, +- 20 dB.

The unevenness or undulation of the frequency curve in good speaker systems for high-quality music performance should not exceed +-3 dB in the 80 to 12,000 Hz band and +-6 dB in the 40 to 16,000 Hz band. Greater unevenness already depletes or emphasizes certain tonal areas, which can cause audible or even disturbing distortion. The proportion between fundamental tones and higher harmonics also changes, thereby changing the color of the sound, and individual musical instruments as well as the entire musical image sound unnatural.
2000 - 25000 Hz
Tweeter dome diameterThe net diameter of the dome (diaphragm) of the tweeter. 25 mm
Tweeter dome materialThe shell material that was used in the manufacture of the tweeter. Aluminum / ceramic
Cover grids included in the packageOriginal cover grilles in speaker packaging. Yes
Price forIf the price is for a pair, the package always includes 2 pieces of everything, e.g. 2x mid-bass, 2x tweeter and 2x crossover. Few
