Brax Matrix ML1 speakers
More about the product
Brax Matrix ML1 speakers
The BRAX MATRIX range of loudspeakers has been synonymous with unrivaled sound and quality for years. With this in mind, the focus of further development of the 1.1” / 28mm tweeters had to be built on state-of-the-art technology and sophisticated materials to meet the demands of the BRAX brand – pure and accurate sound reproduction. A new, ultra-light silk dome with a fine mesh fabric with Acronal viscoelastic coating on both sides guarantees a brilliant and smooth treble response. Additionally, the integration of pure lambswool and damped coupling volume allows for a very low resonant frequency and allows for a deep acoustic connection. In terms of design and technology, the BRAX philosophy continues without exception: a subtle, rare appearance reveals a number of clever details, a two-piece CNC machined stainless steel case for maximum heat dissipation. Ultra-precisely machined, 8-fold vented neodymium magnet will generate the highest linearity of magnetic flux, integrated 24-carat gold-plated terminals for maximum conductivity. A threaded body with a solid mounting ring on the back of the housing provides the perfect way to secure the speaker with even pressure without the need for complicated, unsightly fasteners. Add to that a robust protective dome grille and you have a tweeter like no other. To meet our high quality standards and achieve perfect tonal interaction, each speaker set is hand-selected and matched according to its acoustic parameters. Only after selection, each speaker set receives its unique serial number, which is recorded in the service database. The exclusive wooden box packaging complements this top-of-the-line product and re-emphasizes the BRAX philosophy.
Main features of Brax Matrix ML1 tweeters

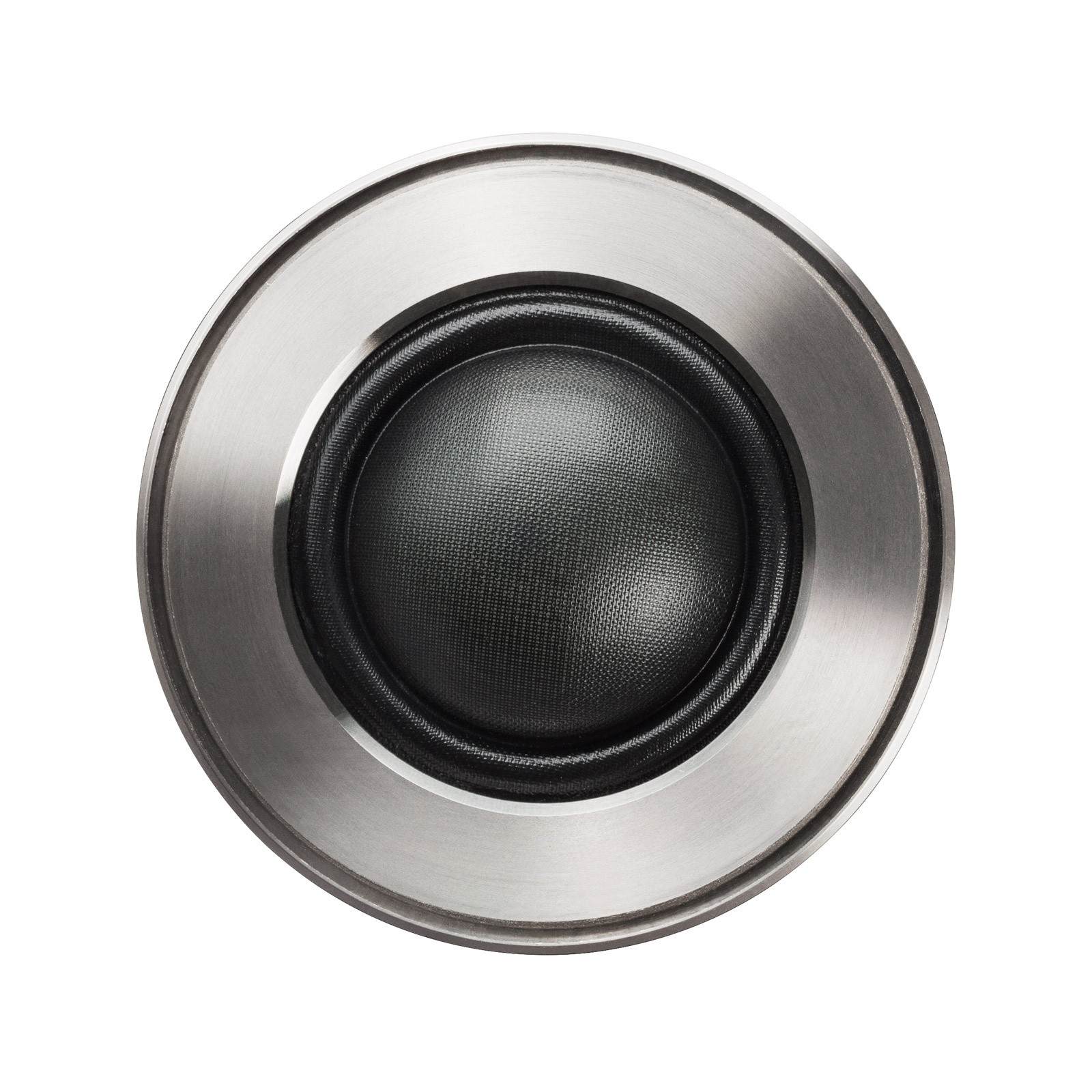

- Ultra-lightweight fine mesh silk dome with viscoelastic Acronal coating on both sides for brilliant, smooth treble response.
- Integrated 24-carat gold-plated tips for maximum conductivity.

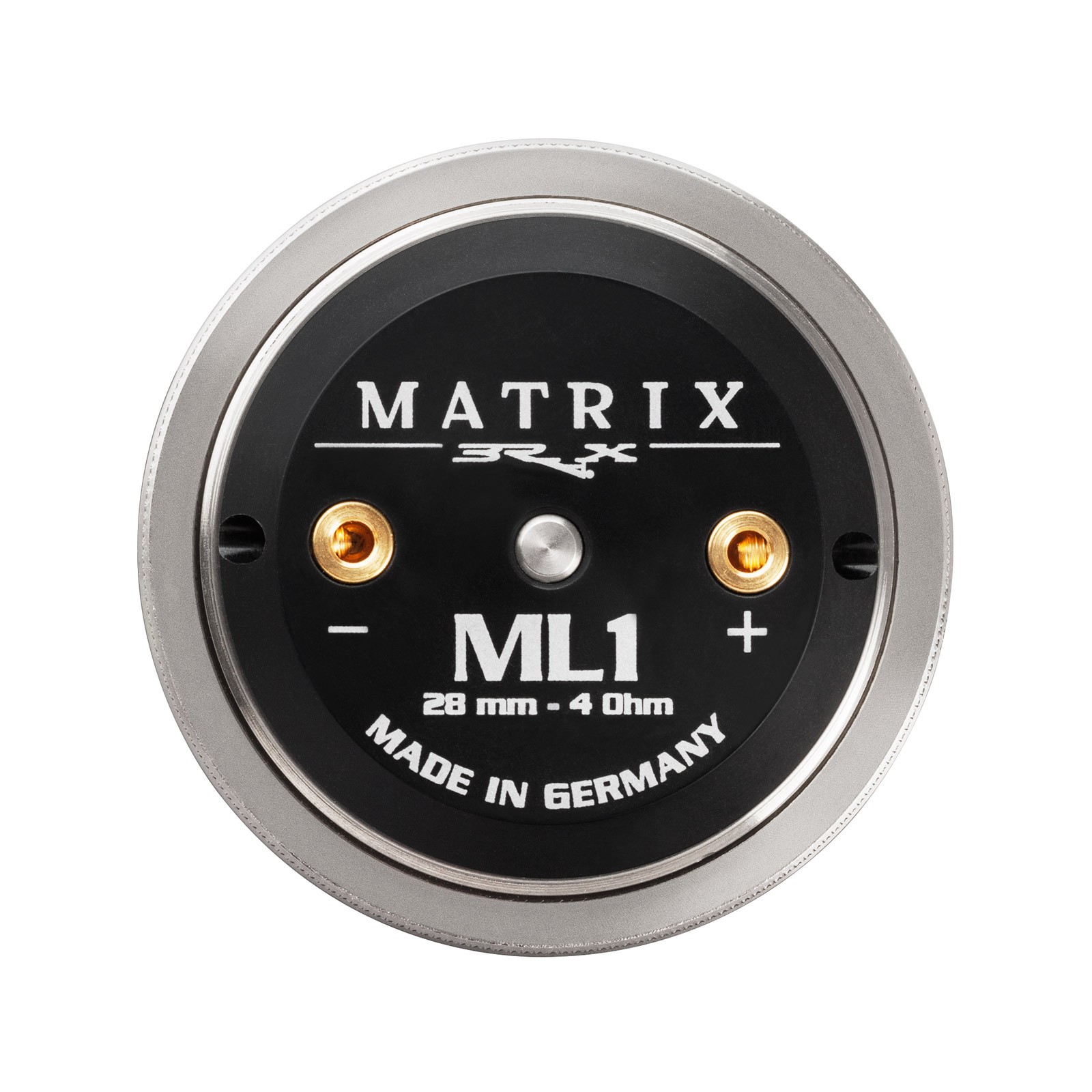

- Ultra precisely machined, 8x vented neodymium magnet for the highest linearity of the magnetic flux.

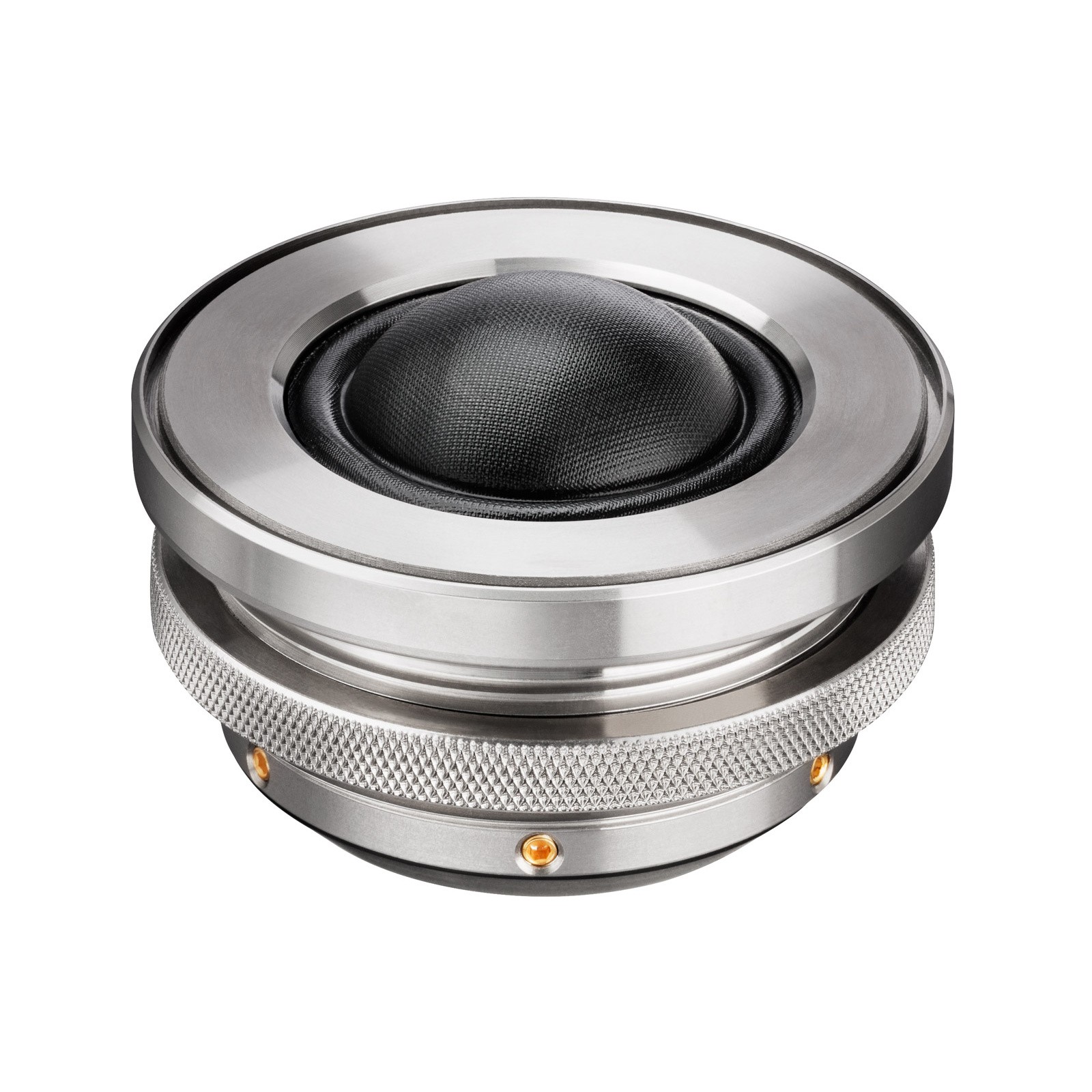

- Two-piece CNC machined stainless steel housing for maximum heat dissipation.
- A solid mounting ring and thread on the back of the case allow for concealed mounting.
- A fixed protective grid is included in the delivery.
| Catalog number | BRAX MATRIX ML1 |
| Brand | Brax |
| Links | Official web presentation |
| Speaker typeCoaxial speakers: Coaxial speakers are characterized by a so-called all-in-one design. The tweeter and mid-bass speaker are in one basket. The advantage is simpler assembly, but thanks to the connection or proximity of the bands in one speaker, the sound quality will usually be reduced. As a rule, in the middle of the mid-bass speaker, there is a tweeter whose voice coil works in the second air gap of the common magnetic circuit. The three-way coaxial speaker consists of a mid-bass speaker, a center speaker and a separate tweeter in the front on a special beam. Component Speakers: Component speakers are characterized by a division into individual frequency bands, treble + mid-bass + or. bass band. The individual speakers can be placed completely separately, which results in a better sound and acoustic performance. In the vast majority of cases of component speakers, an external crossover is also supplied, which divides the treble, middle / mid-bass, and into the three-band the bass band or allows setting the decibel level of the tweeter (e.g. +2 dB, 0 dB, -2 dB), steepness (e.g. 6dB/Oct. 12dB/Oct.) or active or bi-amp connection. | High rise |
| RMS powerRMS speaker power is the constant power of the entire system, not just one speaker or one side. This is also the performance of continuous use of the speakers. If the RMS power is exceeded for a long time, the speakers may be irreversibly damaged! | 120 W |
| Max. (maximum performancePeak performance , which the speaker can play for a moment (approx. 0.5 s), for example when hitting drums in a song. If the max power is exceeded, the speakers will usually be damaged! | 170 W |
| Sensitivity (SPL 1W/1m)Sensitivity, sensitivity or efficiency of the speaker. Speaker sensitivity is given in decibels (dB) and simply put, the higher the value, the lower the demands on the amplifier's power. This is a defacto rating of how a speaker converts watts to sound. Sensitivity ratings are in noise level measured at 1 meter from the speaker using 1 W (watt of power) or using 2.83 volts at the source at 1 meter. A higher decibel level means the speaker is louder with less power. For every 3 dB increase in sensitivity, the speaker requires half the power to reproduce the same volume. For example, if an 88 dB speaker needs 100 Watts to produce a certain volume, then a speaker with a sensitivity of 91 dB needs only 50 Watts to reach the same volume. | 90dB |
| ImpedanceImpedance - measurement of electrical resistance. When buying speakers, it is important to make sure that the impedance matches the amplifier or car stereo you are using. Example: A 2 Ohm speaker cannot be connected to an amplifier that is only stable up to 4 Ohms! A 4 Ohm speaker can easily be used with an amplifier that is stable up to 2 Ohms. The most common speaker impedance today is 3 - 4 Ohm. | 4 Ω |
| Frequency rangeThe ability of the speakers to play a signal from the lowest frequency to the highest, or the speaker's ability to faithfully reproduce sound in a specific frequency band. Professionally: In the frequency range from 40 to 16,000 Hz, the vast majority of fundamental and overtones (harmonics) of all musical instruments are found. We are interested in the course of the radiated sound pressure in this range of frequencies when the loudspeaker system is supplied with constant power. We call this course the frequency characteristic, which tells us the level of radiated sound pressure in decibels (dB) depending on the frequency. The frequency characteristic of a speaker or speaker system can be expressed most succinctly with a graph. Mostly, however, the frequency characteristic is indicated by indicating the maximum tolerance of the sound pressure in the given frequency range, e.g. 50 to 15,000 Hz -+ 6 dB. Since the frequency characteristics of loudspeakers and systems in general are quite uneven, some manufacturers do not even specify this maximum tolerance of sound pressure in decibels in their catalogs for reasons of prestige. Data impoverished in this way is unfortunately worthless. What is valid is that the manufacturer offers a speaker system with a frequency range of 30 to 20,000 Hz, if he is worried about stating the maximum unevenness of the sound pressure in this range, because he can have a tolerance of, for example, +- 20 dB. The unevenness or undulation of the frequency curve in good speaker systems for high-quality music performance should not exceed +-3 dB in the 80 to 12,000 Hz band and +-6 dB in the 40 to 16,000 Hz band. Greater unevenness already depletes or emphasizes certain tonal areas, which can cause audible or even disturbing distortion. The proportion between fundamental tones and higher harmonics also changes, thereby changing the color of the sound, and individual musical instruments as well as the entire musical image sound unnatural. | 1800 - 25000 Hz |
| Tweeter dome diameterThe net diameter of the dome (diaphragm) of the tweeter. | 28 mm |
| Tweeter dome materialThe shell material that was used in the manufacture of the tweeter. | Silk |
| Cover grids included in the packageOriginal cover grilles in speaker packaging. | Yes |
| Price forIf the price is for a pair, the package always includes 2 pieces of everything, e.g. 2x mid-bass, 2x tweeter and 2x crossover. | Few |
