Calearo 7561007 signal splitter

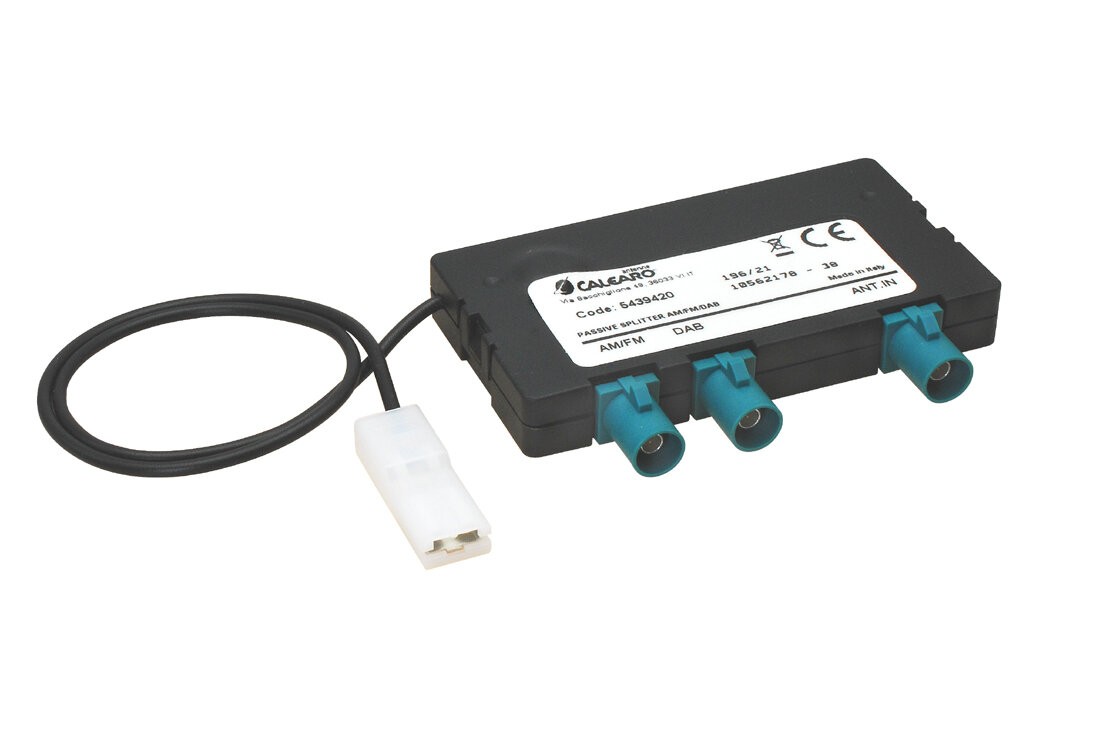

AM-FM / DAB-DAB+ signal splitter

Radio signal splitter for receiving AM-FM analog radio signal and DAB-DAB+ digital radio signal. It is designed for active or passive AM / FM car antennas ready to receive a digital signal. The splitter is also suitable for antennas with 12 V phantom power.

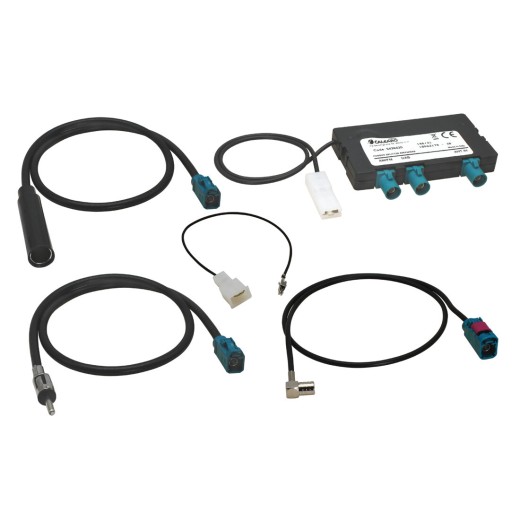

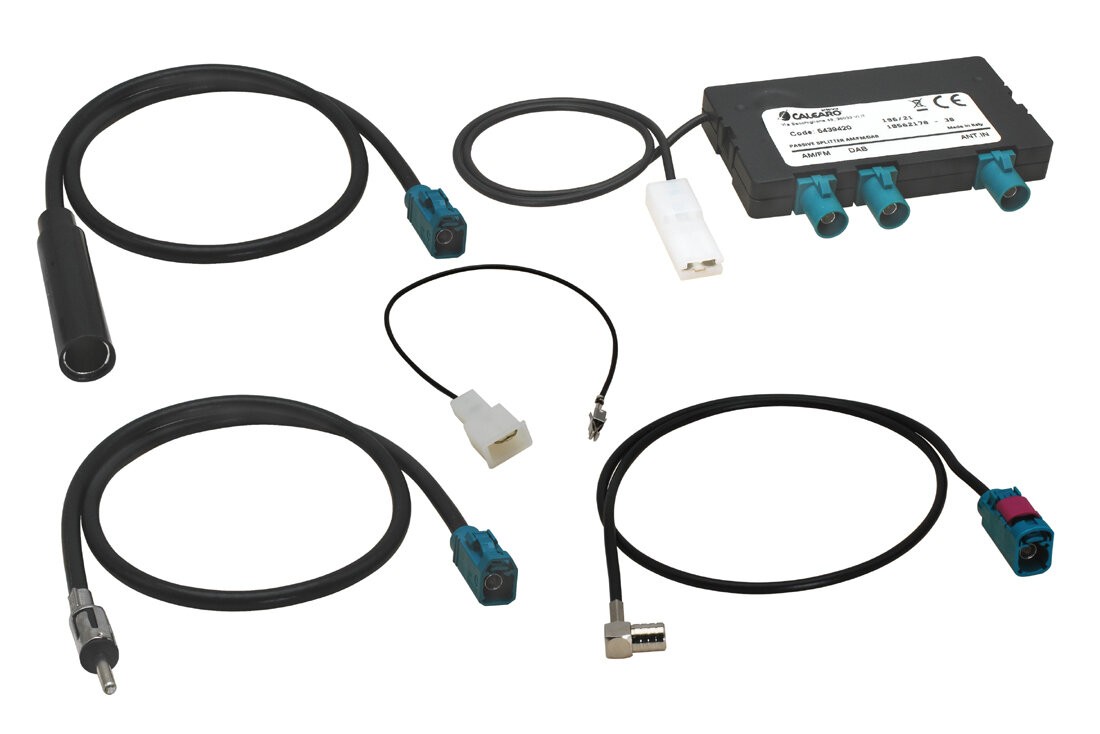

  • The package contains adapters for connecting to the car.

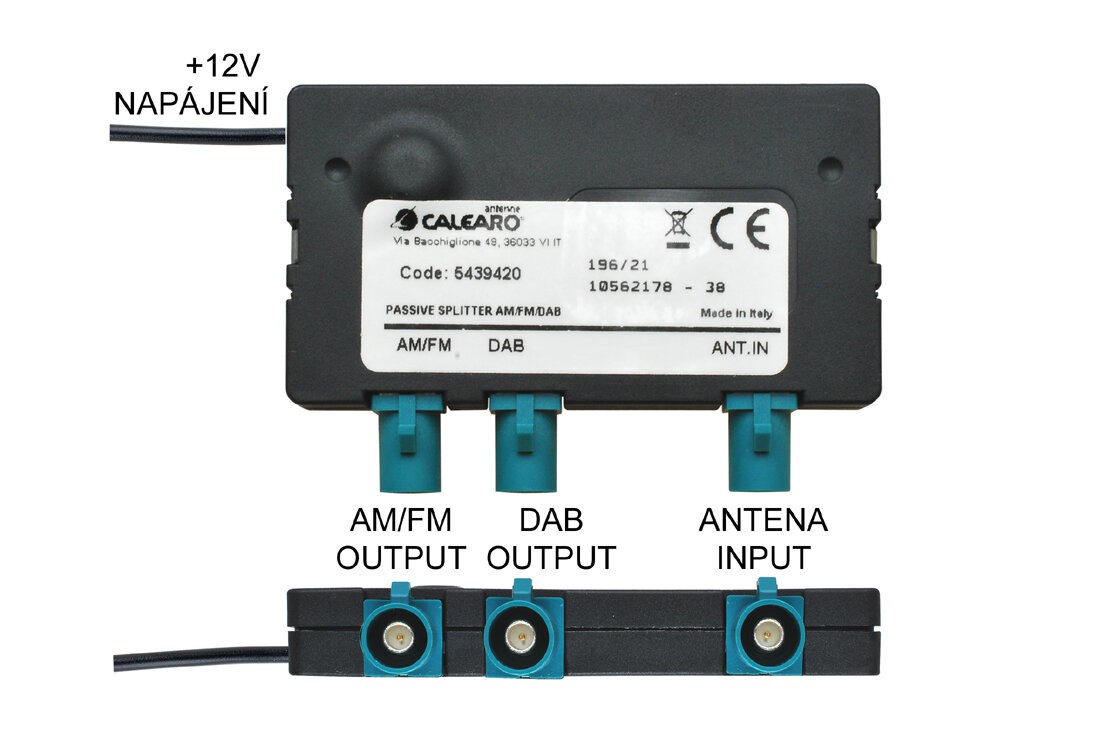

  • Antenna input: DIN female.
  • AM/FM output to car radio: DIN male.
  • DAB output to car radio: SMB female 90°.

Use

  • Universal, for passive car antennas with an antenna rod designed to receive DAB broadcasts.

Installation

  • To the interior of the car using double-sided adhesive tape or tightening tapes (not included in the package).

Technical parameters

  • FAKRA male universal connectors for signal connection, green-blue color
  • Frequency bands:
    • ​AM: 0.52 - 1.71 MHz
    • FM: 87 - 108 MHz
    • DAB: III band 174 - 240 MHz
    • DAB L band 1452 - 1492 MHz
  • Gain: - 2 dB
  • Supply voltage: 12 V (separate wire)
  • Current consumption: 110 mA max.
  • Impedance: 50 ohms
  • VSWR: FM 2:1 / DAB 2:1
  • Dimensions: 62 x 35 x 27 mm (L x W x H)
  • Weight: 100 g
  • Installation: self-adhesive, inside the car
  • Working temperature: -40°C - +95°C
  • Protection: IP40

Use for Calearo ("DAB Ready") antennas

  • 7667012
  • 7667013
  • 7667010
  • 7667011
  • 7677865
