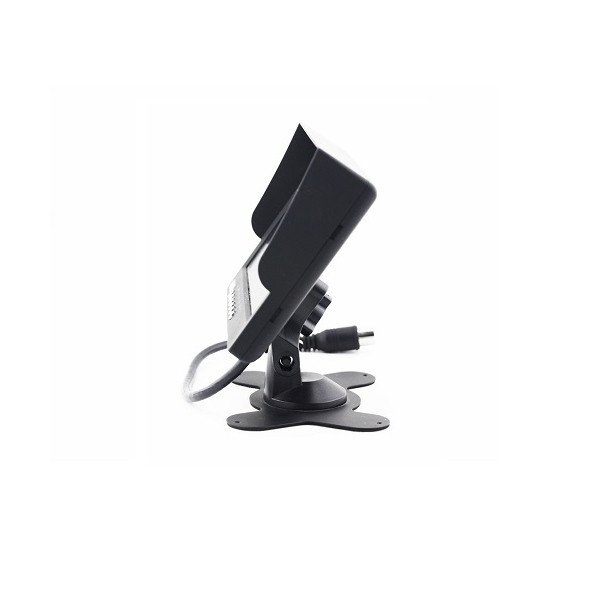

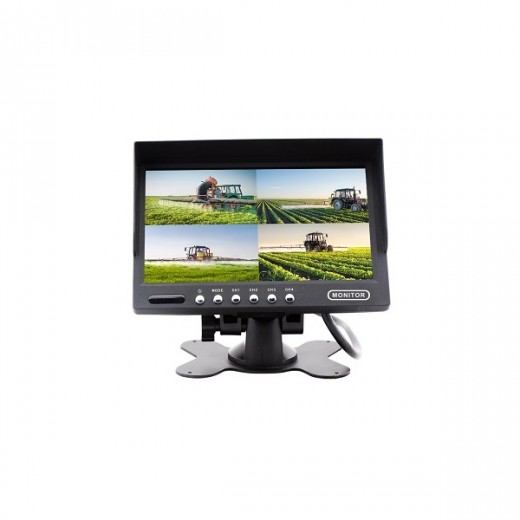

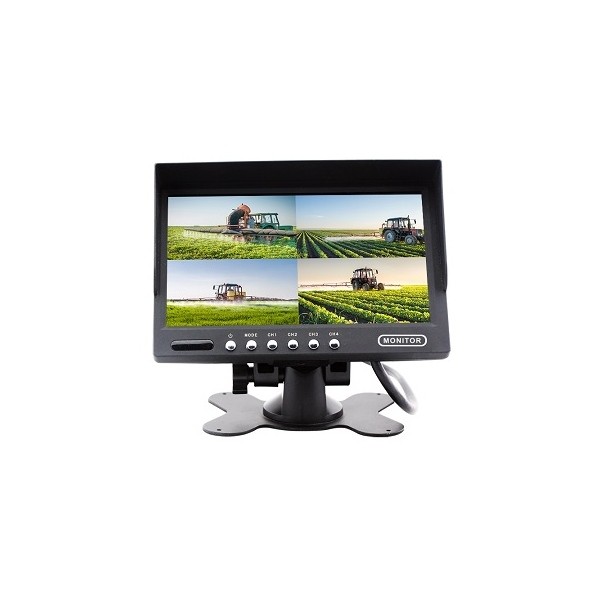

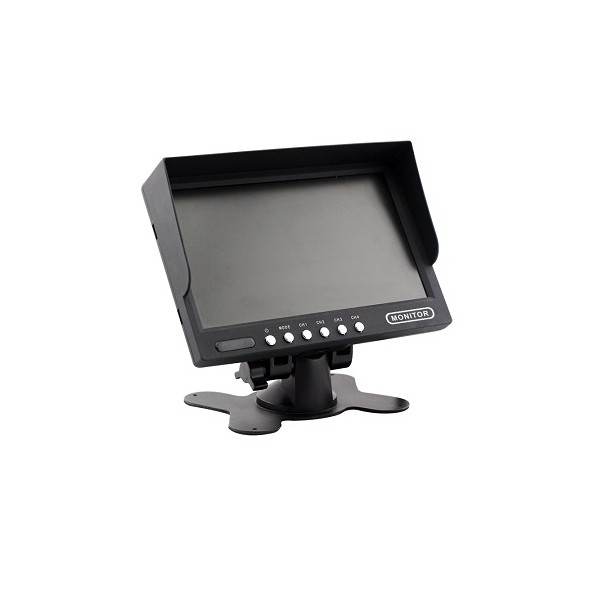

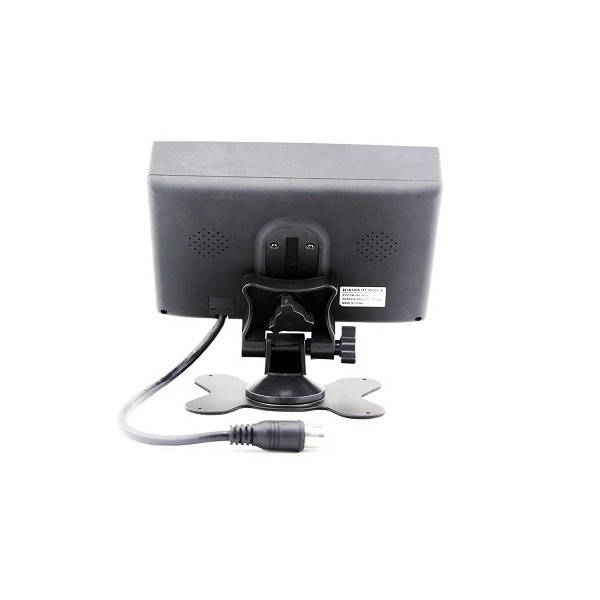

Car monitor TFT7A4

Car monitor TFT7A4

Vehicle monitor with a 7" diagonal for connecting up to four cameras, simultaneous display of footage from multiple cameras, M12 4PIN screw connectors, resolution 800 x 480, for vehicles with 12/24 V on-board voltage, possibility to connect analog cameras with M12 or RCA cinch connectors ( by using a reducer), the possibility to rotate the image by 180°. Ideal for connecting a parking camera, side and front cameras or a camera in the cargo area.

Technical specifications of the TFT7A4 monitor

  • Diagonal 7" TFT LCD 16:9.
  • 800 x 480 RGB resolution.
  • AV input 4x CVBS video input (RCA).
  • Simultaneous display function of 4 cameras - 4SPLIT.
  • Display options: 1 camera, 2 cameras, 3 cameras, 4 cameras.
  • Trigger wire for each video input (4x).
  • Setting the image orientation (left, right, up, down).
  • On / off guide lines - yes.
  • Speaker - yes.
  • Display backlight 500 cd/m².
  • PAL/NTSC TV system automatically.
  • Shock resistance min. 4G.
  • DC 12-24 V power supply.
  • Working temperature from -20 to +70 °C.
  • Dimensions 170 x 115 x 24 mm (without shield and stand).
Note: the monitor does not support HD cameras.

Package contents

  • 1x monitor.
  • 1x cabling.
  • Remote control.
  • Stand.
  • Shield.
Catalog numberTFT7A4
BrandTSS Group
