Car radio without mechanics Kenwood DMX-8021DABS

2DIN, without mechanics, Bluetooth, USB, Wi-Fi, DAB/DAB+, wireless Apple CarPlay, wireless Android Auto, Hi-Res audio
More about the product
We will help you with your purchase
Car radio without mechanics Kenwood DMX-8021DABS
Plugged in demo panel

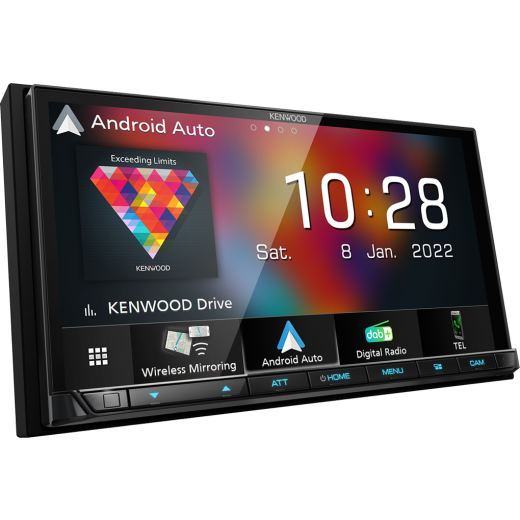

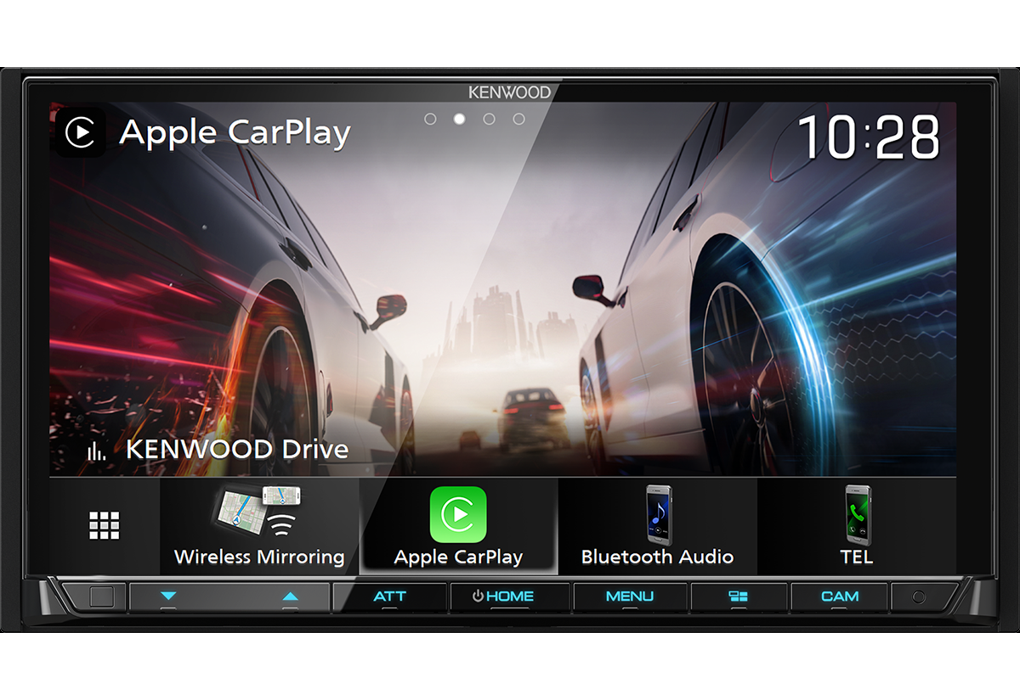

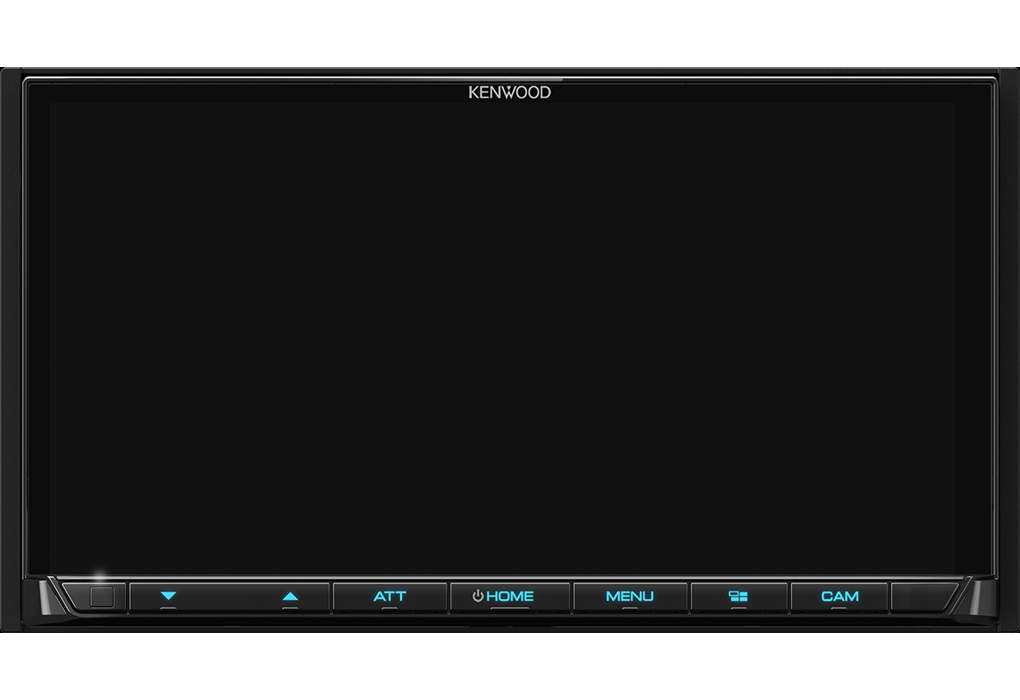

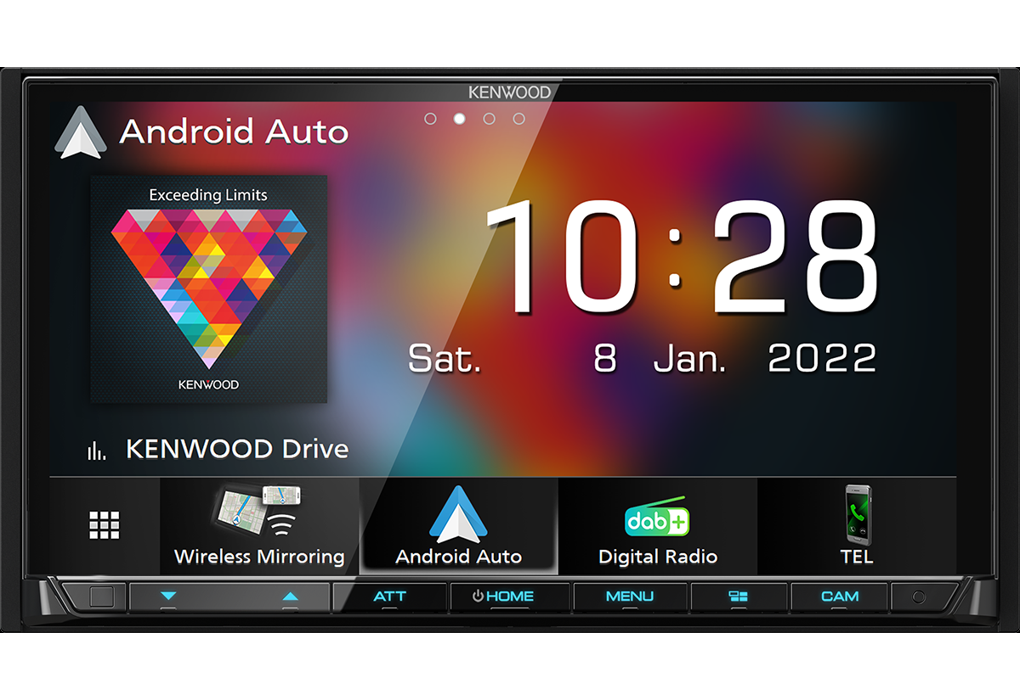

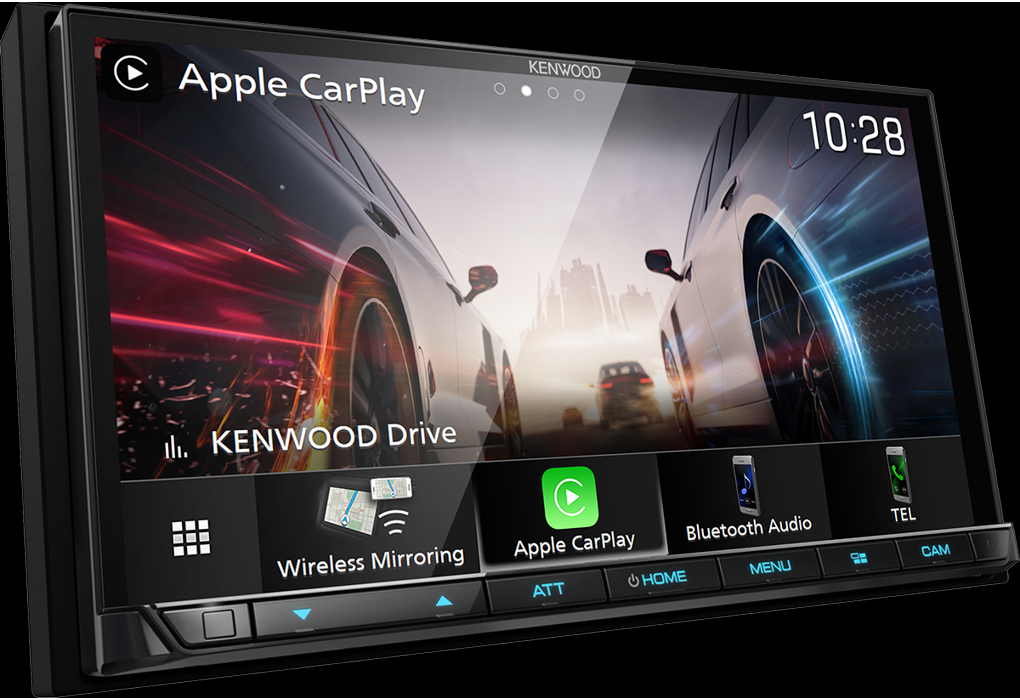

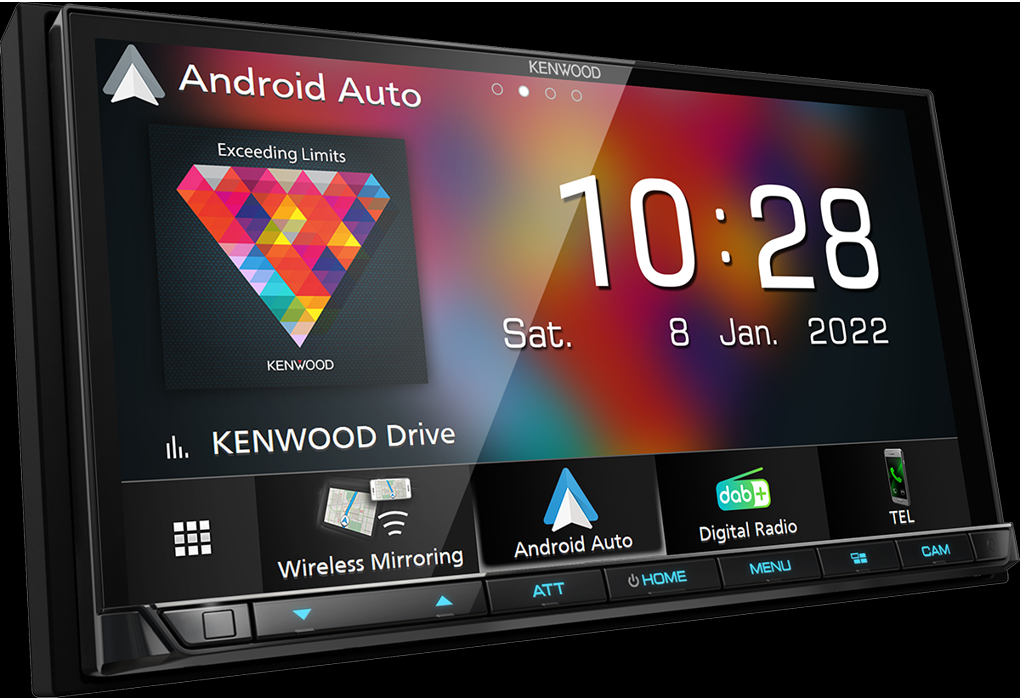

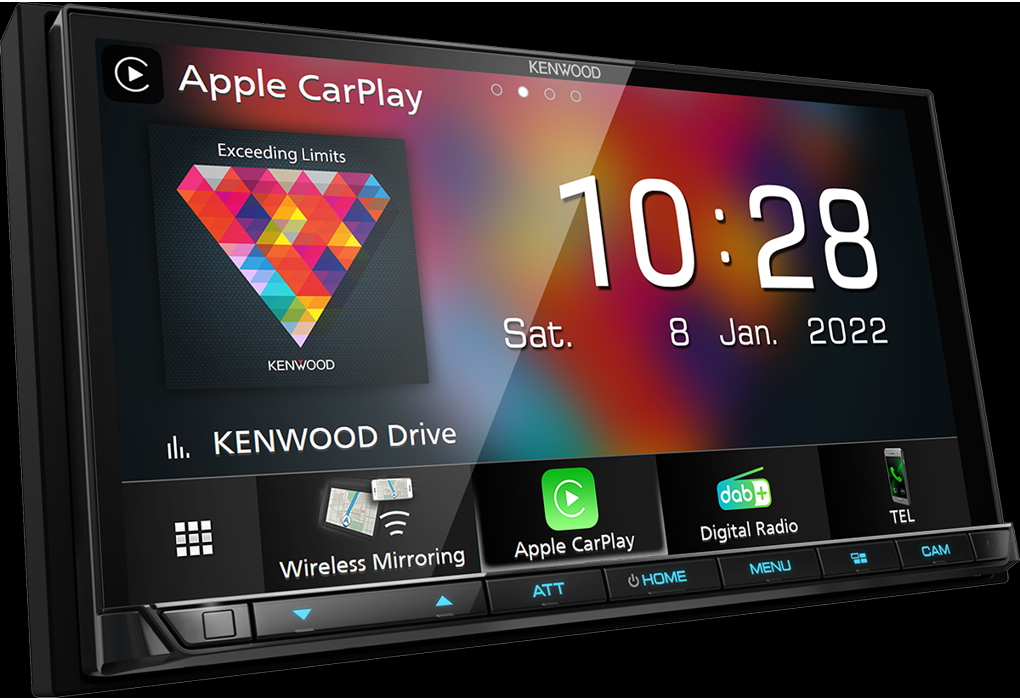

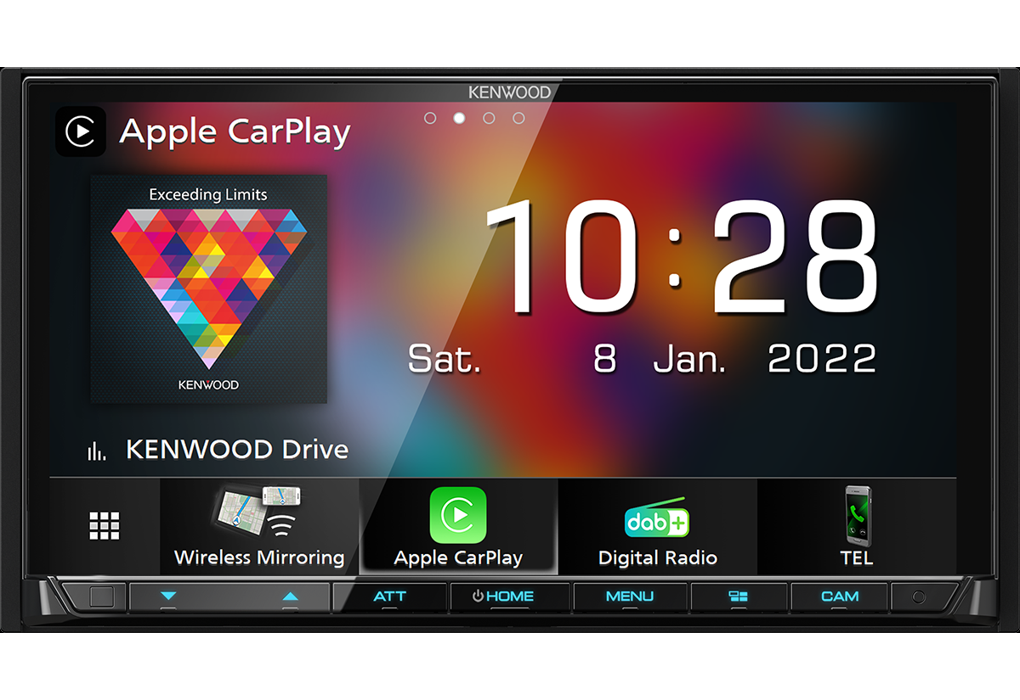

2DIN car radio without mechanics Kenwood DMX-8021DABS

A digital media AV receiver with a 7" WVGA display, improved wireless smartphone connection, Bluetooth and DAB+ digital radio, this is the new 2DIN kenwood car radio model for the 2023 model year. The wireless connection of the smartphone in conjunction with the DMX8021DABS will make your driving more fun and convenient. Essential functions can be controlled safely, smartly and comprehensively with the help of Apple CarPlay™ and Android Auto™ or True Mirroring, which allows you to display and control your Android mobile phone on the screen of the Kenwood car stereo.In addition, you will enjoy optimal sound performance with a 13-band graphic equalizer and time adaptation and for a smarter driving experience, this receiver is equipped with 3 camera inputs that allow maximum comfort, flexibility and safety.

General specifications of the Kenwood DMX-8021DABS car radio

  • 7" WVGA capacitive touch panel with sharp, high-contrast image, vivid colors and wide viewing angles.
  • Built-in Wi-Fi for convenient wireless connection to your smartphone.
  • DAB/DAB+ radio tuner for noise- and interference-free reception and crystal-clear digital stereo sound.
  • Bluetooth wireless technology for hands-free calls and music streaming.
  • It supports CarPlay wirelessly and via a USB cable.
  • Supports Android Auto wirelessly and via USB cable.
  • It supports Android wireless mirroring including 2-way touch control.
  • Thanks to 3 camera inputs, it provides maximum comfort, flexibility and security.
  • 3 RCA high power (5.0V) preamplifier outputs (front/rear/sub).
  • Compatible with Hi-Res Audio, which provides greater clarity and sound detail than standard compressed digital audio formats.
  • Digital sound processor, time adjustment and 13-band equalizer for optimal sound enhancement.
  • Rear high-speed USB Type-C port. Maximum charging up to 3.0A!
  • Short body (85 mm) for easy installation.
Catalog numberDMX-8021DABS
BrandKenwood
LinksOfficial web presentation
Car radio sizeCar radios are divided into 2 basic sizes, 1DIN car radios and 2DIN car radios .

1DIN size car radios - the exact dimensions including the metal frame where the car radio is inserted are 184 x 53 mm, the external dimensions of the branded 1DIN car radio are 188 x 59 mm.

We know 2DIN car radios from newer vehicles, a classic example is the VW Golf IV with navigation. The dimensions of a 2DIN car radio without a metal frame are 180 x 101 mm, the external dimensions of a branded 2DIN car radio are 189 x 119 mm.
2DIN
Car radio performanceThe performance of the car radio shown in maximum values. This is therefore the MAX value. The performance of the internal amplifier of the car radio. Today, the RMS power of a car radio ranges from 17 - 30 W RMS per channel. 4 x 50W
Supported formats via USB inputList of all supported formats (MP3, AAC, Flac, DivX, etc.) that the car radio can play via USB input. AAC / MP3 / WMA / WAV / FLAC /MPEG1 / MPEG2 / MPEG4 / WMV / H.264 / mkv
USB inputThe USB input of the car radio is used to connect a USB flash drive or smartphone. Today, playing music via USB is the most popular way to listen to music in the car. The USB input can be front (on the front panel of the car radio) or rear (on the back of the cable). Yes (2 x rear entry)
CD driveCar radios with CD drive. Car radios that have an input slot for inserting a CD. No
SD card accessModern branded car radios can play SDHC SD cards up to 32 GB, sometimes even 64 GB. The SD card slot is behind the front panel in most car radios. No
DVD driveDVD ("Digital Versatile Disc" or "Digital Video Disc") is a digital optical data carrier format that can contain movies or various other data.

Car radios with a DVD drive can also play classic CD discs, and the car radio always has a slot for only one disc, the CD drive and the DVD drive are always in one.
No
HDMI / MHLHDMI stands for High-Definition Multi-media Interface, an uncompressed video and audio signal in digital format. HDMI supports video transmission in standard, enhanced or high-definition quality, and up to 8-channel digital audio.

Mobile High-definition Link (MHL) is an industry norm and standard for a mobile multimedia (audio/video) interface that allows you to connect a smartphone, tablet and other portable electronic devices to car stereos with high definition image and sound. The MHL standard supports video up to full HD 1080p/60 and audio with 7.1 channels.
Yes
Integrated BluetoothBluetooth is a communication technology used for wireless connection between two or more electronic devices. A mobile phone, for example, can be connected to a car radio with built-in Bluetooth. Most car radios for 2017 and later can also wirelessly stream (play) music via Bluetooth -> A2DP function. Yes
Audio Streaming via BluetoothA2DP (Advanced Audio Distribution Profile) is a Bluetooth profile that enables the wireless transmission of stereo audio from an A2DP source, typically a mobile phone or computer, to an A2DP receiver (car radio). These devices usually also support the AVRCP profile. Yes
Maximum number of registered phones in the car radioCar radios allowing the registration of multiple mobile phones. It is then possible to choose between the registered phones. 5
Number of mobile phones connected at the same timePossibility to connect x phones to 1 car radio at the same time. Nowadays it is usually possible to connect 2 mobile phones via Bluetooth at the same time. 2
External microphone included in the packageThe external microphone is connected from the back of the car radio to the input marked "MIC". For ideal sound quality during a phone call, we recommend placing the external microphone on the left "A" pillar at the point where the "A" pillar and the roof panel connect to each other. A very good position to place an external microphone is also near the central rear-view mirror. Yes
Number of RCA outputsRCA outputs , colloquially called "cinches", are used to connect an external amplifier or active subwoofer. Aftermarket car radios are usually equipped with 1 to 3 pairs of RCA outputs. FRONT, REAR and SUB are used.

It also depends on how many volt outputs the car radio is equipped with. More basic models of car radios have 2V outputs, more expensive units have 4V and more. The higher the specified value, the less power demands are placed on the external amplifier and the sound quality increases.
3 pairs
Output level on RCAAn important parameter if you are going to install an external amplifier. If you purchase a car radio with a basic value, i.e. 2V outputs, then greater demands will be placed on the power of the amplifier. As the value increases, e.g. 4V or 5V, the power of the external amplifier increases significantly, in layman's terms.

A car radio with strong outputs therefore has the advantage that you do not pull so much power through the amplifier and thus achieve a better sound, as external amplifiers lose control at higher loads.
5 V
Made for Apple iPod & iPhoneWhen connecting an Apple device to the car radio, music applications can be controlled using the car radio itself, i.e. basic common functions. Yes (KCA-iP103)
Apple CarPlayApple CarPlay is a completely new option for connecting a smartphone to a car radio that has the Apple CarPlay function. The connection is only by cable, thanks to the high data flow. You click on the Apple CarPlay icon on the car radio screen and application icons appear on the car radio screen like on a smartphone, and you can continue to control everything using the car radio. It also works with voice control and Siri. Yes
Works with Android OSAfter connecting a smartphone with the ANDROID operating system, the car radio can control music in the Android OS music player (Google Play, Spotify, etc.), so there is no need to pick up a mobile phone. You control the basic, common functions of the music application with the car radio itself. Yes
Android AutoGoogle's Android Auto is a completely new option for connecting a smartphone to a car radio that has the Android Auto function. The connection is only by cable, thanks to the high data flow. The Android OS requirement is at least version 5.0. You click on the Android Auto icon on the car radio screen, and application icons appear on the car radio screen like on a smartphone, and you can continue to control everything using the car radio. Voice control and GPS signal also works. Yes
Backlit buttonsColor options for the backlight of the car radio buttons. Variable
Display backlightOptions for backlighting the car radio display. ICE
DisplayAdditional information about the display. Segment, LCD, multi-line, etc. 7" widescreen WVGA
DimmerThe Dimmer function is used to automatically reduce the brightness after dark. The dimmer can usually be set manually in a few steps. Yes
Loudness functionThe Loudness function pulls out certain frequencies and accentuates them with a higher volume. It is good to use Loudness at a low volume, we do not recommend turning on this function at a higher volume because the sound will not be balanced and in extreme cases you can even damage the speakers. Yes (using DSP)
Bass boost functionBass boost or bass enhancement. With this function, the bass itself can be emphasized, at a high level of bass boost, the speakers and the subwoofer can distort a lot and the sound will be worse than better. We therefore recommend using the "bass boost" function wisely. With maximum use of bass boost, there is a risk of damage to the speakers and thus to the subwoofer. Yes (using DSP)
Equalizer / DSP processorA basic or parametric equalizer allows you to adjust the sound at individual frequencies in finer steps.

Using the DSP processor , you can set the time correction, connect the speakers actively (actively): without crossovers, set the location of the speakers and determine their size digitally.
Yes Yes
NFC connectionNFC is a new form of wireless communication between devices. Simply place a smartphone that is equipped with NFC to the car stereo with NFC, and the two devices will connect immediately, so you can immediately play music from the smartphone to the car stereo. So all you have to do is get close and the connection will happen. No
Dual zoneThe "Dual Zone" function allows you to split the signal in the multimedia car radio and, for example, the rear or ceiling monitor. If the car radio has this function, you, as the driver, watch a TV signal, for example, and the rear passengers watch a movie on the overhead monitor. Yes
Built-in DAB+ tunerIntegrated DAB+ (Digital Audio Broadcasting) digital FM tuner for reception of digital FM radio signal broadcasting. Before buying a car radio with a DAB+ tuner, we recommend checking whether the package includes a DAB+ antenna, without which you cannot receive digital broadcasts. This information is usually provided on the manufacturer's official website. Yes
Direct subwoofer controlSubwoofer settings, where you can add or subtract the dB level, i.e. subtract or add bass according to the recording. Higher class car radios can also rotate the phase and other functions for perfect bass. Some car radios allow you to turn off the subwoofer completely, with a button in the car radio menu. This is a very useful feature if you have a subwoofer in your car. Yes
Removable front panelPossibility to remove the entire front panel of the car radio by pressing the side button. A very effective weapon against car radio theft. We recommend not hiding the panel in the vehicle, but taking it with you. Alternatively, place the panel in a hidden place in the trunk, but not when leaving the car, but before parking. You never know when a thief might be watching you. No
Remote control includedCard IR remote control of the car radio, thanks to which certain functions of the car radio incl. control the volume from the hand, remotely. No (optional KNA-RCDV331)
Possibility to purchase a wireless remote controlCar radios equipped with a sensor for IR remote control. Usually, the remote control does not need to be paired or set up, it works automatically. If your remote control does not work, we recommend checking the battery in the remote control. Yes
Input for steering wheel button control adapterCar radios equipped with a cable input or a 3.5 Jack socket for an adapter to control the buttons on the steering wheel. Most branded car radios have this input, from the back of the car radio body. Yes
Cable with ISO terminal included in the packageThere is usually a specific 12-18 pin connector on the back of the car radio itself, into which the reduction to standard ISO is connected. This cable is always included in the package of branded aftermarket car radios and has a length of 8 - 15 cm. Yes
OtherWifi, Hi-res Audio
