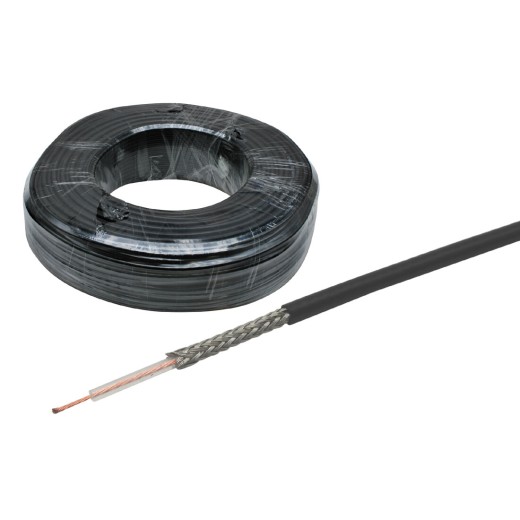

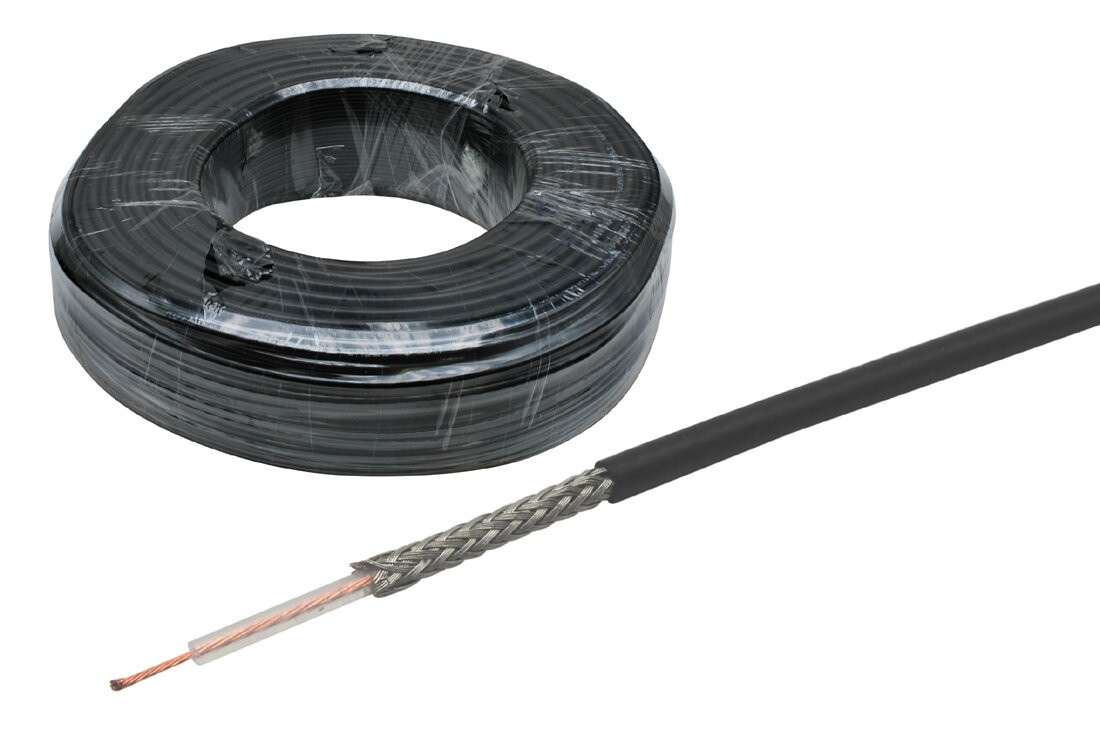

Coaxial cable RG-174/U roll

Coaxial cable RG-174/U - roll 100 m

• Cable with PE dielectric.
• Outer diameter 2.8 mm.
• Suitable for GPS / GSM antennas, antenna leads, measuring equipment, etc.
• Inner conductor: 7 x 0.16 mm Cu.
• Shielding: 64 x 0.12 CuSn + external insulation.
• Dielectric: 1.6 PE - polyethylene dielectric.
• Impedance: 50 ohms.
• Capacitance: 100 pF/m.
• Shortening factor: 0.66.
• Max. attenuation at 20°C (dB/100m): 10 MHz 9dB / 100 MHz 25.5dB / 450 MHz 52dB.
• Max. reflection attenuation at 20°C (dB): 10-300 MHz 14dB.
• Min. shielding attenuation (dB): 10 - 800 MHz 60dB.
• Max. DC resistance at 20°C: inner core 134.8 ohm/km / outer core 44.6 ohm/km.
• Insulation resistance between cores at 20°C: 200 mega ohm/km.
• Package weight 12.8 kg.
• Operating temperature -40 to +75°C (during assembly +5 to +60°C).
• Packaging roll 100 m / meter marking.
