DAB indoor active antenna Macrom 287006
DAB internal active antenna on glass - SMA connector, phantom power 12V
More about the product
More about the product
We will help you with your purchase
- Use our consulting room
- You can return the goods to us within 14 days
- Try the product at our store

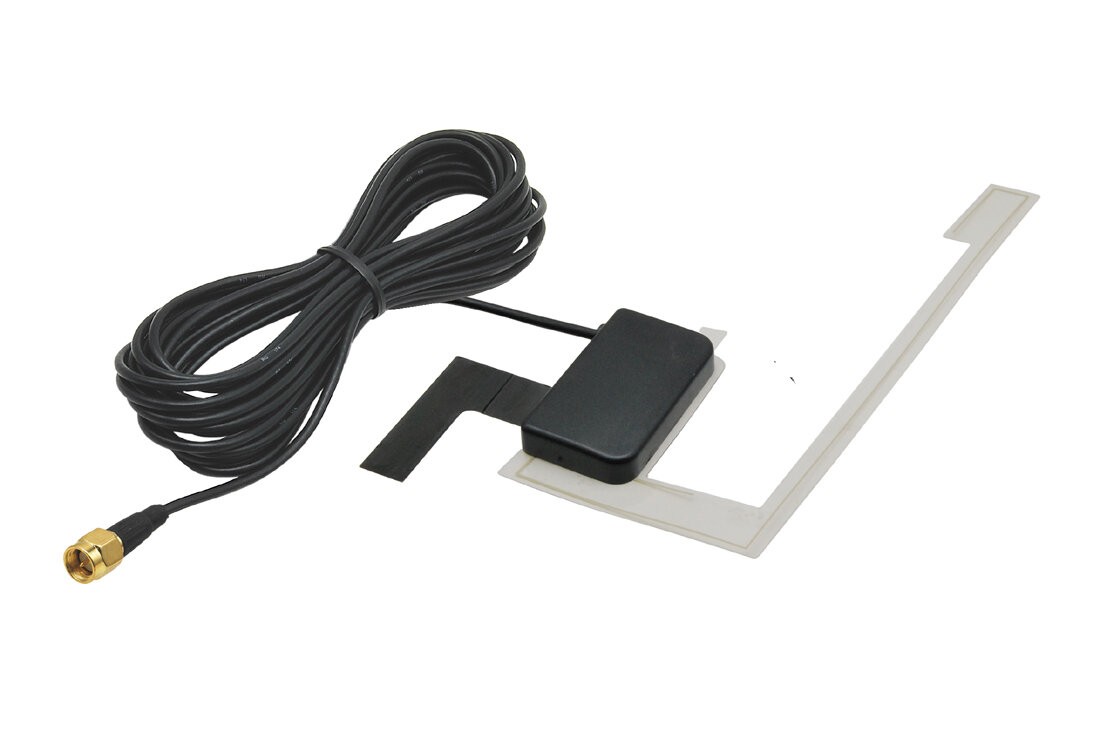

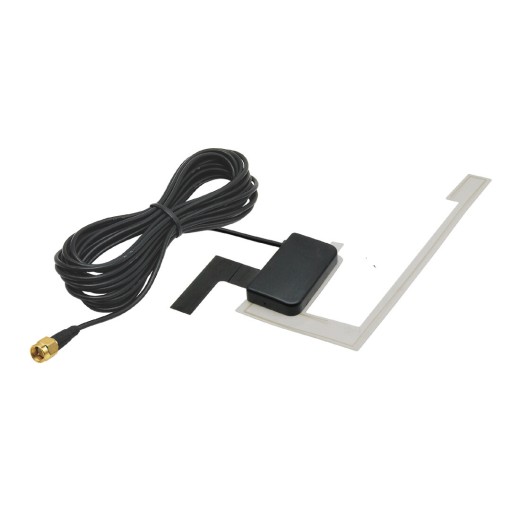

DAB-DAB+ internal active antenna on glass - clear
- Supply voltage: 9 - 16 V DC phantom.
- Cable length: 3 m (impedance: 50 ohms, capacitance: 101pF/m).
- Connector: SMA male.
- Frequency range: 174 - 237 MHZ (III band) / 1452 - 1492 MHz (L band).
- Gain: III band 16 - 20 dB / L band 12 ± 2 dB.
- Current consumption: 30 mA.
- Dimensions: 16 x 7 x 1 cm (L x W x H).
Installation : self-adhesive on the glass from the inside, vertical placement
Application : universal, for car radios with SMA connector
| Catalog number | 287006 |
| Brand | Macro |
| Links | Official web presentation |
