Drawstring clip for edge 437432

clip of the drawstring to the edge, the strap vertical to the edge
More about the product
We will help you with your purchase

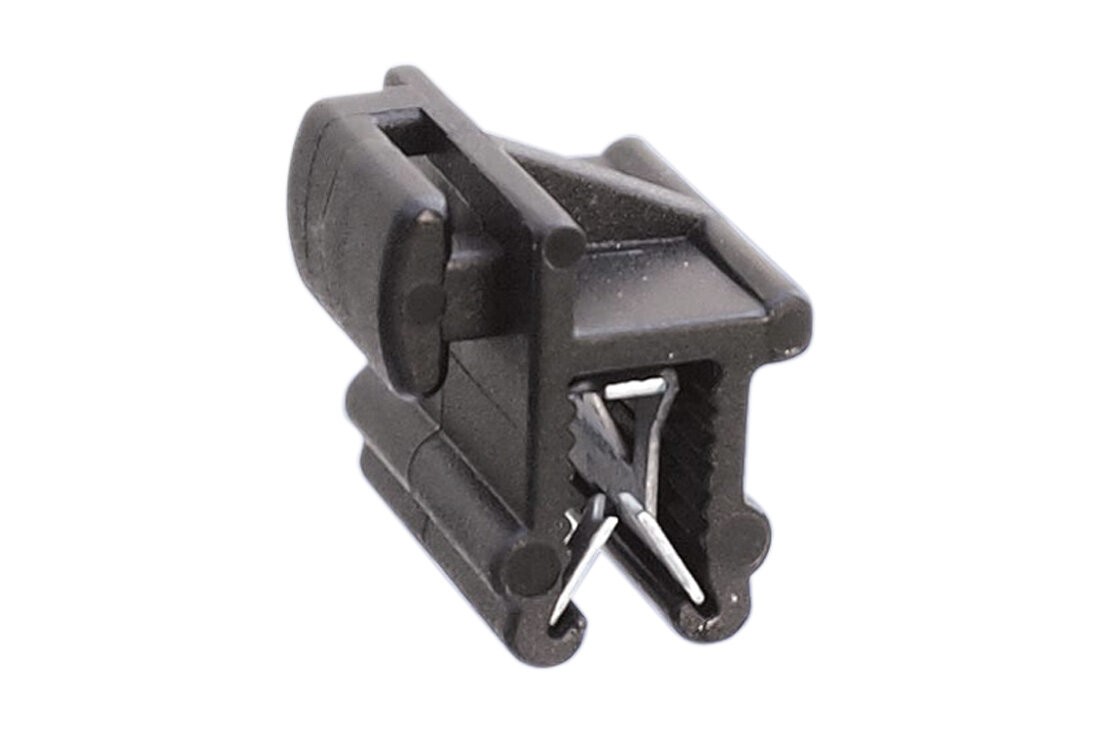

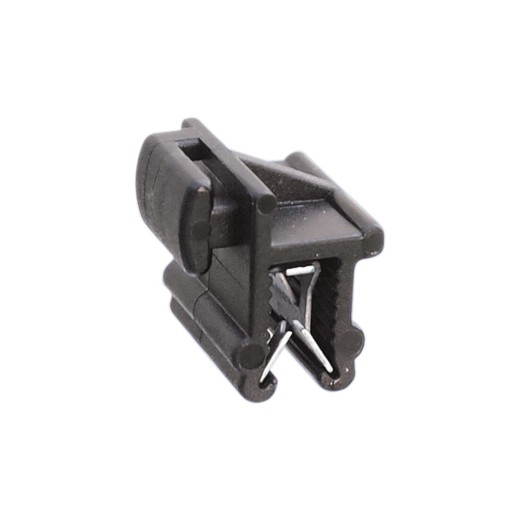

Drawstring clip for edge 437432

Drawstring clip for edge 437432

  • Attaching the tape vertically to the edge
  • Running the cable harness horizontally from the side of the edge
  • Max. tape width: 4.8 mm
  • Material thickness for attachment: 0.7 - 3.0 mm
  • Material: polyamide (PA) 6.6 HS
  • Load capacity: max. 200N
  • Working temperature: -10°C - +105°C (°C short-term)
  • Black colour
  • Flammability conforms to UL 94V-2

Methods of use

Easy and quick attachment of a cable harness, hose or pipe to an edge with a thickness of 0.7 - 3 mm. Suitable for the automotive industry, engineering, wiring cabinets and switchboards, office machines, etc.
Catalog number437432
BrandAunica
