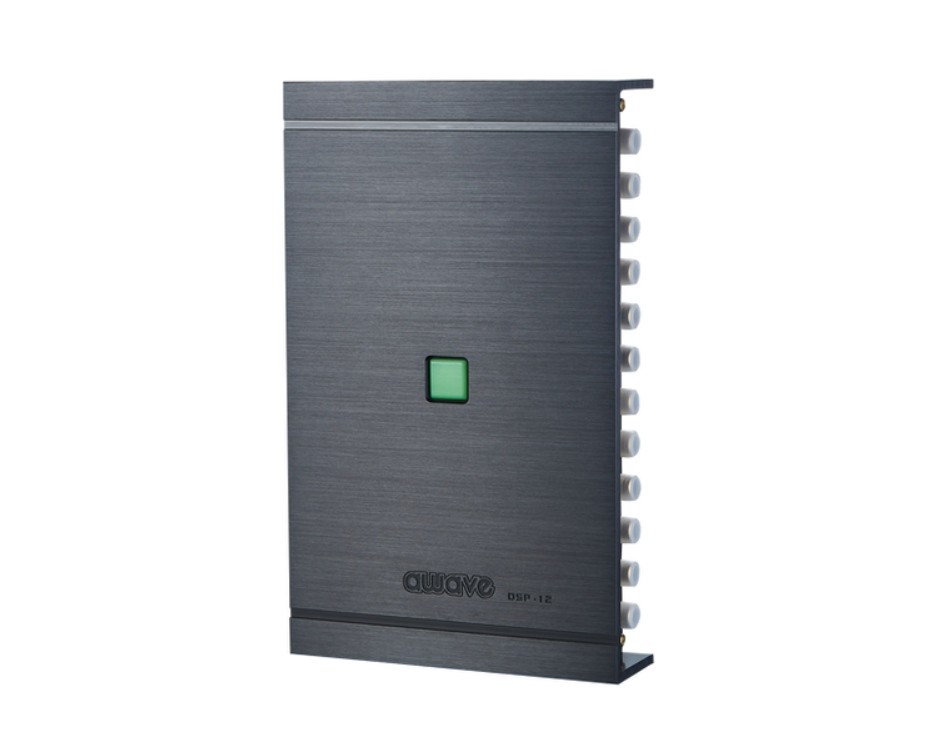

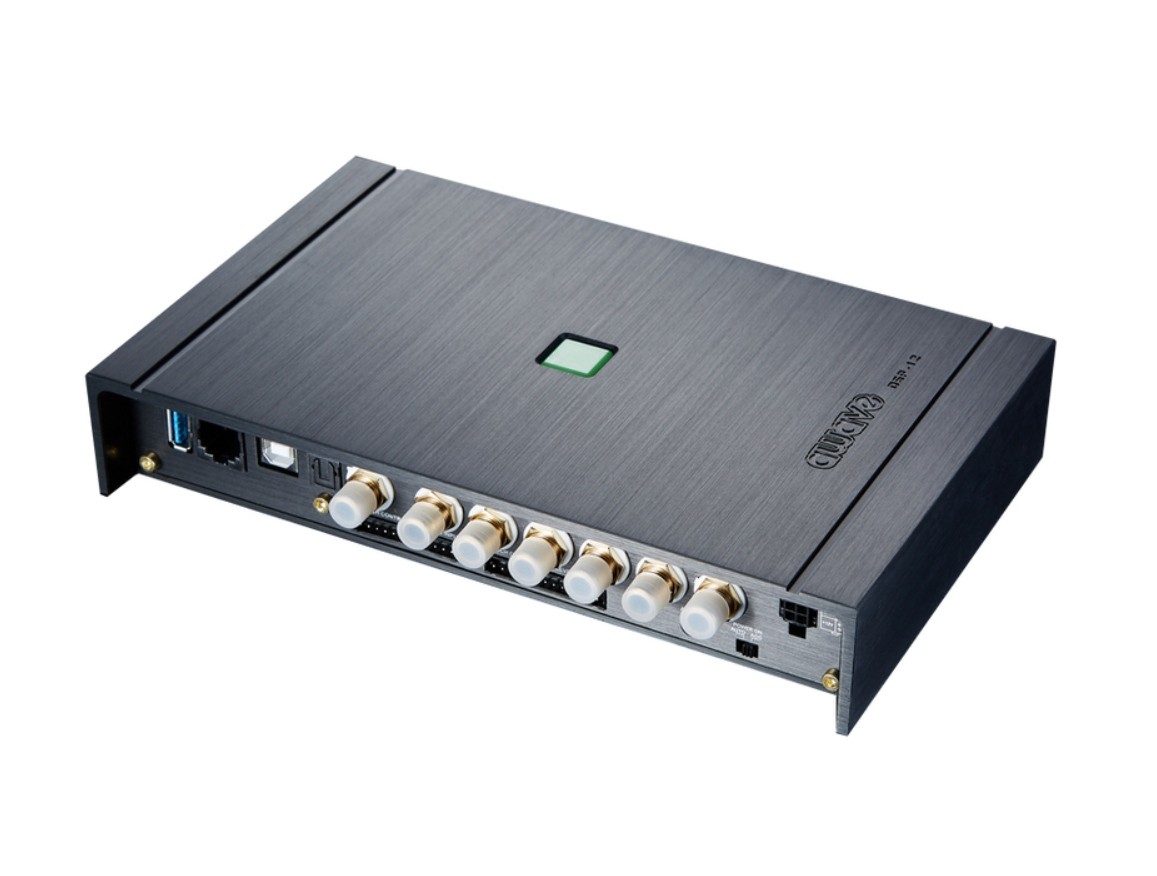

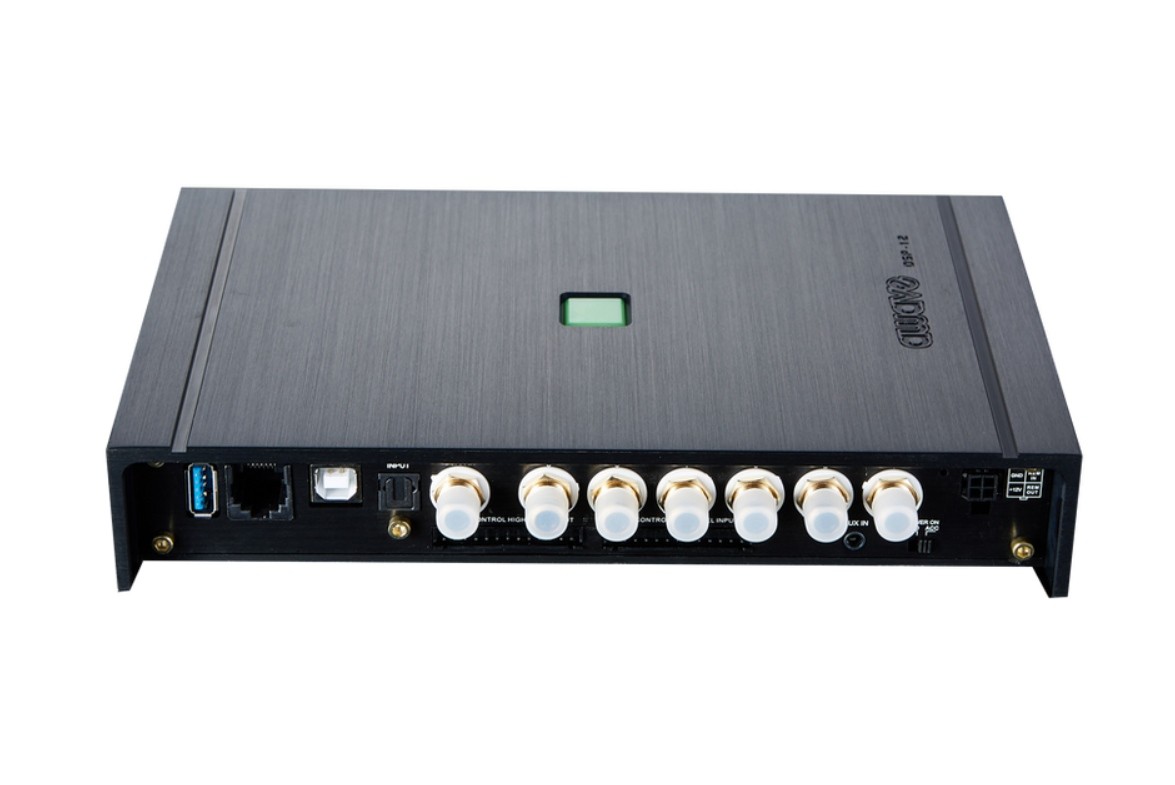

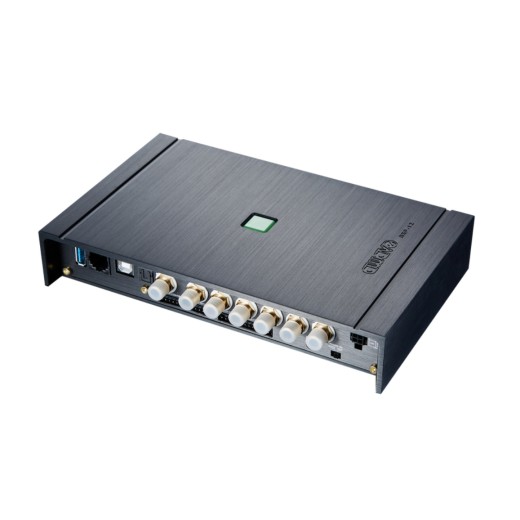

DSP processor Awave DSP12

12-channel DSP processor, inputs: 6 x RCA, 6 x Hi-level, 1x optical SPDIF, 1x coaxial SPDIF, Bluetooth, outputs: 8 x RCA
More about the product
We will help you with your purchase
DSP processor Awave DSP12

DSP processor Awave DSP6-8

The Awave DSP6-8 is an 8-channel DSP processor that easily connects to any analog or digital source and transforms ordinary "audio" into a high-performance integrated system. Simple and intuitive computer software provides a wide range of adjustments to improve the acoustic response of complex environments such as the interior of a car. It provides 20 signal inputs with various connection options: 12 high-level inputs, 6 low-level RCA inputs, a stereo auxiliary input and an optical digital input receiving signals with a sample rate of up to 96/24 bits. PC software developed according to the specific ergonomic criteria required by the car audio industry allows direct access to all available signal processing functions, providing immediate results as well as extreme operational precision. Setting the parameters of the individual input channels, setting the delay according to the listening position, tuning crossovers and equalizers for each output channel - these are just some of the operations that can be managed using the PC software based on the Windows platform. The supplied DRC HE remote control enables control of the main system without the use of a PC. Thanks to this device, installed in an ergonomic position on the dashboard of the car, the user can choose between two configurations previously stored using PC software. You can also select the source from the main, auxiliary and optical digital inputs and adjust the main system functions (volume, balance, fader and subwoofer volume).

The main features of the Awave DSP12 DSP processor

  • 12-channel DSP processor.
  • Brushed aluminum chassis with compact dimensions.
  • ADAU1462 advanced chip processor.
  • AKM AK5538 and AK4458VN A/D and D/A signal converters.
  • Inputs: 6 x RCA, 12 x Hi-level, 1 x optical SPDIF, 1 x coaxial SPDIF.
  • Outputs: 12 x RCA (low level).
  • 31-band parametric equalizer.
  • Setting gain, filters, bandpasses, time corrections or detailed equalizer.
  • Remote control included.
Catalog numberDSP12
BrandAwave
LinksOfficial web presentation
