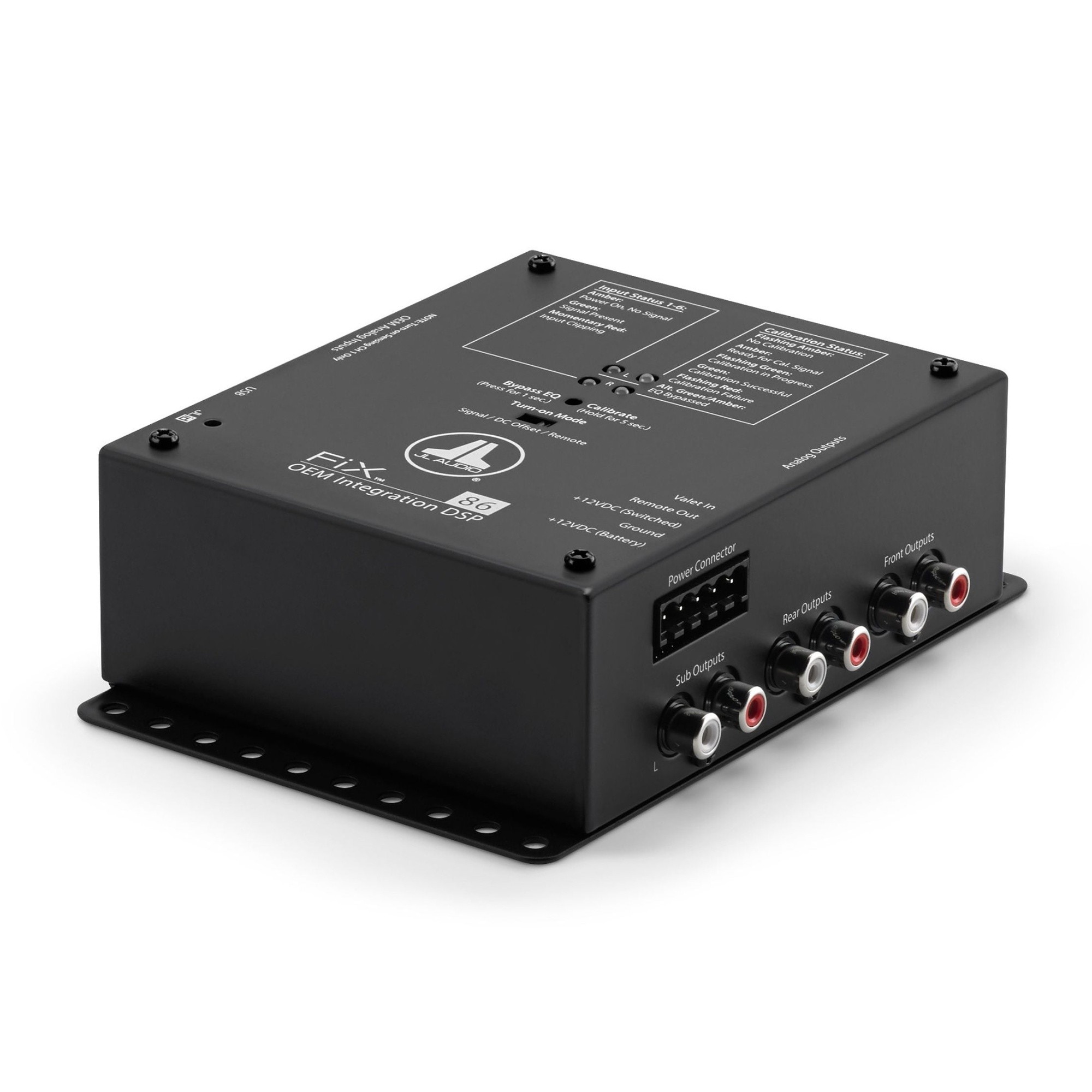

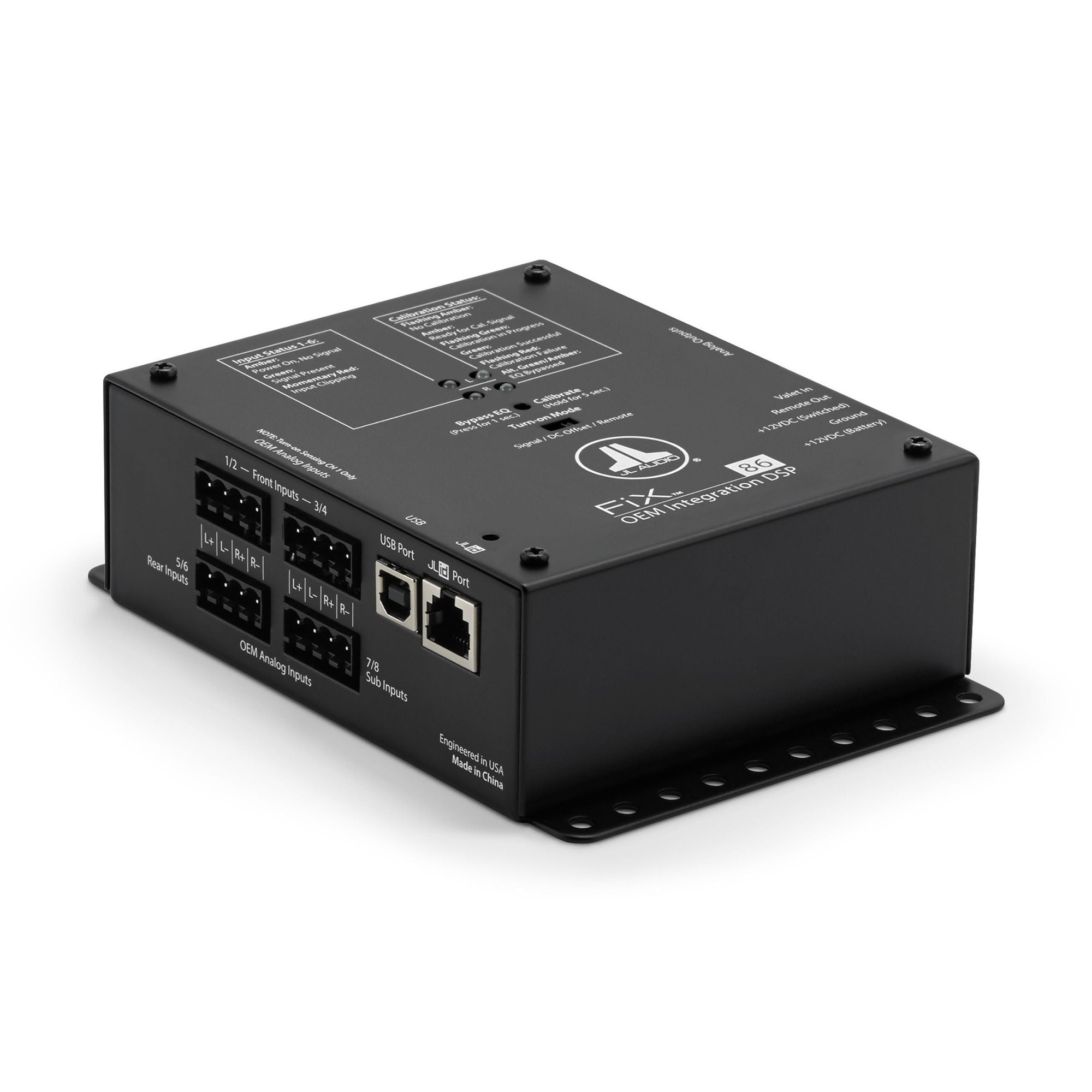

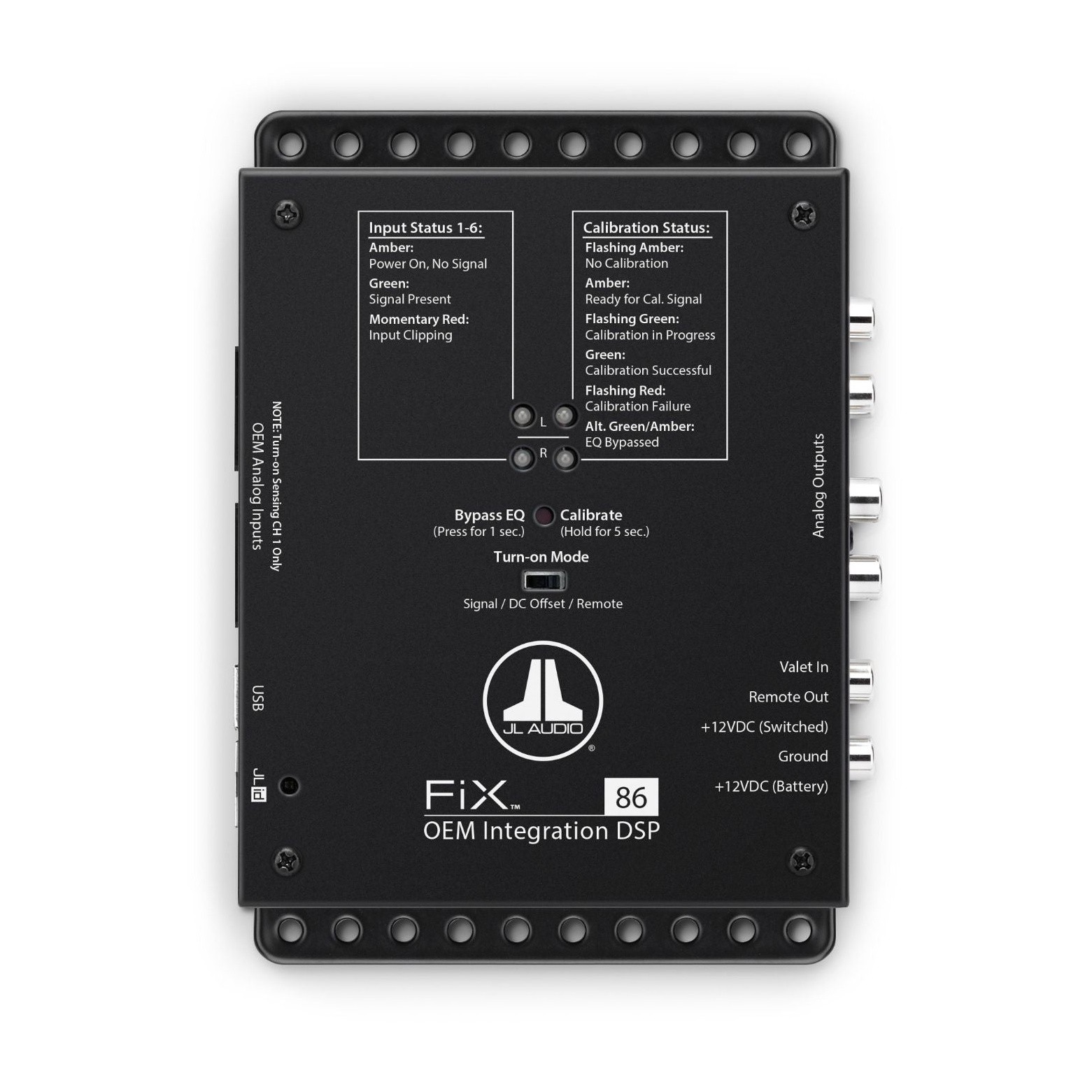

DSP processor for OEM integration JL Audio FiX-86
The JL Audio FiX™ 86 is a state-of-the-art digital signal processor designed to deliver premium sound from factory audio systems without having to replace the OEM source unit. The FiX™ 82 is the first DSP to automatically correct time-delayed factory outputs before signal summing and EQ correction. With a powerful 24-bit DSP processor and two integrated 1/3 octave equalizers, the comprehensive 2-band, 3-band and 4-band factory audio outputs are combined and automatically level-adjusted into a flat, full-range stereo signal. The differentially balanced inputs accept virtually any OEM analog audio signal from low-voltage, line-level to high-power, amplified speaker-level outputs (up to 30V RMS). Calibration is initiated at the push of a single button and takes only about 30 seconds to complete, with no special equipment required. By connecting a PC with TüN™ software via USB, you also gain access to a full set of diagnostic panels that display the frequency response of input signals as well as corrected outputs. Input polarity, muting and filtering can be adjusted and new calibrations can be initiated from the PC. Clicking on the "TUNE" tab of the TüN™ interface also gives you access to a pair of user-adjustable 10-band graphic equalizers for fine-tuning the output signals. Output options include 3 pairs of RCA connectors (4V RMS) or digital optical (Toslink) output with 24-bit/48kHz PCM audio support (S/PDIF). Activation methods include 12-volt or automatic (Signal/DC-Offset Sensing), plus a dedicated remote power-on output to activate your aftermarket equipment. Connect the optional DRC-100 digital remote control (sold separately) to add master volume control capabilities from the driver's seat. Clipped input signals and overall status are also reported via the DRC-100's multi-color status LED. Achieving great sound from your factory stereo has never been easier and never sounded better.
Technical parameters of JL Audio FiX-86 DSP processor

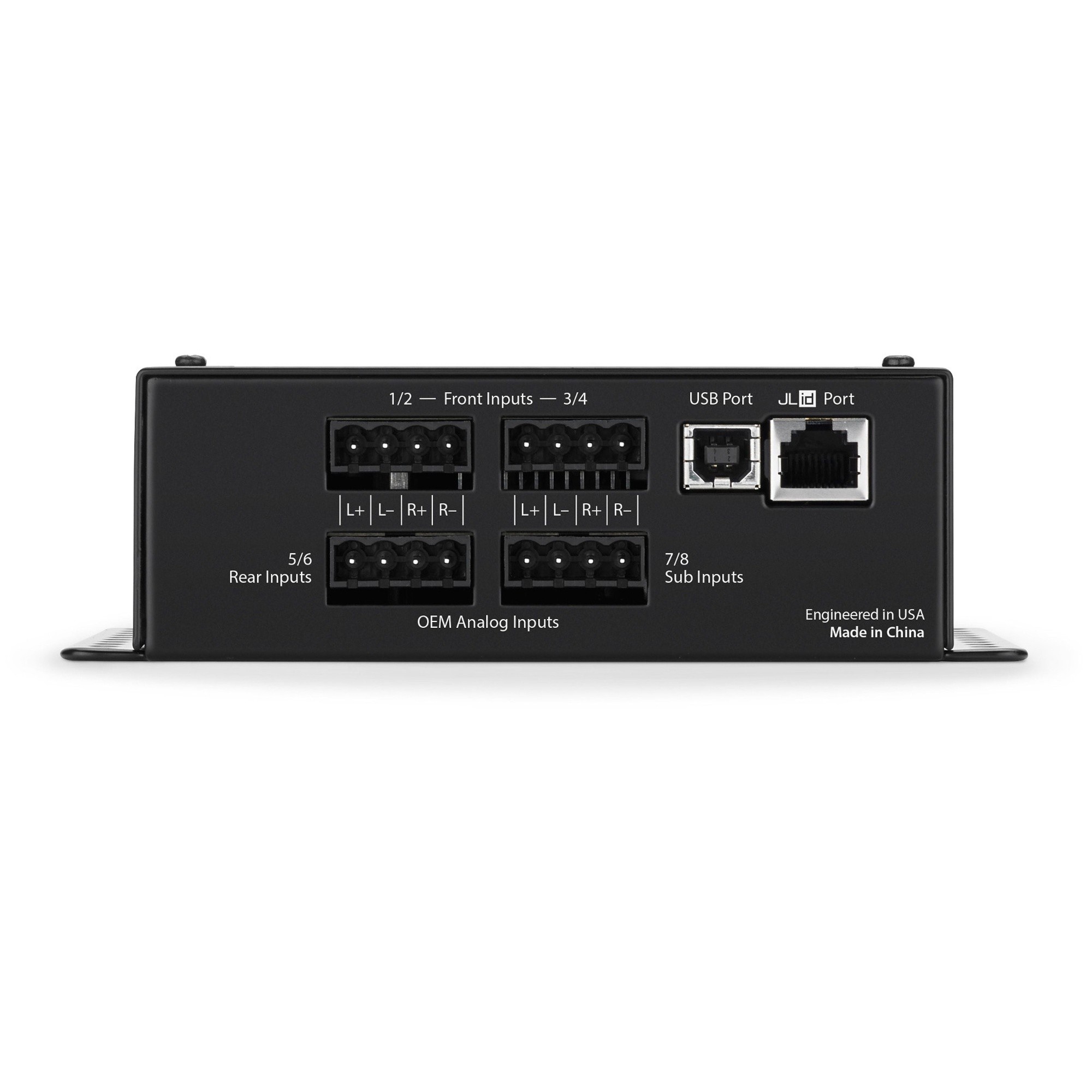

- Input: 8 x high-level input.

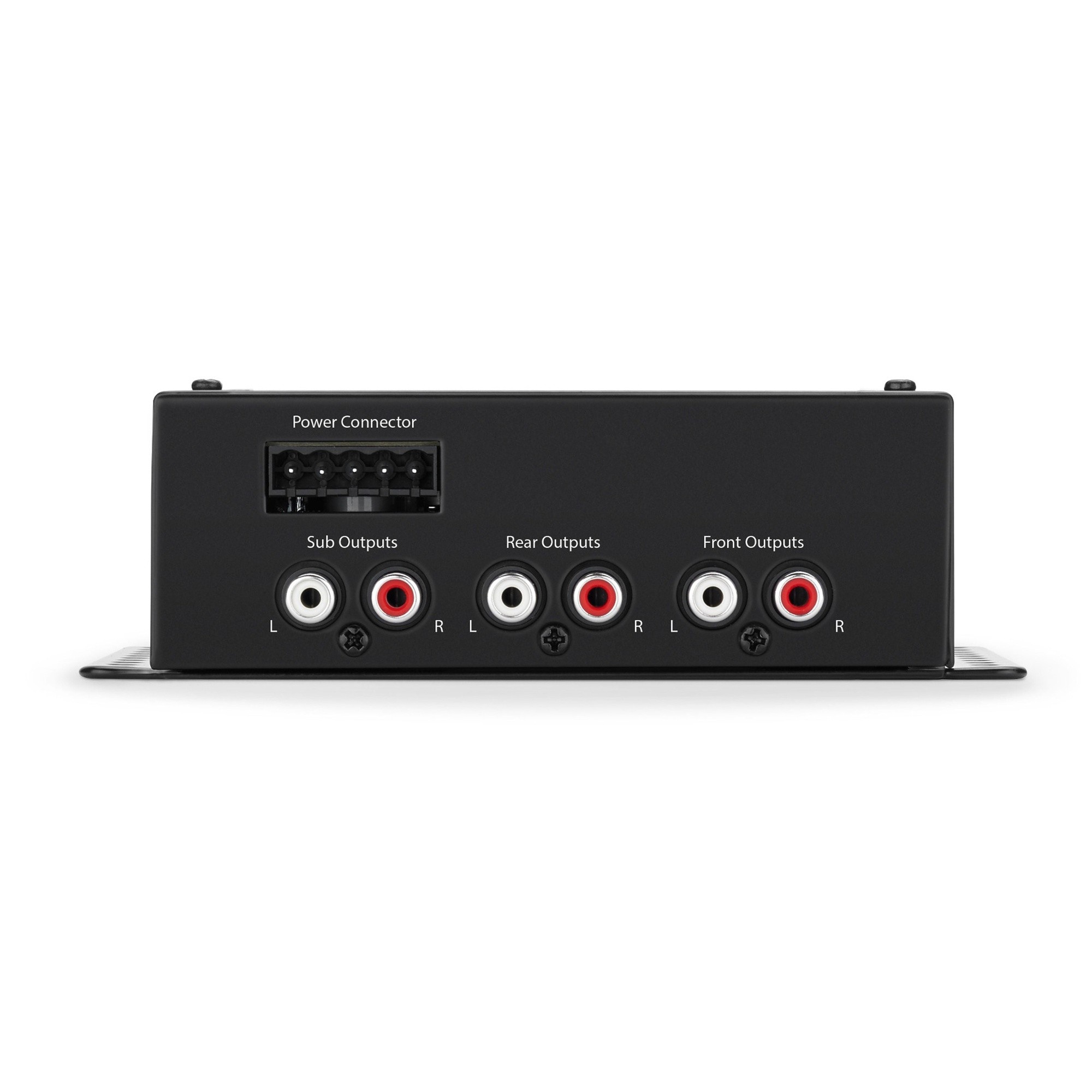

- Output: 6 x RCA, 1 x optical digital output (Toslink).
- Suitable for integration into the original 2, 3 and 4-band system.
- After calibration, the processor automatically adjusts the EQ to flat, adjusts time corrections to 0.
- Suitable for mounting on an original system with a maximum output of 30 W RMS per channel.
- SPDIF optical output 24 bit/48 kHz.
- Automatic switching and REM generation function for external processor.
- Option to purchase the JL Audio DRC-100 remote control (volume adjustment).
- Working voltage: 10-16 V.
- Standby consumption: less than 1.5 mA.
- RCA output voltage: 4V.
- Signal-to-noise ratio: 96 dB.
- Frequency range: 20 - 20,000 Hz.
- Dimensions: 47 x 109 x 156 mm.
- Weight: 1.17 kg
About the JL Audio brand
JL Audio is an American manufacturer of consumer audio equipment that specializes in home, vehicle and boat sound systems. It is one of the main pioneers of vehicle sound systems and is undoubtedly best known for its high-end subwoofers. The company was founded in 1975 and is therefore one of the oldest manufacturers in this field. The original focus was on home sound systems, but already at the turn of the seventies and eighties, they also started to deal with the car audio segment, the popularity of which grew rapidly at the time. During their rich history, JL Audio produced a lot of completely unique and patented subwoofers that had almost no competition at the time. And it is similar even now. Subwoofers from this manufacturer amaze with their performance and at the same time absolutely top sound quality, unique patents and excellent workmanship. In particular, the top W6 and W7 series have long been among the most interesting products on the market today. However, the revolutionary flat subwoofers of the TW1 and TW3 series, as well as the perfectly tuned subwoofer enclosures, will also impress. You can expect the same quality from the amplifiers, and it's also worth noting the high-end products designed for integration into factory audio systems. In short, you can't go wrong with JL Audio products and you can always rely on their high quality and uniqueness.
| Catalog number | FIX-86 |
| Brand | JL Audio |
| Links | Official web presentation (English) |
