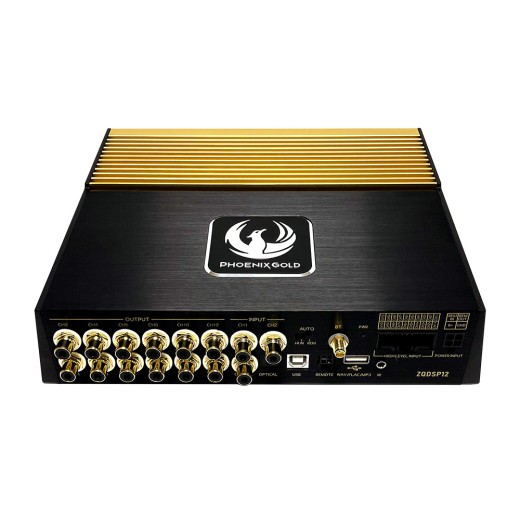

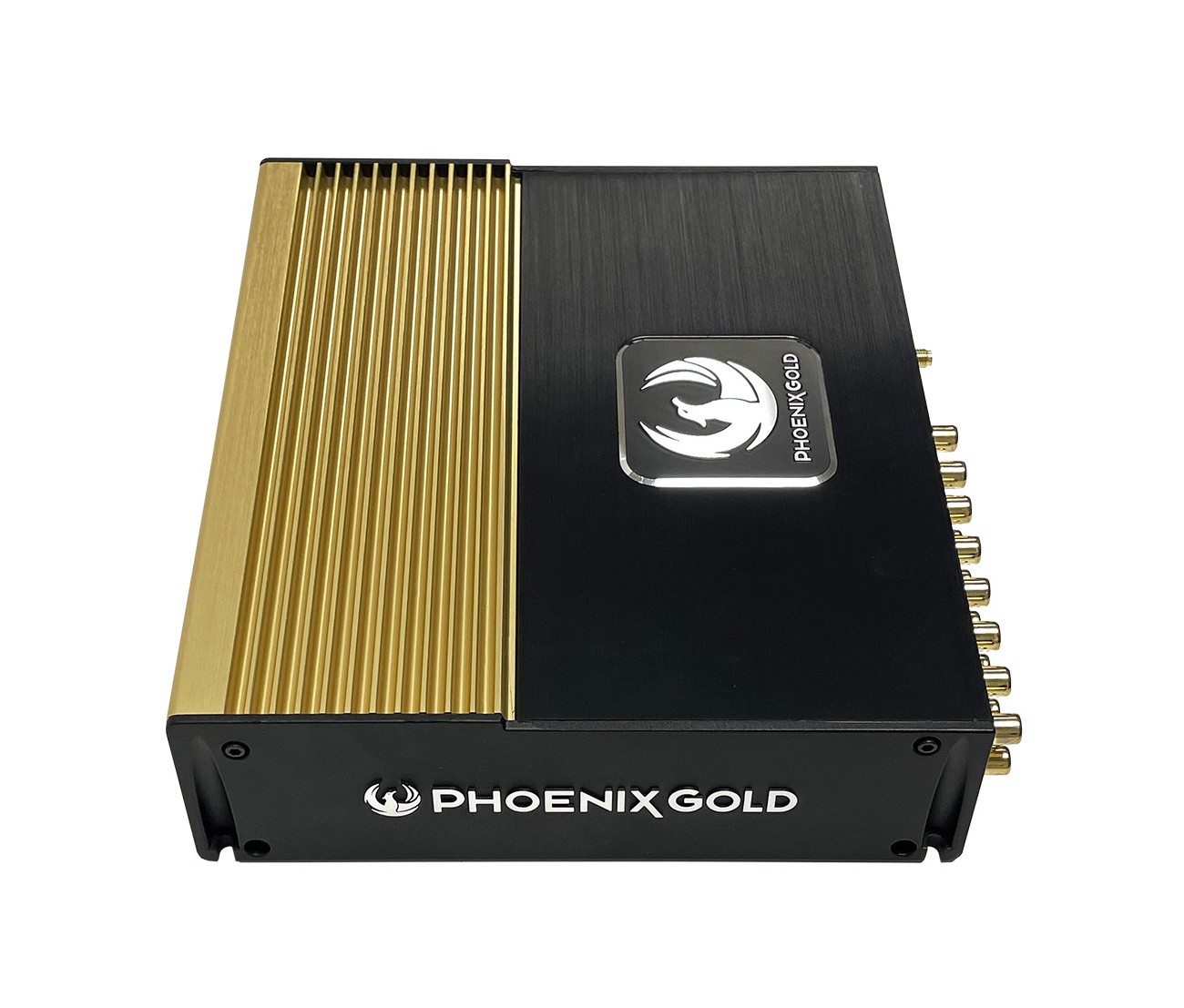

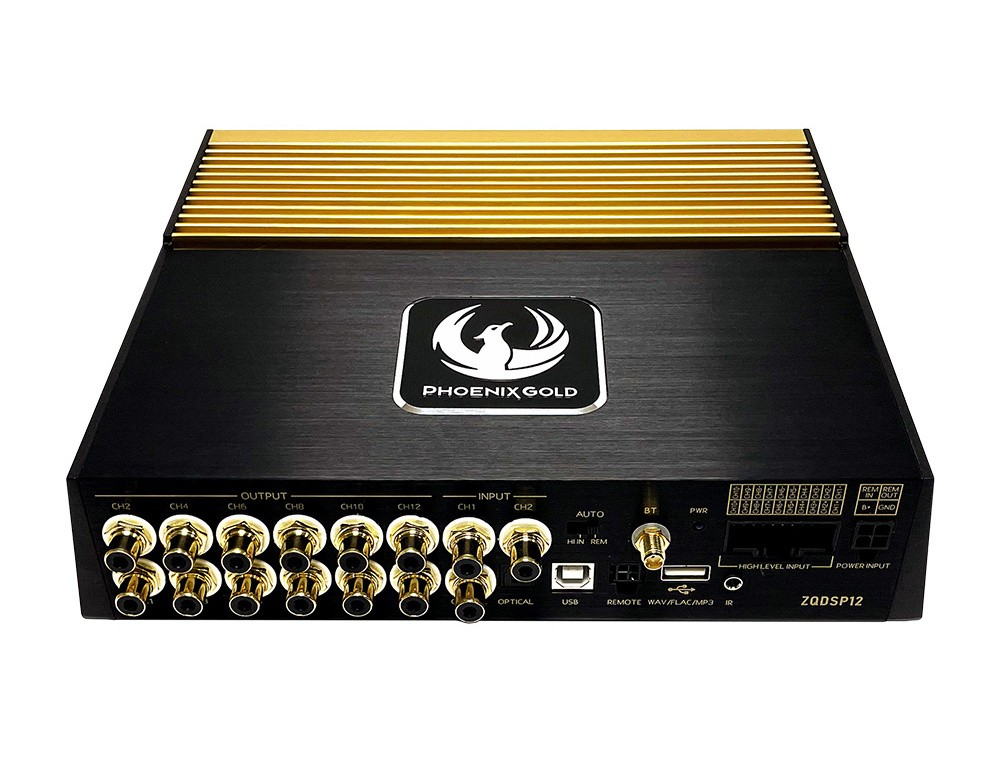

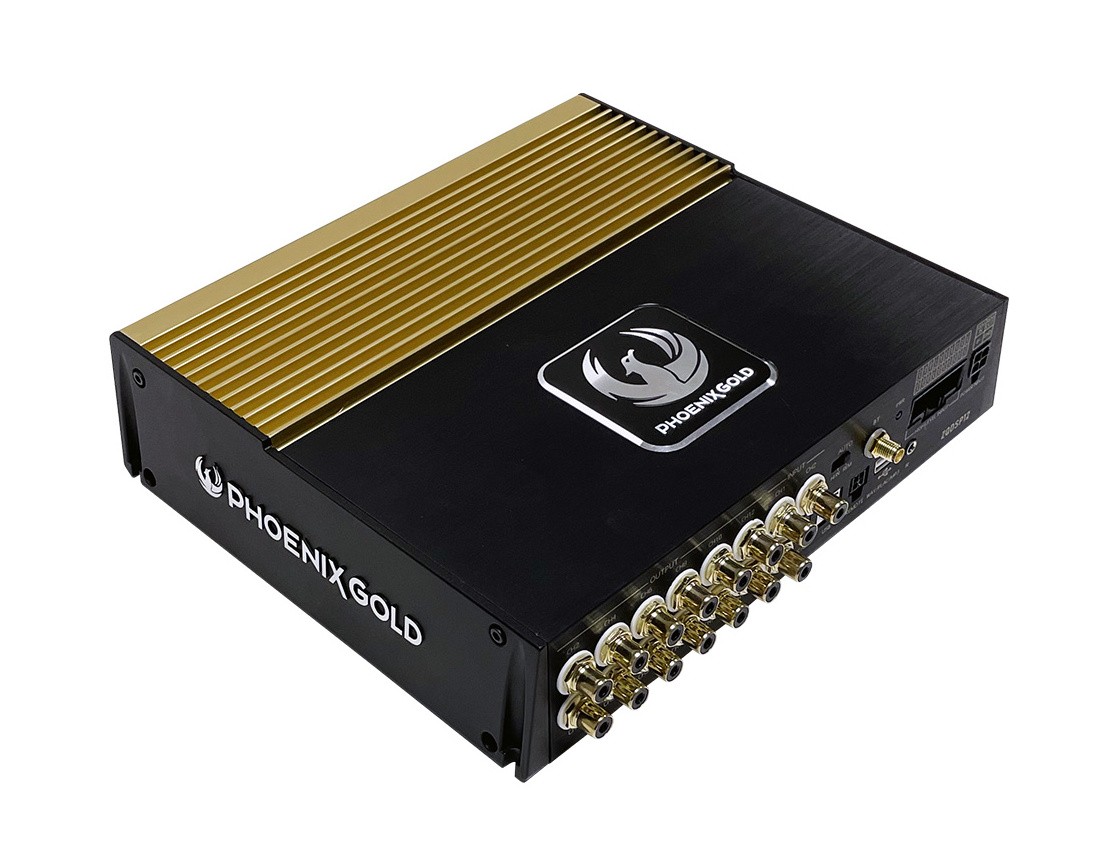

DSP processor Phoenix Gold ZQDSP12

12-channel DSP processor, inputs: 2 x RCA, 10 x Hi-level, 1x optical SPDIF, 1x coaxial SPDIF, Bluetooth, outputs: 12 x RCA
More about the product
We will help you with your purchase
DSP processor Phoenix Gold ZQDSP12

DSP processor Phoenix Gold ZQDSP12

The Phoenix Gold ZQDSP12 is a high-end DSP processor that belongs to the highest model series ZQ from Phoenix Gold. The processor has extensive equipment with 12 processable channels, rich connectivity, integrated media player and Bluetooth connection. Like other ZQ series products, the ZQDSP12 processor provides impressive sound characteristics and all the functions needed to create the perfect sound setup, such as fully adjustable filters, parametric EQ with adjustable Q value or signal delay. A common feature of the ZQ series is the luxurious design in black and gold with the use of noble materials. The ZQDSP12 processor is the essence of Phoenix Gold's core values and contains many of the original manufacturing technologies that have made the brand famous since the beginning. And also top components from all over the world. Dual power supply together with high-end German and Japanese Wima and Nichicon capacitors work together to ensure efficient and uninterrupted power supply. Top-quality high-performance potentiometers are used to support performance, while shielded German-made transformer cores ensure a clean flow of power throughout the processor. You can count on excellent connectivity thanks to the 24-carat gold-plated terminals that also adorn the printed circuit boards. All these technological advantages helped to create a unique series of sound quality amplifiers that will find the hearts of many audio fanatics.

The main features of the Phoenix Gold ZQDSP12 DSP processor

  • 12-channel DSP processor.
  • Brushed aluminum chassis in black and gold finish.
  • Dual power technology from Phoenix Gold.
  • Gold-plated double-layer printed circuit board.
  • Top Nichicon, Wima and Elna capacitors.
  • Shielded transformers made to order in Germany.
  • Toshiba & ON transistors.
  • Signal-to-noise ratio greater than 100 dB.
  • 24 carat gold plated terminals.
  • DSP chip ADAU1452.
  • JRC5532 operational amplifiers (Japan Radio Semiconductor).
  • Powerful 48-bit 160MHz DSP.
  • Prepared for high-resolution audio with a sample rate of up to 96 kHz.
  • A/D and D/A Delta-Sigma signal converters.

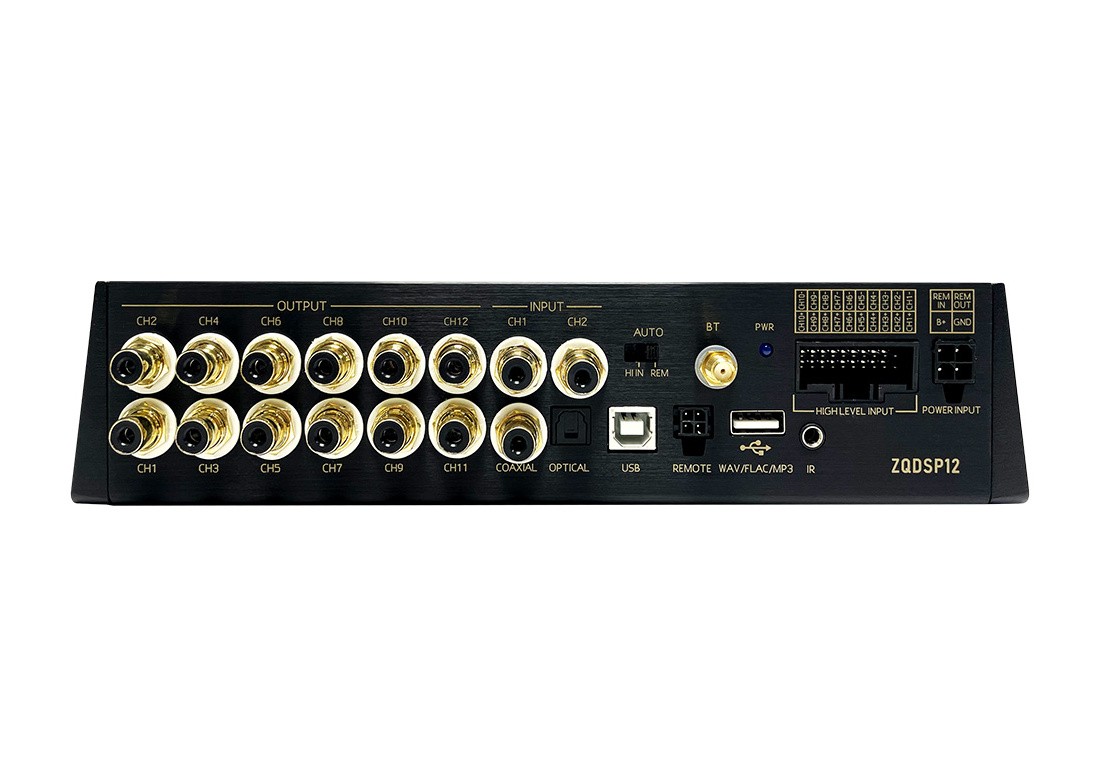

  • Inputs: 2 x RCA, 10 x Hi-level, 1 x optical SPDIF, 1 x coaxial SPDIF.
  • Integrated Bluetooth and media player via USB.
  • 31-band parametric equalizer.
Catalog numberZQDSP12
BrandPhoenix Gold
LinksOfficial web presentation (English)
Number of DSP processor channels12
Inputs2 x RCA, 10 x Hi-level, 1 x optical SPDIF, 1 x coaxial SPDIF.
Outputs12 x RCA
Input sensitivity1 V - 2.5 V
Frequency range10 - 22000 Hz
Signal-to-noise ratio (digital input)> 100 dB
Harmonic Distortion (THD) (Digital Input)< 0.1%
High level inputsYes
Low Level Inputs (RCA)Yes
Optical inputYes
Coaxial inputYes
Remote control inputYes
Automatic switchingYes
Integrated BluetoothYes
Number of equalizer bands31
Dimensions236 x 200 x 56 mm
