Electronic voltage stabilizer Start-Stop - ISO

Electronic voltage stabilizer Start-Stop - ISO

• Power stabilizer for the installed car radio or navigation.
• Designed for cars with a START-STOP system to prevent the connected device from resetting when the engine is restarted. Input and output wires for permanent (Vol. 30) and switching power supply (Vol. 15).

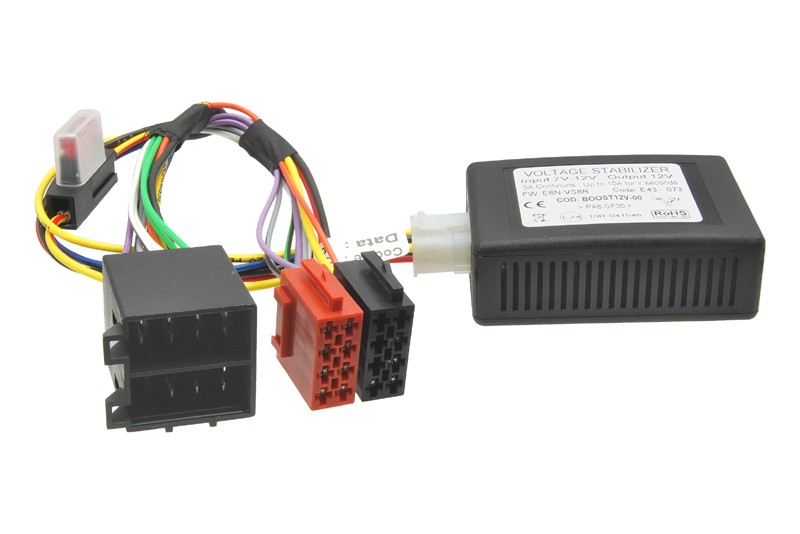

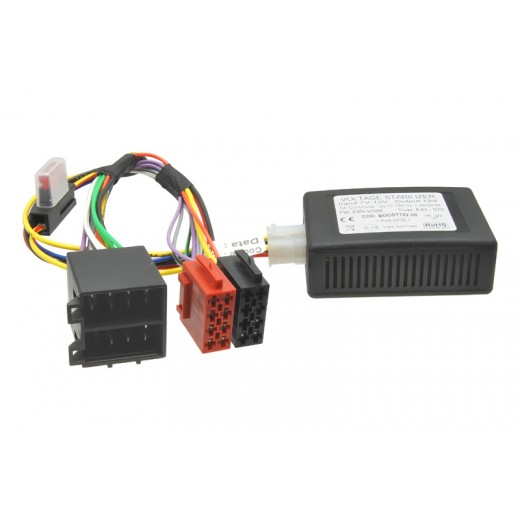

• The cable harness is equipped with ISO power and speaker connectors.

Designed for cars

• Iveco Daily III. (2014 ->)

• Universal - for cars with an ISO connector for connecting a car radio

- Before connecting, check the correct assignment of the pins in the ISO connector!

Specifications

• Permanent current consumption max. 5 A (peak 10 A).
• Maximum output power: 120 W.
• Supply voltage 7-12 V.
• Output voltage: 12V.
• Input / output power permanent (vol.30) / switched (vol.15).
• Overload protection.
• Short circuit protection.
• Operating temperature: -40°C to +105°C.

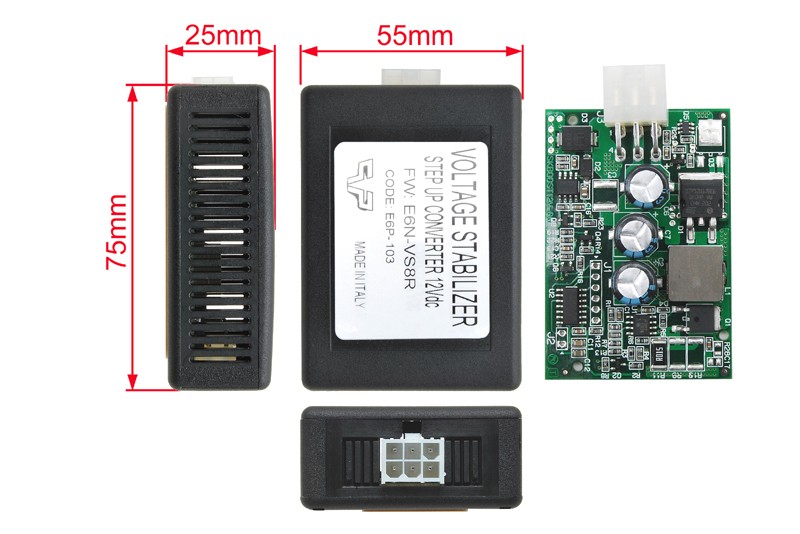

• Dimensions: 75 x 25 x 55 mm.
• Module weight: 300 g.
