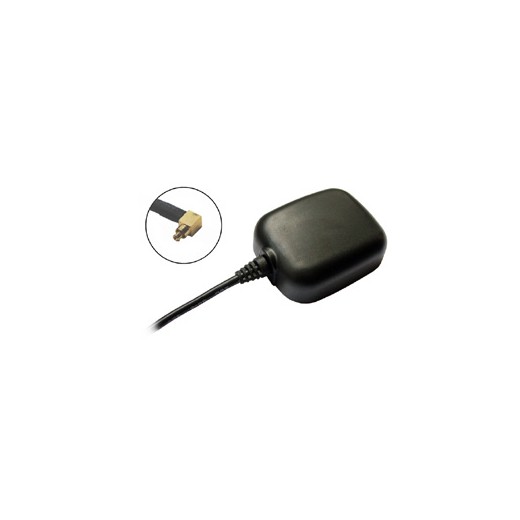

GPS antenna AGP-103 MMC

GPS universal, internal, magnetic antenna

• GPS frequency range: 1575.42 (+/-1.023) MHz
• phantom power: 2.45 - 5.0 V
• gain: >27 dBi
• current consumption: max. 22 mA
• polarity: RHC
• VSWR: < 2:1 (1.5dB)
• antenna connector: MC-CARD angled 90°
• downpipe length: 4 m
• impedance: 50 ohms
• black colour
• dimensions: 3.9 x 4.9 x 1.3 cm (W x D x H)
• universal internal on or under the dashboard
• be careful not to shade the antenna with metal parts of the car or metallized glasses

The GPS antenna is equipped with a connector for the following GPS devices:

• Anycom Blue GPS Receiver GP-600
• Bluemedia BM6280
• Leadtek Miniature Bluetooth GPS 9553
• Medion MDPNA100, MD 95270
• Mitac MD PNA 100
• RoyalTek RBT-1000 ST and RBT-1000 XT2, RBT 1000 (RBT-1000/2001)
• Rikaline 6030, Rikaline 6021-X6
• SysOnChip CF & BT SysOnChip CF GPS High Sensitive, Syson Bluetooth GPS (Model:SOC2S03)
• Tchibo Pocket PC MD95270, MDPNA100
• TomTom Navigator 3 Bluetooth (MC), Wireless GPS Receiver (MC)
