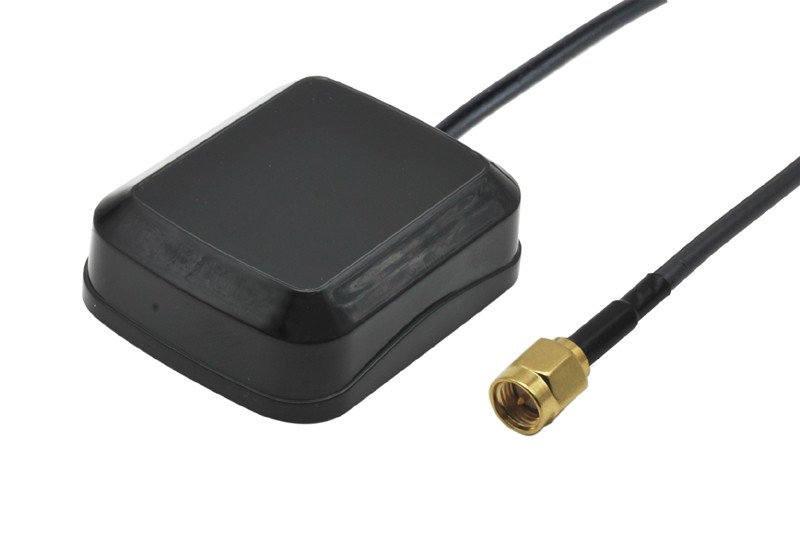

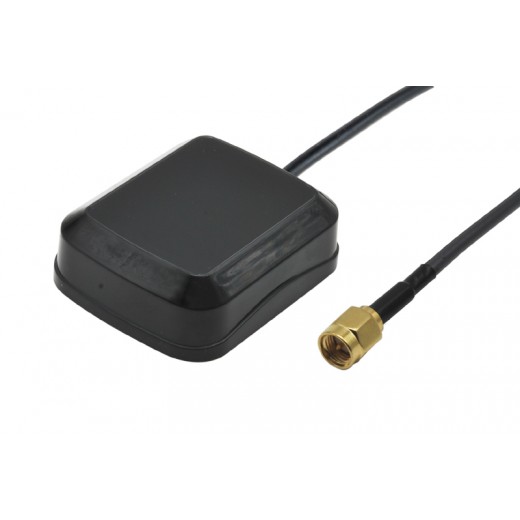

GPS antenna AGP-103 SMA

GPS universal, internal, magnetic antenna

• GPS frequency range: 1575.42 (+/-1.023) MHz
• phantom power: 2.45-5.0V
• gain: >25 dBi
• current consumption: max. 22 mA
• polarity: RHC
• VSWR: < 2:1(1.5dB)
• downpipe length: 4 m
• GPS device connector: SMA-A male straight
• black colour

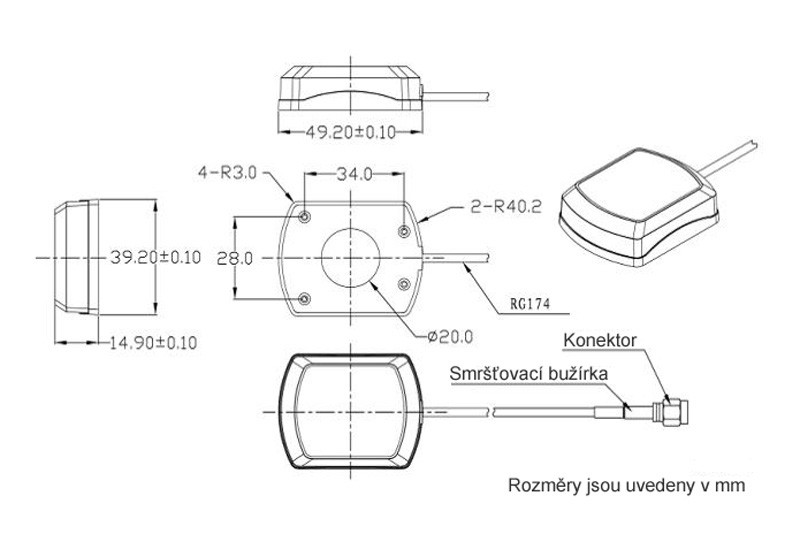

• dimensions: 3.9 x 4.9 x 1.3 cm (W x D x H)
• universal, internal on or under the dashboard
• be careful not to shade the antenna with metal parts of the car or metallized glasses

The GPS antenna is equipped with a connector for the following GPS devices:

• Alpine Blackbird PMD-B100 Portable Navigation System
• Heedfeld HE2000
• Falcom - FAL-ANT-4)
• GlobalSat G5040 5010U
• Navman Tracker 5100, 5110, 5110X, 5110i, 5380, 5380i, 5430, 5430i, 5500, 5500X,5500i, 5505,5505i,5600, 5605
• Trimble GPS Receivers: TNL1000 Aviation GPS, Trimble 2000A
• U-blox GPS Antenna SMA (ANN-MS-0-005-0), LEA-LA GPS Receiver Module, (LEA-LA-0-000-0), TIM-LA GPS Module (TIM-LA-0-000 -0), TIM-LC GPS Module (TIM-LC-0-000-0), TIM-LF GPS Module (TIM-LF-0-000-0), TIM-LH SuperSense GPS Module (TIM-LH-0 -000-0), TIM-LL GPS Module (TIM-LL-0-000-0), TIM-LP GPS Module (TIM-LP-0-000-0), TIM-LR GPS Module (TIM-LR- 0-000-0)
• and other devices with an SMA connector
