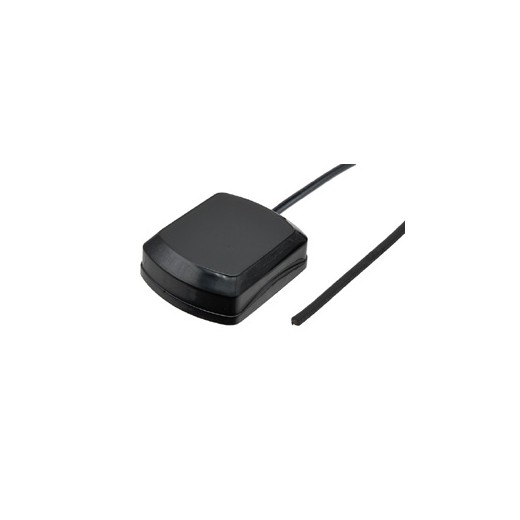

GPS antenna AGP-103

GPS universal, internal, magnetic, active antenna

• GPS frequency range: 1575.42+/-1 MHz
• wavelength: CF-5 MHz
• phantom power: 3.0 - 5.0 V
• gain: 28 dB
• axial ratio: 3 dB (max)
• current consumption: max. 10.5 mA
• polarity: RHCP
• VSWR: < 2
• cable: RG174
• downpipe length: 4 m
• impedance: 50 ohms
• antenna without connector for GPS device - only bare wire
• working temperature: -10°C to +85°C
• protection class: IP65-IP67
• black colour
• dimensions: 39.2 x 49.2 x 14.9 mm (W x D x H)
• universal internal on or under the dashboard
• be careful not to shade the antenna with metal parts of the car or metallized glasses
