High/low converter JL Audio LoC-22

High/low converter JL Audio LoC-22

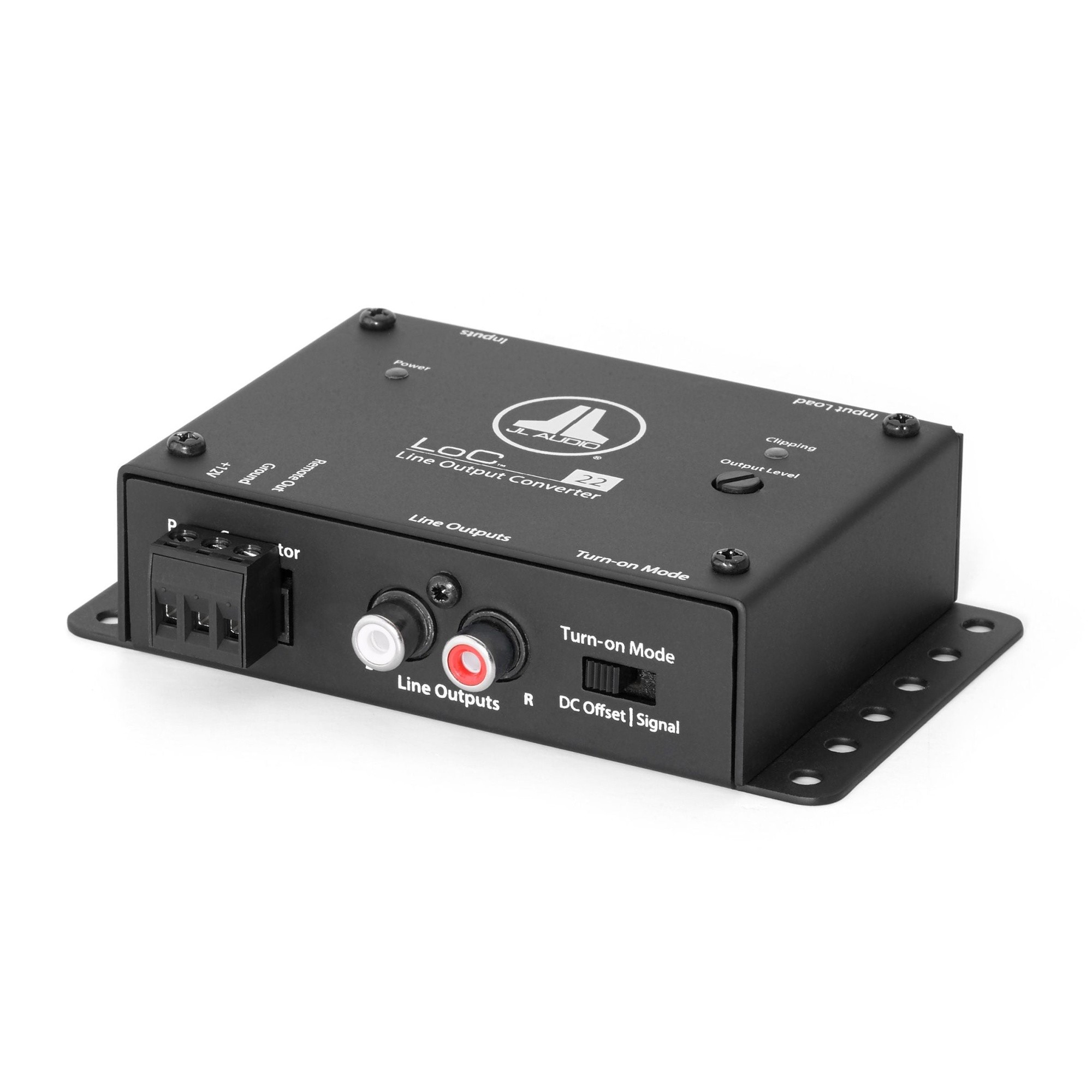

Fully active two-channel speaker-to-line-out level converter with auto-on. LoC-22 designed by JL Audio Sr. Engineered by Bruce Macmillan, it is an active two-channel processor for applications requiring attenuation of factory audio signals for use with aftermarket amplifiers and signal processors. The LoC-22 uses a fully regulated switching MOSFET power supply and a fully analog circuit design to provide a flat frequency response at any signal level (3Hz - 32kHz, +0, -1dB) without altering the bass response at high levels. as is common with passive line output converters. Designed to suppress induced cable noise, the LoC-22 features a differentially balanced input architecture that makes it compatible with virtually any analog audio signal. Capable of accepting up to 40V RMS per channel (equivalent to 400W @ 4 ohms), the LoC-22 easily handles the most powerful factory amplifier outputs. An integrated dual-range input load switch allows compatibility with most factory amplifiers that use impedance sensing to mute channels. The LoC-22 features a pair of analog RCA, line output jacks (up to 8V RMS) for feeding audio signals into your aftermarket system. The analog outputs are compatible with most types of aftermarket signal processors or amplifiers. Setting the output level is super simple and easy thanks to the specially calibrated built-in clipping indicator that works with test tones or music. The LoC-22 offers two automatic turn-on methods (DC-Offset Sensing or Signal Sensing) and provides a positive 12V turn-on output to activate aftermarket amplifiers or other downstream electronics.

Main features of the JL Audio LoC-22 converter

• Fully active high/low converter.
• Handles powerful factory amp outputs, up to 40 volts per channel.
• The differentially balanced input architecture offers noise cancellation and compatibility with most analog outputs from OEM source units and amplifiers.
• Dual-range input load switch (20 kΩ/Normal, 60 Ω/Low Z, thermally protected) for maximum compatibility with OEM amplifiers.

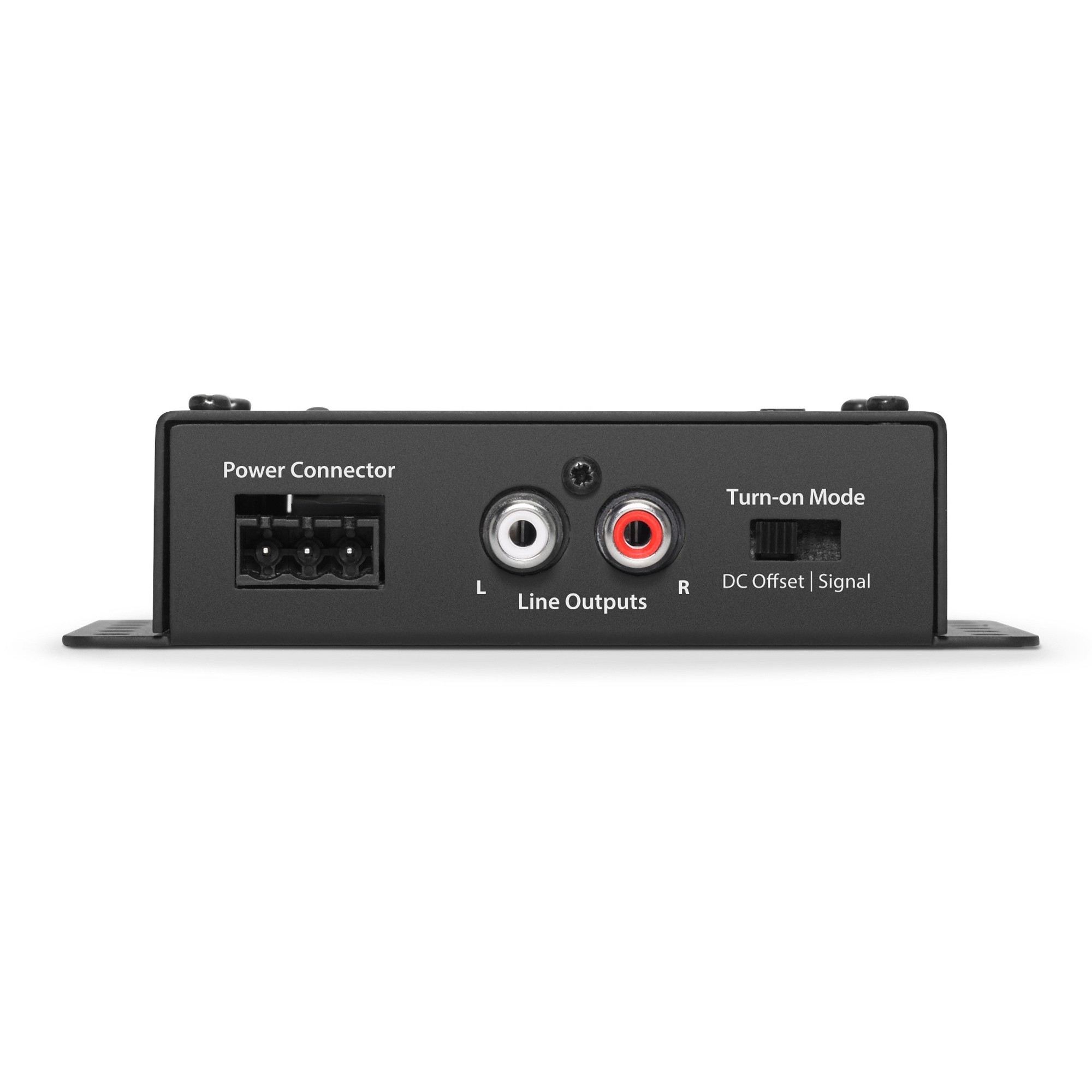

• One stereo pair of crystal clear RCA line output connectors (up to 8V RMS).
• Automatic switching on with DC-Offset or Signal-Sensing.
• Dedicated 12V remote power-on output (100mA maximum) for activating signal processors or amplifiers.
• An integrated LED clipping indicator allows for quick and easy output level adjustment.

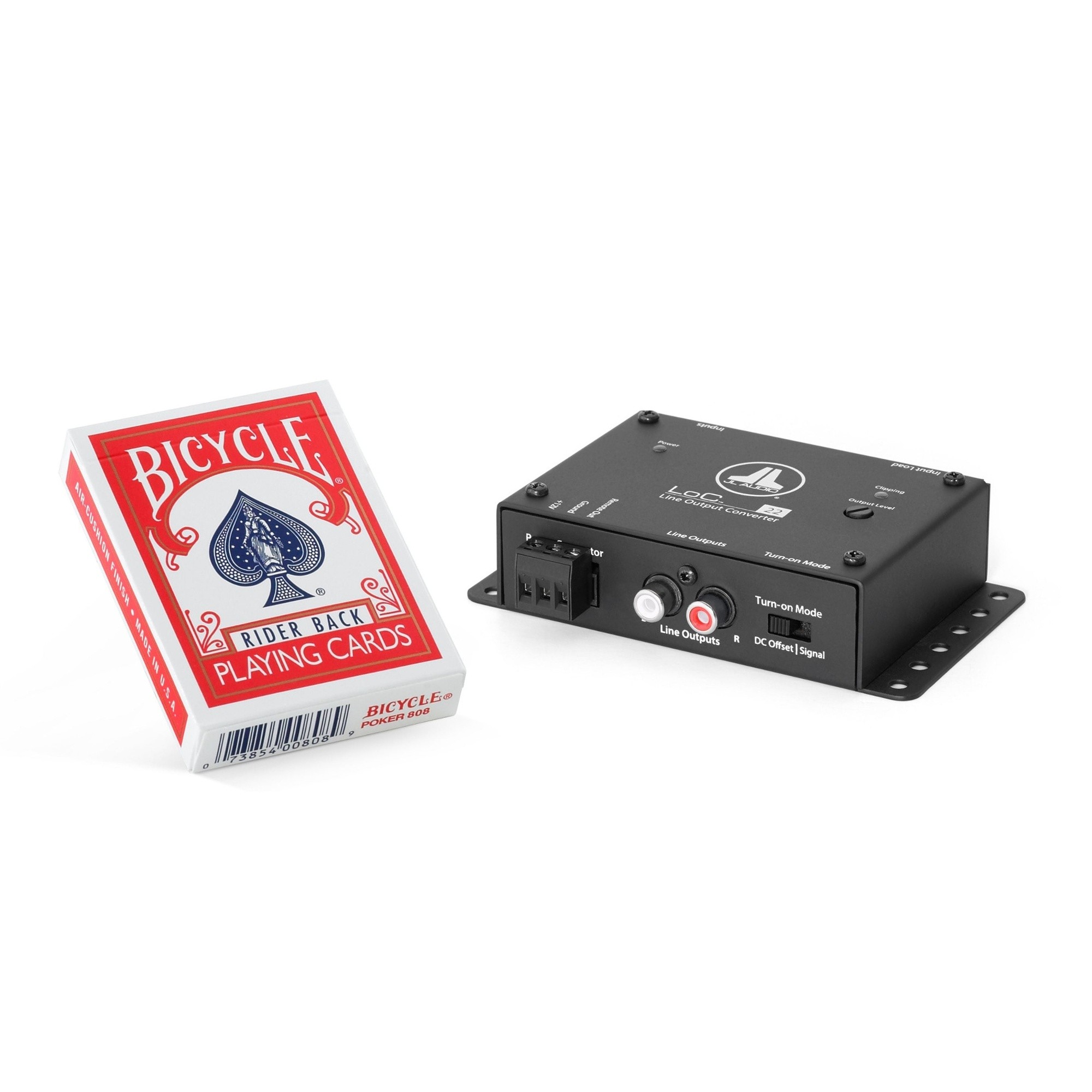

• The ultra-compact chassis design fits almost any installation location.

About the JL Audio brand

JL Audio is an American manufacturer of consumer audio equipment that specializes in home, vehicle and boat sound systems. It is one of the main pioneers of vehicle sound systems and is undoubtedly best known for its high-end subwoofers. The company was founded in 1975 and is therefore one of the oldest manufacturers in this field. The original focus was on home sound systems, but already at the turn of the seventies and eighties, they also started to deal with the car audio segment, the popularity of which grew rapidly at the time. During their rich history, JL Audio produced a lot of completely unique and patented subwoofers that had almost no competition at the time. And it is similar even now. Subwoofers from this manufacturer amaze with their performance and at the same time absolutely top sound quality, unique patents and excellent workmanship. In particular, the top W6 and W7 series have long been among the most interesting products on the market today. However, the revolutionary flat subwoofers of the TW1 and TW3 series, as well as the perfectly tuned subwoofer enclosures, will also impress. You can expect the same quality from the amplifiers, and it's also worth noting the high-end products designed for integration into factory audio systems. In short, you can't go wrong with JL Audio products and you can always rely on their high quality and uniqueness.
