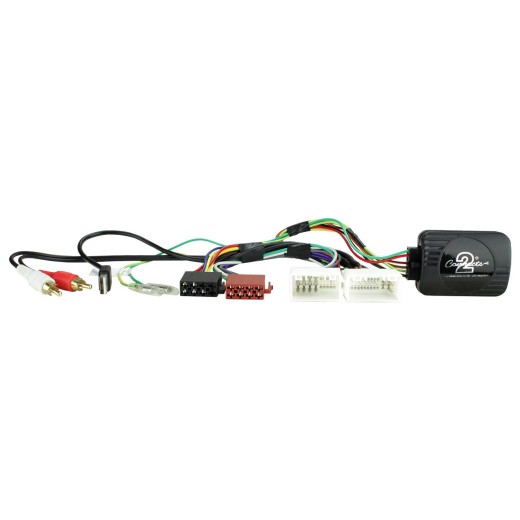

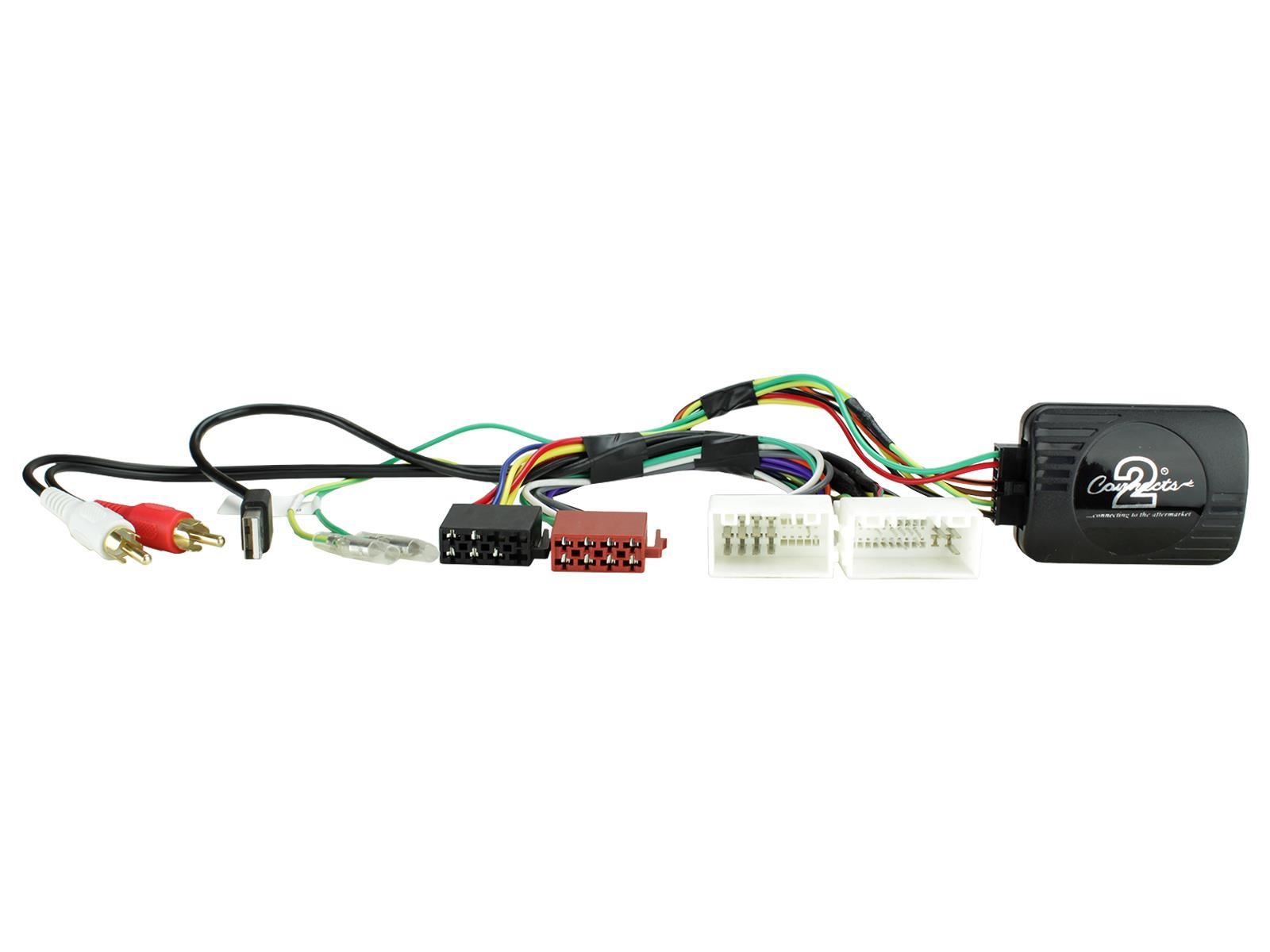

Hyundai Connects2 steering wheel button control adapter CTSHY019.2

Elantra (11->16), H1 II. (10->16), i10 II. (14->16), i40 VF (11->16), i45 (09->16), i800 (07->16), ix35 LM (10->16), ix 45 (13->16), Santa Fe DM (13->16), Sonata YF (09->16), Tucson (10->16)
More about the product

We will help you with your purchase

Use our consulting room
You can return the goods to us within 14 days
Try the product at our store

Hyundai Connects2 steering wheel button control adapter CTSHY019.2

Description and parameters
files for download
Comments0
Evaluation0
Category

Hyundai steering wheel adapter

Adapter for activating the control buttons on the steering wheel when buying an aftermarket car radio with an ISO connector (included in the adapter) for vehicles:

Hyundai Elantra (2011 -> 2016)
Hyundai H1 II . (2010 -> 2016)
Hyundai i10 II . (2014 -> 2016)
Hyundai i40 VF (2011 -> 2016)
Hyundai i45 (2009 -> 2016)
Hyundai i800 (2007 -> 2016)
Hyundai ix35 LM (2010 -> 2016)
Hyundai ix 45 (2013 -> 2016)
Hyundai Santa Fe DM (2013 -> 2016)
Hyundai Sonata YF (2009 -> 2016)
Hyundai Tucson (2010 -> 2016)

Important additional information

It retains steering wheel controls, phone buttons, USB and AUX inputs.
Includes outputs for pulse speed and parking brake.
Voice assistant supported by software update (requires reflasher tool. Part number: SWCREFLASHER).
Only for vehicles without amplifier.
The adapter supports the control of the hands-free kit in the installed aftermarket car radio using the buttons on the steering wheel.
Designed for aftermarket Sony, Kenwood, Panasonic, JVC, Pioneer, Blaupunkt, Clarion, Alpine, LG, Zenec, Becker car radios.
To fully activate the adapter, it is necessary to order a connecting cable for the given brand of car radio! (see below)

The adapter includes wires with analog signals

Speed pulses.
