Inbay® QI universal car charger

Inbay® QI universal car charger

• A solution for individual installation in glove boxes or armrests of cars.
• The charging station supports inductive wireless charging with a Qi-compatible mobile phone.

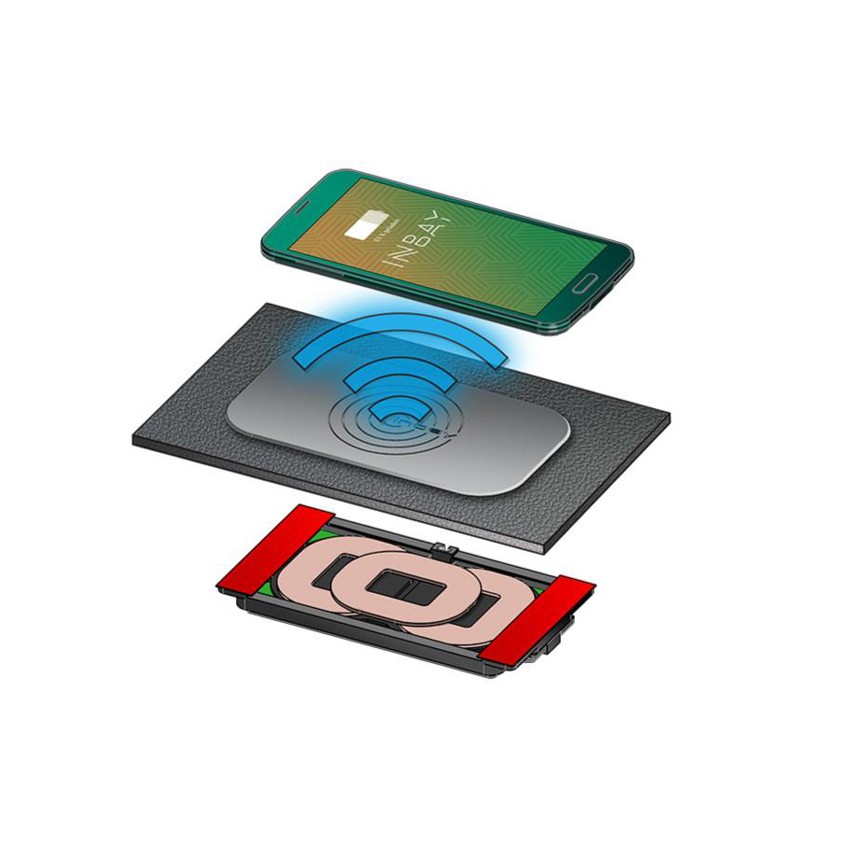

• For installation, it is necessary to attach the printed circuit board with the coils from the bottom of the flat plastic surface in the car, from the top a rubber anti-slip mat with a marked target for placing the mobile phone is glued. The distance between the coils and the surface for placing the phone must be 3 - 8 mm.

How does wireless charging work?

• Inductive charging requires two devices. Receiver: Qi compatible mobile phone and transmitter.
• Simply place the Qi device directly on the base station.
• Energy is transferred through induction coils that create a magnetic field.
• When the device is fully charged, the charging cycle will be disabled.

Specifications

• Charging current: DC 5V / 1000 mA.

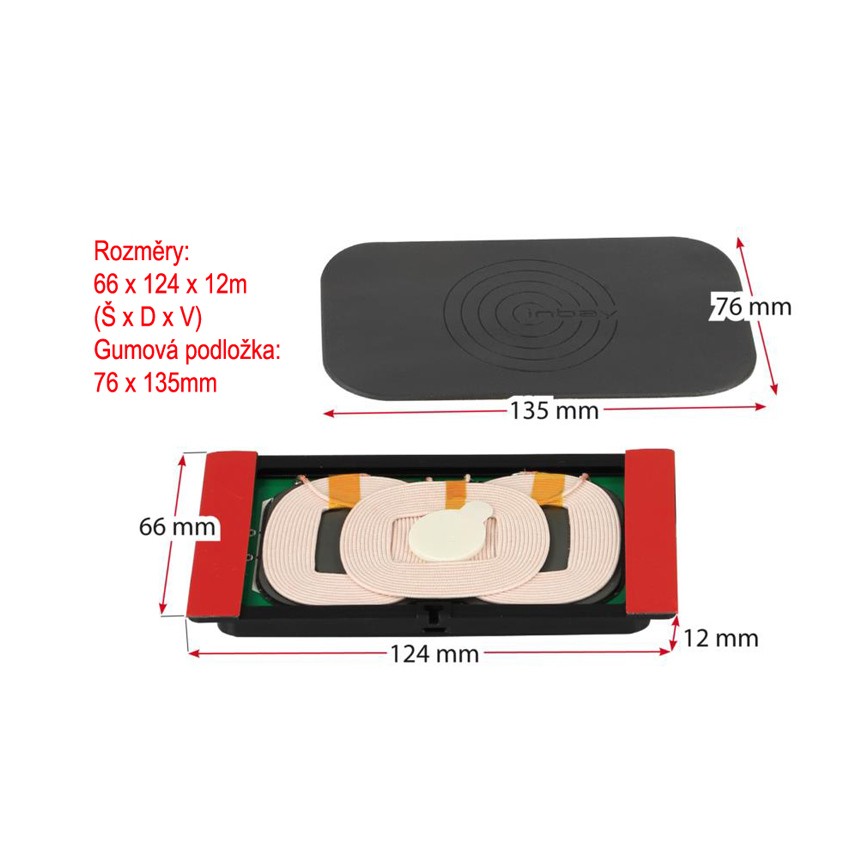

• Dimensions of the rubber mat: 76 x 135 mm.
• Pad color: black.

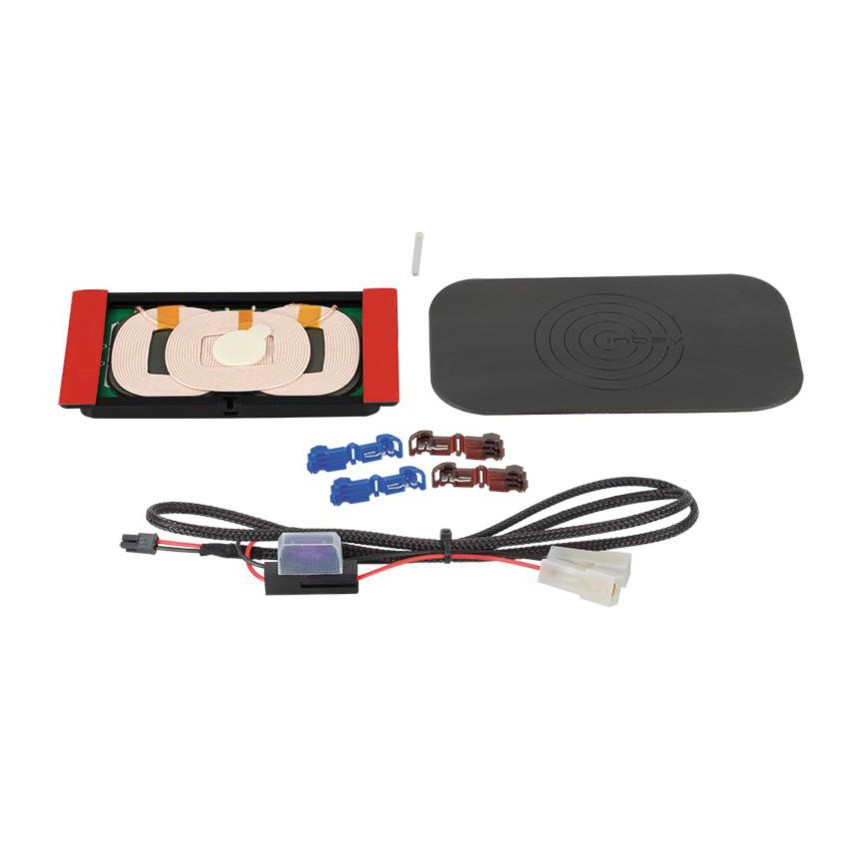

Package contents

• Inbay® cable harness with fuse.
• Circuit board with three induction coils.
• Plastic coil cover.
• Rubber pad 76 x 135 mm.
• Screws for attaching the coil.
• Double-sided tape.
• Installation instructions.
