Internal antenna Calearo 7697015

internal active antenna with amplifier, on glass, AM/FM
More about the product
We will help you with your purchase
Internal antenna Calearo 7697015
Tip

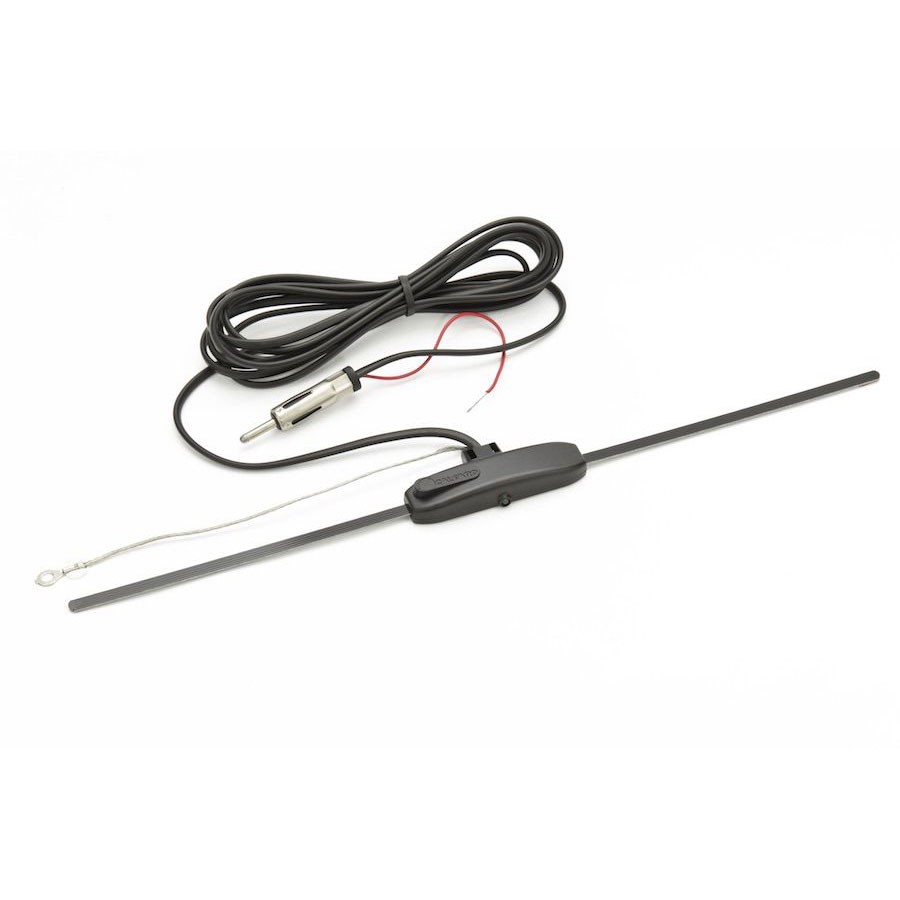

Universal internal AM / FM antenna with amplifier, sticking on glass from the inside

  • antenna location: self-adhesive on the glass from the inside
  • frequency range: AM 0.52-1.71 MHz / FM 87.5-108 MHz
  • supply voltage: +12 to +16 V

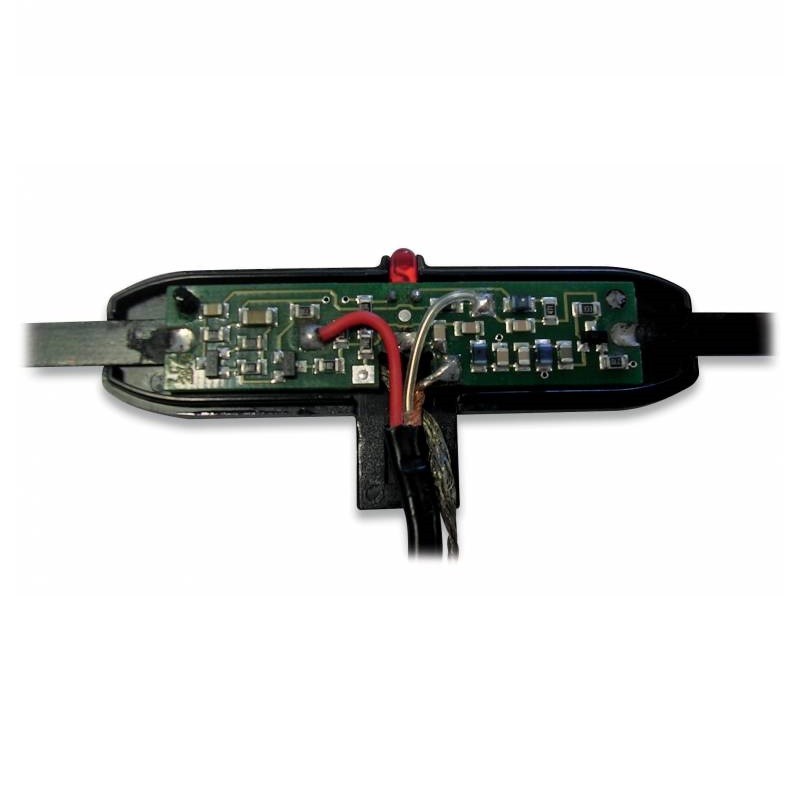

  • built-in amplifier gain: 26 dB
  • current consumption: 45 mA
  • dipole width: 30 cm
  • downpipe length: 2.4 m
  • grounding cable length: 140 mm
  • car radio connector: DIN
  • dimensions: 305 x 26 x 14 mm
  • weight: 80 g
  • protection: IP50
  • working temperature: -10°C to +90°C
Catalog number7697015
BrandCalearo
LinksOfficial web presentation
