JL Audio C3-525 speakers

coaxial speakers, Ø 130 mm, 75 W RMS, 90 dB (1W/1m), 4 Ω, mounting depth 58 mm
More about the product
We will help you with your purchase

JL Audio C3-525 Convertible Speakers

The C3 model range from JL Audio deploys a full suite of technological advancements and patents to deliver unsurpassed value, sound and reliability. In the menu, you will find exclusively component speakers in several of the most common sizes with first-class sound quality and processing. All speakers are convertible, so you can easily turn component speakers into coaxial with superior sound quality. The mid-bass design benefits from JL Audio's extensive experience in subwoofer design and advanced modeling systems. That is why in this model series you will find exclusive technologies such as Elevated Frame Cooling for improved performance handling or an engine optimized according to the patented DMA system. The advanced woofer basket design takes advantage of glass reinforced polymer which allows for better connection point construction resulting in superior suspension geometry. The long-deflection capability of the DMA-optimized performance woofer delivers dynamic low frequencies and clean midrange output, while the powerful 25mm silk tweeter provides faithful sound and a smooth, extended off-axis response. Included in the delivery are accessories for recessed and surface mounting to meet a wide range of installation needs. The C3 Series crossovers are compact and built with premium components, including Mylar® capacitors and segmented air-core chokes. There are four levels of tweeter attenuation as well as three levels of mid-range presence settings for twelve possible sound combinations. Included are the woofer grilles, each consisting of a black steel grille and a grille with an electroplated JL Audio logo.

Main features of JL Audio C3-525 speakers

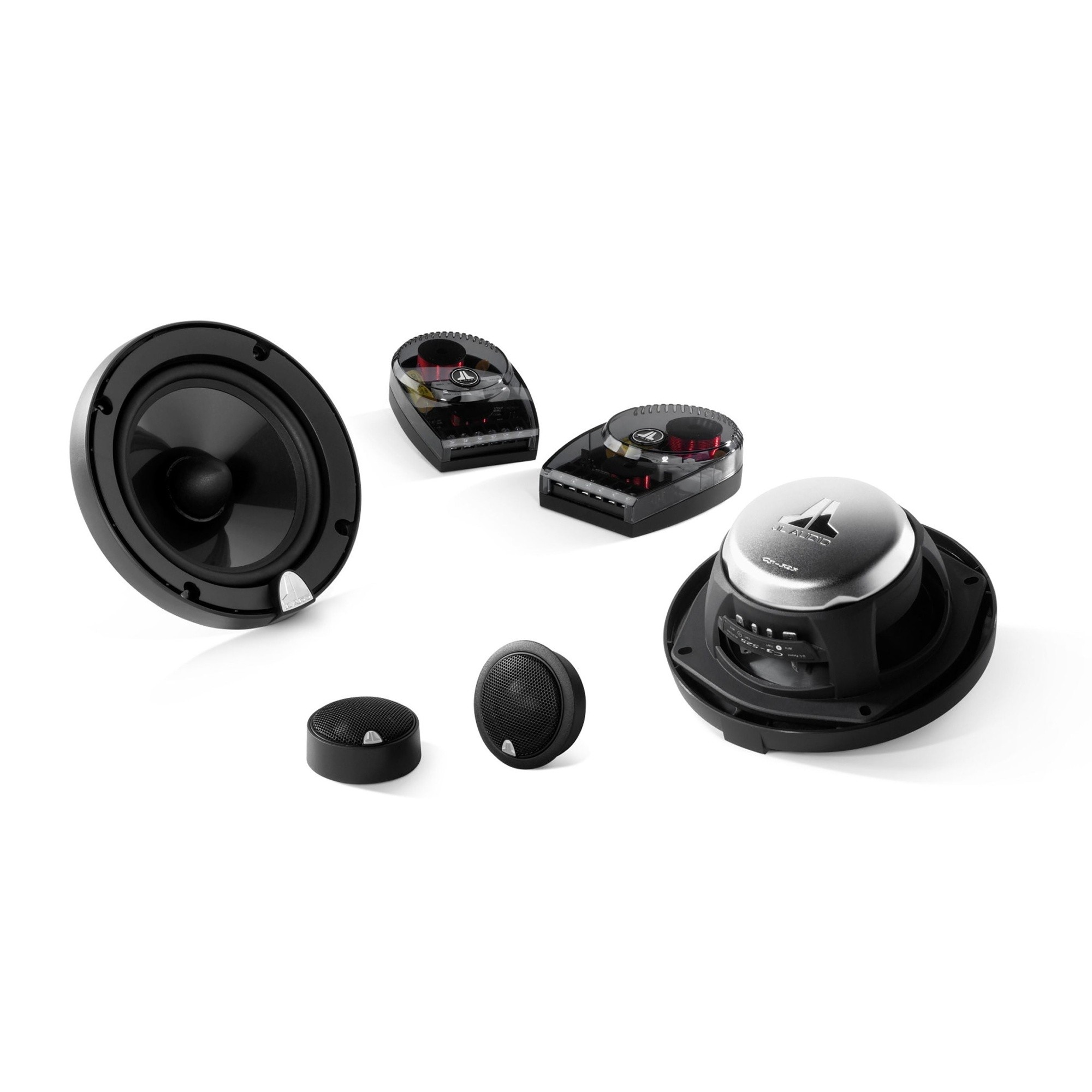

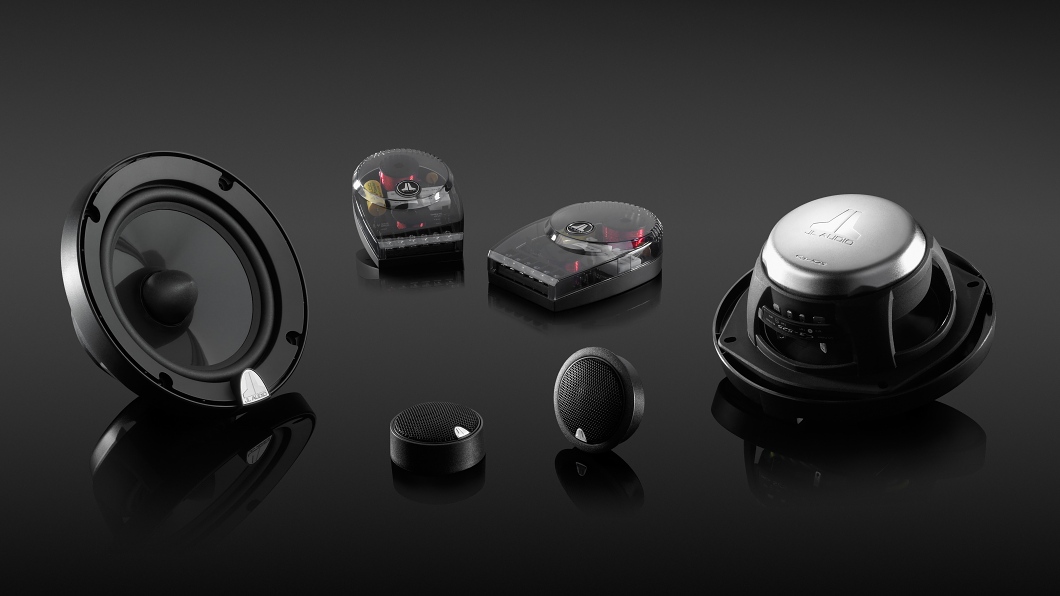

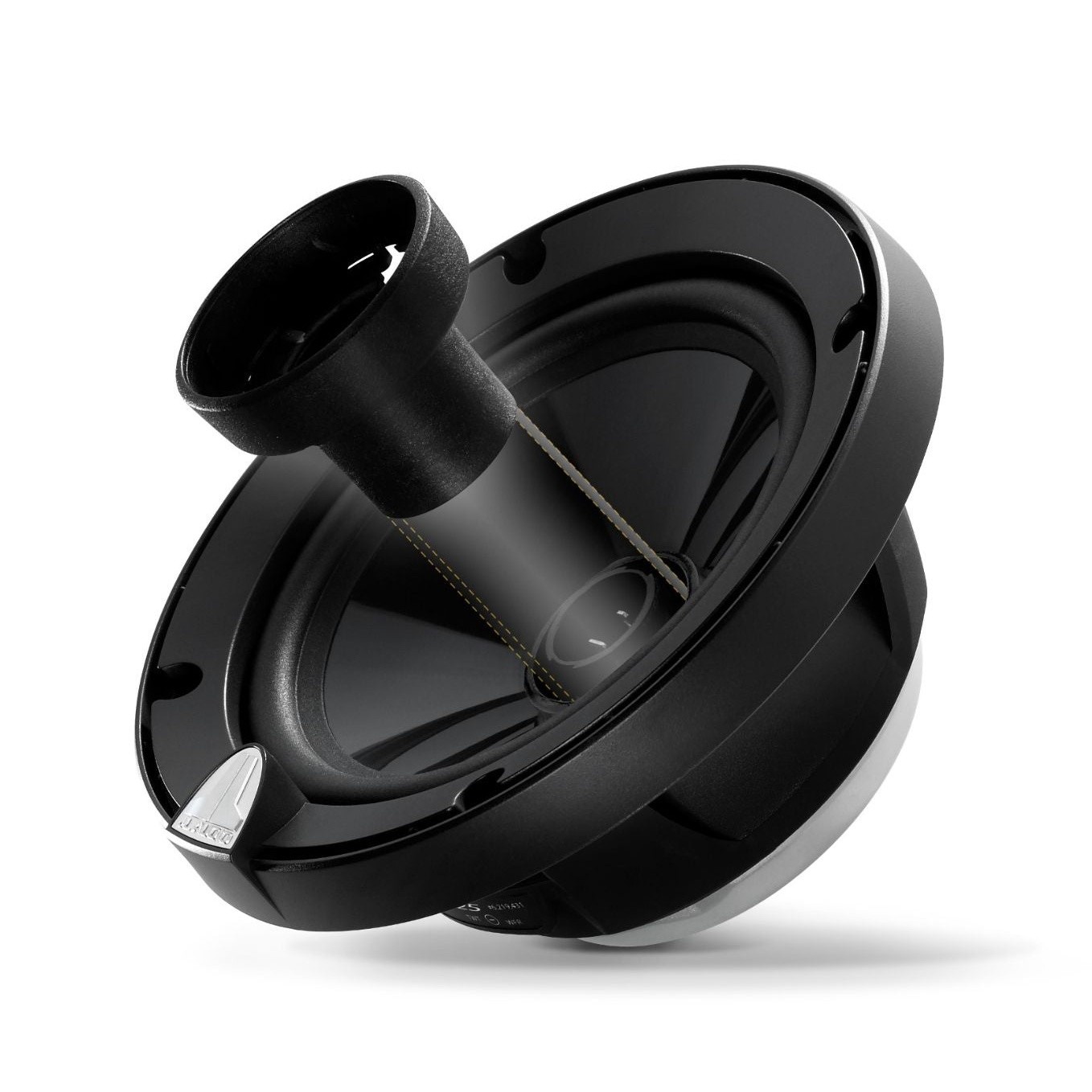

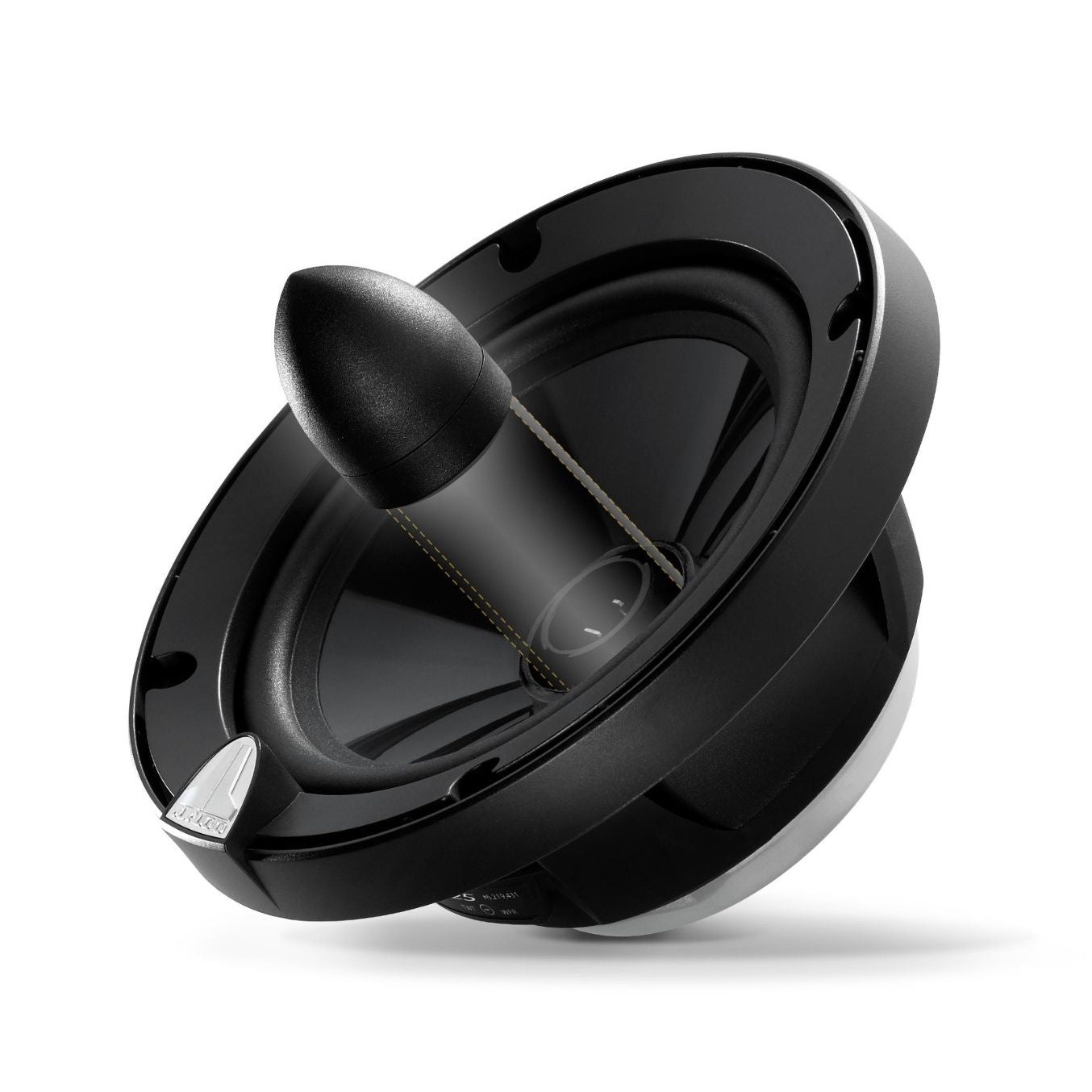

  • 2-way convertible speakers with a diameter of 130 mm.

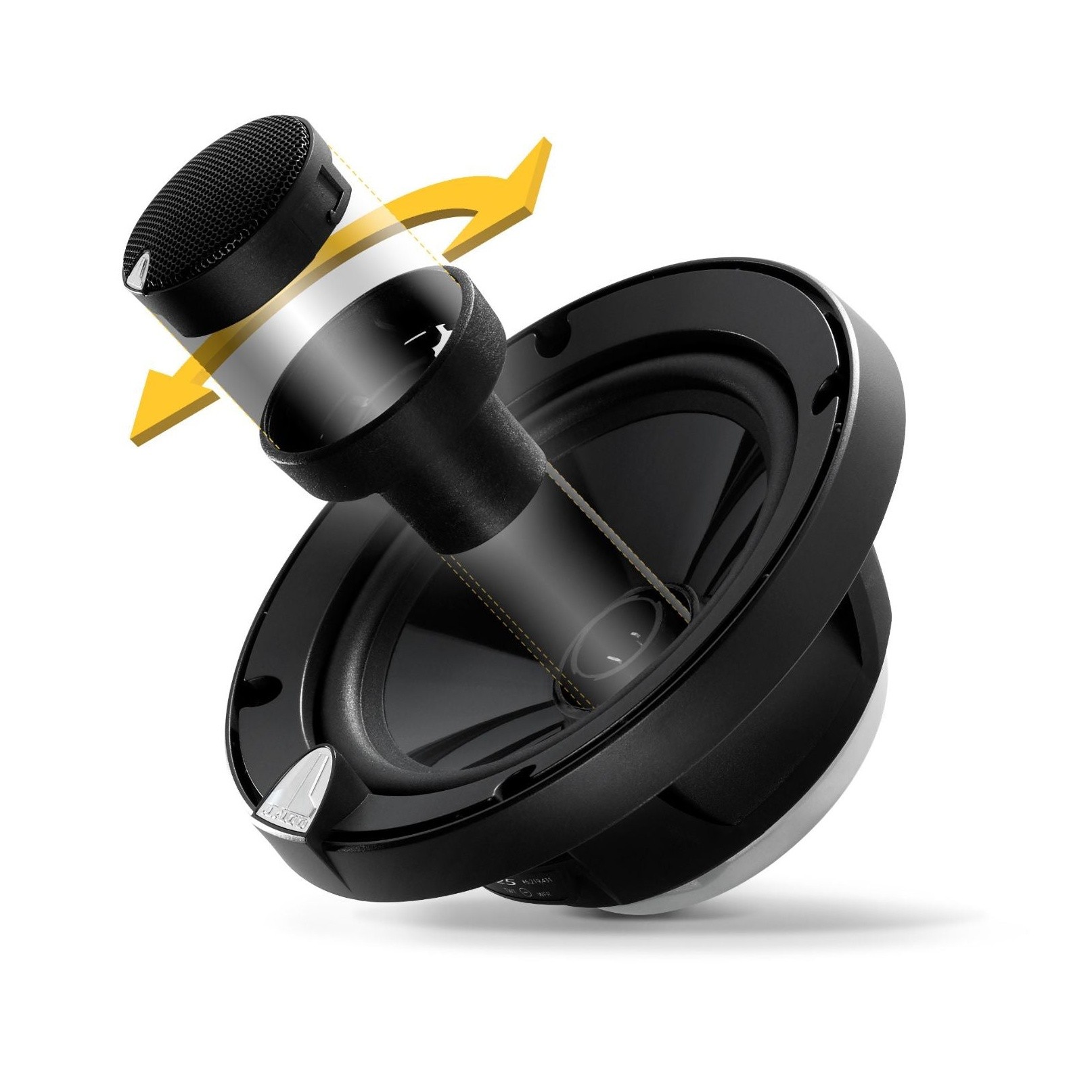

  • Can be used as both component and coaxial speakers thanks to the convertible design.

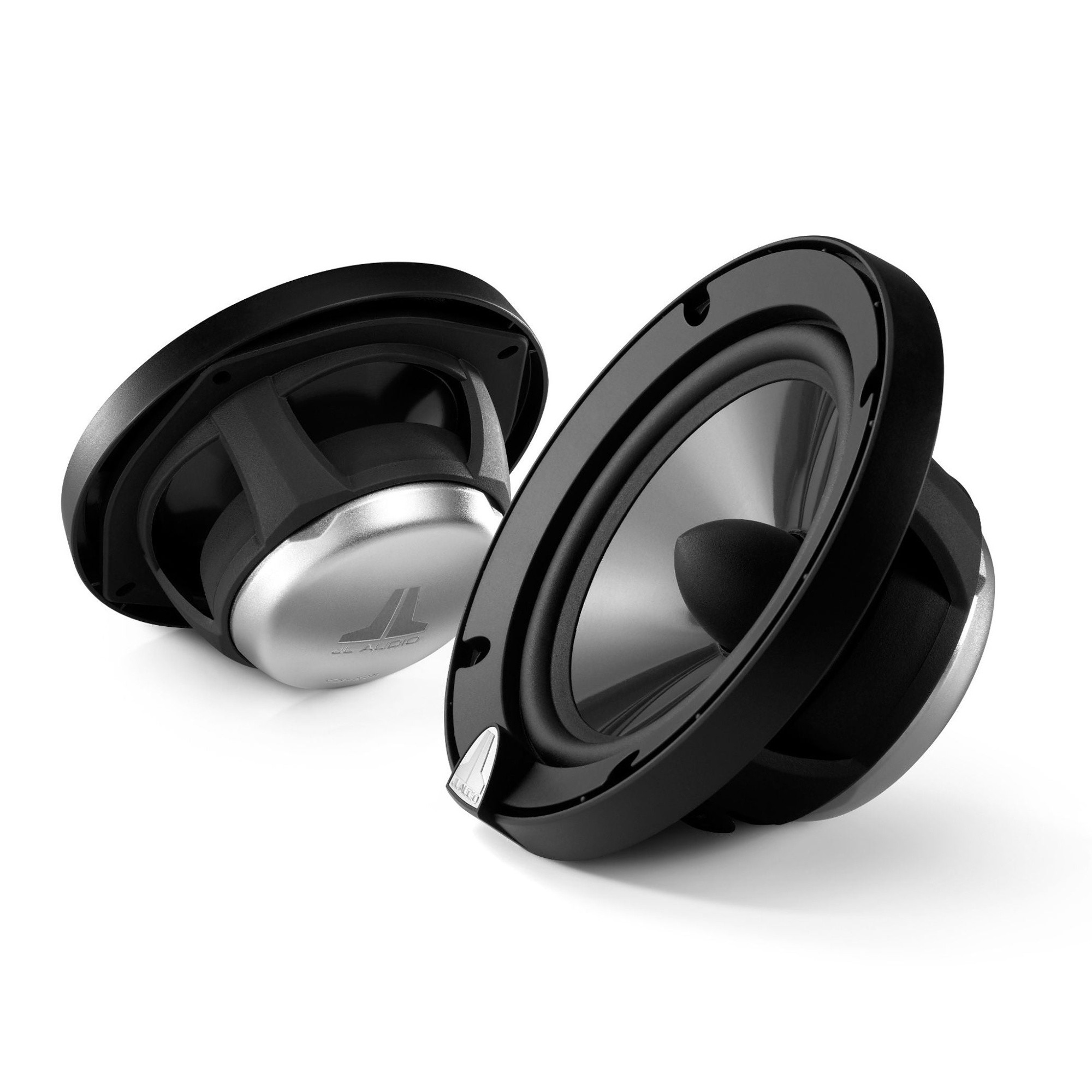

  • Durable mineral injected polypropylene membrane with long stroke capability.

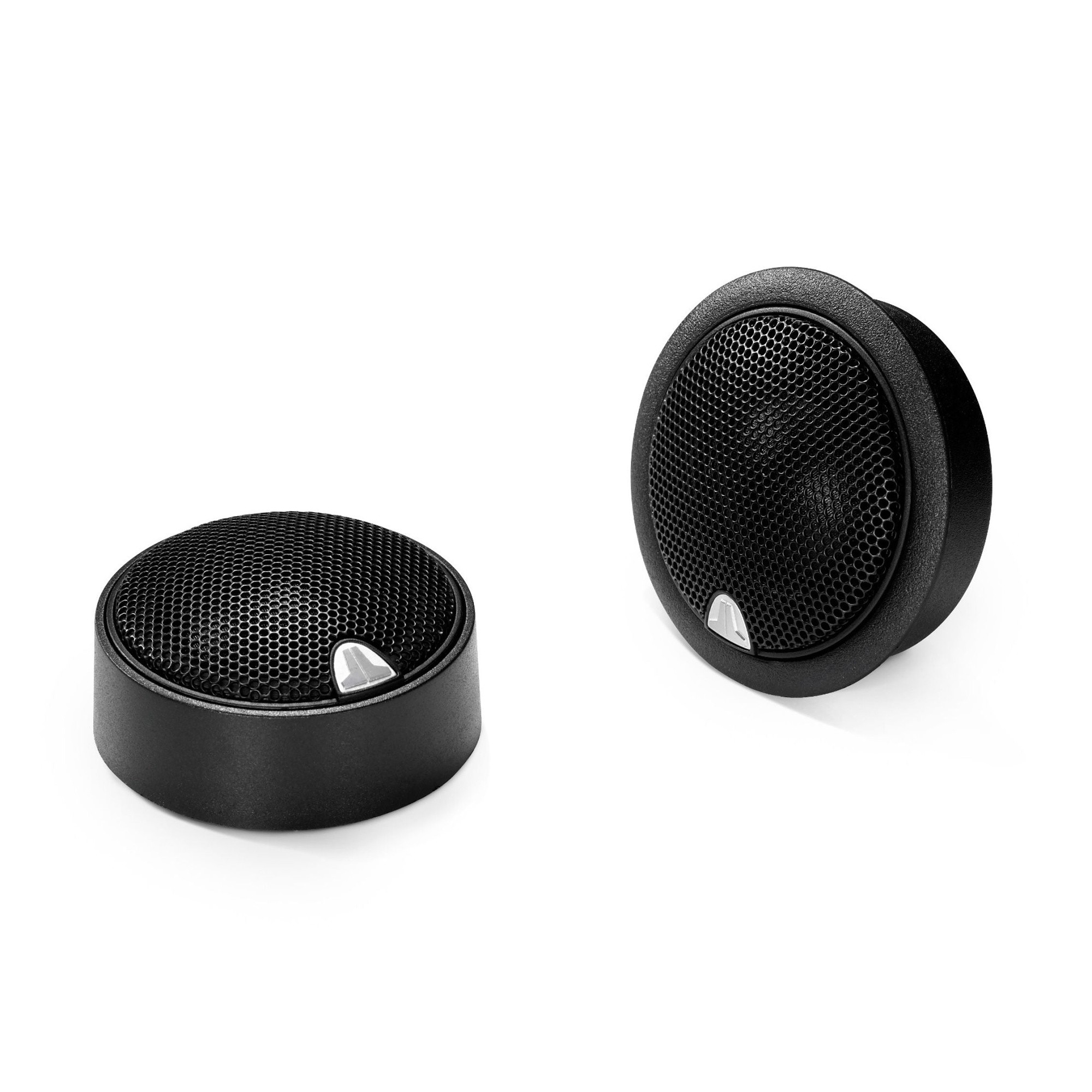

  • Tweeters with 25 mm silk dome for faithful and precise delivery of high frequencies.

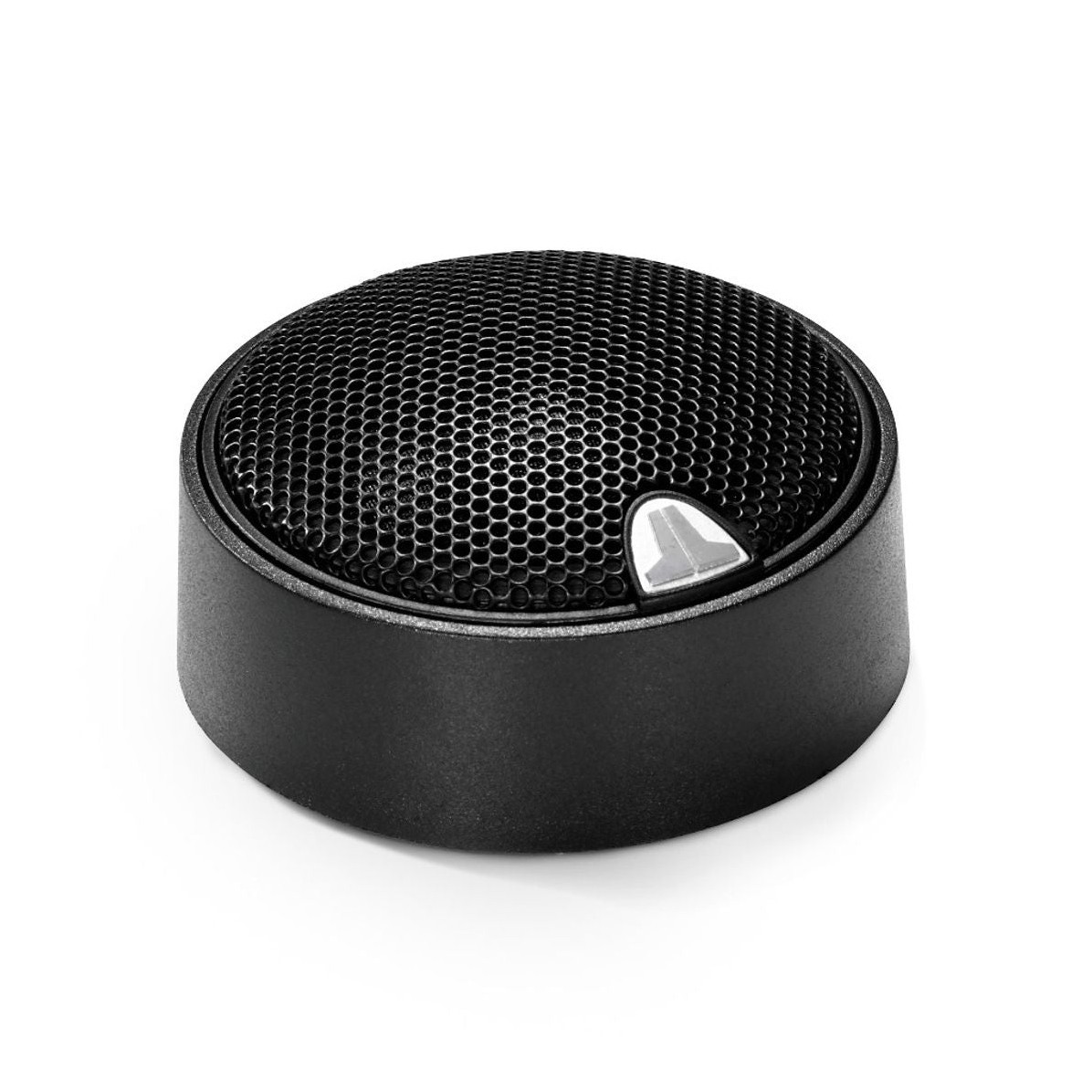

  • The package also includes accessories for recessed and surface mounting of tweeters.
  • Mid-woofer engine optimized according to the patented DMA system.
  • Powerful ferrite magnets for rich dynamics and high mid-bass performance.
  • Patented Elevated Frame Cooling design for improved performance handling.
  • Ingeniously designed polymer basket design reinforced with glass fibers for the lowest possible resonances.

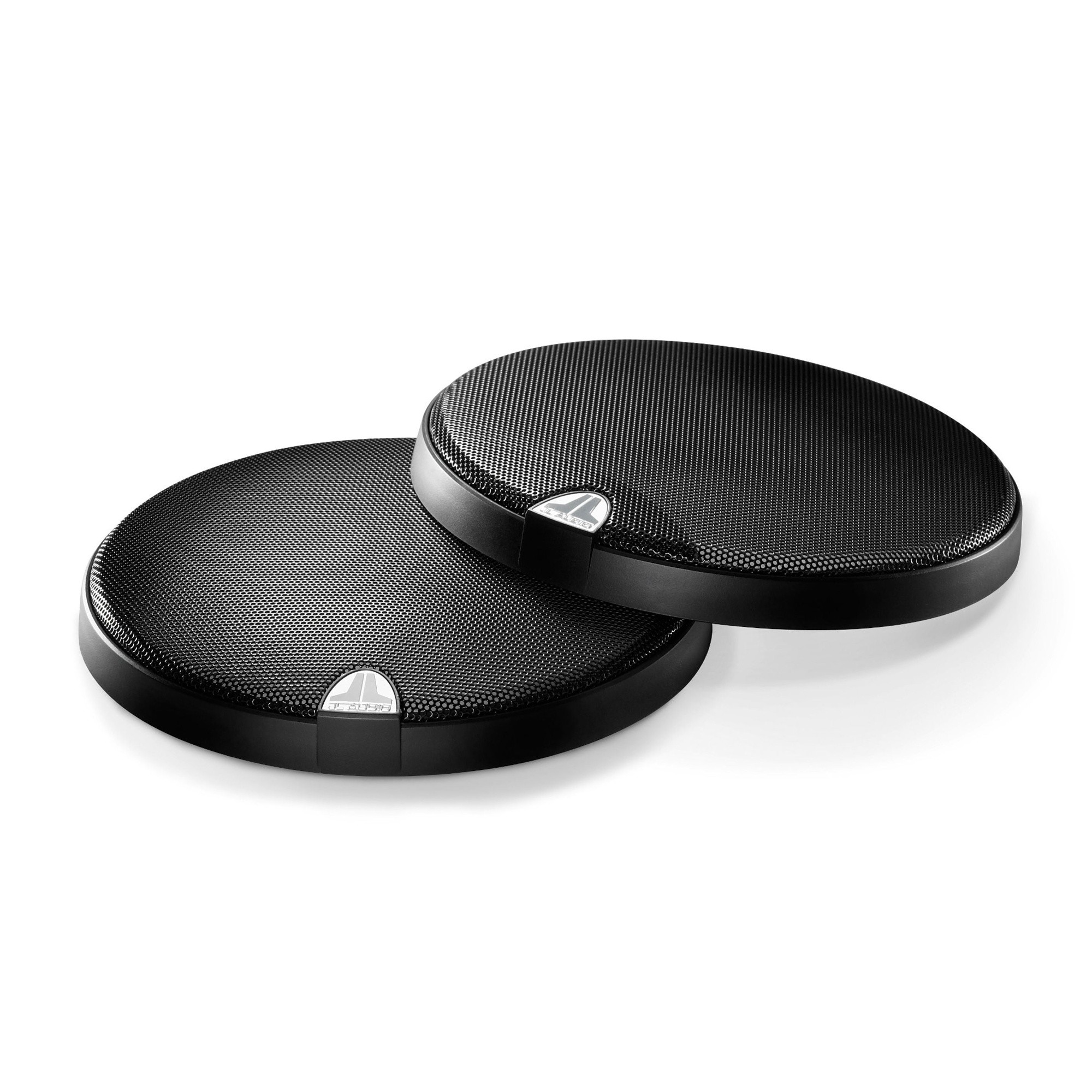

  • The package also includes steel cover grilles with a galvanically shaped JL Audio logo.

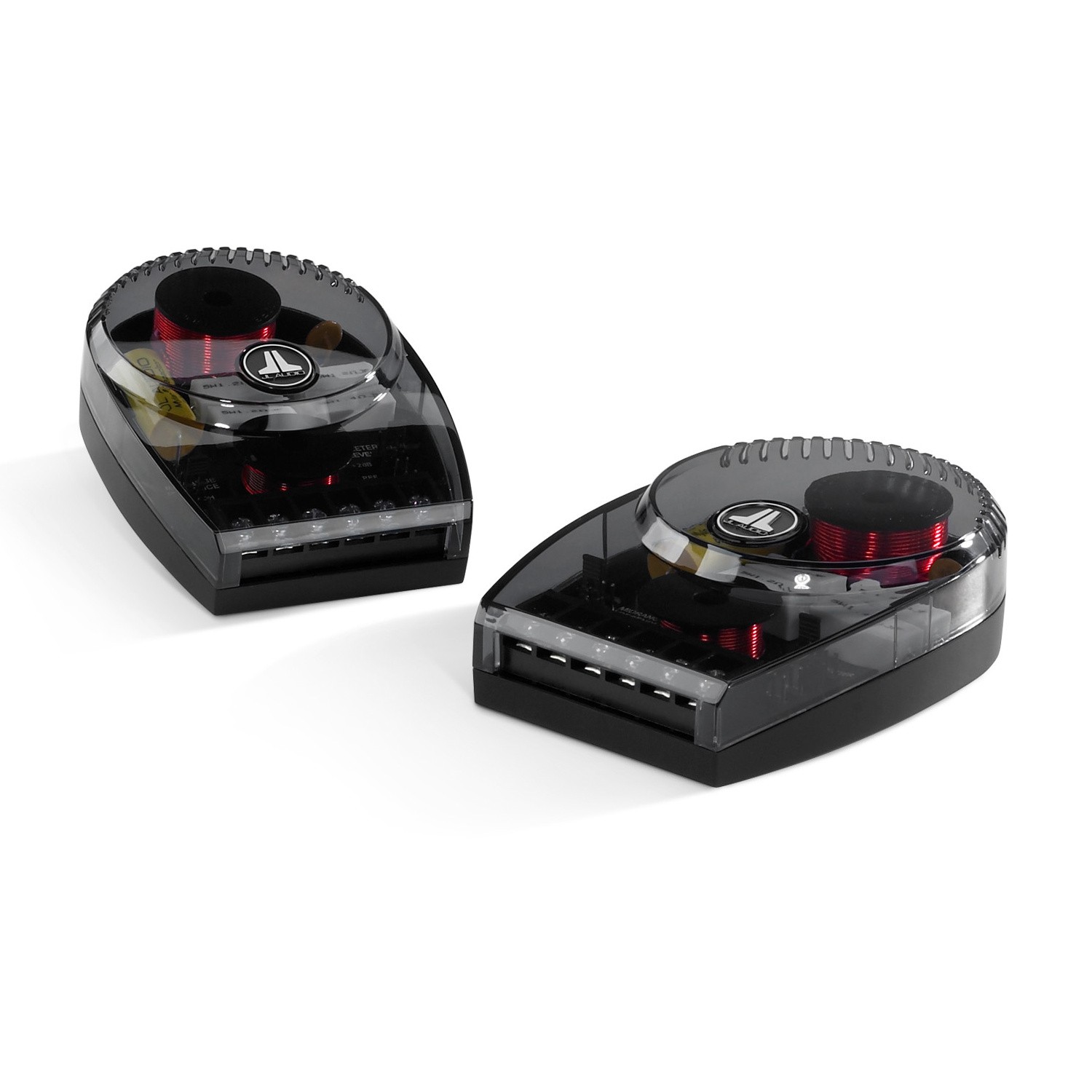

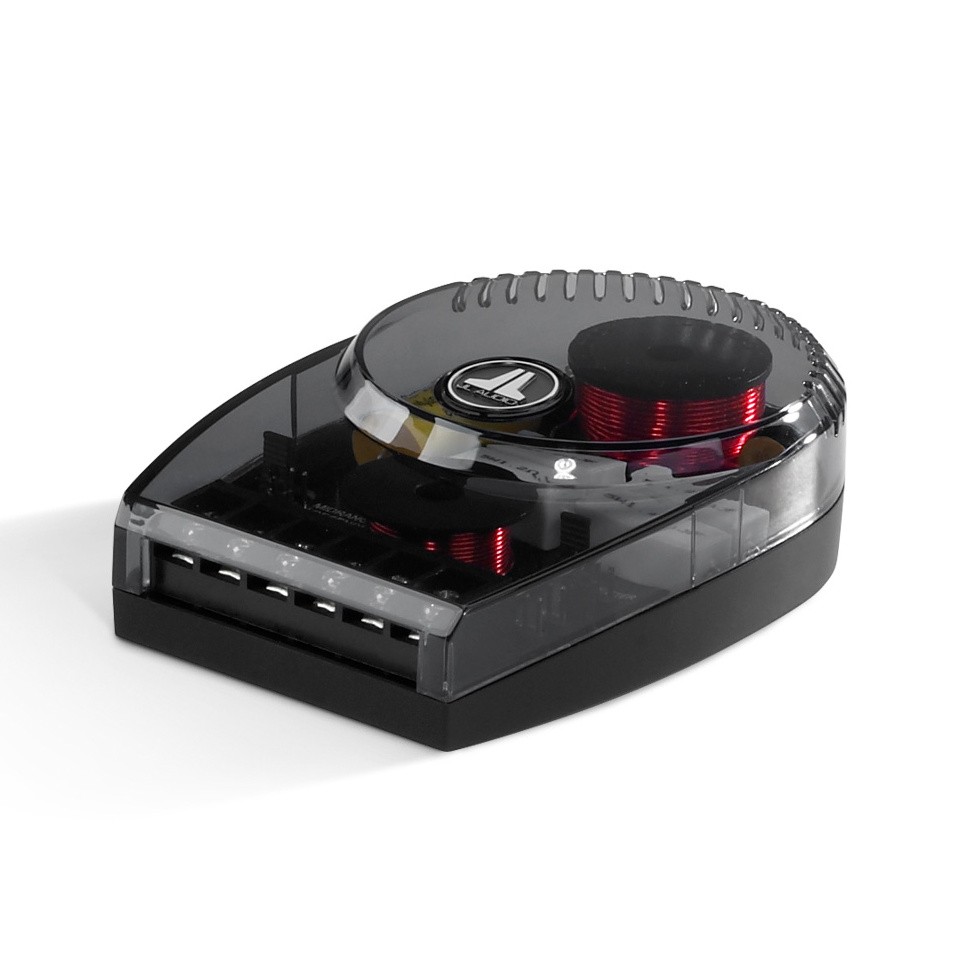

  • Separate frequency crossover with wide setting options included in the package.

About the JL Audio brand

JL Audio is an American manufacturer of consumer audio equipment that specializes in home, vehicle and boat sound systems. It is one of the main pioneers of vehicle sound systems and is undoubtedly best known for its high-end subwoofers. The company was founded in 1975 and is therefore one of the oldest manufacturers in this field. The original focus was on home sound systems, but already at the turn of the seventies and eighties, they also started to deal with the car audio segment, the popularity of which grew rapidly at the time. During their rich history, JL Audio produced a lot of completely unique and patented subwoofers that had almost no competition at the time. And it is similar even now. Subwoofers from this manufacturer amaze with their performance and at the same time absolutely top sound quality, unique patents and excellent workmanship. In particular, the top W6 and W7 series have long been among the most interesting products on the market today. However, the revolutionary flat subwoofers of the TW1 and TW3 series, as well as the perfectly tuned subwoofer enclosures, will also impress. You can expect the same quality from the amplifiers, and it's also worth noting the high-end products designed for integration into factory audio systems. In short, you can't go wrong with JL Audio products and you can always rely on their high quality and uniqueness.

Catalog numberC3-525
BrandJL Audio
LinksOfficial web presentation (English)
Speaker typeCoaxial speakers:
Coaxial speakers are characterized by a so-called all-in-one design. The tweeter and mid-bass speaker are in one basket. The advantage is simpler assembly, but thanks to the connection or proximity of the bands in one speaker, the sound quality will usually be reduced. As a rule, in the middle of the mid-bass speaker, there is a tweeter whose voice coil works in the second air gap of the common magnetic circuit. The three-way coaxial speaker consists of a mid-bass speaker, a center speaker and a separate tweeter in the front on a special beam.

Component Speakers:
Component speakers are characterized by a division into individual frequency bands, treble + mid-bass + or. bass band. The individual speakers can be placed completely separately, which results in a better sound and acoustic performance. In the vast majority of cases of component speakers, an external crossover is also supplied, which divides the treble, middle / mid-bass, and into the three-band the bass band or allows setting the decibel level of the tweeter (e.g. +2 dB, 0 dB, -2 dB), steepness (e.g. 6dB/Oct. 12dB/Oct.) or active or bi-amp connection.
2-band component
RMS powerRMS speaker power is the constant power of the entire system, not just one speaker or one side. This is also the performance of continuous use of the speakers. If the RMS power is exceeded for a long time, the speakers may be irreversibly damaged! 75 W
Sensitivity (SPL 1W/1m)Sensitivity, sensitivity or efficiency of the speaker.

Speaker sensitivity is given in decibels (dB) and simply put, the higher the value, the lower the demands on the amplifier's power. This is a defacto rating of how a speaker converts watts to sound. Sensitivity ratings are in noise level measured at 1 meter from the speaker using 1 W (watt of power) or using 2.83 volts at the source at 1 meter.

A higher decibel level means the speaker is louder with less power. For every 3 dB increase in sensitivity, the speaker requires half the power to reproduce the same volume. For example, if an 88 dB speaker needs 100 Watts to produce a certain volume, then a speaker with a sensitivity of 91 dB needs only 50 Watts to reach the same volume.
90dB
ImpedanceImpedance - measurement of electrical resistance. When buying speakers, it is important to make sure that the impedance matches the amplifier or car stereo you are using.

Example:
A 2 Ohm speaker cannot be connected to an amplifier that is only stable up to 4 Ohms! A 4 Ohm speaker can easily be used with an amplifier that is stable up to 2 Ohms. The most common speaker impedance today is 3 - 4 Ohm.
4 Ω
Frequency rangeThe ability of the speakers to play a signal from the lowest frequency to the highest, or the speaker's ability to faithfully reproduce sound in a specific frequency band.

Professionally:
In the frequency range from 40 to 16,000 Hz, the vast majority of fundamental and overtones (harmonics) of all musical instruments are found. We are interested in the course of the radiated sound pressure in this range of frequencies when the loudspeaker system is supplied with constant power. We call this course the frequency characteristic, which tells us the level of radiated sound pressure in decibels (dB) depending on the frequency. The frequency characteristic of a speaker or speaker system can be expressed most succinctly with a graph.

Mostly, however, the frequency characteristic is indicated by indicating the maximum tolerance of the sound pressure in the given frequency range, e.g. 50 to 15,000 Hz -+ 6 dB. Since the frequency characteristics of loudspeakers and systems in general are quite uneven, some manufacturers do not even specify this maximum tolerance of sound pressure in decibels in their catalogs for reasons of prestige. Data impoverished in this way is unfortunately worthless. What is valid is that the manufacturer offers a speaker system with a frequency range of 30 to 20,000 Hz, if he is worried about stating the maximum unevenness of the sound pressure in this range, because he can have a tolerance of, for example, +- 20 dB.

The unevenness or undulation of the frequency curve in good speaker systems for high-quality music performance should not exceed +-3 dB in the 80 to 12,000 Hz band and +-6 dB in the 40 to 16,000 Hz band. Greater unevenness already depletes or emphasizes certain tonal areas, which can cause audible or even disturbing distortion. The proportion between fundamental tones and higher harmonics also changes, thereby changing the color of the sound, and individual musical instruments as well as the entire musical image sound unnatural.
48 - 25000 Hz
The diameter of the mid-bass speakerWe state the diameter of the speaker as the diameter of the entire speaker, not including the mounts, when smaller speakers (87, 100, 130 mm) have extra mounts. Some speakers are oval and there the dimension is given in inches, always the shortest side to the longest side. One inch is approx. 2.5 cm. 130 mm
Installation depth of the mid-bass speakerThe installation depth of the speaker is measured from the bottom edge of the magnet to the bottom edge of the tin, plastic or cast speaker basket, or speaker bearing surfaces. 58 mm
Mid-woofer diaphragm materialThe material that was used for the speaker diaphragm. Don't be afraid of the paper, it surprisingly has a very natural and high-quality sound and, thanks to the surface treatment, it can withstand moisture without any problems. Mineral filled polypropylene
Tweeter dome diameterThe net diameter of the dome (diaphragm) of the tweeter. 25 mm
Tweeter dome materialThe shell material that was used in the manufacture of the tweeter. Silk
Frequency crossover included in the packageThe crossover is an important part of defacto all loudspeakers. A crossover usually contains different resistor values, coil sizes, and capacitor types that fundamentally modify the sound. We describe below what the turnouts are for.

Component Speakers:
A crossover is part of every quality component speaker system. Its task is to ensure the distribution of frequencies that the amplifier produces in the entire acoustic spectrum of frequencies so that each of the speakers receives only that part of the band that it can optimally play in terms of efficiency and minimal distortion.

Coaxial speakers:
In most cases, coaxial loudspeakers have a simple crossover (6dB/Oct.) formed by a capacitor at the tweeter.
Yes
Options for setting the frequency crossoverThe unwritten rule is that the more expensive the speakers, the more options the crossover has for adjusting the sound. The most common way to adjust the crossover is attenuation on the tweeter. More advanced crossovers also offer the option of setting the steepness on the mid-bass and tweeter or adjusting the frequency range. Yes
Cover grids included in the packageOriginal cover grilles in speaker packaging. Yes
Price forIf the price is for a pair, the package always includes 2 pieces of everything, e.g. 2x mid-bass, 2x tweeter and 2x crossover. few
