Macrom M-AN700DAB car radio

Macrom M-AN700DAB car radio

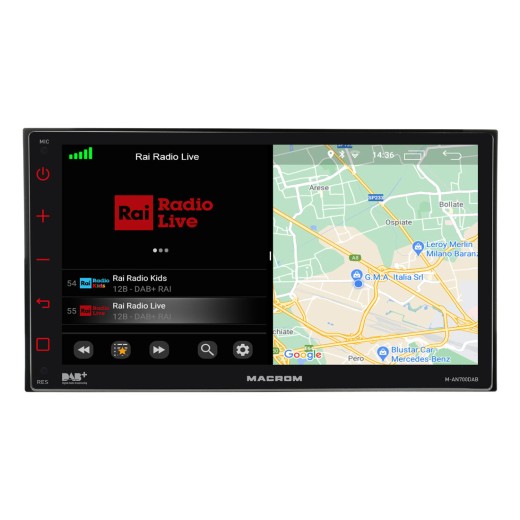

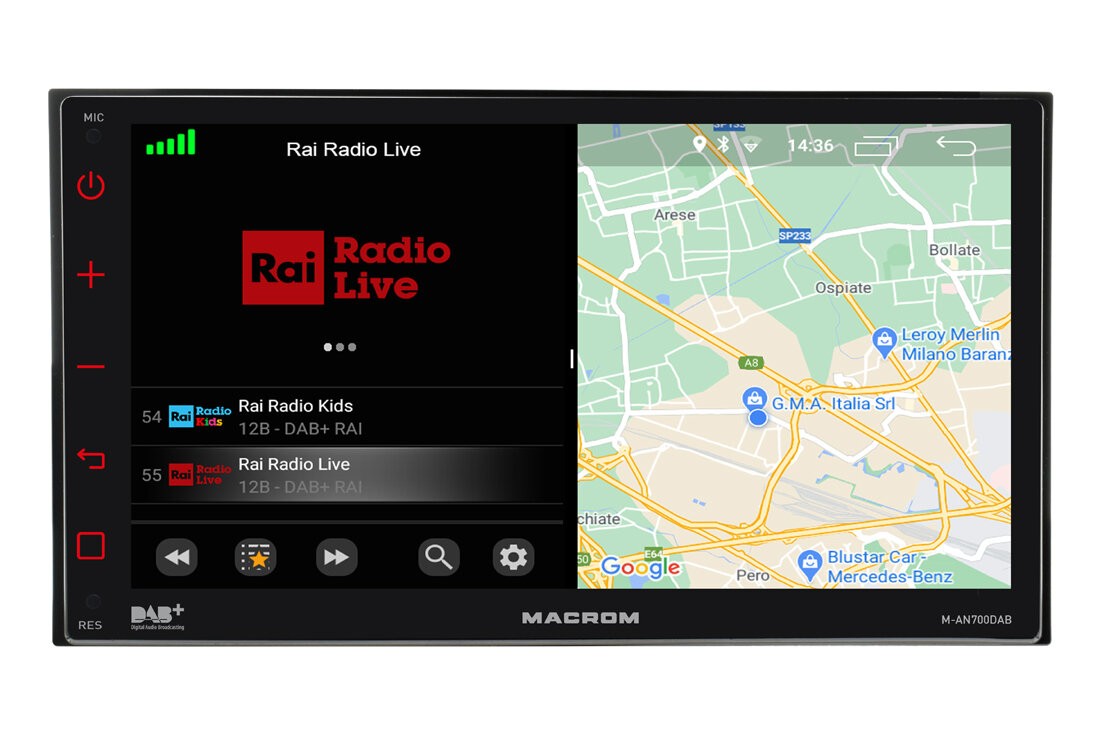

Multimedia player with 7" capacitive display - 2DIN shallow device body, Android 10 operating system, built-in DAB tuner. Macrom M-AN700DAB is a multimedia unit with Android operating system and built-in DAB tuner. The 2DIN size with a 7" capacitive display and a built-in depth of only 4 cm allows installation in a number of cars where it has not been possible to install a unit with this size of monitor until now. The device is equipped with a 4 x 45W amplifier, an AM/FM tuner, a Bluetooth hands-free kit with music streaming support , three rear USB connectors, rear and front parking camera input, integrated GPS receiver, WIFI... The Android 10 operating system allows you to use the device in the same way as you would use a smartphone or tablet. You can read emails, search for information on the Internet, play music or videos on YouTube, check your emails, install your favorite apps and many other functions.

Basic functions

• AM / FM car radio with RDS.
• DAB car radio controlled from the device menu.
• Online navigation (built-in GPS receiver and GPS antenna in the package).
• Mosfet amplifier with a power of 4 x 45 W.
• 9-band graphic equalizer.
• 2x rear USB input supports audio and video formats.
• Bluetooth hands-free kit with phonebook import and external microphone.
• Audio streaming music playback using Bluetooth A2DP wireless transmission.
• 6.75" capacitive touch monitor with vertical tilt adjustment.
• Input for rear and front parking camera.
• 4x preamplifier audio output 2V RCA (CINCH) connectors (front+rear).
• 1x output for subwoofer RCA (CINCH) connector.
• 2x video output.
• 1x AV input.
• Built-in module for controlling OEM resistance buttons on the steering wheel.
• Selectable backlight color (RGB color palette).
• Optional logo after power on.
• Choice of menu language including Czech and Slovak.
• Built-in module for controlling OEM resistance buttons on the steering wheel.
• Wi-Fi connection option for wireless display of the parking camera image - (necessary to use Wi-Fi adapter 2 22 800).
• Option to connect Apple CarPlay / Android Auto / mirroring module (2,20,990).

Function

• Android operating system.
• Size 2DIN.
• 6.8" monitor size.
• FLAC - supports the format.
• Online navigation.
• DAB+ digital reception.
• AM / FM car radio with RDS and radio text.
• Bluetooth.
• USB input.
• AUX audio input.
• FLAC plays the format.
• MP3 plays the format.
• WAV playback format.
• WMA plays format.
• AAC plays format.
• Mosfet 4 x 45 W amplifier.
• 9-band graphic equalizer.
• Built-in HF set.
• Control with original buttons on the steering wheel.
• RGB optional backlight.

Technical parameters

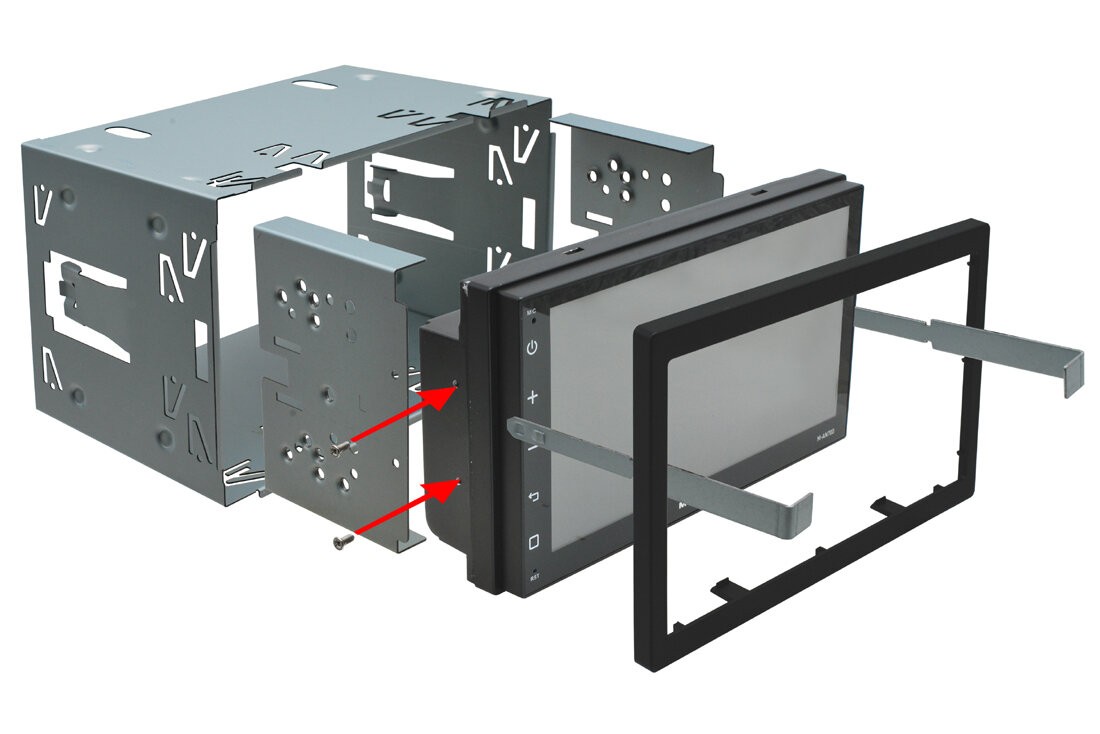

• Size: 2DIN (with 2ISO demarcation frame).
• 6.75" touch capacitive monitor (16:9).
• Monitor resolution: 1024 x 600 pixels.
• Operating system: Android 10.
• Integrated GPS receiver (GPS antenna included).
• Built-in DAB tuner.
• Wifi hotspot (Wifi antenna included in the package).
• Quad Core ARM A7 4 * 1.2 GHz CPU.
• RAM memory: 2 GB DDR3.
• Flash memory: 16 GB.
• Mosfet amplifier: 4 x 45 W.
• 2x preamp audio output.
• 1x preamp subwoofer output.
• 9-band graphic equalizer.
• 1x audio / video input.
• 2x video output.
• Rear camera input.
• Front camera input.

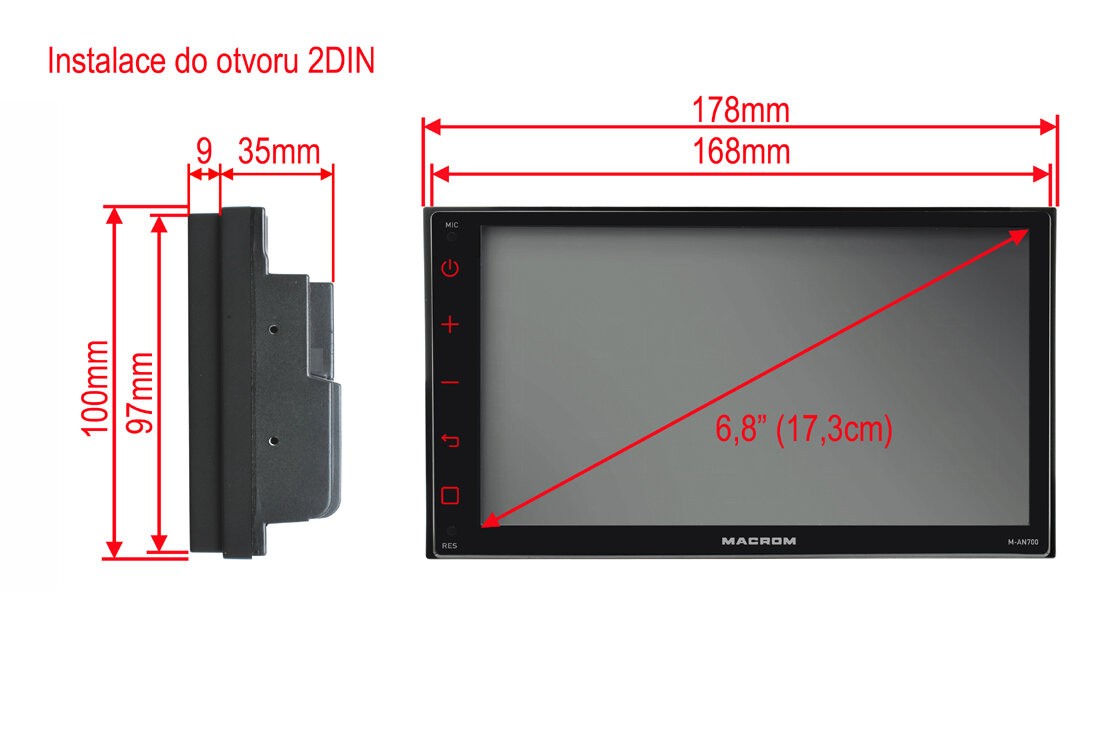

• Dimensions:
• Front panel: 168 x 97 mm (W x H)
• Unit body: 178 x 100 x 50 mm (W x H x D)

Supported formats

• Adeo: MPEG-1/2/4, H264 , H263 VC1 V RV, RMVB, DivX, Sorenson SparK, Spark, VP8, AVS Stream ...
• Image: JPG / BMP / JEPG / GIF / PNG.
• Disc format: DVD / DIVX / MP4 / MP3 / MP2 / VCD.
