Macrom M-DL3300DAB car radio

Macrom M-DL3300DAB car radio

DAB / DAB+ / AM / FM car radio without CD drive, USB, SD, AUX, hands free, sudio streaming

Basic functions

• DAB / DAB+ tuner.
• AM/FM RDS tuner.
• USB input from the front panel (supports USB1.1 and 2.0).
• Micro SD card slot under the front panel.
• Plays FLAC, MP3, APE, WMA formats.
• AUX input on the panel.
• 4x 50 W maximum output power.
• 3-band equalizer (POP, ROCK, CLASSIC).
• 4x preamplifier output 2.5 V RCA (CINCH) connectors (front + rear).
• Bluetooth HF set with external microphone.
• Bluetooth audio streaming - music playback (A2DP).
• Removable front panel.
• Panel color: glossy black.
• Switchable button backlight: blue / green / cyan / red / purple / yellow / white.

Function

• 1DIN car radio.
• DAB+ digital reception.
• AM / FM car radio with RDS and radio text.
• Bluetooth.
• SD card.
• USB input.
• AUX audio input.
• FLAC plays the format.
• MP3 plays the format.
• WMA plays format.
• MOSFET amplifier 4x 50 W.
• Built-in HF set.
• RGB optional backlight.

Technical parameters

• Supply voltage: 11-14 V (DC).
• Max. current consumption: 15 A.
• Amplifier 4x 50 W max.
• Output frequency range: 20 Hz - 20 kHz.
• Impedance: 4-8 ohms.
• Line output: 10 KΩ.
• Level of line outputs: 2000 mV RMS (max).
• FM frequency range: 87.5-108 MHz.
• Sensitivity: less than 10 dB.
• Stereo separation: 35 dB / 1 kHz.
• Sensitivity to residual noise S/N: 50 dB.
• AM frequency range: 522-1620 kHz.
• Sensitivity: less than 45 dB.
• Sensitivity to residual noise S/N: 40 dB.
• DIN antenna connector.
• Bluetooth version: 4.2.
• Bluetooth frequency: 2402-2480 GHz.
• EIRP: 3.3dBm.
• USB input: max. 32 GB flash drive.
• It supports USB1.1/2.0, FAT12/16/32 format.
• Supported audio formats: MP3 / WMA / APE / FLAC.
• SD/MMC card max-32 GB, FAT12/16/32 format.
• SWC input for steering wheel control.
• Switchable button backlight: blue / green / cyan / red / purple / yellow / white.

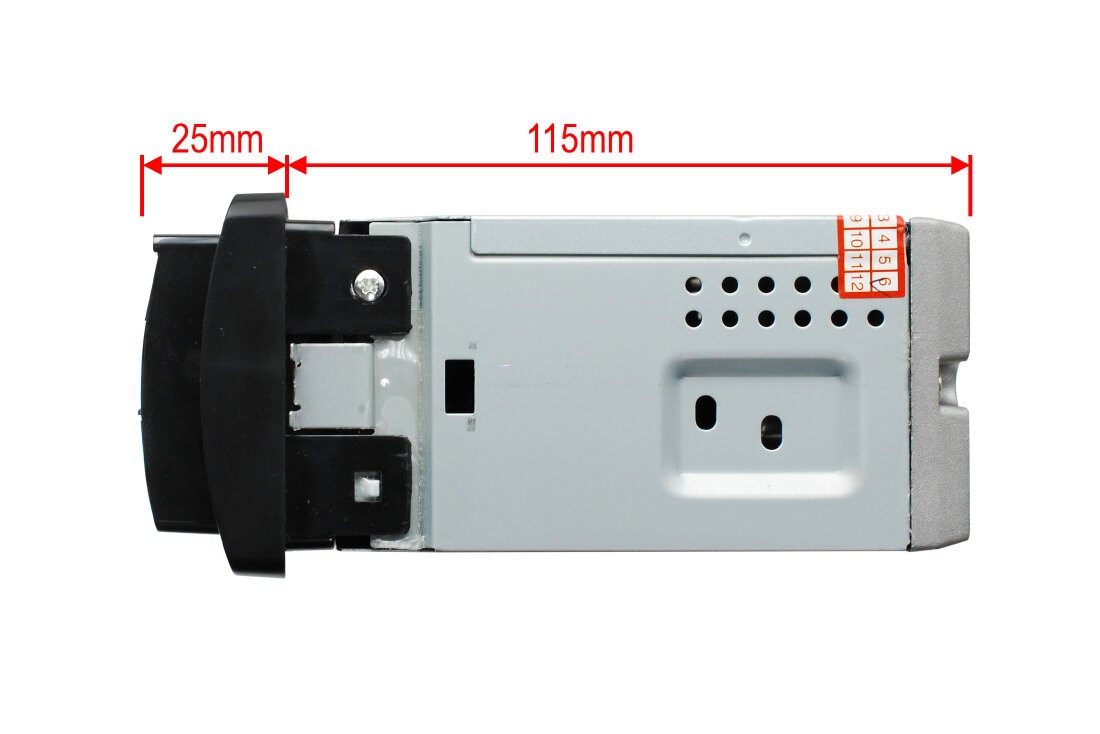

• Dimensions: 180 x 52 mm (W x H) with metal frame, built-in depth 115 mm (without connectors), front panel: 168 x 46 mm (W x H).
