Macrom M-SW680 active subwoofer
6 x 8", 120W RMS
More about the product
More about the product
We will help you with your purchase
- Use our consulting room
- You can return the goods to us within 14 days
- Try the product at our store

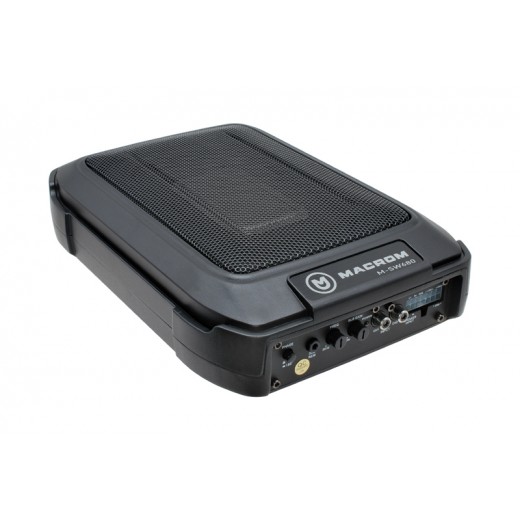

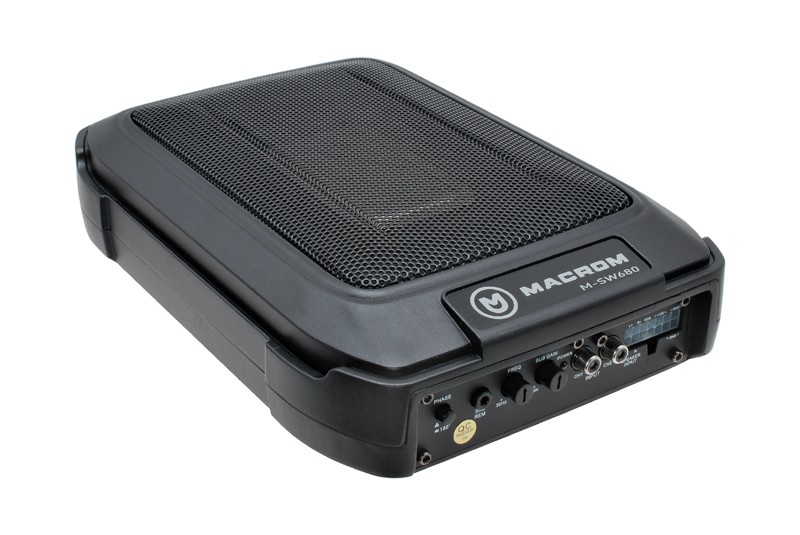

Macrom M-SW680 active subwoofer
- Box with built-in 120 W RMS amplifier and 150 x 200 mm twin-coil speaker.
- The aluminum box ensures great rigidity and excellent resonance.
- Installation under the seat or in the luggage compartment.
- The speaker is protected by a grill.
- Low-level signal or speaker signal input.
- Wired remote control from the driver's seat.
Technical specifications:
- Speaker diameter 6 x 8" (150 x 200 mm).
- Maximum power 220 W.
- RMS power 120 W.
- Adjustable low-pass filter 30 - 150 Hz.
- 100 dB sensitivity.
- Input level 90 m V - 5 V when connecting RCA (CINCH) connectors.
- Input level 0.5 V - 10 V when connected to speaker output.
- Max. consumption 15 A.
- Supply voltage 9 - 15 V.

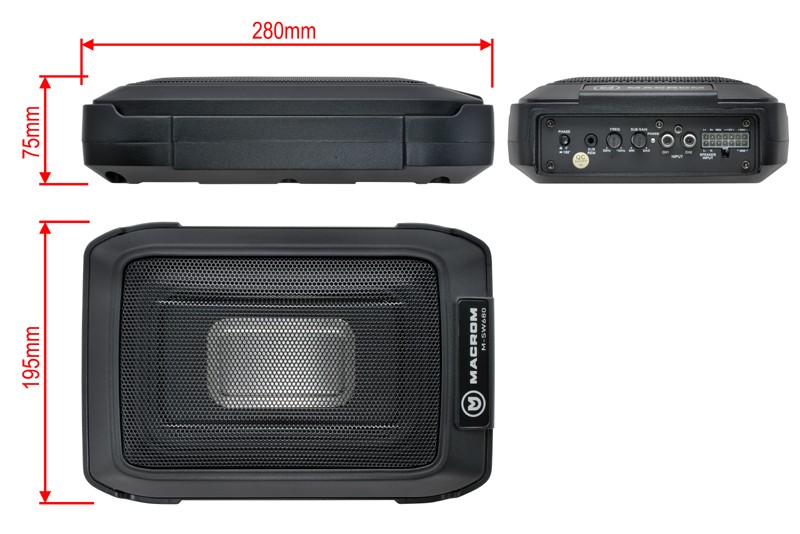

- Size: 280 x 195 x 77 mm (L x W x H).
| Catalog number | 223392 |
| Brand | Macro |
| Links | Official web presentation |
| RMS power of the subwooferThe RMS power of an active subwoofer is the constant power that the active subwoofer can play over a long period of time. We recommend following this value. The RMS power of active subwoofers is taken as the RMS power of the integrated amplifier, which in most cases is slightly undersized, which guarantees protection against subwoofer burning. | 120 W |
| Maximum subwoofer performancePeak performance or Max. power that an active subwoofer can play for a moment (approx. 0.5 s), for example when percussion instruments are struck in a recording. But it is not as important a parameter as the RMS power. | 220 W |
| The diameter of the subwoofer usedThe diameter of the subwoofer that is installed in the active box. | 6 x 8" (150 x 200mm) |
| Remote control included in the packageSome models of active subwoofers also have wired remote controls in the package, which on the one hand connect to the active box, and on the other hand you have a potentiometer that you can place anywhere in the cabin. A common place to place the remote control is under the steering wheel. The advantage is the regulation of power, and therefore volume, depending on driving conditions and the mood of the crew in the car. | Yes |
| Protective gridProtective grids or bars, as protection against mechanical damage to the subwoofer. | Yes |
| What is the baffle made of?Active subwoofers can be made of MDF board, hardened plastic, sheet metal, aluminum or a combination of different materials. | Aluminium |
| Active subwoofer dimensions | 280 x 195 x 77 mm |
