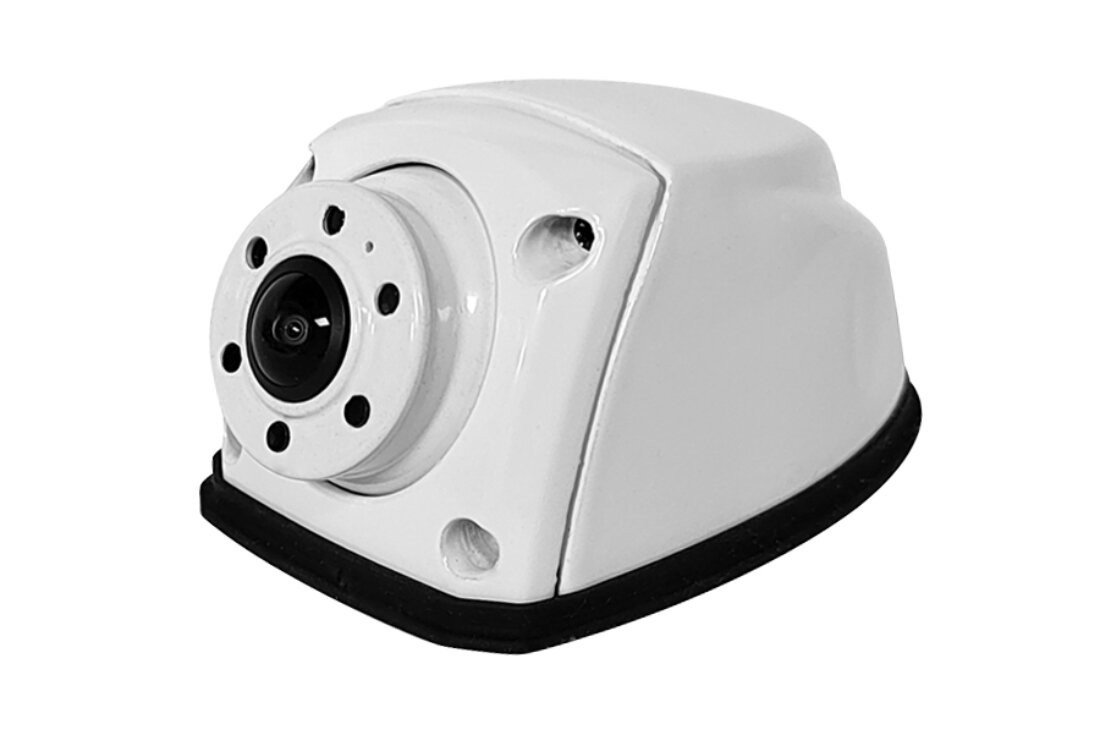

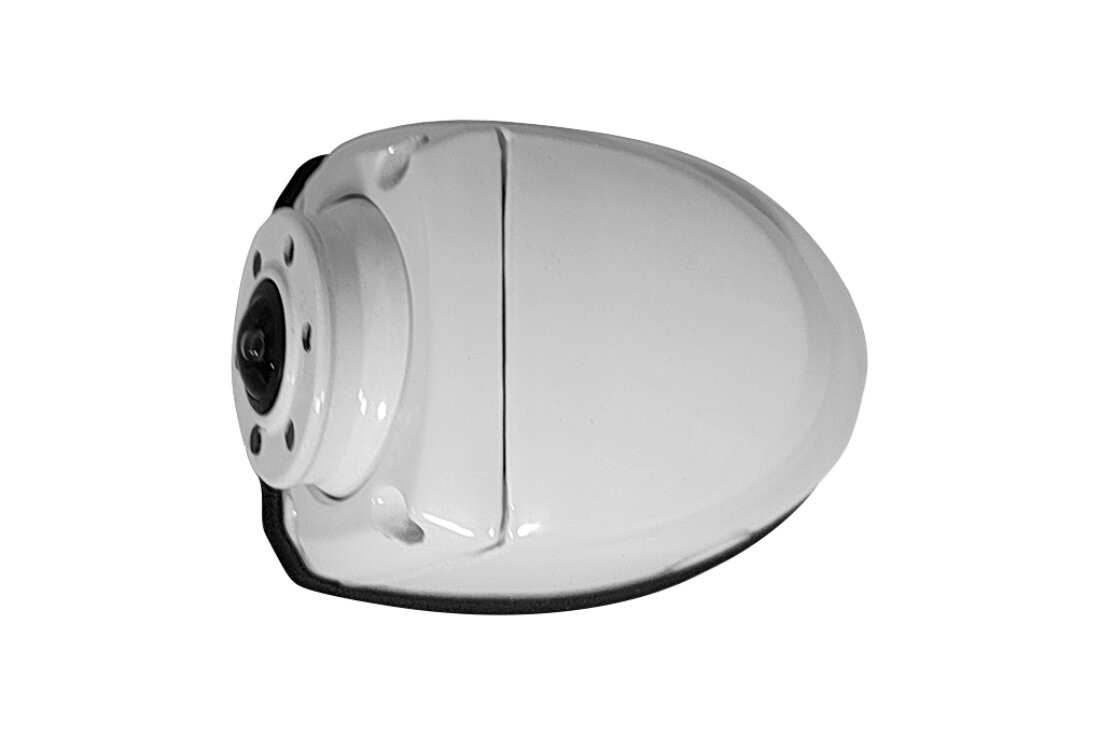

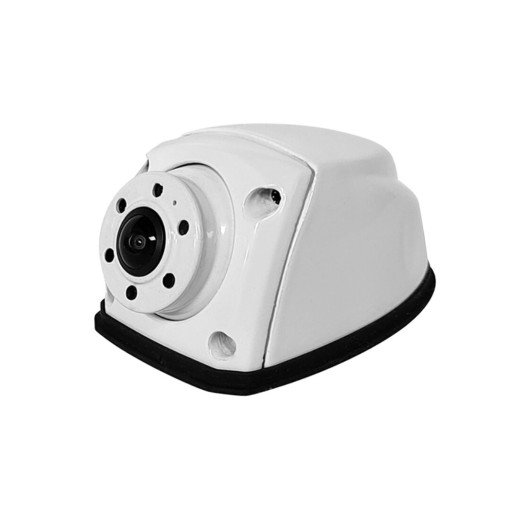

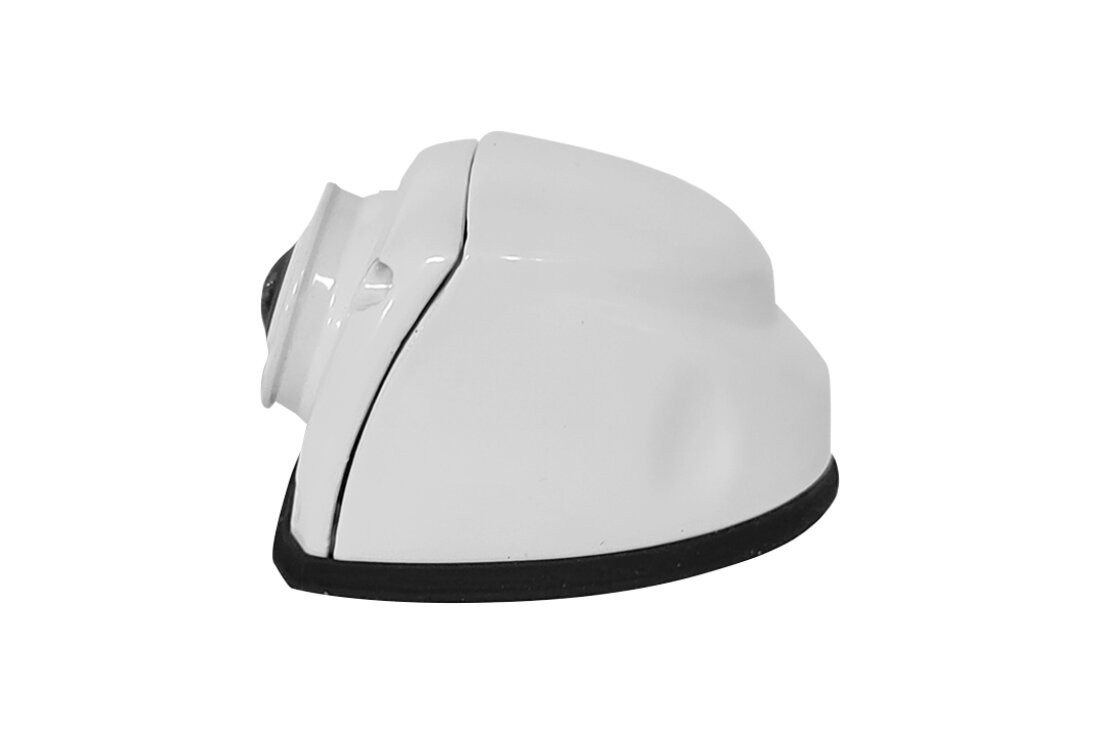

Macrom MRC-M09WHQ CMOS / NTSC universal rear / front parking camera

Macrom MRC-1950HQ CMOS universal rear / front parking camera

CMOS color rear / front parking camera. Facilitates orientation when parking.

Suitable for cars:

• Universal use for all types of cars, especially RVs and vans.

The camera allows you to set the following functions:

• Mirror image rotation (MIRROR function) to use the camera as a rear (mirror image) or front parking camera
• Show or hide trajectories (guide lines).

Function:

• NTSC TV standard
• CMOS sensor
• Supply voltage: 12 - 24 V
• Adjustable guide lines (trajectories)

Technical parameters:

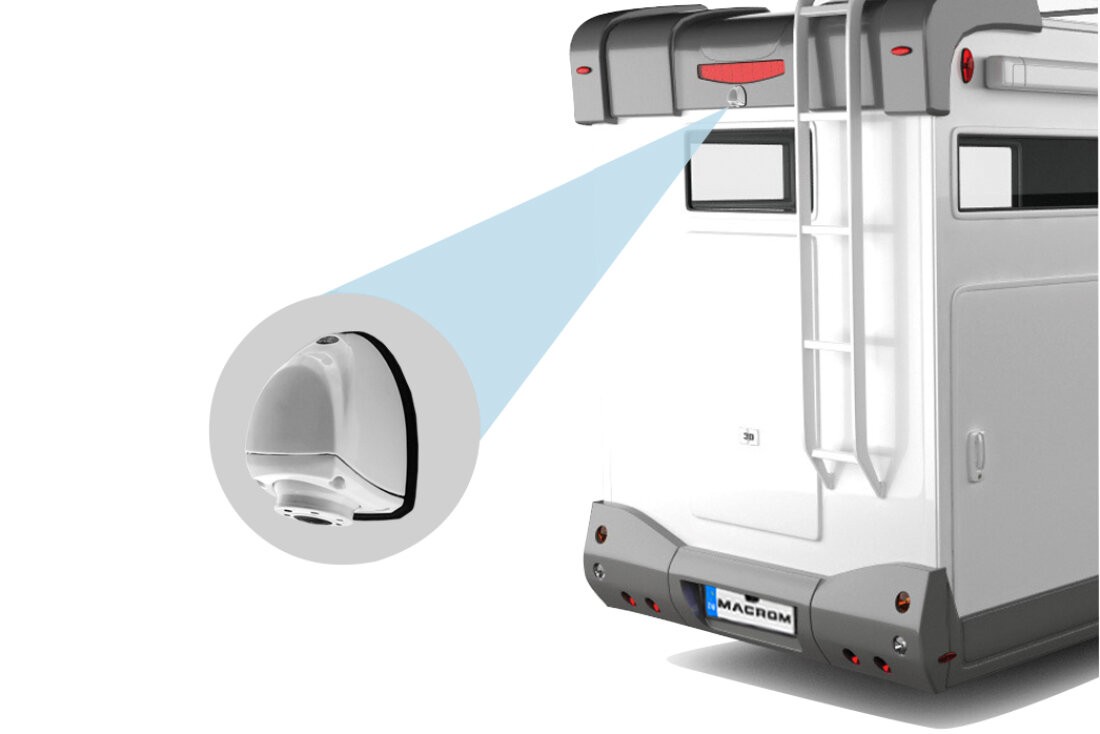

• Designed for external mounting on the rear wall of cars
• Adjustable viewing angle in the range of 360°
• Displays auxiliary trajectories (guide lines) on the monitor for orientation when parking (optional function)
• Display: mirror image (optional function)
• Waterproof design: IP68
• MOS 1/4" sensing chip

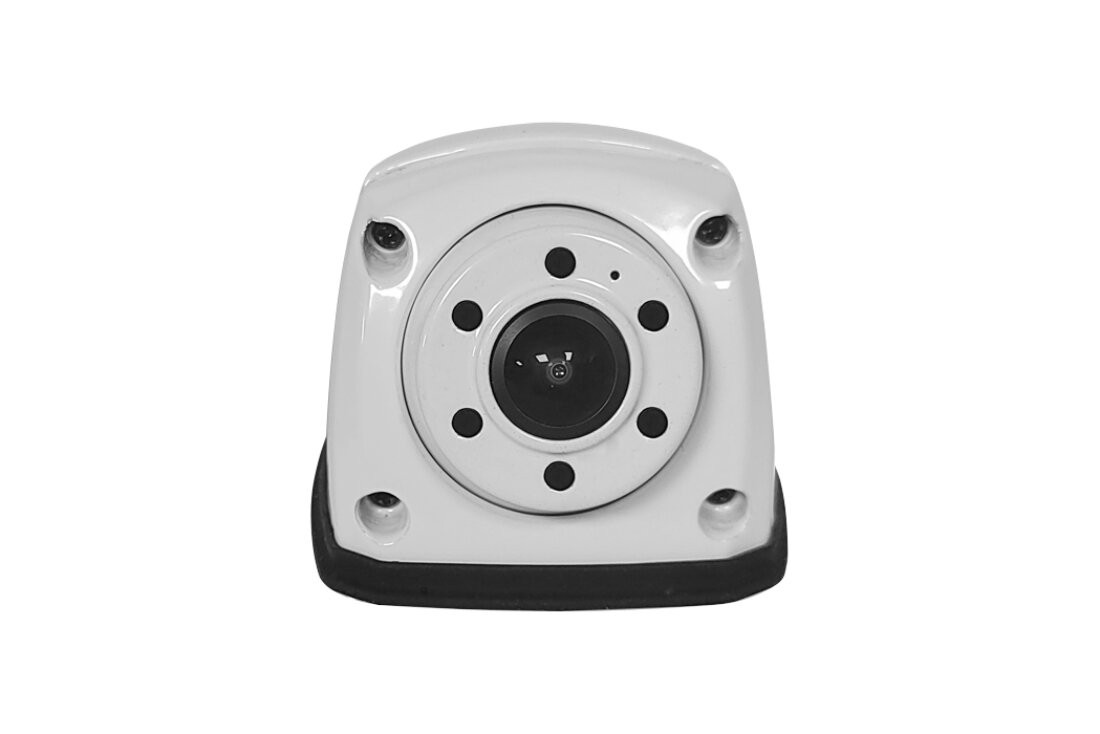

• Night lighting with infrared LEDs
• Minimum illumination: 0.2 lux
• TV system: NTSC
• Resolution: 968 x 488 pixels
• Number of TV lines: 420

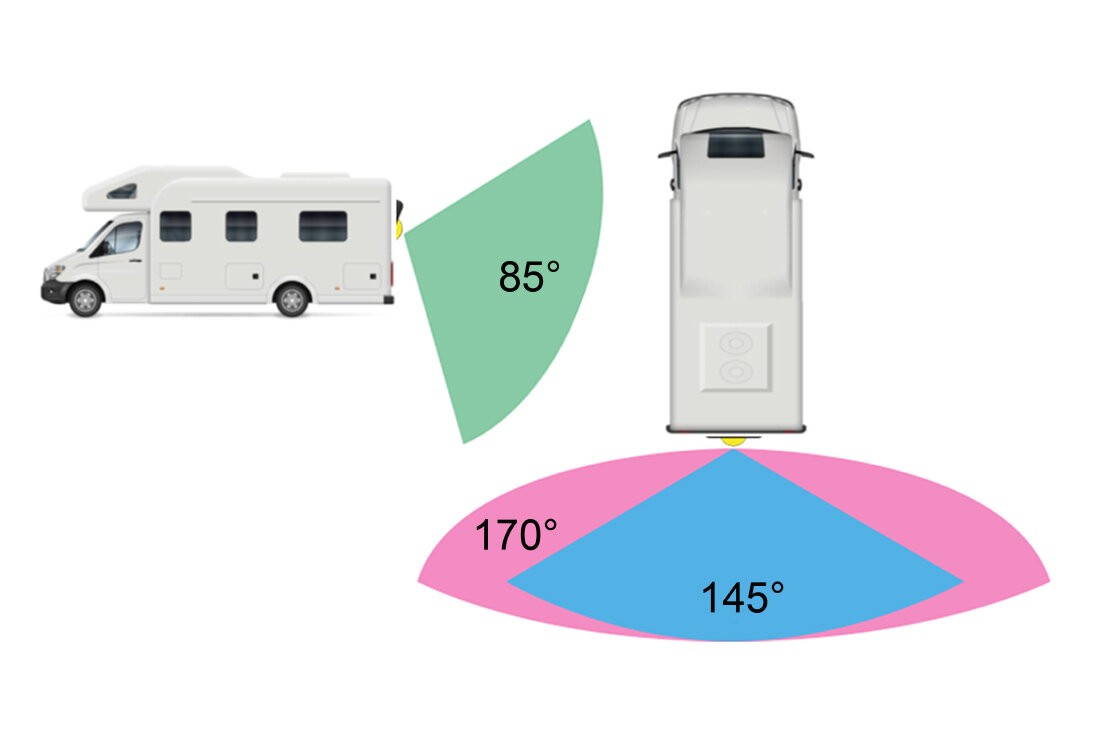

• Scanning angle: 170°
• Video output: 1.0 V / 75 ohms
• White balance: automatic
• Working temperature from -30 °C to +70 °C

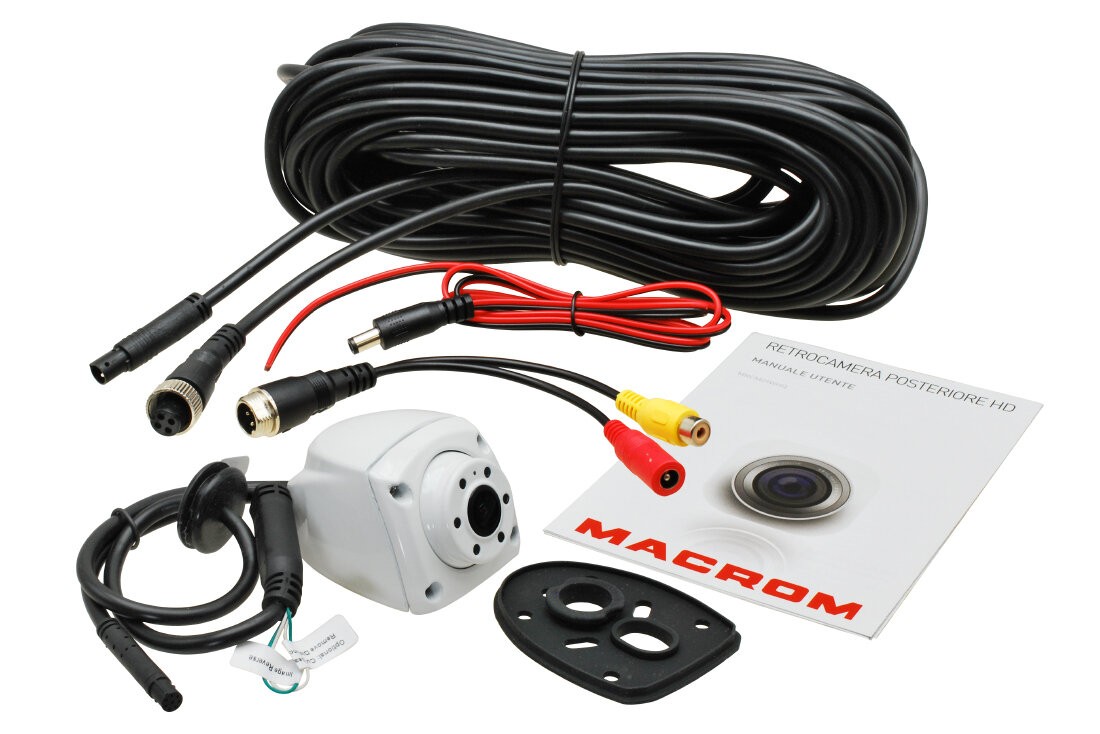

• Signal cable length 15 m terminated with CINCH connectors
• Power supply: 11 - 36 V DC
• Consumption: < 1 W
• Color design: white

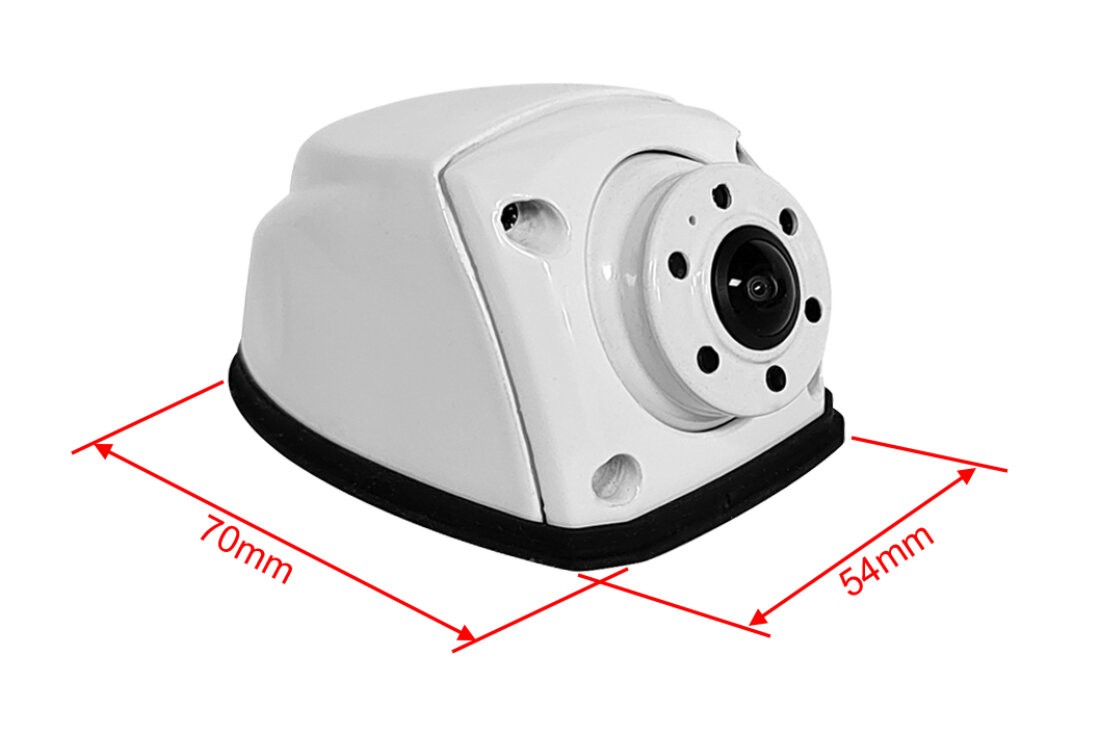

• Dimensions: 70 x 54 mm
