Match MEC ANALOG IN
The MATCH ANALOG IN expansion card expands MATCH products with two additional analog input channels. The module enables, for example:
- low level signal to MATCH DSP amplifiers
- upgrade OEM premium audio systems that require additional high-level inputs
- connecting other analog signal sources such as a TV or smartphone
Of course, the high-level input is provided by our own ADEP.3 circuit, Auto Remote function, as well as adjustable input sensitivity from 1.5 to 30 volts. As well as the high-level input, the 3.5mm low-level stereo input offers adjustable input sensitivity. The setting range is from 0.5 to 8 volts. The module will come with a device-specific side panel.
Properties
- Expands the amplifier with two additional analog input channels.
- High level input with ADEP.3 circuit, automatic remote switch and adjustable input voltage from 1.5 to 30 volts.
- Low-level stereo line input via 3.5 mm jack with adjustable input voltage range from 0.5 to 8 volts.
- The inputs can be freely configured with the DSP PC-Tool as additional main inputs or as an AUX source.

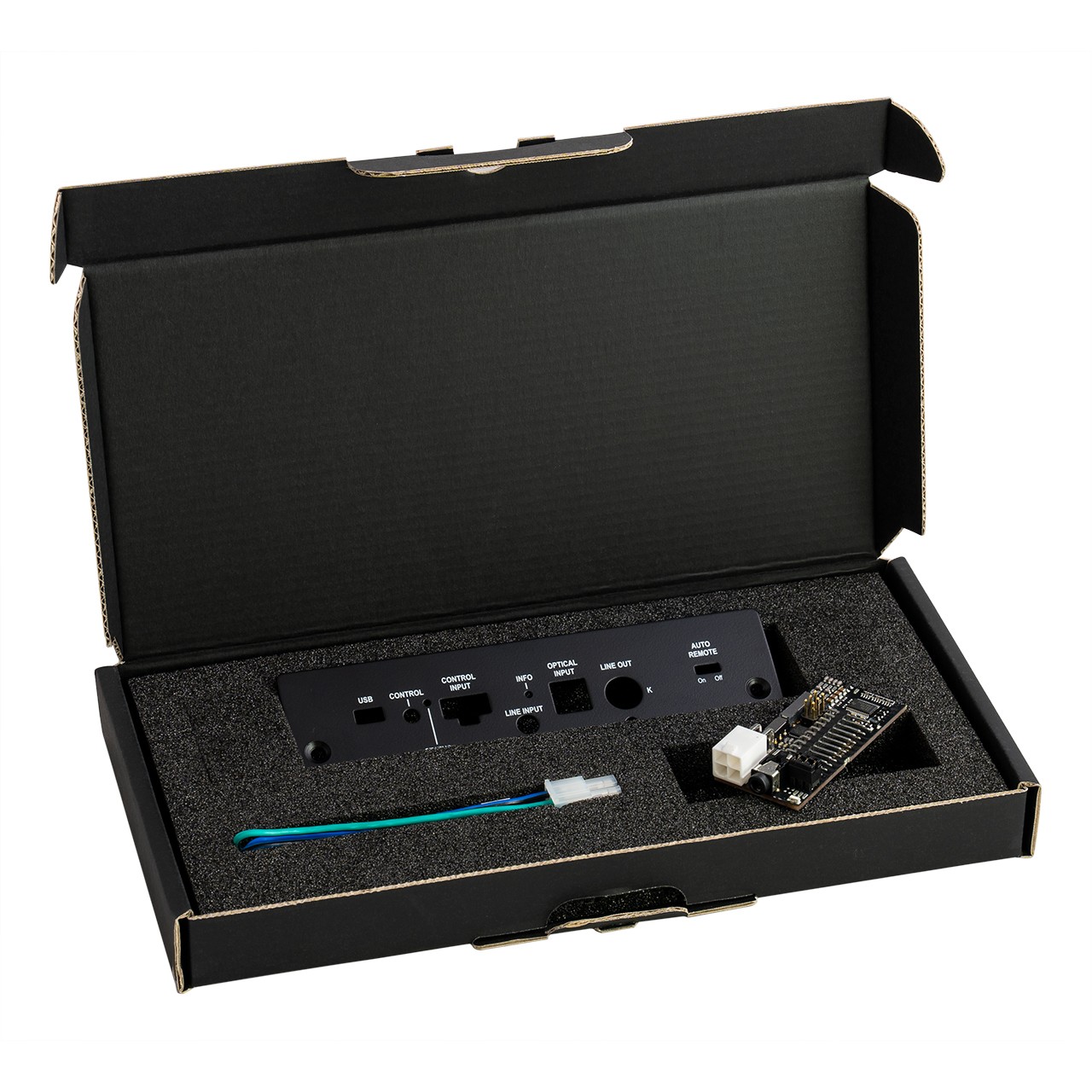

- A device-specific side panel is included.
| Catalog number | MEC ANALOG IN |
| Brand | Match |
| Links | Official web presentation |
