Mercedes-Benz OEM parking camera (BC MCD-72)

OEM parking camera for Mercedes-Benz

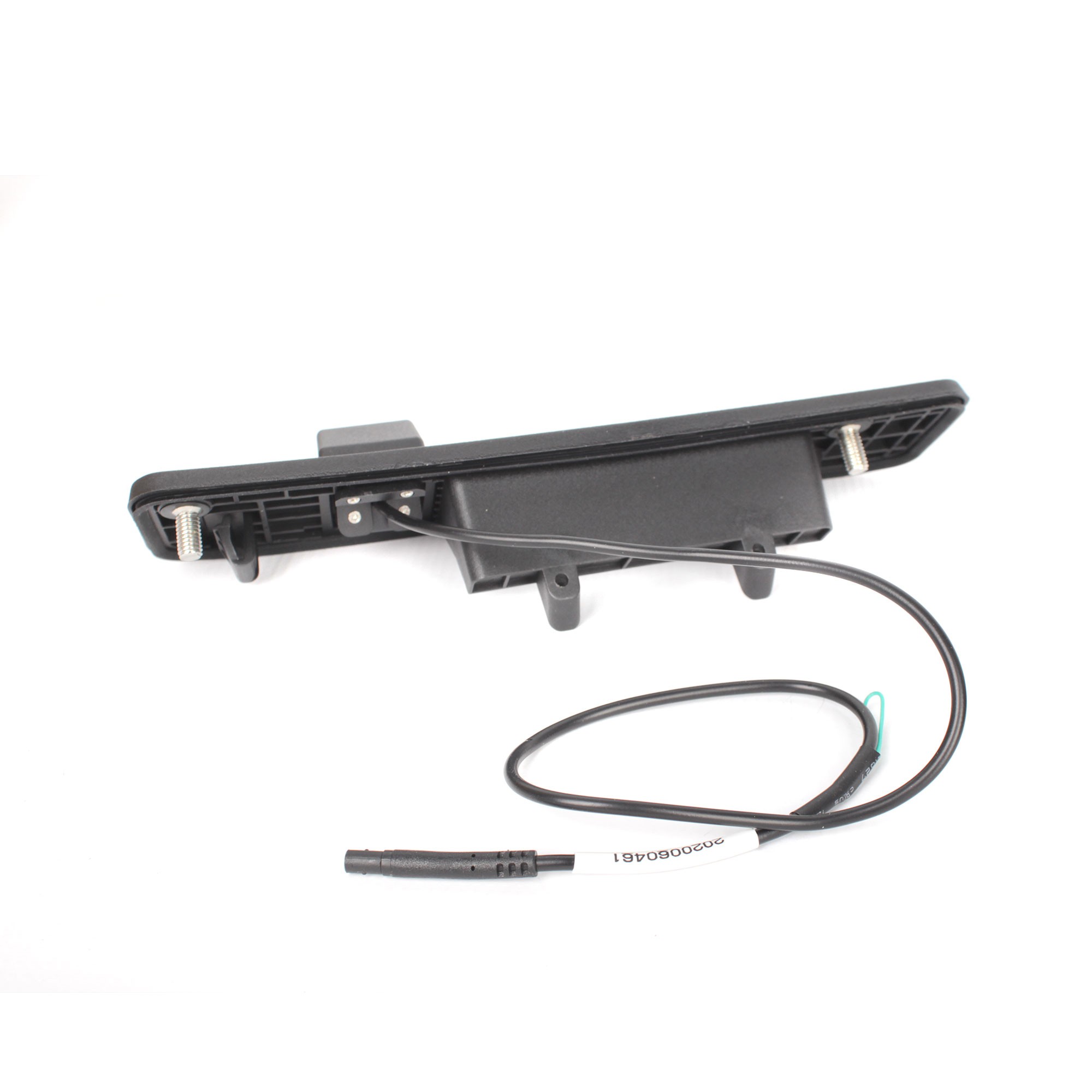

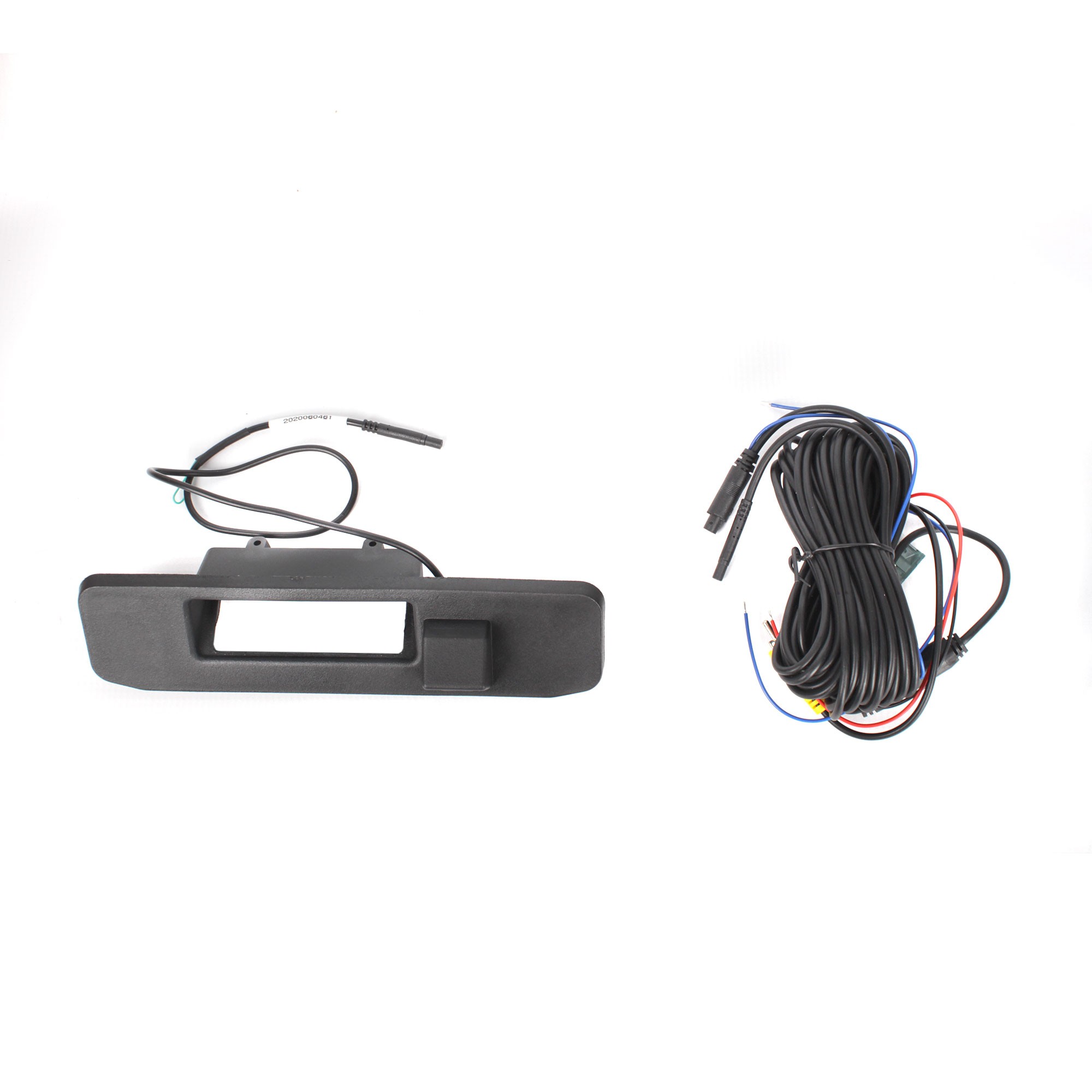

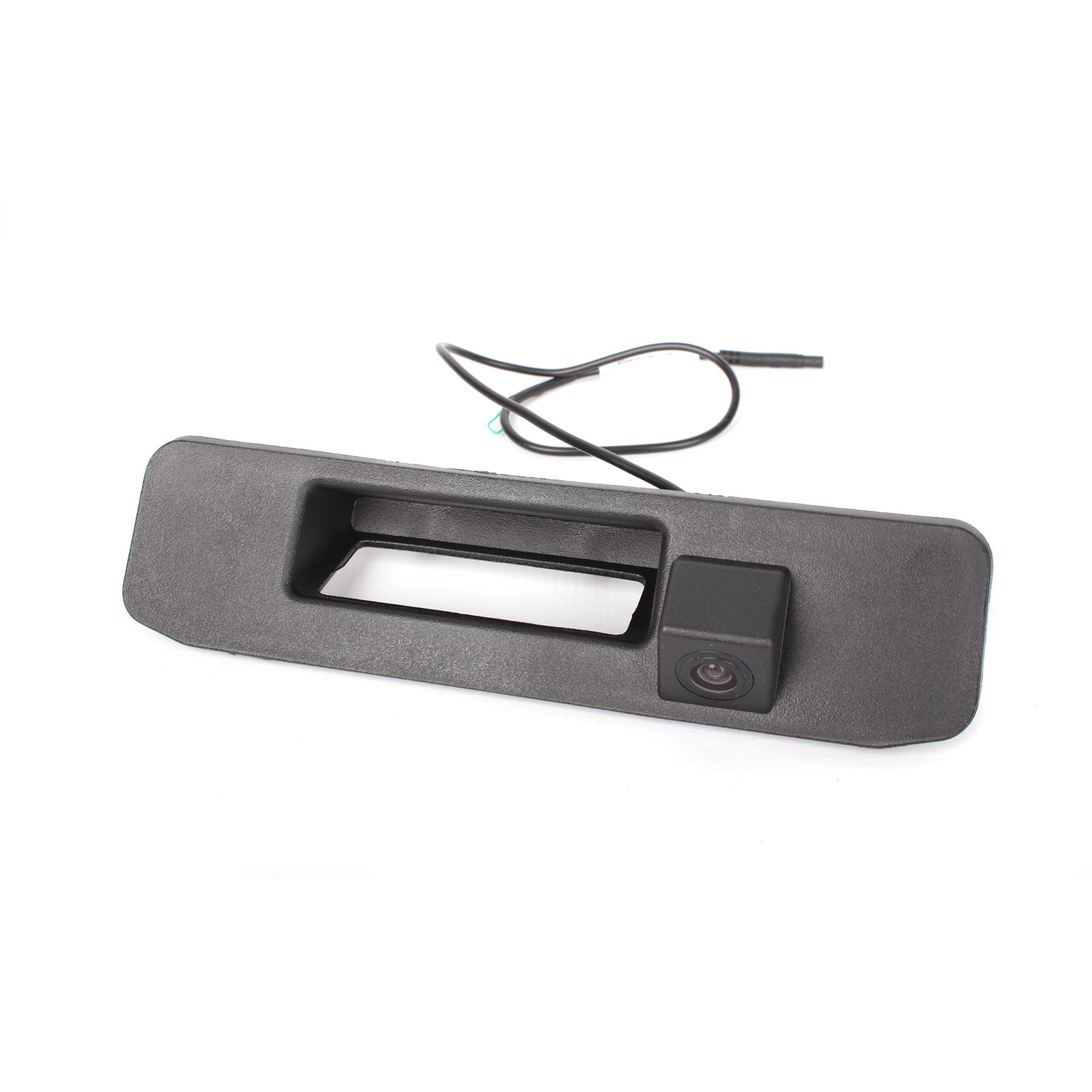

OEM color parking camera installed in the fifth door opening handle.

Camera suitable for the following vehicles:

  • Mercedes M-class [W166] (2013 -> 2015)
  • Mercedes GLA (2015 ->)
  • Mercedes GLC (2015 ->)
  • Mercedes GLE (2015 ->)
  • Mercedes A-class [W176] (6/2012 ->)

Technical parameters of the OEM camera for Mercedes-Benz:

  • sensing sensor: PC3089 1/3"
  • the option to turn on / off the display of auxiliary trajectories (guide lines)
  • electronic aperture: 1/60 1/10000 sec.
  • minimum illumination: 0.1 lux
  • signal / noise ratio: > 48 dB
  • TV system: NTSC
  • number of TV lines: 600
  • effective pixels: 668 × 576
  • weather protection: IP67
  • scanning angle: 170°
  • camera body: durable plastic "private housing"
  • image display: mirror image
  • white balance: automatic
  • operating temperature: from -30°C to +70°C
  • AGC, BLC, white balance: automatic
  • signal cable: length 6.2 m terminated with CINCH / RCA connector
  • video output: 1.0V / 75 ohm
  • power cable length: 1 m
  • power supply: 12 V DC
  • consumption: < 1W

Camera dimensions:

  • base: 52 x 190 mm
  • pitch of mounting screws: 150 mm

Note:
The camera is intended for non-original (re-assembled) radios with CINCH AV input. Use with the original radio may require the connection of a video adapter for the parking camera!

Catalog numberBC MCD-72
BrandTSS Group
