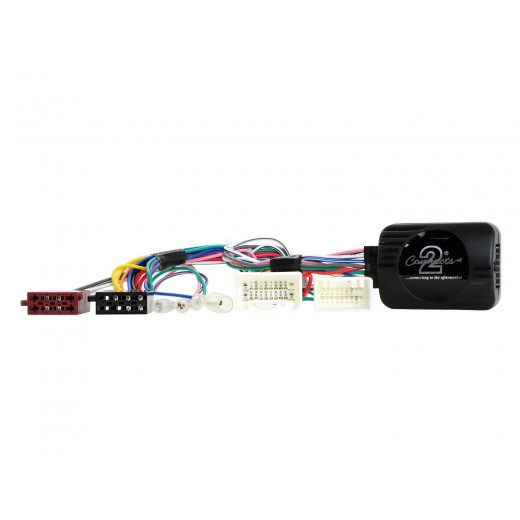

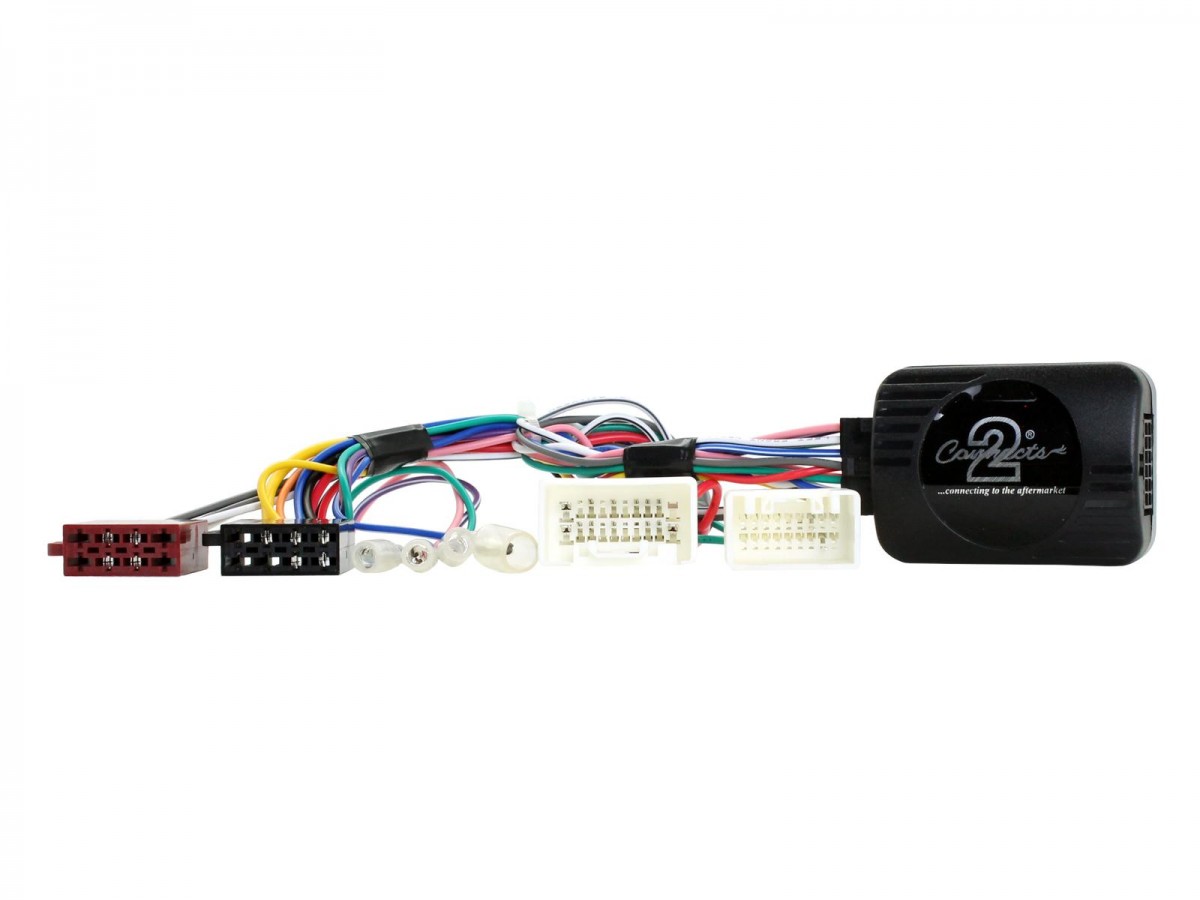

Mitsubishi Pajero steering wheel button control adapter, Shogun Connects2 CTSMT007.2

Mitsubishi steering wheel adapter

Adapter for activating the control buttons on the steering wheel when buying an aftermarket car radio with an ISO connector (included in the adapter) for vehicles:

• Mitsubishi Pajero (2006 -> 2014)
• Mitsubishi Shogun V80 (2006 -> 2014)

Important additional information

• For cars with steering wheel controls and an active Rockford Fosgate audio system.
• Control between the OEM car stereo and the amplifier is via a digital signal via two wires.
• Allows adaptation to any car radio with speaker outputs.
• Supports steering wheel buttons to control the hands-free kit (if available).
• It includes control of the functions of the amplifier settings using the buttons on the steering wheel (fader / amplifier sensitivity / audio effects settings, ...).
• Designed for aftermarket Sony, Kenwood, Panasonic, JVC, Pioneer, Blaupunkt, Clarion, Alpine, LG, Zenec, Becker car radios.
• To fully activate the adapter, it is necessary to order a connecting cable for the given brand of car radio! (see below)

The adapter includes wires with analog signals:

• +12 V after turning on the key (vol. 15) - fitted in the ISO connector.
• +12 V after switching on the vehicle lighting - fitted in the ISO connector.
• +12 V after engaging reverse gear - free wire.
• Ground (- pole) with the handbrake applied - free wire.
• Speed pulses - free wire.
