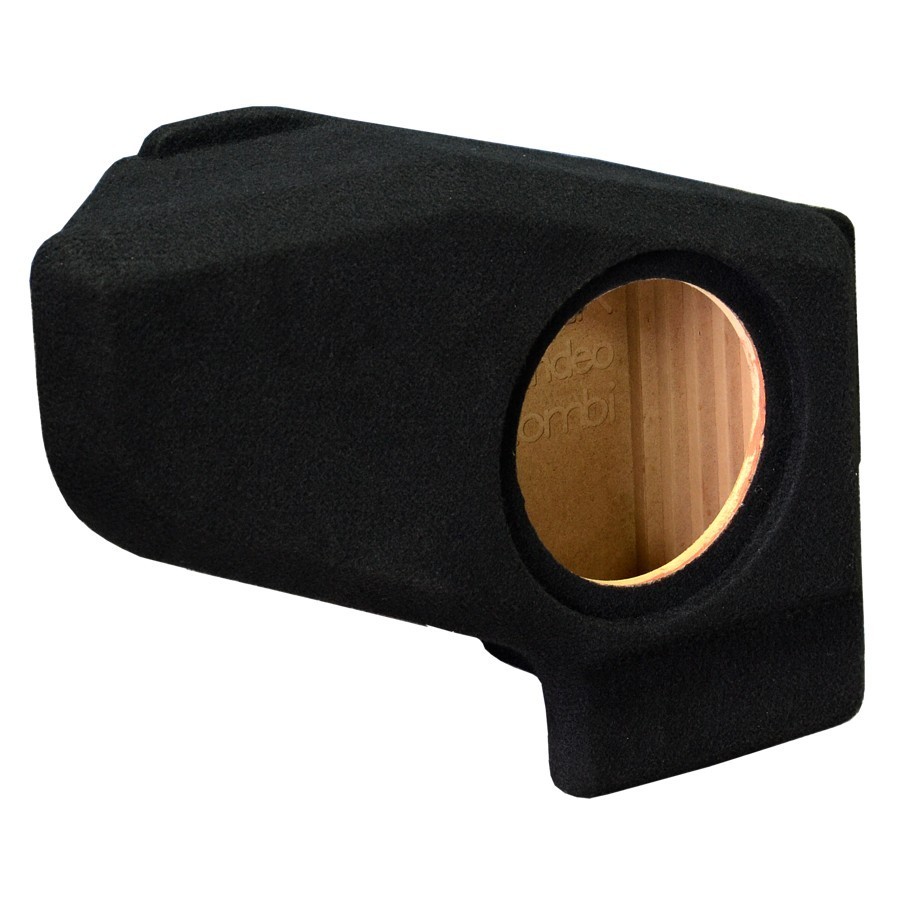

OEM Basser 8" baffle for Ford Mondeo Mk4 Kombi

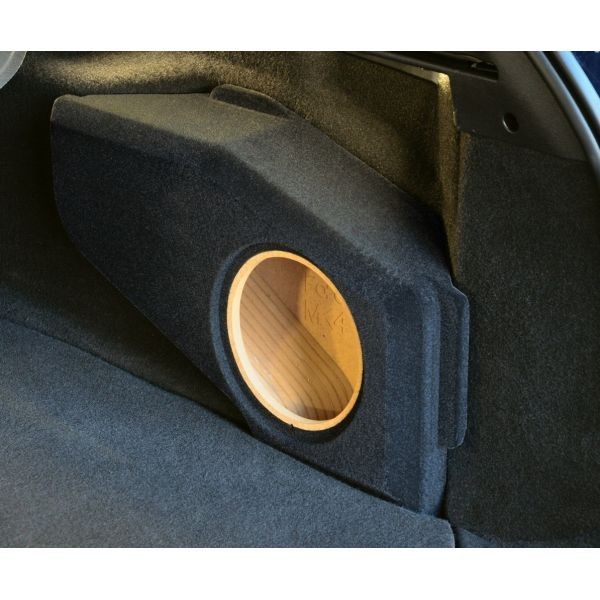

The OEM sound box is a custom-made box that fits exactly in the side of the trunk or in a place that is intended for installation in a hidden place in the vehicle. OEM speakers are the ideal compromise between performance, sound and trunk space. In our offer you can find an extensive selection of OEM boxes for the most common vehicle models. This baffle is made for the Ford Mondeo Mk4 Estate (2007 and newer) . Mounting the OEM box requires moderate skill, it needs to be fixed from the back to one of the handles in the car, or the handle can be made from, for example, MDF or a wooden plate.Technical parameters of the OEM baffle for Ford Mondeo Mk4 Estate
- Type: closed enclosure.
- Volume: 8 l.
- Diameter: for 20 cm (8") subwoofer.
- Location: right wheel arch.
- Installation depth for subwoofer: 120 mm.

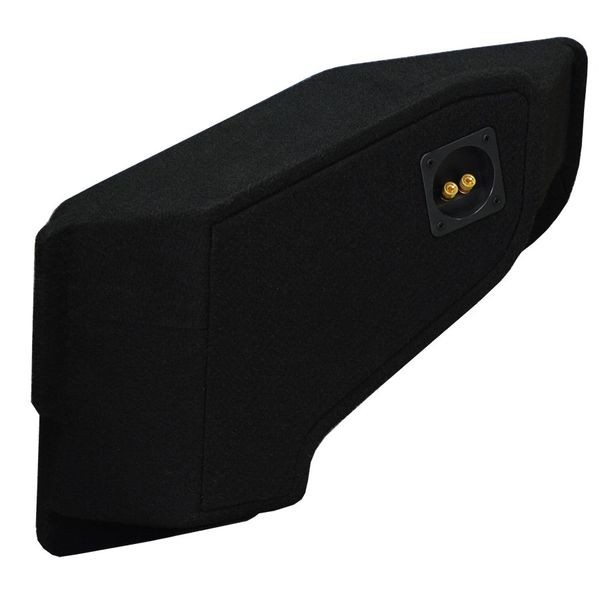

- The enclosure is covered with a black carpet and equipped with a terminal for connecting the cabling.
| Catalog number | OBGL.FORD.05 |
| Brand | Basser |
| Loudspeaker typeEmpty enclosures are most often bass-reflex or closed constructions. | Closed enclosure |
| Subwoofer hole sizeHole for a given subwoofer diameter category. For a 300mm subwoofer, the hole is most often approx. 28.3 cm. The mounting diameters of subwoofers are usually standardized, so there is no need to adjust anything. | 20cm (8") |
| Loudspeaker volumeThe volume of an empty enclosure is usually given as the total volume including the walls of the box. Some manufacturers also state the net volume, i.e. the pure volume of air in the box after subtracting everything else. We then state the net volume in brackets with the description "net". | 8 l |
| What is the baffle made of?Subwoofer enclosures are usually made of 18-22 mm MDF board or pressed chipboard. Due to its higher strength, MDF board is a better material than ordinary chipboard. | MDF |
| Connection terminal typeThe connection terminal is most often from the back of the sound box, but sometimes also from the side. It is mostly a plastic terminal with spring clamps for the speaker cable. | Plastic screw terminal |
| CoverThe vast majority of the enclosure is covered with either black or anthracite carpet. | Carpet |
| Cover colorColored carpet or leather upholstery. | Black |
| Other | Recess 217 mm |
